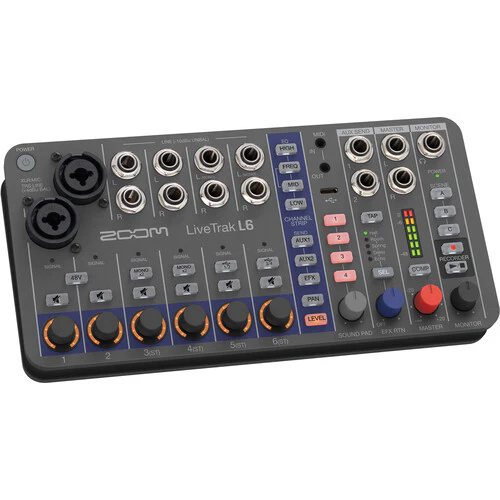

Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder

Product image 1
1 / 3

Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder

Key Features
  • Portable Multitracking Mixer/Recorder
  • 2 XLR-1/4" Mic/Line Inputs with +48V
  • Multitrack Recording via microSD and USB
  • 4 Assignable Sound Pads (Sample Player)
  • Built-In Effects and 3-Band EQ
  • Headphone/Monitor Output
  • Eurorack Compatible
  • 3 Scene Memory
  • Powered via Battery or USB Power Supply



Overview

Designed for keyboard and synth rigs, the Zoom LiveTrak L-6 is a small, portable, battery powered digital mixer and recorder, providing tactile controls and intuitive functionality, so you can start a music recording session in minutes.

The L-6 offers two combo XLR-1/4" mic/line inputs and four stereo pairs of 1/4" line inputs, as well as four sound pads, two aux sends, and five internal send effects. Each channel offers channel strip controls including Level, Pan, Aux 1, Aux 2, and a 3-band EQ with adjustable mid. Whether you record to an SD card, stream via USB to a computer or iOS mobile device, or do both at the same time, the LiveTrak L-6 gives you up to 6 channels (10 inputs) of simultaneous multitrack recording.



Key Specs

Max I/O Capacity
6x Input / 6x Output
Number of Analog Input Channels
6 (2 Mono / 4 Stereo)
Number of Mic Preamps
2
Number of Analog Output Channels
4
Faders & Level Adjustment
6 Channel Knob
Built-In Effects
5x Stereo Effect (Type Unspecified)
Analog Inputs
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
8x 1/4" TS Balanced/Unbalanced Line Input (4 Stereo Pairs)
Analog Outputs
2x 1/4" TRS Balanced/Unbalanced Aux Send
2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
1x 1/4" TRS Unbalanced Stereo Headphone Output
Digital I/O
No
USB I/O
1x USB-C 2.0 (Host Connection)
Wireless
No
Rack Mountable
Yes

Mixer
Max I/O Capacity
6x Input / 6x Output
Number of Analog Input Channels
6 (2 Mono / 4 Stereo)
Number of Mic Preamps
2
Number of Analog Output Channels
4
Mix Routing
2x Mono Aux Send
1x Stereo Main LRC
Presets
3x Scene
Faders & Level Adjustment
6 Channel Knob
Meters
Main Meter:
2x 6-Segment LED

Signal Processing
EQ
3-Band EQ
EQ Parameters
1x HF Shelf:
±15 dB at 10 kHz
1x MF Peak:
±15 dB at 100 Hz to 8 kHz
1x LF Shelf:
±15 dB at 100 Hz
Graphic EQ
No
Solo/Mute
Mute per Input Channel
Built-In Effects
5x Stereo Effect (Type Unspecified)
Audio Delay
No
Automatic Mic Mixing
No

Digital Audio
Sample Rates
48 kHz
Bit Depth
Up to 32-Bit

Performance
Frequency Response
20 Hz to 20 kHz -1 dB
Max Input Level
Combo XLR-1/4" Mic/Line Input:
+4 dB (Mic)
+24 dB (Line)
1/4" TS Line Input:
+9 dB
Headphone Output Power
50 mW per Channel into 63 Ohms (Max)
I/O Impedance
XLR Line/Mic Input:
3.8 Kilohms
1/4" TRS Line Input:
39 Kilohms
1/4" TRS Aux/Main Output:
147 Ohms
1/4" TRS Monitor Output:
14.7 Ohms
Signal Generator
No

Connectivity
Analog Inputs
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
8x 1/4" TS Balanced/Unbalanced Line Input (4 Stereo Pairs)
Analog Outputs
2x 1/4" TRS Balanced/Unbalanced Aux Send
2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
1x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-C 2.0 (Host Connection)
USB I/O Capacity
12x Input / 4x Output
Expansion Ports
No
Wireless
No
External Display I/O
No

Recording
Max Multitrack Recording
12 Tracks
Media Support
SDHC

Power
Input Power
5 VDC

Physical
Rack Mountable
Yes
Dimensions
8.8 x 1.8 x 4.5" / 22.3 x 4.6 x 11.4 cm
Weight
1.3 lb / 0.6 kg


What's in the Box

  • Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder
  • USB Cable
  • Limited 1-Year Manufacturer Warranty
Key Features
  • Portable Multitracking Mixer/Recorder
  • 2 XLR-1/4" Mic/Line Inputs with +48V
  • Multitrack Recording via microSD and USB
  • 4 Assignable Sound Pads (Sample Player)
  • Built-In Effects and 3-Band EQ
  • Headphone/Monitor Output
  • Eurorack Compatible
  • 3 Scene Memory
  • Powered via Battery or USB Power Supply



Overview

Designed for keyboard and synth rigs, the Zoom LiveTrak L-6 is a small, portable, battery powered digital mixer and recorder, providing tactile controls and intuitive functionality, so you can start a music recording session in minutes.

The L-6 offers two combo XLR-1/4" mic/line inputs and four stereo pairs of 1/4" line inputs, as well as four sound pads, two aux sends, and five internal send effects. Each channel offers channel strip controls including Level, Pan, Aux 1, Aux 2, and a 3-band EQ with adjustable mid. Whether you record to an SD card, stream via USB to a computer or iOS mobile device, or do both at the same time, the LiveTrak L-6 gives you up to 6 channels (10 inputs) of simultaneous multitrack recording.



Key Specs

Max I/O Capacity
6x Input / 6x Output
Number of Analog Input Channels
6 (2 Mono / 4 Stereo)
Number of Mic Preamps
2
Number of Analog Output Channels
4
Faders & Level Adjustment
6 Channel Knob
Built-In Effects
5x Stereo Effect (Type Unspecified)
Analog Inputs
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
8x 1/4" TS Balanced/Unbalanced Line Input (4 Stereo Pairs)
Analog Outputs
2x 1/4" TRS Balanced/Unbalanced Aux Send
2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
1x 1/4" TRS Unbalanced Stereo Headphone Output
Digital I/O
No
USB I/O
1x USB-C 2.0 (Host Connection)
Wireless
No
Rack Mountable
Yes

Mixer
Max I/O Capacity
6x Input / 6x Output
Number of Analog Input Channels
6 (2 Mono / 4 Stereo)
Number of Mic Preamps
2
Number of Analog Output Channels
4
Mix Routing
2x Mono Aux Send
1x Stereo Main LRC
Presets
3x Scene
Faders & Level Adjustment
6 Channel Knob
Meters
Main Meter:
2x 6-Segment LED

Signal Processing
EQ
3-Band EQ
EQ Parameters
1x HF Shelf:
±15 dB at 10 kHz
1x MF Peak:
±15 dB at 100 Hz to 8 kHz
1x LF Shelf:
±15 dB at 100 Hz
Graphic EQ
No
Solo/Mute
Mute per Input Channel
Built-In Effects
5x Stereo Effect (Type Unspecified)
Audio Delay
No
Automatic Mic Mixing
No

Digital Audio
Sample Rates
48 kHz
Bit Depth
Up to 32-Bit

Performance
Frequency Response
20 Hz to 20 kHz -1 dB
Max Input Level
Combo XLR-1/4" Mic/Line Input:
+4 dB (Mic)
+24 dB (Line)
1/4" TS Line Input:
+9 dB
Headphone Output Power
50 mW per Channel into 63 Ohms (Max)
I/O Impedance
XLR Line/Mic Input:
3.8 Kilohms
1/4" TRS Line Input:
39 Kilohms
1/4" TRS Aux/Main Output:
147 Ohms
1/4" TRS Monitor Output:
14.7 Ohms
Signal Generator
No

Connectivity
Analog Inputs
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
8x 1/4" TS Balanced/Unbalanced Line Input (4 Stereo Pairs)
Analog Outputs
2x 1/4" TRS Balanced/Unbalanced Aux Send
2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
1x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-C 2.0 (Host Connection)
USB I/O Capacity
12x Input / 4x Output
Expansion Ports
No
Wireless
No
External Display I/O
No

Recording
Max Multitrack Recording
12 Tracks
Media Support
SDHC

Power
Input Power
5 VDC

Physical
Rack Mountable
Yes
Dimensions
8.8 x 1.8 x 4.5" / 22.3 x 4.6 x 11.4 cm
Weight
1.3 lb / 0.6 kg


What's in the Box

  • Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder
  • USB Cable
  • Limited 1-Year Manufacturer Warranty
$109.50

Original: $312.87

-65%
Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder—

$312.87

$109.50
