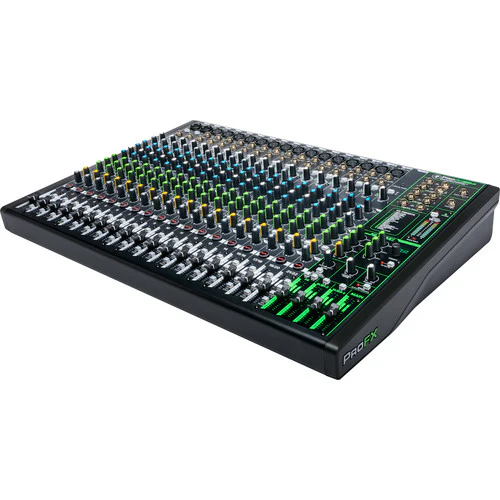

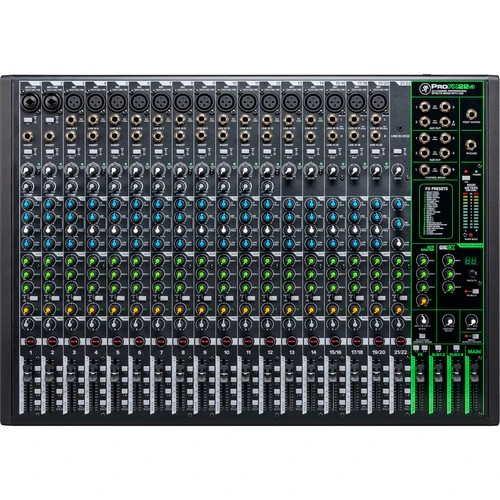

Mackie ProFX22v3 22-Channel Sound Reinforcement Mixer with Built-In FX

Product image 1
1 / 5

Mackie ProFX22v3 22-Channel Sound Reinforcement Mixer with Built-In FX

Key Features
  • 17 Mic Inputs & 14 Mono Mic/Line Inputs
  • Inserts on Channels 1-14, Comp on 1-12
  • 2-In / 4-Out USB (24-Bit, 192 kHz)
  • GigFX Effects Engine (24 FX Presets)
  • Main, Control Room, Subgroup Outputs
  • 17 Onyx Mic Preamps with 48V Phantom
  • 3-Band EQ, Aux Send, FX Send, Pan, Mute
  • Level, FX, Sub 1-2, Sub 3-4, Main Faders
  • Includes IEC Cable

Overview

The Mackie ProFX22v3 is a 22-channel mixing console featuring 17 Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, houses of worship, rehearsal studios, and more. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.

Channels 1-2 offer combo XLR-1/4" mic/line connections and a Hi-Z switch (for guitar and bass), while channels 3-20 offer XLR or 1/4" inputs. Channels 1-12 provide single-knob compressors, while channels 1-14 include inserts. Channels 15/16, 17/18, and 19/20 offer two 1/4" line inputs each (L and R for stereo), while channel 21/22 uses a 3.5mm stereo input. Channels 1-22 feature gain controls, a 3-band EQ, three aux sends for monitors, a dedicated FX send, pan, mute, and level faders. Engaging channel 21/22's USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer.

Each channel strip includes button selectors for Main L/R, Sub 1-2, Sub 3-4, and PFL SOLO. The master section offers dedicated faders for Main, Sub 1-2, Sub 3-4, and FX. Main output connectors include both XLR and 1/4", while sub and control room outputs use 1/4" connectors. A dedicated 1/4" TRS headphone output includes its own independent level control. Other features include an input / USB 1-2 blend control, a dedicated FX output, an FX level fader, and an FX mute, which can also be controlled via the 1/4" footswitch input.

Key Specs

Number of Analog Input Channels
22
Number of Mic Preamps
17
Analog Output Channels
2x Stereo Master Output
1x Stereo Control Room/Monitor Output
2x Stereo Bus/Subgroup Output
3x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Built-In Effects
24x Preset (Factory)
USB I/O
1x USB-B 2.0()
Rack Mountable
No
Mixer
Number of Analog Input Channels
22
Number of Mic Preamps
17
Analog Output Channels
2x Stereo Master Output
1x Stereo Control Room/Monitor Output
2x Stereo Bus/Subgroup Output
3x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Meters
Main Meter:
2x 12-Segment LED
Meter Range
Main Meter:
-30 dB to +15 dB Plus Peak/Clip
Signal Processing
EQ Parameters
Low: ±15 dB at 80 Hz
Mid: ±15 dB at 100 Hz to 8 kHz
High: ±15 dB at 12 kHz
Filters
High-Pass: 100 Hz, 18 dB/Octave
Built-In Effects
24x Preset (Factory)
Digital Audio
Bit Depth
24-Bit
Performance
Frequency Response
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level
+22 dB
Output Level
Main Output:
+28 dBu at Max Gain
All Other Output:
+22 dBu at Max Gain
I/O Impedance
Mic Input:
3.3 Kilohms
Insert Return:
10 Kilohms
Line Input:
≥ 20 Kilohms
Headphone Output:
25 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk
Adjacent Inputs:
-90 dB at 1 kHz
Input to Output:
-80 dB at 1 kHz
Fader Off:
-75 dB at 1 kHz
Muted:
-100 dB at 1 kHz
CMRR
70 dB at Max Gain (1 kHz, Mic In to Main Out)
EIN
-128 dBu at Max Gain (150-Ohm Input)
Noise Floor
All Outputs:
-95 dBu (Master Level at -∞, Channel Levels at -∞)
-85 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N
Mic Input to Main Output:
< 0.01% (+4 dBu)
Connectivity
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
USB I/O
1x USB-B 2.0()
USB I/O Capacity
2x Input / 4x Output
Power
AC Input Power
Universal:
100 to 240 VAC, 50 / 60 Hz
Power Consumption
45 W
Physical
Rack Mountable
No
Dimensions
4.3 x 24.1 x 17.1" / 10.9 x 61.2 x 43.4 cm
Weight
19.8 lb / 9 kg
Packaging Info
Package Weight
24.9 lb
Box Dimensions (LxWxH)
28 x 21.11 x 8.4"

What's in the Box:

  • Mackie ProFX22v3 22-Channel Sound Reinforcement Mixer with Built-In FX
  • USB Cable
  • IEC Cable
  • Limited 1-Year Manufacturer Warranty
Key Features
  • 17 Mic Inputs & 14 Mono Mic/Line Inputs
  • Inserts on Channels 1-14, Comp on 1-12
  • 2-In / 4-Out USB (24-Bit, 192 kHz)
  • GigFX Effects Engine (24 FX Presets)
  • Main, Control Room, Subgroup Outputs
  • 17 Onyx Mic Preamps with 48V Phantom
  • 3-Band EQ, Aux Send, FX Send, Pan, Mute
  • Level, FX, Sub 1-2, Sub 3-4, Main Faders
  • Includes IEC Cable

Overview

The Mackie ProFX22v3 is a 22-channel mixing console featuring 17 Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, houses of worship, rehearsal studios, and more. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.

Channels 1-2 offer combo XLR-1/4" mic/line connections and a Hi-Z switch (for guitar and bass), while channels 3-20 offer XLR or 1/4" inputs. Channels 1-12 provide single-knob compressors, while channels 1-14 include inserts. Channels 15/16, 17/18, and 19/20 offer two 1/4" line inputs each (L and R for stereo), while channel 21/22 uses a 3.5mm stereo input. Channels 1-22 feature gain controls, a 3-band EQ, three aux sends for monitors, a dedicated FX send, pan, mute, and level faders. Engaging channel 21/22's USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer.

Each channel strip includes button selectors for Main L/R, Sub 1-2, Sub 3-4, and PFL SOLO. The master section offers dedicated faders for Main, Sub 1-2, Sub 3-4, and FX. Main output connectors include both XLR and 1/4", while sub and control room outputs use 1/4" connectors. A dedicated 1/4" TRS headphone output includes its own independent level control. Other features include an input / USB 1-2 blend control, a dedicated FX output, an FX level fader, and an FX mute, which can also be controlled via the 1/4" footswitch input.

Key Specs

Number of Analog Input Channels
22
Number of Mic Preamps
17
Analog Output Channels
2x Stereo Master Output
1x Stereo Control Room/Monitor Output
2x Stereo Bus/Subgroup Output
3x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Built-In Effects
24x Preset (Factory)
USB I/O
1x USB-B 2.0()
Rack Mountable
No
Mixer
Number of Analog Input Channels
22
Number of Mic Preamps
17
Analog Output Channels
2x Stereo Master Output
1x Stereo Control Room/Monitor Output
2x Stereo Bus/Subgroup Output
3x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Meters
Main Meter:
2x 12-Segment LED
Meter Range
Main Meter:
-30 dB to +15 dB Plus Peak/Clip
Signal Processing
EQ Parameters
Low: ±15 dB at 80 Hz
Mid: ±15 dB at 100 Hz to 8 kHz
High: ±15 dB at 12 kHz
Filters
High-Pass: 100 Hz, 18 dB/Octave
Built-In Effects
24x Preset (Factory)
Digital Audio
Bit Depth
24-Bit
Performance
Frequency Response
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level
+22 dB
Output Level
Main Output:
+28 dBu at Max Gain
All Other Output:
+22 dBu at Max Gain
I/O Impedance
Mic Input:
3.3 Kilohms
Insert Return:
10 Kilohms
Line Input:
≥ 20 Kilohms
Headphone Output:
25 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk
Adjacent Inputs:
-90 dB at 1 kHz
Input to Output:
-80 dB at 1 kHz
Fader Off:
-75 dB at 1 kHz
Muted:
-100 dB at 1 kHz
CMRR
70 dB at Max Gain (1 kHz, Mic In to Main Out)
EIN
-128 dBu at Max Gain (150-Ohm Input)
Noise Floor
All Outputs:
-95 dBu (Master Level at -∞, Channel Levels at -∞)
-85 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N
Mic Input to Main Output:
< 0.01% (+4 dBu)
Connectivity
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
USB I/O
1x USB-B 2.0()
USB I/O Capacity
2x Input / 4x Output
Power
AC Input Power
Universal:
100 to 240 VAC, 50 / 60 Hz
Power Consumption
45 W
Physical
Rack Mountable
No
Dimensions
4.3 x 24.1 x 17.1" / 10.9 x 61.2 x 43.4 cm
Weight
19.8 lb / 9 kg
Packaging Info
Package Weight
24.9 lb
Box Dimensions (LxWxH)
28 x 21.11 x 8.4"

What's in the Box:

  • Mackie ProFX22v3 22-Channel Sound Reinforcement Mixer with Built-In FX
  • USB Cable
  • IEC Cable
  • Limited 1-Year Manufacturer Warranty
$343.00

Original: $979.99

-65%
Mackie ProFX22v3 22-Channel Sound Reinforcement Mixer with Built-In FX—

$979.99

$343.00
