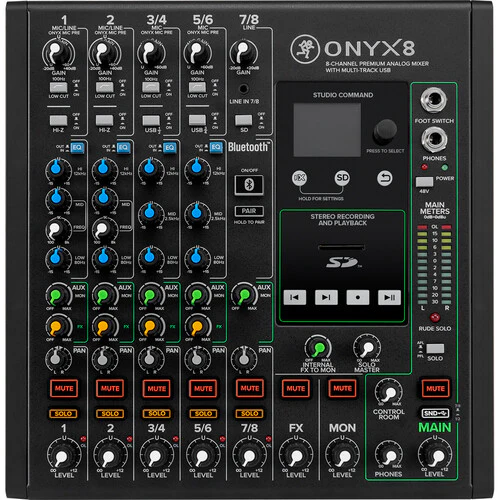

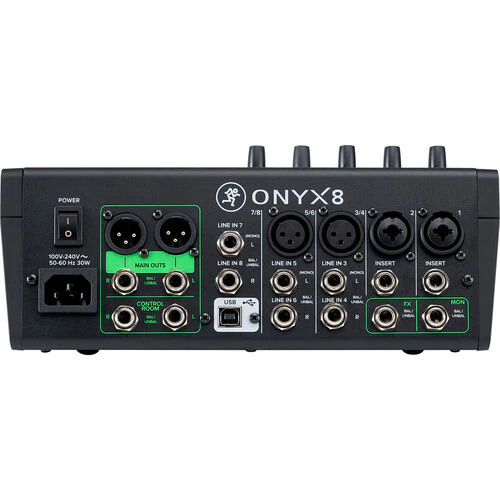

Mackie Onyx8 8-Channel Premium Analog Mixer with Multitrack USB

Product image 1
1 / 4

Mackie Onyx8 8-Channel Premium Analog Mixer with Multitrack USB

Key Features
  • 4 x Onyx Preamps
  • British-Style Perkins 3-Band EQ
  • Premium Analog Circuitry
  • Ultralow-Noise Design
  • Record & Playback to/from Mac/PC via USB
  • Studio Command Full-Color Display
  • Robust Digital Effects Engine
  • Dedicated Control Room Output
  • 12-Segment Stereo Meters
  • Includes Powerful Software and Plug-Ins

Overview

Musicians, artists, engineers, and broadcast studios looking for a professional-quality compact mixing solution for live audio, home recording, and content creation should look no further than the Mackie Onyx8, a 8-channel mixer with 24-bit / 96 kHz 8x4 multitrack recording and high-gain Onyx preamps.

The Onyx8 is packed with features including British-style Perkins EQ, powerful DSP effects, a full-color display, and integrated stereo recording and playback from an SD card. The mixer provides an end-to-end ultralow-noise design, which delivers the sound quality professionals demand.

Key Specs

Number of Analog Input Channels
8 (4 Mono / 3 Stereo)
Number of Mic Preamps
4
Analog Output Channels
2x Stereo Master Output
2x Stereo Control Room/Monitor Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Mix Routing
1x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
EQ
3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak
Built-In Effects
Yes
USB I/O
1x USB-B (Audio Playback, Host Connection, Recording)
Max Multitrack Recording
8 Tracks
Rack Mountable
No
Mixer
Number of Analog Input Channels
8 (4 Mono / 3 Stereo)
Number of Mic Preamps
4
Analog Output Channels
2x Stereo Master Output
2x Stereo Control Room/Monitor Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Mix Routing
1x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
Faders & Level Adjustment
No
Meters
Main Meter:
2x 12-Segment LED
Meter Range
Main Meter:
-30 dB to +20 dB Peak/Clip
Gain/Trim Range
60 dB
Dynamic Processing
No
Sidechain Filters
No
EQ
3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak
EQ Parameters
Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 100 Hz to 5 kHz
Low: ±15 dB at 80 Hz
Stereo Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 2.5 kHz
Low: ±15 dB at 80 Hz
Filters
Input Channels:
1x High-Pass: 100 Hz
Solo/Mute
Solo per Input Channel
Mute per Input Channel, Bus, FX Bus, Master
Built-In Effects
Yes
Digital Audio
Sample Rates
96 kHz
Bit Depth
24-Bit
Connectivity
Analog Inputs
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x XLR 3-Pin Balanced Mic Input
6x 1/4" TRS Balanced/Unbalanced Line Input
2x 1/4" TRS Unbalanced Line Insert
2x 1/4" TRS Balanced/Unbalanced Hi-Z Input
6x 1/4" TRS Balanced/Unbalanced Stereo Line Input (3 Stereo Pairs)
1x 1/4" TRS Footswitch Input
Analog Outputs
2x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Stereo Control Room Output (1 Stereo Pair)
1x 1/4" TRS Balanced/Unbalanced Mono Aux/Monitor Output
1x 1/4" TRS Balanced/Unbalanced FX Send
Phantom Power
+48 V (on 4 Channels)
USB I/O
1x USB-B (Audio Playback, Host Connection, Recording)
Recording
Max Multitrack Recording
8 Tracks
Media Support
SD
Power
AC Power I/O
1x IEC Input
Power Consumption
30 W
Physical
Rack Mountable
No
Dimensions
10.5 x 11 x 4.5" / 26.7 x 27.9 x 11.4 cm
Weight
7 lb / 3.2 kg
Packaging Info
Package Weight
9.745 lb
Box Dimensions (LxWxH)
15.1 x 14.9 x 7.5"

What's in the Box:

  • Mackie Onyx8 8-Channel Premium Analog Mixer with Multitrack USB
  • Power Cord
  • Limited 1-Year Manufacturer Warranty
Key Features
  • 4 x Onyx Preamps
  • British-Style Perkins 3-Band EQ
  • Premium Analog Circuitry
  • Ultralow-Noise Design
  • Record & Playback to/from Mac/PC via USB
  • Studio Command Full-Color Display
  • Robust Digital Effects Engine
  • Dedicated Control Room Output
  • 12-Segment Stereo Meters
  • Includes Powerful Software and Plug-Ins

Overview

Musicians, artists, engineers, and broadcast studios looking for a professional-quality compact mixing solution for live audio, home recording, and content creation should look no further than the Mackie Onyx8, a 8-channel mixer with 24-bit / 96 kHz 8x4 multitrack recording and high-gain Onyx preamps.

The Onyx8 is packed with features including British-style Perkins EQ, powerful DSP effects, a full-color display, and integrated stereo recording and playback from an SD card. The mixer provides an end-to-end ultralow-noise design, which delivers the sound quality professionals demand.

Key Specs

Number of Analog Input Channels
8 (4 Mono / 3 Stereo)
Number of Mic Preamps
4
Analog Output Channels
2x Stereo Master Output
2x Stereo Control Room/Monitor Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Mix Routing
1x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
EQ
3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak
Built-In Effects
Yes
USB I/O
1x USB-B (Audio Playback, Host Connection, Recording)
Max Multitrack Recording
8 Tracks
Rack Mountable
No
Mixer
Number of Analog Input Channels
8 (4 Mono / 3 Stereo)
Number of Mic Preamps
4
Analog Output Channels
2x Stereo Master Output
2x Stereo Control Room/Monitor Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Mix Routing
1x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
Faders & Level Adjustment
No
Meters
Main Meter:
2x 12-Segment LED
Meter Range
Main Meter:
-30 dB to +20 dB Peak/Clip
Gain/Trim Range
60 dB
Dynamic Processing
No
Sidechain Filters
No
EQ
3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak
EQ Parameters
Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 100 Hz to 5 kHz
Low: ±15 dB at 80 Hz
Stereo Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 2.5 kHz
Low: ±15 dB at 80 Hz
Filters
Input Channels:
1x High-Pass: 100 Hz
Solo/Mute
Solo per Input Channel
Mute per Input Channel, Bus, FX Bus, Master
Built-In Effects
Yes
Digital Audio
Sample Rates
96 kHz
Bit Depth
24-Bit
Connectivity
Analog Inputs
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x XLR 3-Pin Balanced Mic Input
6x 1/4" TRS Balanced/Unbalanced Line Input
2x 1/4" TRS Unbalanced Line Insert
2x 1/4" TRS Balanced/Unbalanced Hi-Z Input
6x 1/4" TRS Balanced/Unbalanced Stereo Line Input (3 Stereo Pairs)
1x 1/4" TRS Footswitch Input
Analog Outputs
2x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Stereo Control Room Output (1 Stereo Pair)
1x 1/4" TRS Balanced/Unbalanced Mono Aux/Monitor Output
1x 1/4" TRS Balanced/Unbalanced FX Send
Phantom Power
+48 V (on 4 Channels)
USB I/O
1x USB-B (Audio Playback, Host Connection, Recording)
Recording
Max Multitrack Recording
8 Tracks
Media Support
SD
Power
AC Power I/O
1x IEC Input
Power Consumption
30 W
Physical
Rack Mountable
No
Dimensions
10.5 x 11 x 4.5" / 26.7 x 27.9 x 11.4 cm
Weight
7 lb / 3.2 kg
Packaging Info
Package Weight
9.745 lb
Box Dimensions (LxWxH)
15.1 x 14.9 x 7.5"

What's in the Box:

  • Mackie Onyx8 8-Channel Premium Analog Mixer with Multitrack USB
  • Power Cord
  • Limited 1-Year Manufacturer Warranty
$626.00
Mackie Onyx8 8-Channel Premium Analog Mixer with Multitrack USB—
$626.00
