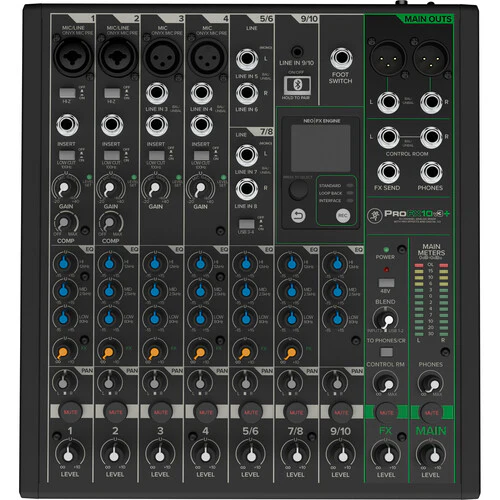

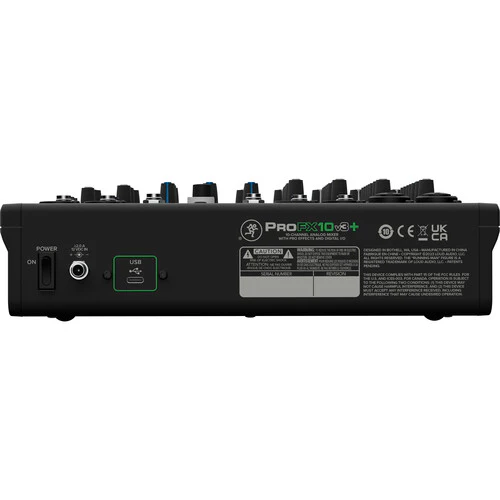

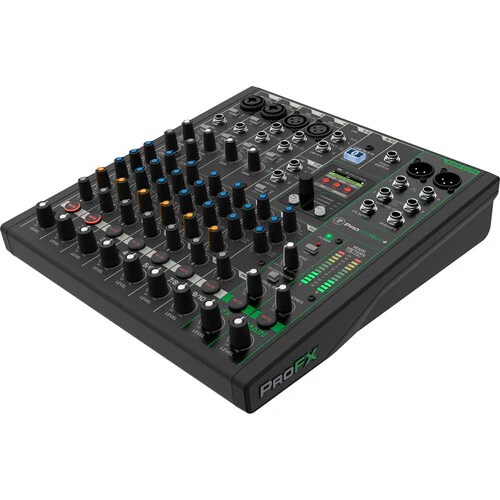

Mackie ProFX10v3+ 10-Channel Analog Mixer with Built-In FX, USB Recording, and Bluetooth

Product image 1
1 / 5

Mackie ProFX10v3+ 10-Channel Analog Mixer with Built-In FX, USB Recording, and Bluetooth

Key Features
  • High-Resolution GigFX+ Effects Engine
  • 24-Bit / 192 kHz 2x4 USB Audio Interface
  • 3-Ways to Record
  • Bidirectional Bluetooth with Mix-Minus
  • Four Onyx Preamps with 60 dB of Gain
  • 3-Band EQ on All Channels
  • One-Knob Compression on Channels 1 and 2
  • Hi-Z Switch for Instruments
  • 100 Hz Low-Cut Filter, 48V on All Mics
  • Includes Waveform OEM Recording Software

Overview

Well suited for live sound, home recording, and content creators, the Mackie ProFX10v3+ is a 10-channel professional analog mixer with powerful enhancements for studio-quality recordings and live streams. Capture your performance with Onyx preamps and channel EQ, add computer audio via loopback, bring in calls via Bluetooth, and enhance your sound with upgraded GigFX+ effects on a color LCD screen.

All channels feature 3-band EQ, a level control knob, a pan knob, and FX sends. Channels 1-4 features Onyx microphone preamps with 60 dB of headroom, channel inserts, and a low-cut filter, while channels 1&2 feature 1-knob compression and Hi-Z inputs for instruments. Edit FX parameters on a full-color screen. The three recording modes (Standard Stereo, Channel 1&2 Direct, and Loopback) provide a ton of flexibility when live streaming or recording directly to a computer. The ProFX10v3+ includes a USB cable and Waveform OEM recording software.

Key Specs

Number of Analog Input Channels
10
Number of Mic Preamps
4
Analog Output Channels
2x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono FX Send Output
1x Stereo Headphone Output
EQ
No
Built-In Effects
24x Preset (Factory)
USB I/O
1x USB-B 2.0 (2-Track Record, Audio Streaming, Host Connection)
Wireless
Bluetooth
*Built-In
Max Multitrack Recording
2 Tracks
Rack Mountable
No
Number of Mic Preamps
4
Analog Output Channels
2x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono FX Send Output
1x Stereo Headphone Output
Meters
Main Meter:
2x 12-Segment LED
Meter Range
Main Meter:
-30 dB to +15 dB Plus Peak/Clip
Sidechain Filters
No
EQ
No
EQ Parameters
Low: ±15 dB at 80 Hz
Mid: ±15 dB at 2.5 kHz
High: ±15 dB at 12 kHz
Filters
High-Pass: 100 Hz, 18 dB/Octave
Built-In Effects
24x Preset (Factory)
Bit Depth
24-Bit
Frequency Response
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level
+22 dB
Output Level
Main Output:
+28 dBu at Max Gain
All Other Output:
+22 dBu at Max Gain
I/O Impedance
Mic Input:
3.3 Kilohms
Insert Return:
10 Kilohms
Line Input:
≥ 20 Kilohms
Headphone Output:
25 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk
Adjacent Inputs:
-90 dB at 1 kHz
Input to Output:
-80 dB at 1 kHz
Fader Off:
-75 dB at 1 kHz
Muted:
-90 dB at 1 kHz
CMRR
70 dB at Max Gain (1 kHz, Mic In to Main Out)
EIN
-126 dBu at Max Gain (150-Ohm Input)
Noise Floor
All Outputs:
-95 dBu (Master Level at -∞, Channel Levels at -∞)
-80 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N
Mic Input to Main Output:
< 0.03% (+4 dBu)
Connectivity
Analog Inputs
2x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input
2x XLR 3-Pin Balanced Mic Input
6x 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)
4x 1/4" TRS Insert Insert
1x 1/8" / 3.5 mm TRS Unbalanced Stereo Line Input
Analog Outputs
2x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Main Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Control Room Output (1 Stereo Pair)
1x 1/4" TRS Balanced/Unbalanced FX Send
1x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-B 2.0 (2-Track Record, Audio Streaming, Host Connection)
USB I/O Capacity
2x Input / 4x Output
Other I/O
1x 1/4" Footswitch Input
Wireless
Bluetooth
*Built-In
Mobile App Compatible
No
Recording
Max Multitrack Recording
2 Tracks
Power
AC Input Power
Universal:
100 to 240 VAC, 50 / 60 Hz
Power Supply Output
12 VDC at 2 A
Physical
Rack Mountable
No
Dimensions
3.2 x 10.7 x 11.9" / 8.1 x 27.1 x 30.2 cm
Weight
4.9 lb / 2.2 kg
Packaging Info
Package Weight
6.425 lb
Box Dimensions (LxWxH)
14.9 x 12.9 x 4.2"

What's in the Box:

  • Mackie ProFX10v3+ 10-Channel Analog Mixer with Built-In FX, USB Recording, and Bluetooth
  • USB-C Cable
  • Power Supply
  • Waveform OEM Download
  • Limited 1-Year Manufacturer Warranty
Key Features
  • High-Resolution GigFX+ Effects Engine
  • 24-Bit / 192 kHz 2x4 USB Audio Interface
  • 3-Ways to Record
  • Bidirectional Bluetooth with Mix-Minus
  • Four Onyx Preamps with 60 dB of Gain
  • 3-Band EQ on All Channels
  • One-Knob Compression on Channels 1 and 2
  • Hi-Z Switch for Instruments
  • 100 Hz Low-Cut Filter, 48V on All Mics
  • Includes Waveform OEM Recording Software

Overview

Well suited for live sound, home recording, and content creators, the Mackie ProFX10v3+ is a 10-channel professional analog mixer with powerful enhancements for studio-quality recordings and live streams. Capture your performance with Onyx preamps and channel EQ, add computer audio via loopback, bring in calls via Bluetooth, and enhance your sound with upgraded GigFX+ effects on a color LCD screen.

All channels feature 3-band EQ, a level control knob, a pan knob, and FX sends. Channels 1-4 features Onyx microphone preamps with 60 dB of headroom, channel inserts, and a low-cut filter, while channels 1&2 feature 1-knob compression and Hi-Z inputs for instruments. Edit FX parameters on a full-color screen. The three recording modes (Standard Stereo, Channel 1&2 Direct, and Loopback) provide a ton of flexibility when live streaming or recording directly to a computer. The ProFX10v3+ includes a USB cable and Waveform OEM recording software.

Key Specs

Number of Analog Input Channels
10
Number of Mic Preamps
4
Analog Output Channels
2x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono FX Send Output
1x Stereo Headphone Output
EQ
No
Built-In Effects
24x Preset (Factory)
USB I/O
1x USB-B 2.0 (2-Track Record, Audio Streaming, Host Connection)
Wireless
Bluetooth
*Built-In
Max Multitrack Recording
2 Tracks
Rack Mountable
No
Number of Mic Preamps
4
Analog Output Channels
2x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono FX Send Output
1x Stereo Headphone Output
Meters
Main Meter:
2x 12-Segment LED
Meter Range
Main Meter:
-30 dB to +15 dB Plus Peak/Clip
Sidechain Filters
No
EQ
No
EQ Parameters
Low: ±15 dB at 80 Hz
Mid: ±15 dB at 2.5 kHz
High: ±15 dB at 12 kHz
Filters
High-Pass: 100 Hz, 18 dB/Octave
Built-In Effects
24x Preset (Factory)
Bit Depth
24-Bit
Frequency Response
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level
+22 dB
Output Level
Main Output:
+28 dBu at Max Gain
All Other Output:
+22 dBu at Max Gain
I/O Impedance
Mic Input:
3.3 Kilohms
Insert Return:
10 Kilohms
Line Input:
≥ 20 Kilohms
Headphone Output:
25 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk
Adjacent Inputs:
-90 dB at 1 kHz
Input to Output:
-80 dB at 1 kHz
Fader Off:
-75 dB at 1 kHz
Muted:
-90 dB at 1 kHz
CMRR
70 dB at Max Gain (1 kHz, Mic In to Main Out)
EIN
-126 dBu at Max Gain (150-Ohm Input)
Noise Floor
All Outputs:
-95 dBu (Master Level at -∞, Channel Levels at -∞)
-80 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N
Mic Input to Main Output:
< 0.03% (+4 dBu)
Connectivity
Analog Inputs
2x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input
2x XLR 3-Pin Balanced Mic Input
6x 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)
4x 1/4" TRS Insert Insert
1x 1/8" / 3.5 mm TRS Unbalanced Stereo Line Input
Analog Outputs
2x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Main Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Control Room Output (1 Stereo Pair)
1x 1/4" TRS Balanced/Unbalanced FX Send
1x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-B 2.0 (2-Track Record, Audio Streaming, Host Connection)
USB I/O Capacity
2x Input / 4x Output
Other I/O
1x 1/4" Footswitch Input
Wireless
Bluetooth
*Built-In
Mobile App Compatible
No
Recording
Max Multitrack Recording
2 Tracks
Power
AC Input Power
Universal:
100 to 240 VAC, 50 / 60 Hz
Power Supply Output
12 VDC at 2 A
Physical
Rack Mountable
No
Dimensions
3.2 x 10.7 x 11.9" / 8.1 x 27.1 x 30.2 cm
Weight
4.9 lb / 2.2 kg
Packaging Info
Package Weight
6.425 lb
Box Dimensions (LxWxH)
14.9 x 12.9 x 4.2"

What's in the Box:

  • Mackie ProFX10v3+ 10-Channel Analog Mixer with Built-In FX, USB Recording, and Bluetooth
  • USB-C Cable
  • Power Supply
  • Waveform OEM Download
  • Limited 1-Year Manufacturer Warranty
$147.62

Original: $421.78

-65%
Mackie ProFX10v3+ 10-Channel Analog Mixer with Built-In FX, USB Recording, and Bluetooth—

$421.78

$147.62
