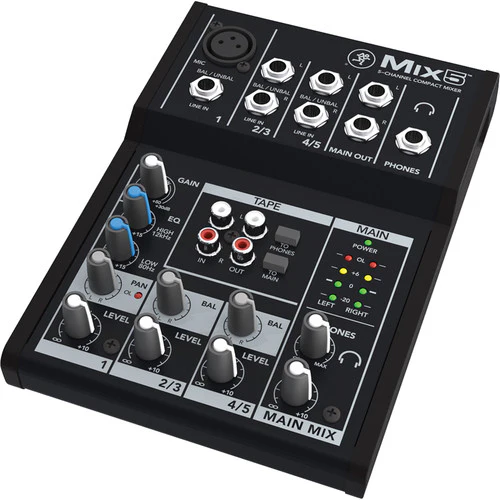

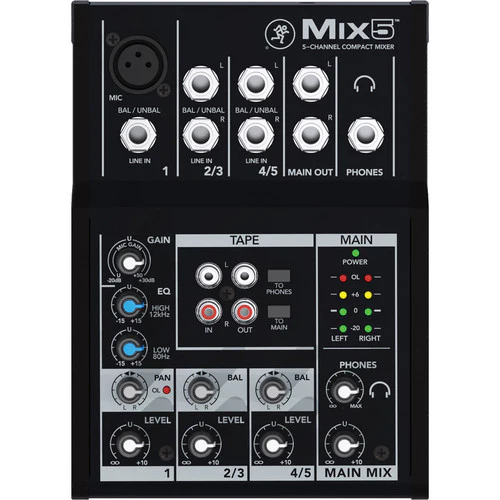

The Mackie Mix5 is a 5-channel compact mixer that features high-quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features one mic/line input, two stereo 1/4" line inputs, and is capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.
The mic/line input is equipped with XLR and 1/4" connectors, phantom power, a 2-band EQ, pan, level control and an LED overload indicator. Each of the two stereo 1/4" line inputs features a 3-band EQ, balance control, level control, and an LED overload indicator.
Key Specs
| Number of Analog Input Channels |
5 (1 Mono / 2 Stereo)
|
| Number of Mic Preamps |
1
|
| Analog Output Channels |
1x Stereo Master Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
|
| Mix Routing |
Stereo Main Mix
|
| EQ |
2-Band EQ
|
| Built-In Effects |
No
|
| Wireless |
No
|
| Rack Mountable |
No
|
Mixer
| Number of Analog Input Channels |
5 (1 Mono / 2 Stereo)
|
| Number of Mic Preamps |
1
|
| Analog Output Channels |
1x Stereo Master Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
|
| Mix Routing |
Stereo Main Mix
|
| Faders & Level Adjustment |
3x Channel Knob
1x Master Knob
|
| Meters |
2x 4-Segment LED
|
Signal Processing
| Dynamic Processing |
No
|
| Sidechain Filters |
No
|
| EQ |
2-Band EQ
|
| EQ Parameters |
High: ±15 dB at 12 kHz (Shelving)
Low: ±15 dB at 80 Hz (Shelving)
|
| Graphic EQ |
No
|
| Solo/Mute |
No
|
| Built-In Effects |
No
|
Performance
| Frequency Response |
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
|
| Max Input Level |
XLR Mic Input:
+19 dBu
Aux Return:
+16 dBu
Line Input:
+21 dBu
|
| I/O Impedance |
Mic Input:
2 Kilohms
Line Input:
≥ 10 Kilohms
Tape Output:
1 Kilohms
Headphone Output:
22 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
|
| Crosstalk |
Input to Output:
-85 dB at 1 kHz (20 Hz to 20 kHz)
Master Fader Off:
-75 dB at 1 kHz
|
| CMRR |
> -70 dB at Max Gain (1 kHz, Mic In to Insert Send Out)
|
| EIN |
-125 dBu at Max Gain
|
| Noise Floor |
All Outputs:
-100 dBu (Master Level at -∞, Channel Levels at -∞)
-90 dBu (Master Level at Unity, Channel Levels at -∞)
-85 dBu (Master Level at Unity, One Channel Level at Unity)
|
| THD+N |
Mic Input to Main Output:
< 0.25% (+4 dBu)
|
Connectivity
| Analog Inputs |
1x XLR 3-Pin Balanced Mic Input
1x 1/4" TRS Balanced/Unbalanced Line Input
4x 1/4" TRS Balanced/Unbalanced Stereo Line Input (2 Stereo Pairs)
1x Stereo RCA Coaxial Unbalanced Stereo Tape Input (1 Stereo Pair)
|
| Analog Outputs |
2x 1/4" Stereo Main Output (1 Stereo Pair)
1x 1/4" TRS Stereo Headphone Output
1x RCA Coaxial Unbalanced Stereo Tape Output (1 Stereo Pair)
|
| Phantom Power |
No
|
| Digital I/O |
No
|
| Wireless |
No
|
Power
| AC Input Power |
120 VAC, 60 Hz
230 VAC, 50 / 60 Hz
|
| Power Supply Output |
18 VAC at 1000 mA
|
Physical
| Rack Mountable |
No
|
| Dimensions |
1.7 x 5.5 x 7.7" / 43 x 140 x 196 mm
|
| Weight |
1.4 lb / 0.6 kg
|
Packaging Info
| Package Weight |
2.045 lb
|
| Box Dimensions (LxWxH) |
11.4 x 7 x 3.3"
|
What's in the Box:
- Mackie Mix5 - 5-Channel Compact Mixer
- Power Cord
-
Limited 1-Year Manufacturer Warranty
