Key Features

Metro: Live Remote Mixing Over Internet

33 Touch-Sensitive Motorized Faders

32 XMAX Preamps via XLR-1/4" Combo Jacks

16 Analog FlexMix Outs via XLR Jacks

Overview

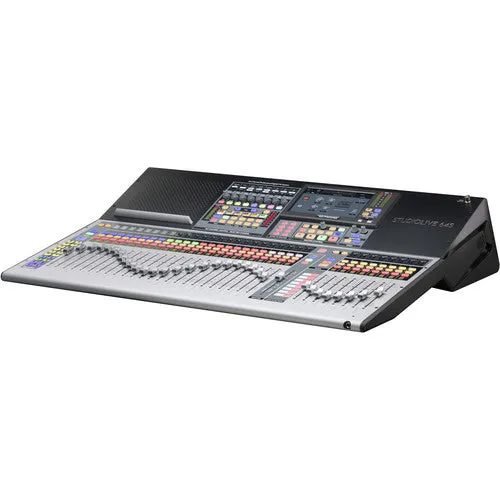

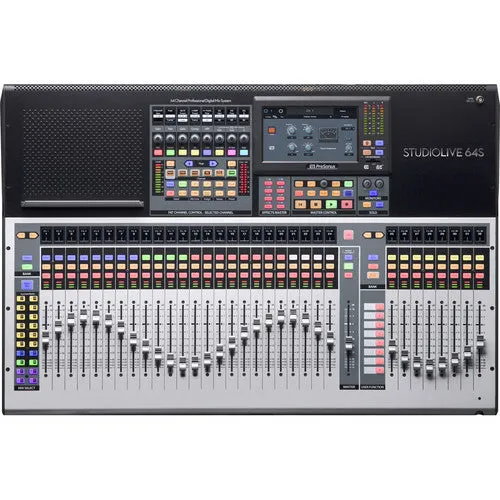

The StudioLive 64S is a 64-channel mixer that brings the power of a large-format console to small-format digital mixing. Powered by the quad-core PreSonus FLEX DSP Engine, the StudioLive 64S digital mixer is equipped with 76 mixing channels, 43 mix buses, and 526 simultaneous processors. The mixer features an integrated hardware and software system with a full-color touchscreen, 33 touch-sensitive, motorized faders and 32 recallable XMAX preamps. The powerful quad-core FLEX DSP engine supercharges the mixer with Fat Channel vintage-style EQs and compressors on every channel, plus an eight-slot FLEX FX processor that can run heralded digital reverbs and delays. Streamline your workflow with recallable scene presets, virtual sound check, and the supplied software library, which empowers you with remote control from a computer or iPad, remote monitor mixing using a mobile device, and all the software you need to track, edit, mix, and distribute your music.

Key Specs

Number of Analog Input Channels	64
Number of Mic Preamps	32
Faders & Level Adjustment	33 Fader
Analog Inputs	1x Stereo RCA Tape Input (1 Stereo Pair) 1x XLR Talkback Input 32x Combo XLR-1/4" TRS Mic/Line Input 4x 1/4" TRS Aux Return (2 Stereo Pairs)
Analog Outputs	1x Stereo RCA Tape Output (1 Stereo Pair) 16x XLR 3-Pin Subgroup/Aux/Matrix Output 2x XLR 3-Pin Main Output 1x XLR 3-Pin Mono Output 2x 1/4" TRS Monitor Output 1x 1/4" TRS Headphone Output
Digital I/O	1x RJ45 (Control, 1 Gb/s) 1x RJ45 AVB (I/O) 1x XLR AES3 Output
USB I/O	1x USB-B 2.0()
Wireless	Bluetooth 4.1
Rack Mountable	No
