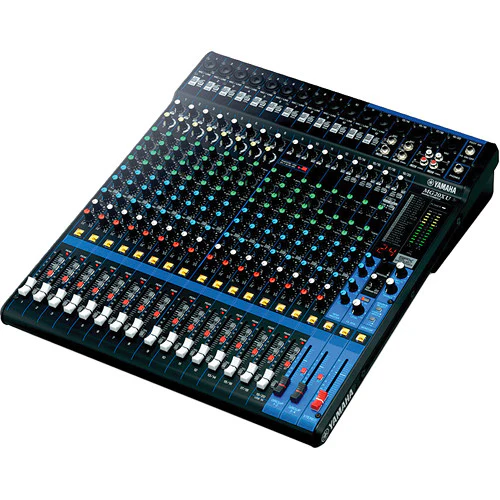

Product image 1
1 / 4

Yamaha MG20XU 20-Input Mixer with Built-In FX & 2-In/2-Out USB Interface

Key Features
  • 16 Mic / 20 Line Inputs
  • 12 Mono + 4 Stereo Inputs
  • D-PRE Mic Preamps
  • 4 Group Buses + 1 Stereo Bus
  • 4 Aux Including FX
  • High-Quality SPX Effects, 24 Programs
  • 1-Knob Compressors
  • 24-Bit / 192 kHz USB Audio Interface
  • Rackmount Kit Included
  • Includes Power Cord

Overview

The Yamaha MG20XU is a compact mixer capable of 20 simultaneous inputs and is ideal for live performances, recordings, lectures, and more. The mixer features 12 mono mic/line combo input channels, and 4 stereo line input channels that can also be used as mono mic or line inputs. It also features USB connectivity and is capable of providing 2 channels in and 2 channels out to your computer at up to 24-bit / 192 kHz, ideal for recording live performances, demos, and more.

Channels 1-20 are each equipped with D-PRE mic preamps, 3-band EQ, pan control, and a high-pass filter, and channels 1-12 feature a sweepable midrange control. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-12 also feature 26 dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums, and there is a one-knob compressor on channels 1-8 to smooth out the dynamics of vocals and instruments to help them sit better in your mix.

The MG20XU mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers, or devices such as digital recorders.

Each of the MG20XU's channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion, and more, these effects can be used to help vocals and instruments sit better in your mix. The MG20XU ships with a rackmount kit and a power cord.



Key Specs

Number of Analog Input Channels
20 (16 Mono / 4 Stereo)
Number of Mic Preamps
16
Analog Output Channels
4x Stereo Master Output
2x Stereo Control Room/Monitor Output
4x Mono Aux Send Output
4x Mono Bus/Subgroup Output
Mix Routing
Stereo Aux Bus/Subgroup
EQ
Input Channels:
3-Band EQ (Mono Channels)
Built-In Effects
Yes
USB I/O
1x USB-B 2.0 (2-Track Record, Audio Playback, Host Connection)
Rack Mountable
Yes
Mixer
Max I/O Capacity
20x Input / 12x Output
Number of Analog Input Channels
20 (16 Mono / 4 Stereo)
Number of Mic Preamps
16
Analog Output Channels
4x Stereo Master Output
2x Stereo Control Room/Monitor Output
4x Mono Aux Send Output
4x Mono Bus/Subgroup Output
Mix Routing
Stereo Aux Bus/Subgroup
Faders & Level Adjustment
16x Channel Fader
2x Bus/Subgroup Fader
1x Master Fader
Meters
Main Meter:
2x 12-Segment LED
Signal Processing
Gain/Trim Range
Line:
-6 dB to +38 dB
Mic:
+20 dB to +64 dB
Input Pad
-26 dB
Dynamic Processing
Input Channels:
Compressor
EQ
Input Channels:
3-Band EQ (Mono Channels)
EQ Parameters
Mono Channels:
High: ±15 dB at 10 kHz (Shelving)
Mid: ±15 dB at 250 Hz to 5 kHz (Semi-Parametric)
Low: ±15 dB at 100 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 10 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Bell)
Low: ±15 dB at 100 Hz (Shelving)
Graphic EQ
No
Filters
Mono Channels:
16x High-Pass: 80 Hz
Solo/Mute
Mute per Input Channel, Bus, FX Bus, Master
Built-In Effects
Yes
Digital Audio
Sample Rates
Up to 192 kHz
Bit Depth
Up to 24-Bit
Performance
Frequency Response
20 Hz to 48 kHz +0.5/-1.5 dB
Noise Floor
-102 dBu (Residual Output Noise, Stereo Out)
THD
0.03% at Min Gain (+14 dBu, 20 Hz to 20 kHz)
0.005% at Min Gain (+24 dBu, 1 kHz)
Connectivity
Analog Inputs
12x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input
4x XLR 3-Pin Balanced Mic Input
4x 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)
2x Stereo RCA TS Unbalanced Line Input (2 Stereo Pairs)
1x 1/4" TS Footswitch Input
Analog Outputs
2x XLR 3-Pin Balanced Stereo Main Output
2x 1/4" TRS Balanced/Unbalanced Stereo Main Output
2x 1/4" TRS Balanced Stereo Control Room Output
4x 1/4" TRS Balanced/Unbalanced Aux Send
4x 1/4" TRS Balanced/Unbalanced Bus Output
1x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-B 2.0 (2-Track Record, Audio Playback, Host Connection)
USB I/O Capacity
2x Input / 2x Output
Mobile App Compatible
No
Compatibility
OS Compatibility
macOS / Windows
OS Compatibility
macOS
Windows
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable
Yes
Rackmount Size
10 RU (with Included Hardware)
Dimensions
17.5 x 5.1 x 19.7" / 44.5 x 13 x 50 cm
Weight
15.7 lb / 7.1 kg
Packaging Info
Package Weight
20.6 lb
Box Dimensions (LxWxH)
22 x 20 x 8.5"



What's in the Box:

  • Yamaha MG20XU 20-Input Mixer with Built-In FX & 2-In/2-Out USB Interface
  • Power Cable
  • Rackmount Kit
  • Cubase AI Download Card
  • Limited 1-Year Manufacturer Warranty
Key Features
  • 16 Mic / 20 Line Inputs
  • 12 Mono + 4 Stereo Inputs
  • D-PRE Mic Preamps
  • 4 Group Buses + 1 Stereo Bus
  • 4 Aux Including FX
  • High-Quality SPX Effects, 24 Programs
  • 1-Knob Compressors
  • 24-Bit / 192 kHz USB Audio Interface
  • Rackmount Kit Included
  • Includes Power Cord

Overview

The Yamaha MG20XU is a compact mixer capable of 20 simultaneous inputs and is ideal for live performances, recordings, lectures, and more. The mixer features 12 mono mic/line combo input channels, and 4 stereo line input channels that can also be used as mono mic or line inputs. It also features USB connectivity and is capable of providing 2 channels in and 2 channels out to your computer at up to 24-bit / 192 kHz, ideal for recording live performances, demos, and more.

Channels 1-20 are each equipped with D-PRE mic preamps, 3-band EQ, pan control, and a high-pass filter, and channels 1-12 feature a sweepable midrange control. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-12 also feature 26 dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums, and there is a one-knob compressor on channels 1-8 to smooth out the dynamics of vocals and instruments to help them sit better in your mix.

The MG20XU mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers, or devices such as digital recorders.

Each of the MG20XU's channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion, and more, these effects can be used to help vocals and instruments sit better in your mix. The MG20XU ships with a rackmount kit and a power cord.



Key Specs

Number of Analog Input Channels
20 (16 Mono / 4 Stereo)
Number of Mic Preamps
16
Analog Output Channels
4x Stereo Master Output
2x Stereo Control Room/Monitor Output
4x Mono Aux Send Output
4x Mono Bus/Subgroup Output
Mix Routing
Stereo Aux Bus/Subgroup
EQ
Input Channels:
3-Band EQ (Mono Channels)
Built-In Effects
Yes
USB I/O
1x USB-B 2.0 (2-Track Record, Audio Playback, Host Connection)
Rack Mountable
Yes
Mixer
Max I/O Capacity
20x Input / 12x Output
Number of Analog Input Channels
20 (16 Mono / 4 Stereo)
Number of Mic Preamps
16
Analog Output Channels
4x Stereo Master Output
2x Stereo Control Room/Monitor Output
4x Mono Aux Send Output
4x Mono Bus/Subgroup Output
Mix Routing
Stereo Aux Bus/Subgroup
Faders & Level Adjustment
16x Channel Fader
2x Bus/Subgroup Fader
1x Master Fader
Meters
Main Meter:
2x 12-Segment LED
Signal Processing
Gain/Trim Range
Line:
-6 dB to +38 dB
Mic:
+20 dB to +64 dB
Input Pad
-26 dB
Dynamic Processing
Input Channels:
Compressor
EQ
Input Channels:
3-Band EQ (Mono Channels)
EQ Parameters
Mono Channels:
High: ±15 dB at 10 kHz (Shelving)
Mid: ±15 dB at 250 Hz to 5 kHz (Semi-Parametric)
Low: ±15 dB at 100 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 10 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Bell)
Low: ±15 dB at 100 Hz (Shelving)
Graphic EQ
No
Filters
Mono Channels:
16x High-Pass: 80 Hz
Solo/Mute
Mute per Input Channel, Bus, FX Bus, Master
Built-In Effects
Yes
Digital Audio
Sample Rates
Up to 192 kHz
Bit Depth
Up to 24-Bit
Performance
Frequency Response
20 Hz to 48 kHz +0.5/-1.5 dB
Noise Floor
-102 dBu (Residual Output Noise, Stereo Out)
THD
0.03% at Min Gain (+14 dBu, 20 Hz to 20 kHz)
0.005% at Min Gain (+24 dBu, 1 kHz)
Connectivity
Analog Inputs
12x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input
4x XLR 3-Pin Balanced Mic Input
4x 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)
2x Stereo RCA TS Unbalanced Line Input (2 Stereo Pairs)
1x 1/4" TS Footswitch Input
Analog Outputs
2x XLR 3-Pin Balanced Stereo Main Output
2x 1/4" TRS Balanced/Unbalanced Stereo Main Output
2x 1/4" TRS Balanced Stereo Control Room Output
4x 1/4" TRS Balanced/Unbalanced Aux Send
4x 1/4" TRS Balanced/Unbalanced Bus Output
1x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-B 2.0 (2-Track Record, Audio Playback, Host Connection)
USB I/O Capacity
2x Input / 2x Output
Mobile App Compatible
No
Compatibility
OS Compatibility
macOS / Windows
OS Compatibility
macOS
Windows
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable
Yes
Rackmount Size
10 RU (with Included Hardware)
Dimensions
17.5 x 5.1 x 19.7" / 44.5 x 13 x 50 cm
Weight
15.7 lb / 7.1 kg
Packaging Info
Package Weight
20.6 lb
Box Dimensions (LxWxH)
22 x 20 x 8.5"



What's in the Box:

  • Yamaha MG20XU 20-Input Mixer with Built-In FX & 2-In/2-Out USB Interface
  • Power Cable
  • Rackmount Kit
  • Cubase AI Download Card
  • Limited 1-Year Manufacturer Warranty
$352.53

Original: $1,007.22

-65%
Yamaha MG20XU 20-Input Mixer with Built-In FX & 2-In/2-Out USB Interface—

$1,007.22

$352.53

Description

Key Features
  • 16 Mic / 20 Line Inputs
  • 12 Mono + 4 Stereo Inputs
  • D-PRE Mic Preamps
  • 4 Group Buses + 1 Stereo Bus
  • 4 Aux Including FX
  • High-Quality SPX Effects, 24 Programs
  • 1-Knob Compressors
  • 24-Bit / 192 kHz USB Audio Interface
  • Rackmount Kit Included
  • Includes Power Cord

Overview

The Yamaha MG20XU is a compact mixer capable of 20 simultaneous inputs and is ideal for live performances, recordings, lectures, and more. The mixer features 12 mono mic/line combo input channels, and 4 stereo line input channels that can also be used as mono mic or line inputs. It also features USB connectivity and is capable of providing 2 channels in and 2 channels out to your computer at up to 24-bit / 192 kHz, ideal for recording live performances, demos, and more.

Channels 1-20 are each equipped with D-PRE mic preamps, 3-band EQ, pan control, and a high-pass filter, and channels 1-12 feature a sweepable midrange control. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-12 also feature 26 dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums, and there is a one-knob compressor on channels 1-8 to smooth out the dynamics of vocals and instruments to help them sit better in your mix.

The MG20XU mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers, or devices such as digital recorders.

Each of the MG20XU's channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion, and more, these effects can be used to help vocals and instruments sit better in your mix. The MG20XU ships with a rackmount kit and a power cord.



Key Specs

Number of Analog Input Channels
20 (16 Mono / 4 Stereo)
Number of Mic Preamps
16
Analog Output Channels
4x Stereo Master Output
2x Stereo Control Room/Monitor Output
4x Mono Aux Send Output
4x Mono Bus/Subgroup Output
Mix Routing
Stereo Aux Bus/Subgroup
EQ
Input Channels:
3-Band EQ (Mono Channels)
Built-In Effects
Yes
USB I/O
1x USB-B 2.0 (2-Track Record, Audio Playback, Host Connection)
Rack Mountable
Yes
Mixer
Max I/O Capacity
20x Input / 12x Output
Number of Analog Input Channels
20 (16 Mono / 4 Stereo)
Number of Mic Preamps
16
Analog Output Channels
4x Stereo Master Output
2x Stereo Control Room/Monitor Output
4x Mono Aux Send Output
4x Mono Bus/Subgroup Output
Mix Routing
Stereo Aux Bus/Subgroup
Faders & Level Adjustment
16x Channel Fader
2x Bus/Subgroup Fader
1x Master Fader
Meters
Main Meter:
2x 12-Segment LED
Signal Processing
Gain/Trim Range
Line:
-6 dB to +38 dB
Mic:
+20 dB to +64 dB
Input Pad
-26 dB
Dynamic Processing
Input Channels:
Compressor
EQ
Input Channels:
3-Band EQ (Mono Channels)
EQ Parameters
Mono Channels:
High: ±15 dB at 10 kHz (Shelving)
Mid: ±15 dB at 250 Hz to 5 kHz (Semi-Parametric)
Low: ±15 dB at 100 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 10 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Bell)
Low: ±15 dB at 100 Hz (Shelving)
Graphic EQ
No
Filters
Mono Channels:
16x High-Pass: 80 Hz
Solo/Mute
Mute per Input Channel, Bus, FX Bus, Master
Built-In Effects
Yes
Digital Audio
Sample Rates
Up to 192 kHz
Bit Depth
Up to 24-Bit
Performance
Frequency Response
20 Hz to 48 kHz +0.5/-1.5 dB
Noise Floor
-102 dBu (Residual Output Noise, Stereo Out)
THD
0.03% at Min Gain (+14 dBu, 20 Hz to 20 kHz)
0.005% at Min Gain (+24 dBu, 1 kHz)
Connectivity
Analog Inputs
12x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input
4x XLR 3-Pin Balanced Mic Input
4x 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)
2x Stereo RCA TS Unbalanced Line Input (2 Stereo Pairs)
1x 1/4" TS Footswitch Input
Analog Outputs
2x XLR 3-Pin Balanced Stereo Main Output
2x 1/4" TRS Balanced/Unbalanced Stereo Main Output
2x 1/4" TRS Balanced Stereo Control Room Output
4x 1/4" TRS Balanced/Unbalanced Aux Send
4x 1/4" TRS Balanced/Unbalanced Bus Output
1x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-B 2.0 (2-Track Record, Audio Playback, Host Connection)
USB I/O Capacity
2x Input / 2x Output
Mobile App Compatible
No
Compatibility
OS Compatibility
macOS / Windows
OS Compatibility
macOS
Windows
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable
Yes
Rackmount Size
10 RU (with Included Hardware)
Dimensions
17.5 x 5.1 x 19.7" / 44.5 x 13 x 50 cm
Weight
15.7 lb / 7.1 kg
Packaging Info
Package Weight
20.6 lb
Box Dimensions (LxWxH)
22 x 20 x 8.5"



What's in the Box:

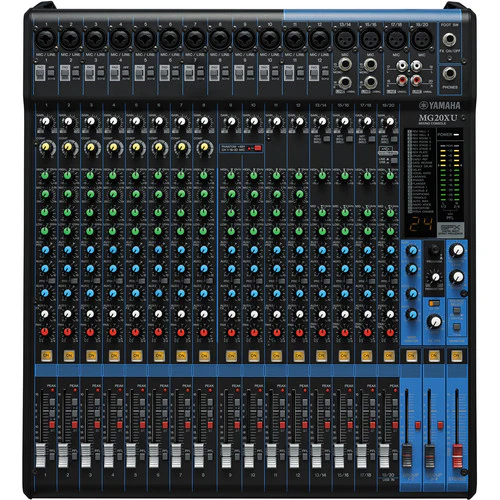

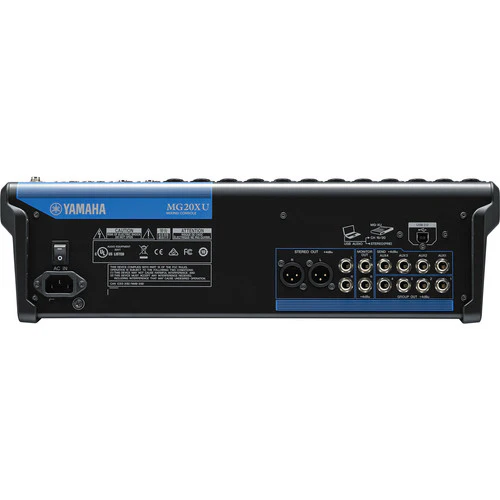

  • Yamaha MG20XU 20-Input Mixer with Built-In FX & 2-In/2-Out USB Interface
  • Power Cable
  • Rackmount Kit
  • Cubase AI Download Card
  • Limited 1-Year Manufacturer Warranty
Yamaha MG20XU 20-Input Mixer with Built-In FX & 2-In/2-Out USB Interface | BHM Store
