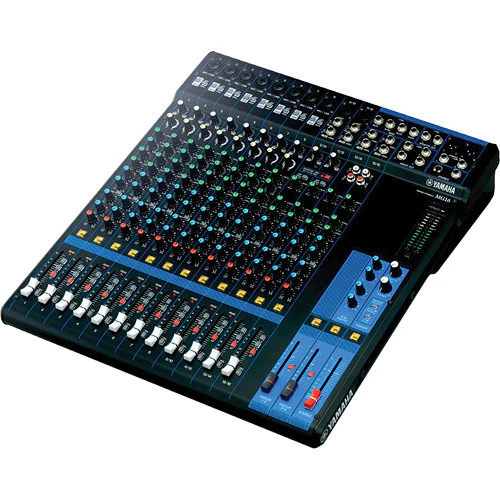

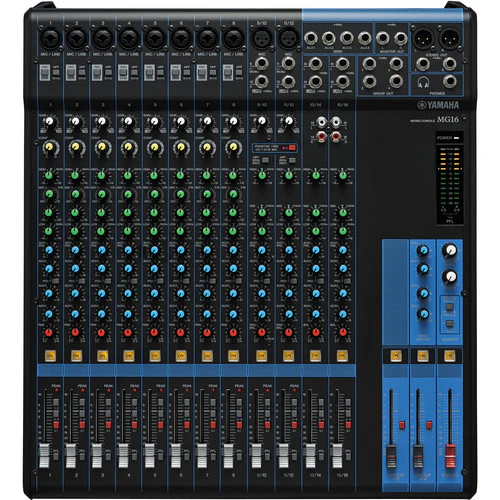

Yamaha MG16 - 16-Input Mixer

Product image 1
1 / 4

Yamaha MG16 - 16-Input Mixer

Key Features
  • 10x Mic Inputs
  • 16x Line Inputs
  • XLR and TRS 1/4" Stereo Outs
  • 4x Group Buses
  • TRS Monitor Outs
  • 4x Aux Sends
  • "D-PRE" Mic Preamps with 48V Phantom
  • HPF & 3-Band EQ on Channels 1-8
  • 1/4" Headphone Output with Level Control
  • PAD & 1-Knob Compressor on Channels 1-8

Overview

The MG16 from Yamaha is a compact mixer capable of sixteen simultaneous inputs and is ideal for performances, recordings lectures and more. The mixer features eight mono mic/line combo input channels, two stereo line input channels that can also be used as mono mic or line inputs (XLR and stereo 1/4" inputs), and two stereo line inputs with 1/4" and RCA jacks.

Channels 1-12 are each equipped with D-PRE mic preamps, 3-band EQ, pan control and a high-pass filter. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-8 each also feature 26dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums.

The MG16 mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.



Key Specs

Phantom Power
+48 V switchable, channels 1 - 12
Input Channels
8x mono [mic/line]
2x mono/stereo [mic/line]
2x stereo [line]
Output Channels
2x stereo out
1x monitor out
1x headphone out
4x aux out
4x group out
Bus
Stereo: 1
AUX: 4
GROUP: 4
Pad
26 dB (mono)
HPF
80 Hz, 12 dB/oct (mono/stereo: MIC only)
Compressor
Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1
Output level: 0 dB to 7 dB
Attack time: approx. 25 msec
Release time: approx. 300 msec
Equalizer
EQ high gain: +15 dB/-15 dB, frequency: 10 kHz shelving
EQ mid gain: +15 dB/-15 dB, frequency: mono 250 Hz - 5 kHz peaking
EQ low gain: +15 dB/-15 dB, frequency: 100 Hz shelving
LED
Peak LED turns on when post EQ signal reaches 3 dB below clipping
Total Harmonic Distortion
0.03% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005% @ +24 dBu (1 kHz), GAIN knob: Min
Frequency Response
+0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent Input Noise
-128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max)
Residual Output Noise
-102 dBu (STEREO OUT, STEREO master fader: min)
Crosstalk
-78 dB
Power Requirement
AC 100 - 240 V, 50 / 60 Hz
Power Consumption
30 W
Dimensions
17.5 x 5.1 x 19.7" (444 x 130 x 500 mm)
Net Weight
14.6 lb (6.6 kg)
Packaging Info
Package Weight
19.9 lb
Box Dimensions (LxWxH)
21.9 x 20.4 x 8.4"



What's in the Box:

  • Yamaha MG16 - 16-Input Mixer
  • AC Adapter
  • Rack-Mount Kit
  • Limited 1-Year Manufacturer Warranty
Key Features
  • 10x Mic Inputs
  • 16x Line Inputs
  • XLR and TRS 1/4" Stereo Outs
  • 4x Group Buses
  • TRS Monitor Outs
  • 4x Aux Sends
  • "D-PRE" Mic Preamps with 48V Phantom
  • HPF & 3-Band EQ on Channels 1-8
  • 1/4" Headphone Output with Level Control
  • PAD & 1-Knob Compressor on Channels 1-8

Overview

The MG16 from Yamaha is a compact mixer capable of sixteen simultaneous inputs and is ideal for performances, recordings lectures and more. The mixer features eight mono mic/line combo input channels, two stereo line input channels that can also be used as mono mic or line inputs (XLR and stereo 1/4" inputs), and two stereo line inputs with 1/4" and RCA jacks.

Channels 1-12 are each equipped with D-PRE mic preamps, 3-band EQ, pan control and a high-pass filter. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-8 each also feature 26dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums.

The MG16 mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.



Key Specs

Phantom Power
+48 V switchable, channels 1 - 12
Input Channels
8x mono [mic/line]
2x mono/stereo [mic/line]
2x stereo [line]
Output Channels
2x stereo out
1x monitor out
1x headphone out
4x aux out
4x group out
Bus
Stereo: 1
AUX: 4
GROUP: 4
Pad
26 dB (mono)
HPF
80 Hz, 12 dB/oct (mono/stereo: MIC only)
Compressor
Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1
Output level: 0 dB to 7 dB
Attack time: approx. 25 msec
Release time: approx. 300 msec
Equalizer
EQ high gain: +15 dB/-15 dB, frequency: 10 kHz shelving
EQ mid gain: +15 dB/-15 dB, frequency: mono 250 Hz - 5 kHz peaking
EQ low gain: +15 dB/-15 dB, frequency: 100 Hz shelving
LED
Peak LED turns on when post EQ signal reaches 3 dB below clipping
Total Harmonic Distortion
0.03% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005% @ +24 dBu (1 kHz), GAIN knob: Min
Frequency Response
+0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent Input Noise
-128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max)
Residual Output Noise
-102 dBu (STEREO OUT, STEREO master fader: min)
Crosstalk
-78 dB
Power Requirement
AC 100 - 240 V, 50 / 60 Hz
Power Consumption
30 W
Dimensions
17.5 x 5.1 x 19.7" (444 x 130 x 500 mm)
Net Weight
14.6 lb (6.6 kg)
Packaging Info
Package Weight
19.9 lb
Box Dimensions (LxWxH)
21.9 x 20.4 x 8.4"



What's in the Box:

  • Yamaha MG16 - 16-Input Mixer
  • AC Adapter
  • Rack-Mount Kit
  • Limited 1-Year Manufacturer Warranty
