• Integrated 1420 W Power Amplifier
• 8 Mono Mic/Line Inputs
• Four Stereo Inputs
• Hi-Z Input on Channel 4
• Two Aux Sends w/ Dedicated Outputs
• 3-Band EQ on Each Channel
• Master EQ for Music Playback or Speech
• Integrated Feedback Suppressor
• Built-In SPX Multi-Effects
• Compatible with 4 and 8 Ohm Speakers



Overview

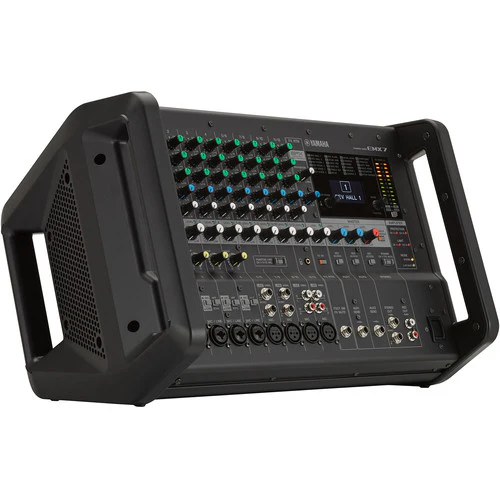

The Yamaha EMX7 is a 12-input powered mixer with an integrated 1420W amplifier, eight mic/line inputs, four stereo line inputs, and two Aux sends. The mixer features a Hi-Z guitar input on channel four and each channel offers a 3-band EQ for custom tailoring your sound. Channels 1-4 offer XLR-1/4" combo jacks. Channels 5 through 12 provide mono XLR inputs, with channels 5-8 offering 1/4" inputs and 9-12 offering an additional set of stereo RCA inputs. Channels 11/12 also include an 1/8" stereo mini-jack for connecting portable music players.



Key Specs

Output Power	1 kHz THD+N < 10% (CEA2006): 710 W + 710 W (4 Ohms), 500 W + 500 W (8 Ohms) 1 kHz THD+N < 1%: 600 W + 600 W (4 Ohms), 400 W + 400 W (8 Ohms)
Frequency Response	Frequency Response Refer to the nominal output level @ 1 kHz Input to Speakers: +1/-3 dB (40 Hz to 20 kHz) Input to Stereo Out, Aux 1/2 Send: +0.5/-1.0 dB (20 Hz to 20 kHz)
THD + N	Input to Speakers (Mic/Line): 0.1% @ 10 W (40 Hz to 20 kHz) Input to Speakers (Line - Channels 1-4) 0.04% @ 65 W (1 kHz) Input to Stereo Out, Aux 1/2 Send (Mic/Line): 0.02% @ +14 dBu (20 Hz to 20 kHz) Input to Stereo Out, Aux 1/2 Send (Line - Channels 1-4): 0.007% @ +20 dBu (1 kHz)
Hum & Noise	EIN: -117 dBu Residual Output Noise Input to Speakers: -70 dBu (40 Hz to 20 kHz, Stereo Master Level: min) Input to Stereo Out, Aux 1/2 Sends: -82 dBu (20 Hz to 20 kHz, Stereo Master Level: min)
Crosstalk	(1 kHz): -85 dB
Input Channels	Mono (Mic/Line): 8 Stereo: (Line): 4 Total: 12
Output Channels	Speakers: A/B Aux 1 Send Aux 2 Send Stereo Out: L/R Rec Out: L/R
Bus	Stereo: 1 Aux: 2 (including FX)
Pad	Channels 1-4: 30 dB
Hi-Z Input	Channel 4: Supported
HPF	High Pass Filter (Channels 1-3): 80 Hz, -12 dB/octave
EQ Section	High: 10 kHz +15/-15 dB Mid: 2.5 kHz +15/-15 dB Low: 100 Hz +15/-15 dB
Compressor	Single knob compressor
Audio Level Meter	2x 12 Points LED Meter: (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, Peak)
Built-in Effects	SPX Algorithm: 24 programs
Output Channel Function	Graphic EQ Speaker Processor Feedback Suppressor
Phantom Power	+48 V
Footswitch Input	Effect mute on/off
Protection	Load Protection: DC-fault Amplifier Protection: Overheat protection, overcurrent protection, integral power protection Power Supply Protection: Overheat protection, overcurrent protection
Power	Power Requirements: 100-240 VAC, 50/60 Hz Power Consumption: 45 W (Idle) / 250 W (1/8 power)
Operating Temperature	32 to 104°F / 0 to 40°C
Dimensions	18.3 x 12.1 x 12.8" / 464.8 x 307.3 x 325.1 mm
Weight	20.9 lb / 9.5 kg



What's in the Box:

• Yamaha EMX7 12-Input Powered Mixer
• AC Power Cord
• Limited 1-Year Manufacturer Warranty
