Yamaha EMX 5 12-Input Powered Mixer

1 / 8

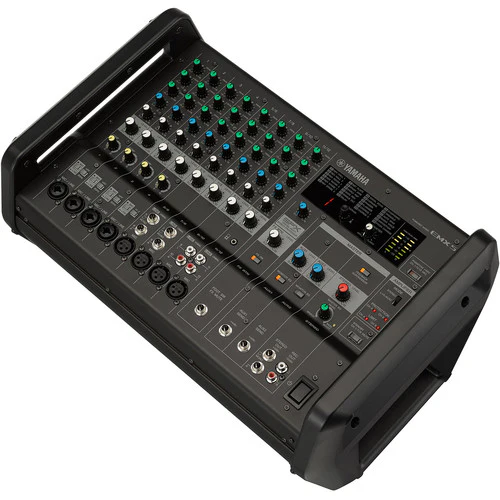

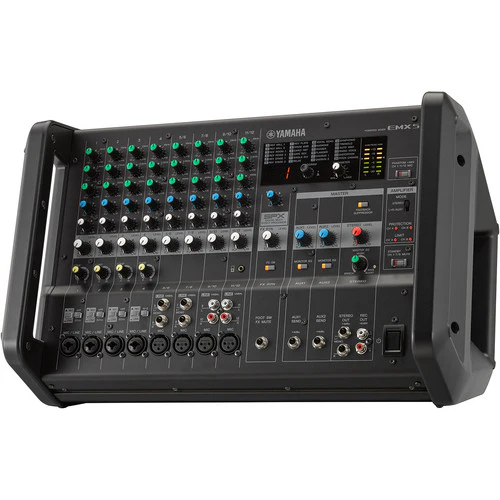

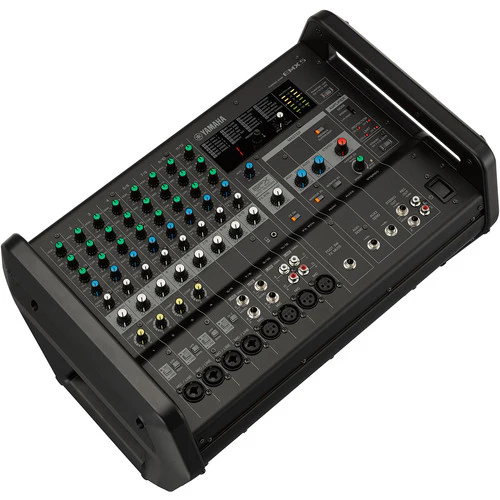

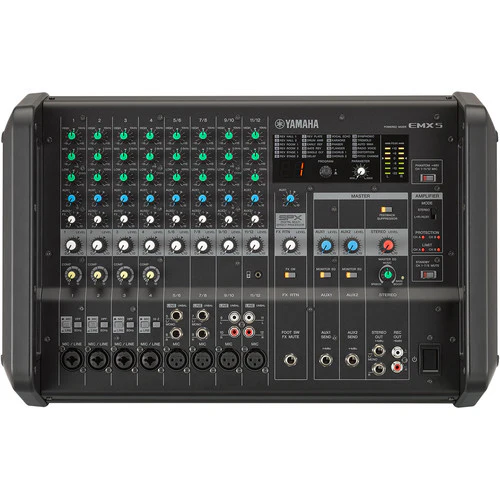

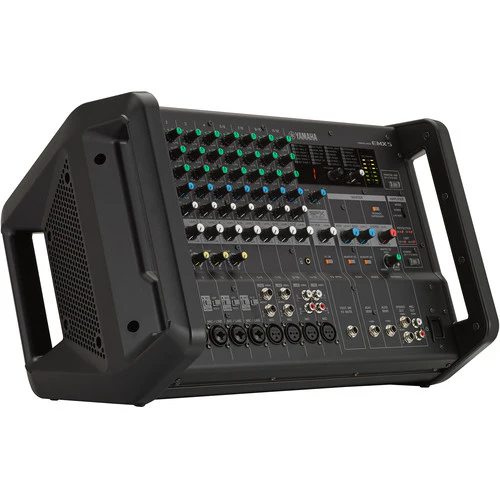

Yamaha EMX 5 12-Input Powered Mixer

Key Features

Integrated 1260W Power Amplifier
8 Mono Mic/Line Inputs
Four Stereo Inputs
Hi-Z Input on Channel 4
Two Aux Sends with Dedicated Outputs
3-Band EQ on Each Channel
Master EQ for Music Playback or Speech
Integrated Feedback Suppressor
Built-In SPX Multi-Effects
Compatible with 4- / 8-Ohm Speakers

Overview

The Yamaha EMX 5 is a 12-input powered mixer with an integrated 1260W amplifier, eight mic/line inputs, four stereo line inputs, and two Aux sends. The mixer features a Hi-Z guitar input on channel four and each channel offers a 3-band EQ for custom tailoring your sound. Channels 1-4 offer XLR-1/4" combo jacks. Channels 5 through 12 provide mono XLR inputs, with channels 5-8 offering 1/4" inputs and 9-12 offering an additional set of stereo RCA inputs. Channels 11/12 also include an 3.5mm stereo mini-jack for connecting portable music players.

The EMX 5 includes a single-knob compressor on channels 1-4, an integrated feedback suppressor, and a built-in multi-effects processor with SPX series algorithms. Additionally, the mixer offers a Master EQ, which provides a single knob to control the level of low end. At the far left, the speech setting cuts low frequencies, while the middle position is neutral for music playback. The far right setting provides a Bass Boost to enhance music playback. Optional accessories available include a foot switch for effects bypass and a rackmount kit. The EMX 5 ships with a standard IEC power cord.

Key Specs

Analog Input Characteristics

Input Connectors	Channels 1-4: 4x Combo XLR-1/4" / 6.35 mm Channels 5/6: 1x XLR, 2x 1/4" / 6.35 mm Channels 7/8: 1x XLR, 2x 1/4" / 6.35 mm Channels 9/10: 1x XLR, 2x RCA Channels 11/12: 1x XLR, 2x RCA, 1x 1/8" / 3.5 mm stereo mini-jack
Load Impedance	Channels 1-4 (XLR Mic/Line): 3 kOhms actual, 50-600 Ohms nominal with mics Channels 1-4 (1/4" Mic/Line): 8 kOhms, 600 Ohms line Channel 4 (1/4", Hi-Z Engaged): 1 MOhms actual, 10 kOhms lines nominal Channels 5-12 (XLR): 2 kOhms actual, 50 - 600 Ohms lines nominal Channels 5-12 (1/4", RCA, 1/8"): 10 kOhms actual, 600 Ohms nominal
Input Level	Sensitivity Channel 1-4 (XLR, Mic): -60 dBu (0.775 mV) Channel 1-4 (XLR, Line): -30 dBu (24.5 mV) Channel 1-4 (1/4", Mic): -50 dBu (2.45 mV) Channel 1-4 (1/4", Line): -20 dBu (77.5 mV) Channel 4 (Hi-Z Engaged, Mic): -50 dBu (2.45 mV) Channel 4 (Hi-Z Engaged, Line): -20 dBu (77.5 mV) Channels 5-12 (XLR): -60 dBu (0.775 mV) Channels 5-8 (1/4"): -20 dBu (77.5 mV) Channels 9-12 (RCA, 1/8"): -8 dBu (316 mV) Nominal Channel 1-4 (XLR, Mic): -43 dBu (5.48 mV) Channel 1-4 (XLR, Line): -13 dBu (173 mV) Channel 1-4 (1/4", Mic): -33 dBu (17.3 mV) Channel 1-4 (1/4", Line): -3 dBu (548 mV) Channel 4 (Hi-Z Engaged, Mic): -33 dBu (17.3 mV) Channel 4 (Hi-Z Engaged, Line): -3 dBu (548 mV) Channels 5-12 (XLR): -43 dBu (5.48 mV) Channels 5-12 (1/4", RCA, 1/8"): -3 dBu (548 mV) Maximum Before Clip Channel 1-4 (XLR, Mic): -15 dBu (138 mV) Channel 1-4 (XLR, Line): +15 dBu (4.36 V) Channel 1-4 (1/4", Mic): -5 dBu (436 mV) Channel 1-4 (1/4", Line): +25 dBu (13.8 V) Channel 4 (Hi-Z Engaged, Mic): -5 dBu (436 mV) Channel 4 (Hi-Z Engaged, Line): +20 dBu (7.75 V) Channels 5-12 (XLR): -15 dBu (138 mV) Channels 5-12 (1/4", RCA, 1/8"): +25 dBu (13.8 V)

Analog Output Characteristic

Output Connectors	Stereo Out (L/R): 2x 1/4" / 6.35 mm balanced Aux Sends (1/2): 2x 1/4" / 6.35 mm balanced Rec Out (L/R): 2x RCA unbalanced
Impedance	Stereo Out (L/R): 600 Ohms actual, 10 kOhms Lines Aux Sends (1/2): 600 Ohms actual, 10 kOhms Lines Rec Out (L/R): 600 Ohms actual, 10 kOhms Lines
Output Level	Stereo Out (L/R): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping Aux Sends (1/2): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping Rec Out (L/R): -10 dBV (0.308 V) nominal, +18 dBV (7.75 V) max before clipping

Loudspeaker Outputs

Connectors	Speakers A/B: Neutrik speakON NL4, 1/4" / 6.35 mm phone jack
Impedance	Actual Source Impedance: < 0.1 Ohms For Use with Nominal: 4 Ohm speakers, 8 Ohm speakers
Output Level	4 Ohm Speakers: 500 W (1 Hz THD+N < 1%), 630 W (1 kHz THD+N < 10% [CEA2006]) 8 Ohm Speakers: 370 W (1 Hz THD+N < 1%), 460 W (1 kHz THD+N < 10% [CEA2006])

General Specifications

Output Power	1 kHz THD+N < 10% (CEA2006): 630 W + 630 W (4 Ohms), 460 W + 460 W (8 Ohms) 1 kHz THD+N < 1%: 500 W + 500 W (4 Ohms), 370 W + 370 W (8 Ohms)
Frequency Response	Frequency Response Refer to the nominal output level @ 1 kHz Input to Speakers: +1/-3 dB (40 Hz to 20 kHz) Input to Stereo Out, Aux 1/2 Send: +0.5/-1.0 dB (20 Hz to 20 kHz)
THD + N	Input to Speakers: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) Input to Stereo Out, Aux 1/2 Send: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz)
Crosstalk	(1 kHz): -85 dB
Input Channels	Mono (Mic/Line): 8 Stereo: (Line): 4 Total: 12
Output Channels	Speakers: A/B Aux 1 Send Aux 2 Send Stereo Out: L/R Rec Out: L/R
Bus	Stereo: 1 Aux: 2 (including FX)
Pad	Channels 1-4: 30 dB
Hi-Z Input	Channel 4: Supported
HPF	High Pass Filter (Channels 1-3): 80 Hz, -12 dB/octave
EQ Section	High: 10 kHz +15/-15 dB Mid: 2.5 kHz +15/-15 dB Low: 100 Hz +15/-15 dB
Compressor	Single knob compressor
Audio Level Meter	7 points (-20, -10, -6, 0, +6, +10, Peak)
Built-in Effects	SPX Algorithm: 24 programs
Output Channel Function	Master EQ (Speech to Music) Monitor EQ Feedback Suppressor
Phantom Power	+48 V
Footswitch Input	Effect mute on/off
Protection	Load Protection: DC-fault Amplifier Protection: Overheat protection, overcurrent protection, integral power protection Power Supply Protection: Overheat protection, overcurrent protection
Power	Power Requirements: 100-240 VAC, 50/60 Hz Power Consumption: 42 W (Idle) / 210 W (1/8 power)
Operating Temperature	32 to 104°F / 0 to 40°C
Dimensions	18.3 x 12.1 x 12.8" / 464.8 x 307.3 x 325.1 mm
Weight	20.9 lb / 9.5 kg

Packaging Info

Package Weight	25.4 lb
Box Dimensions (LxWxH)	22 x 15 x 14"

What's in the Box:

Yamaha EMX 5 12-Input Powered Mixer
Limited 1-Year Manufacturer Warranty
