TASCAM TA-1VP - Vocal Processor

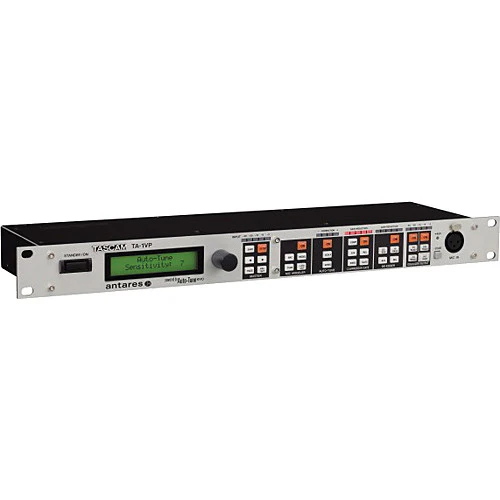

Product image 1
1 / 2

TASCAM TA-1VP - Vocal Processor

Key Features
  • Antares Auto-Tune Pitch Correction
  • Antares Microphone Modeling
  • Microphone Input with Phantom Power
  • Compressor
  • De-Esser
  • 2-Band Parametric EQ
  • Mono/Stereo Double Tracking
  • S/PDIF Digital Output
  • Footswitch Input
  • On Stage, House of Worship, or Studio



Overview

The TASCAM TA-1VP is a vocal processor utilizing Antares' technologies (AutoTune and Mic Modeler) to deliver everything needed for a polished, modern vocal sound. The rack-mount unit includes a microphone preamp, compressor, de-esser, microphone and tube modeling, and pitch correction processing.

An XLR microphone input with switchable phantom power is available on the front panel, suitable for use with condenser microphones. Processing is laid out in simple-to-use blocks on the front panel, each with dedicated buttons and meters that display exactly what's being done to the signal at any point in the signal chain.

Antares' microphone and tube modeling can impart the character of another microphone if required, with a library of classic microphone models to choose from. A de-esser module removes sibilance from the signal before being sent on to a variable-knee compressor and gate. Digital EQ is last process in the chain before output.

The Auto-Tune module can be set for any level of pitch correction, in a variety of user-selectable scales. All settings can be recalled through presets on the front panel or through MIDI. Balanced TRS input and outputs are located on the rear panel, including a "Double Track" output for simulating doubled vocals. S/PDIF digital output is also available.

Key Specs

Type
Vocal processor
Tuning
Chromatic and 24 diatonic scales, all user customizable
Retune speed
Pitch detection sensitivity
Processing and Effects
Intonation
Modeling
EQ
Compression
De-esser
Gate
Compressor
Threshold: -36dB to 0.0dB
Ratio: 1:1 to 99:1
Attack: 1mS to 200mS
Release: 1mS to 200mS
Knee: Continuously variable
Gate
Threshold: -96dB to 0.0dB
Ratio: 1:1 to 99:1
De-Esser
Threshold: -60dB to 0.0dB
Ratio: 1:1 to 99:1
Attack: 1mS to 200mS
Release: 20mS to 2.5S
High-Pass Frequency: 2.97kHz to 20kHz
Equalizer
2 Independent Parametric Bands
6dB low-pass
6dB high-pass
12dB low-pass
12dB high-pass
Bandpass
Notch
Low-shelf (variable slope)
Highj-shelf (variable slope)
Peaking
Double tracking
Stereo or variable mono mix
Preset/User Programs
35 preset/user
Inputs
1 x XLR Microphone
1 x 1/4" TRS phone Line
1 x 5-pin DIN MIDI
1 x 1/4" TS phone Pedal Input
Input Impedance
Microphone
2.2kΩ
Line
10kΩ
Input Level
Microphone
Trim: 0.0dB to +30dB
Nominal (PAD): -56.5dBu (0.001Vrms) to -26.5dBu (0.037Vrms)
Nominal: -20.5dBu (0.073Vrms) to +9.5dBu (2.314Vrms)
Maximum: +9.5dBu (2.314Vrms)
Line
Nominal: 8dBu (1.947Vrms) to 24dBu (12.283Vrms)
Maximum: 24dBu (12.283Vrms)
Output
2 x 1/4" TRS phone
1 x RCA coaxial S/PDIF
1 x 5-pin DIN MIDI
Output Impedance
Line
100Ω
Digital
75Ω
Output Level
Line
Nominal: +4dBu (1.228Vrms)
Maximum: +20dBu (7.75Vrms)
Digital
0.5Vpp/75Ω
Frequency Response
20Hz to 20kHz, +/-0.5dB (@ line output)
Noise
SNR: 98dB or better (@ line output)
THD
0.008% or less (@ line output)
Dynamic Range
120dB or better (@ line output)
Display
20 x 2 character LCD
5 x LED input level
5 x LED output level
4 x LED tuning correction
5 x LED compressor gain reduction
5 x LED de-esser gain reduction
Operating Temperature
41 to 95°F (5 to 35°C
Power Requirements
12VDC via TASCAM PS-1225L AC adapter (included)
Dimensions
19 x 5 x 1.73" (483 x 128 x 44mm)
Weight
4.4 lbs (2kg)



What's in the Box:

  • TASCAM TA-1VP - Vocal Processor
  • External Power Supply
  • Rackmounting Kit
  • Limited 1-Year Manufacturer Warranty (Parts)
  • Limited 90-Day Manufacturer Warranty (Labor)
Key Features
  • Antares Auto-Tune Pitch Correction
  • Antares Microphone Modeling
  • Microphone Input with Phantom Power
  • Compressor
  • De-Esser
  • 2-Band Parametric EQ
  • Mono/Stereo Double Tracking
  • S/PDIF Digital Output
  • Footswitch Input
  • On Stage, House of Worship, or Studio



Overview

The TASCAM TA-1VP is a vocal processor utilizing Antares' technologies (AutoTune and Mic Modeler) to deliver everything needed for a polished, modern vocal sound. The rack-mount unit includes a microphone preamp, compressor, de-esser, microphone and tube modeling, and pitch correction processing.

An XLR microphone input with switchable phantom power is available on the front panel, suitable for use with condenser microphones. Processing is laid out in simple-to-use blocks on the front panel, each with dedicated buttons and meters that display exactly what's being done to the signal at any point in the signal chain.

Antares' microphone and tube modeling can impart the character of another microphone if required, with a library of classic microphone models to choose from. A de-esser module removes sibilance from the signal before being sent on to a variable-knee compressor and gate. Digital EQ is last process in the chain before output.

The Auto-Tune module can be set for any level of pitch correction, in a variety of user-selectable scales. All settings can be recalled through presets on the front panel or through MIDI. Balanced TRS input and outputs are located on the rear panel, including a "Double Track" output for simulating doubled vocals. S/PDIF digital output is also available.

Key Specs

Type
Vocal processor
Tuning
Chromatic and 24 diatonic scales, all user customizable
Retune speed
Pitch detection sensitivity
Processing and Effects
Intonation
Modeling
EQ
Compression
De-esser
Gate
Compressor
Threshold: -36dB to 0.0dB
Ratio: 1:1 to 99:1
Attack: 1mS to 200mS
Release: 1mS to 200mS
Knee: Continuously variable
Gate
Threshold: -96dB to 0.0dB
Ratio: 1:1 to 99:1
De-Esser
Threshold: -60dB to 0.0dB
Ratio: 1:1 to 99:1
Attack: 1mS to 200mS
Release: 20mS to 2.5S
High-Pass Frequency: 2.97kHz to 20kHz
Equalizer
2 Independent Parametric Bands
6dB low-pass
6dB high-pass
12dB low-pass
12dB high-pass
Bandpass
Notch
Low-shelf (variable slope)
Highj-shelf (variable slope)
Peaking
Double tracking
Stereo or variable mono mix
Preset/User Programs
35 preset/user
Inputs
1 x XLR Microphone
1 x 1/4" TRS phone Line
1 x 5-pin DIN MIDI
1 x 1/4" TS phone Pedal Input
Input Impedance
Microphone
2.2kΩ
Line
10kΩ
Input Level
Microphone
Trim: 0.0dB to +30dB
Nominal (PAD): -56.5dBu (0.001Vrms) to -26.5dBu (0.037Vrms)
Nominal: -20.5dBu (0.073Vrms) to +9.5dBu (2.314Vrms)
Maximum: +9.5dBu (2.314Vrms)
Line
Nominal: 8dBu (1.947Vrms) to 24dBu (12.283Vrms)
Maximum: 24dBu (12.283Vrms)
Output
2 x 1/4" TRS phone
1 x RCA coaxial S/PDIF
1 x 5-pin DIN MIDI
Output Impedance
Line
100Ω
Digital
75Ω
Output Level
Line
Nominal: +4dBu (1.228Vrms)
Maximum: +20dBu (7.75Vrms)
Digital
0.5Vpp/75Ω
Frequency Response
20Hz to 20kHz, +/-0.5dB (@ line output)
Noise
SNR: 98dB or better (@ line output)
THD
0.008% or less (@ line output)
Dynamic Range
120dB or better (@ line output)
Display
20 x 2 character LCD
5 x LED input level
5 x LED output level
4 x LED tuning correction
5 x LED compressor gain reduction
5 x LED de-esser gain reduction
Operating Temperature
41 to 95°F (5 to 35°C
Power Requirements
12VDC via TASCAM PS-1225L AC adapter (included)
Dimensions
19 x 5 x 1.73" (483 x 128 x 44mm)
Weight
4.4 lbs (2kg)



What's in the Box:

  • TASCAM TA-1VP - Vocal Processor
  • External Power Supply
  • Rackmounting Kit
  • Limited 1-Year Manufacturer Warranty (Parts)
  • Limited 90-Day Manufacturer Warranty (Labor)
$190.51

Original: $544.32

-65%
TASCAM TA-1VP - Vocal Processor—

$544.32

$190.51
