- 22 x Input Channels
- 16 x Microphone Preamps
- 20 x Line Inputs (12 Mono + 4 Stereo)
- Single-Knob Compressor
- 7-Band GEQ for Main or Monitor Outputs
- 3 x Aux Sends + Built-In Multi-FX
- 24-Track Recorder and Playback
- USB 2.0 Audio Interface (24-In x 22-Out)
- Wireless Bluetooth Connectivity
Overview

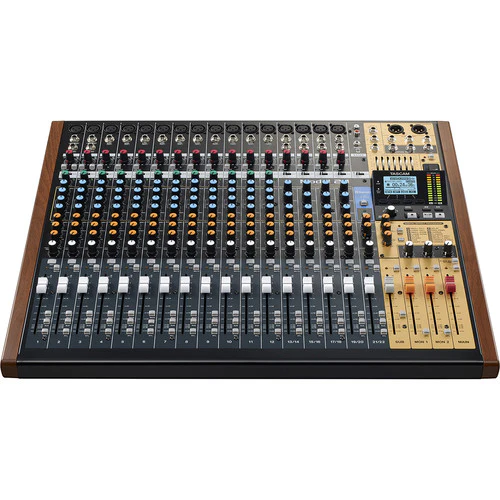

The highly flexible TASCAM Model 24 is a powerful, versatile, hybrid mixer/recorder/audio interface for both live and recording applications, well suited for bands, studios, conferences, podcasts, houses of worship, and more. The full-featured professional mixer offers 22 input channels including 16 microphone preamps with phantom power, two 1/4" Hi-Z jacks, 12 balanced 1/4" mono line inputs, and four balanced 1/4" stereo line inputs. Additionally, the last stereo input also accepts signals from a variety of sources including Bluetooth, USB, RCA, or a 3.5mm stereo mini jack.
There is single-knob compression available on the first 12 channels, while three auxiliary sends provide signal routing to a dedicated monitor and to one of 16 onboard multi-FX effects. The main and sub stereo buses offer simple grouping, as well as a selectable 7-band graphic EQ for fine tuning your mix. The Model 24 offers 21 faders, with 100mm of throw for quick and immediate mixing moves. Each channel may be assigned to receive audio from the live inputs, the internal multitrack recorder, or the USB 2.0 audio interface, allowing for versatility in any environment.
The onboard 24-track recorder takes its cue from TASCAM's Portastudio line, offering multitrack recording with the ability to record 22 tracks plus the stereo master internally. Multichannel playback for advanced live performance backing or mixing. What's more, the simple interface allows you to punch in/out of recording and playback without extensive menu diving. Additionally, the Model 24 features a 22 x 24 USB audio interfaced allowing for the transmission of 22 input channels plus the stereo master at up to 24-bit/48 kHz resolution.
Key Specs
General
| Form Factor |
Desktop
|
| Number of Tracks |
24 (22 Inputs + Stereo Mix)
|
| Maximum Simultaneous Tracks |
22x Recording
|
| Display |
1x LCD
|
| Maximum Sampling Rate |
48 kHz / 24-Bit
|
| Number of Microphone Inputs |
16
|
| Built-In Microphone |
No
|
| Input Level Adjustment |
17x Fader
|
| Meters |
Main Meter:
1x 12-Segment LED
|
| Number of Headphone Mixes |
1x Master
|
| Sample Pads |
No
|
Signal Processing
| Pad |
No
|
| Gain/Trim Range |
-10 dB to +40 dB (Channels 1 to 12)
-20 dB to +30 dB (Channels 13 to 20)
Mic Inputs:
Up to 50 dB
|
| High-Pass Filter |
100 Hz, 18 dB/Octave
|
| EQ Parameters |
Mono Channels:
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 100 Hz to 8 kHz, 0.55 Q (Semi-Parametric)
Low: ±15 dB at 80 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 600 Hz, 0.55 Q (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Graphic EQ:
±15 dB at 8 kHz
±15 dB at 4 kHz
±15 dB at 2 kHz
±15 dB at 1 kHz
±15 dB at 500 Hz
±15 dB at 250 Hz
±15 dB at 125 Hz
|
| Dynamic Processing |
No
|
| Solo/Mute |
Mute per Input Channel, FX Bus, Master
|
| Built-In Effects |
7x Reverb
2x Mono Delay
1x Stereo Delay
Chorus
Flanger
2x Delay+Reverb
2x Chorus+Reverb
|
Connectivity
| Analog Audio I/O |
16x XLR 3-Pin Balanced Mic Input
20x 1/4" TRS Balanced Line Input
1x Stereo RCA Unbalanced Line Input
1x 1/8" / 3.5 mm TRS Unbalanced Stereo Input
2x XLR 3-Pin Balanced Main Output
2x 1/4" TRS Control Room Output
1x 1/4" TRS FX Output
1x 1/4" TRS Headphone Output
2x 1/4" TRS Monitor Output
2x 1/4" TRS Subgroup/Bus Output
2x 1/4" TRS Unbalanced Insert In/Out
|
| Phantom Power |
48 V
|
| Host Connection |
1x USB-B (Class-Compliant)
|
| Host Connection Protocol |
USB 2.0
|
| MIDI I/O |
No
|
| Other I/O |
1x 1/4" TS Remote Input
|
| Wireless |
Bluetooth 4.0
|
Performance
| Maximum Input Level |
1/8" / 3.5 mm Inputs:
+8 dBV (Unbalanced, Stereo)
RCA Inputs:
+8 dBV (Unbalanced)
Mic Inputs:
+10 dBu
Line Inputs:
+22 dBu
Insert Return:
+18 dBu
|
| Maximum Output Level |
Monitor/FX/Subgroup/Control Room Outputs:
+16 dBu
XLR Main Outputs:
+22 dBu
|
| Headphone Output Power |
80 mW per Channel into 32 Ohms
|
| Impedance |
1/8" / 3.5 mm Inputs:
10 Kilohms
RCA Inputs:
10 Kilohms
Mic Inputs:
1.8 Kilohms
Line Inputs:
22 Kilohms (Balanced)
Control Room/FX/Monitor/Subgroup Outputs:
100 Ohms
Insert Return:
10 Kilohms
Insert Send:
100 Ohms
XLR Main Outputs:
100 Ohms
|
Digital Audio
| Audio File Formats |
Recording:
BWF, WAV
Playback:
BWF, WAV
|
| Sample Rates |
44.1 / 48 kHz
|
| Bit Depths |
16 / 24-Bit
|
Audio Storage & Playback
| Supported Media |
USB Hard Disk Drive
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC
|
| Supported Media Capacity |
SD:
512 MB Minimum to 2 GB Maximum
SDHC:
4 GB Minimum to 32 GB Maximum
SDXC:
64 GB Minimum to 512 GB Maximum
|
| File System Support |
SD: FAT16
SDHC: FAT32
SDXC: exFAT
|
Compatibility
| Mobile Device Compatibility |
Android Smartphone
iPhone
|
| Required Hardware |
USB 2.0 Port, USB-A Port
|
Power
| Power Requirements |
AC Input
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
52 W
|
Physical
| Dimensions |
22.7 x 20.2 x 4.4" / 575.8 x 513.1 x 112.5 mm (with Side Panel)
20.3 x 19.8 x 4.4" / 514.6 x 502.9 x 112.5 mm (without Side Panel)
|
| Weight |
22.0 lb / 10.0 kg
|
What's in the Box:
- TASCAM Model 24 - Digital Mixer, Recorder, and USB Audio Interface
-
Power Cord
- Limited 1-Year Manufacturer Warranty (Parts)
-
Limited 90-Day Manufacturer Warranty (Labor)
