Key Features

• Small Format Digital Mixer
• One-to-One Channel Control
• Metro: Live Remote Mixing Over Internet
• 33 Touch-Sensitive Motorized Faders
• 32 XMAX Preamps: 16 Mic and 16 Mic/Line
• 16 Analog FlexMix Outs: 12 XLR and 4 TRS
• Onboard 34-Track SD Recorder
• Integrated 64x64 USB Audio Interface
• Built-In AVB Networking




Overview

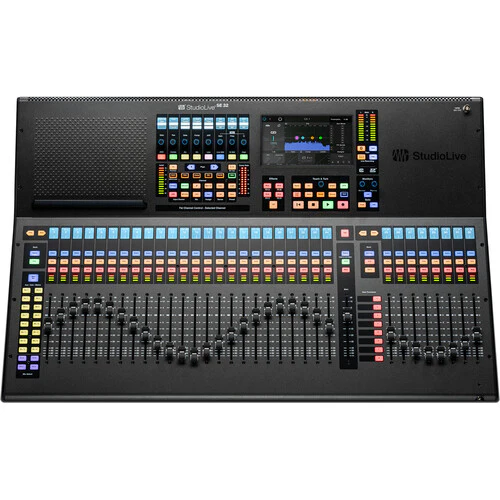

Designed for live sound reinforcement, live recording, and studio recording applications, the PreSonus StudioLive SE 32 is a Series III 40-channel small-format digital console, recorder, and audio interface with one-to-one channel control and a full complement of analog I/O packed into a 33-fader chassis. Featuring 32 studio-grade, fully recallable, XMAX-R preamps and vintage-style EQ and compression options on every channel and bus, the StudioLive SE 32 allows you to mix faster and sound better. With the 16 FlexMixes, you can configure subgroups, auxes, or matrix mixes on a per mix basis. Matrix mixes include all 40 input channels and every bus, making it easy to create front- and side-fill mixes for large venues or producer mixes for broadcast applications. Additionally, the mixer offers 24 DCA groups, four dedicated subgroup mixes, and four FX mixes, each with a stereo return and dedicated processing with lush reverbs and delays.

The StudioLive SE 32 features an integrated continuously bidirectional 64x64 USB 2.0 audio interface and onboard 34x34 SD recorder, which allows you to integrate backing tracks, record your show, or mix your next album, plus it comes with a suite of integrated software including Capture multitracking, virtual soundcheck software, and a perpetual license of Studio One Pro. For even more flexibility, each channel can easily switch between analog, USB, SD, and AVB sources, making integrating your analog and digital gear easier than ever. The StudioLive SE 32 can be controlled remotely from a computer or tablet and offers the ability to dial in a mix offline with Universal control. The built-in, Milan-certified AVB audio networking allows you to integrate stage boxes, personal monitor mixers, switches, and powerful accessories like the AVB-D16 AVB-to-Dante bridge that lets you add 16x16 Dante networking when you need it.

Key Specs

Max I/O Capacity	40x Input / 26x Output
Number of Analog Input Channels	32 (32 Mono / 0 Stereo)
Number of Mic Preamps	32
Number of Analog Output Channels	16
Faders & Level Adjustment	33 Motorized Fader(Touch Sensitive)
Analog Inputs	16x XLR TRS Balanced Mic Input 16x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 1x Stereo RCA Tape Input (1 Stereo Pair) 1x XLR Talkback Input

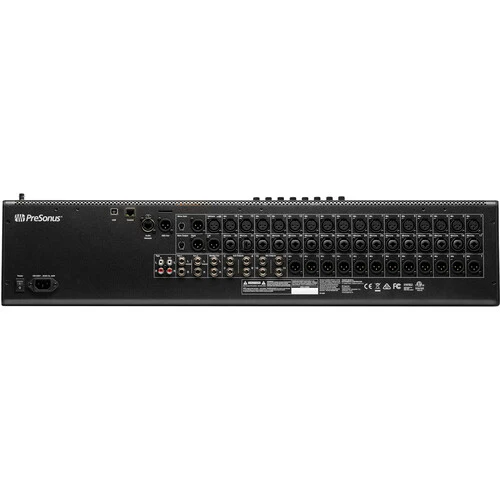

Analog Outputs	1x Stereo RCA Tape Output (1 Stereo Pair) 2x XLR 3-Pin Main Output 1x XLR 3-Pin Mono-Summed Output 2x 1/4" TRS Monitor Output 4x 1/4" TRS Subgroup Output 1x 1/4" TRS Headphone Output 12x XLR 3-Pin Bus/Mix Output 4x 1/4" TRS Bus/Mix Output
Digital I/O	1x RJ45 (Control, 1 Gb/s) 1x RJ45 AVB (I/O) 1x XLR AES3 Output
USB I/O	1x USB-B 2.0
Wireless	No
Rack Mountable	Yes

Operating Conditions	32 to 104°F / 0 to 40°C
Dimensions	32.4 x 6.5 x 23" / 82.3 x 16.5 x 58.4 cm
Weight	37.2 lb / 16.9 kg



What's in the Box:

• PreSonus StudioLive Series III SE 32 Digital Console Mixer / Recorder / Interface
• IEC Power Cable

• Limited 1-Year Manufacturer Warranty
