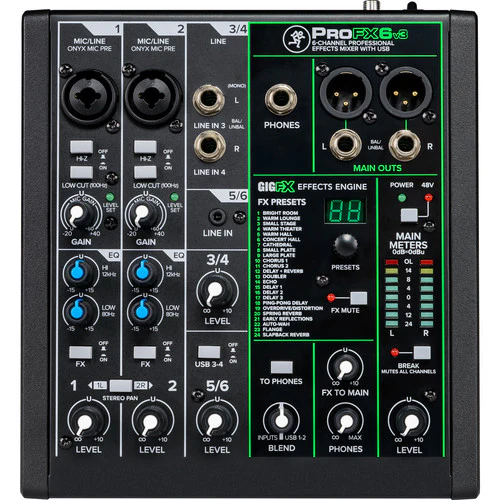

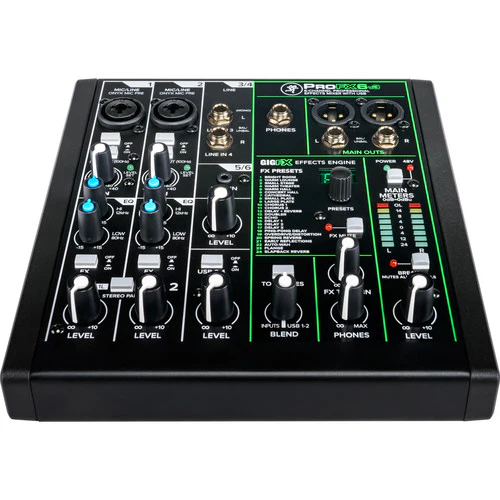

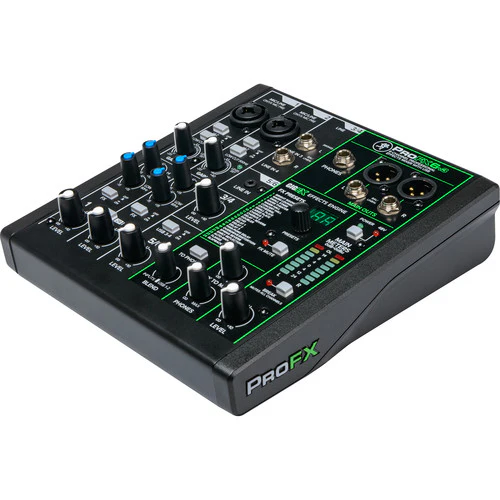

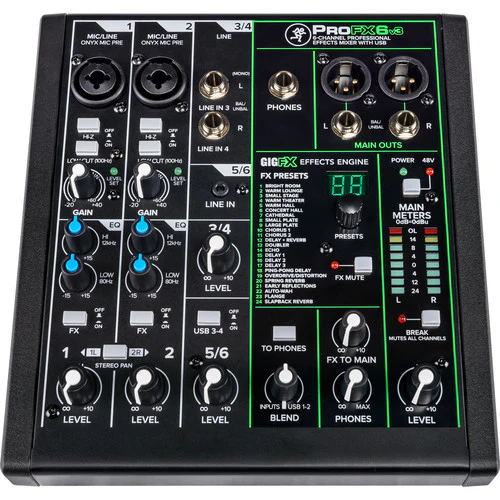

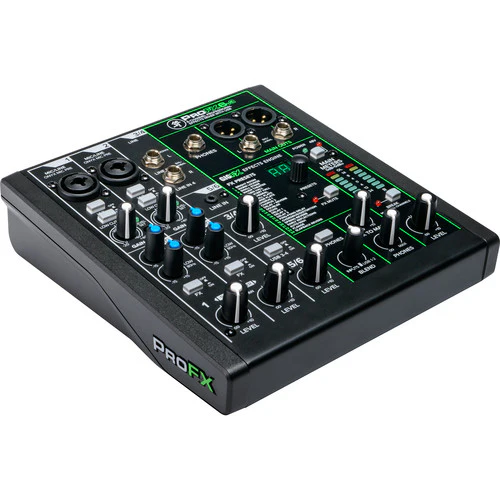

Mackie ProFX6v3 6-Channel Sound Reinforcement Mixer with Built-In FX

Product image 1
1 / 6
+1

Mackie ProFX6v3 6-Channel Sound Reinforcement Mixer with Built-In FX

Key Features
  • 2 x Mic/Line Inputs
  • 2 x Mono/Stereo Line Inputs
  • 2-In / 4-Out USB (24-Bit, 192 kHz)
  • Gig FX Effects Engine (24 FX Presets)
  • Main XLR & 1/4" Outputs + Headphone Out
  • 2 x Onyx Mic Preamps with 48V Phantom
  • 2-Band EQ on Channels 1-2
  • Monitor & FX Sends, Stereo & FX Returns
  • Includes Power Supply

Overview

The Mackie ProFX6v3 is a 6-channel mixing console featuring two Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.

Channels 1-2 offer combo XLR-1/4" mic/line connections and feature Hi-Z (for guitar and bass), low-cut filters (100 Hz), gain controls, 2-band EQ, stereo linking, level faders, and FX send. Channels 3-4 offer two 1/4" inputs and feature a level control, while channels 5-6 use a 3.5mm stereo input with level fader. Engaging channel 5-6's USB3-4 switch will override the 3.5" input and enables the USB return from a computer.  The master output is controlled with a dedicated level knob and features XLR and 1/4" connectors, while the dedicated 1/4" TRS headphone output includes an independent level control. Other features include Input-USB 1-2 blend control, FX mute, and FX to main.

Key Specs

Number of Analog Input Channels
6
Number of Mic Preamps
2
Analog Output Channels
2x Stereo Master Output
1x Stereo Headphone Output
Built-In Effects
24x Preset (Factory)
USB I/O
1x USB-B 2.0()
Rack Mountable
No
Mixer
Number of Analog Input Channels
6
Number of Mic Preamps
2
Analog Output Channels
2x Stereo Master Output
1x Stereo Headphone Output
Meters
Main Meter:
2x 8-Segment LED
Meter Range
Main Meter:
-24 dB to +14 dB Plus Peak/Clip
Signal Processing
EQ Parameters
Low: ±15 dB at 80 Hz
High: ±15 dB at 12 kHz
Filters
High-Pass: 100 Hz, 18 dB/Octave
Built-In Effects
24x Preset (Factory)
Digital Audio
Bit Depth
24-Bit
Performance
Frequency Response
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level
+22 dB
Output Level
Main Output:
+28 dBu at Max Gain
All Other Output:
+22 dBu at Max Gain
I/O Impedance
Mic Input:
3.8 Kilohms
Insert Return:
10 Kilohms
Line Input:
≥ 20 Kilohms
Headphone Output:
25 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk
Adjacent Inputs:
-90 dB at 1 kHz
Input to Output:
-80 dB at 1 kHz
Fader Off:
-75 dB at 1 kHz
Muted:
-90 dB at 1 kHz
CMRR
70 dB at Max Gain (1 kHz, Mic In to Main Out)
EIN
-126 dBu at Max Gain (150-Ohm Input)
Noise Floor
All Outputs:
-95 dBu (Master Level at -∞, Channel Levels at -∞)
-80 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N
Mic Input to Main Output:
< 0.03% (+4 dBu)
Connectivity
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
USB I/O
1x USB-B 2.0()
USB I/O Capacity
2x Input / 4x Output
Power
AC Input Power
Universal:
100 to 240 VAC, 50 / 60 Hz
Power Supply Output
12 VDC at 2 A
Physical
Rack Mountable
No
Dimensions
2.9 x 7.5 x 8.4" / 7.1 x 19 x 21.3 cm
Weight
2.6 lb / 1.2 kg
Packaging Info
Package Weight
4 lb
Box Dimensions (LxWxH)
19 x 13 x 9"

What's in the Box:

  • Mackie ProFX6v3 6-Channel Sound Reinforcement Mixer with Built-In FX
  • USB Cable
  • Power Supply
  • Serial Number for Download of Pro Tools | First, Waveform OEM, and The Musician Collection
  • Limited 1-Year Manufacturer Warranty
Key Features
  • 2 x Mic/Line Inputs
  • 2 x Mono/Stereo Line Inputs
  • 2-In / 4-Out USB (24-Bit, 192 kHz)
  • Gig FX Effects Engine (24 FX Presets)
  • Main XLR & 1/4" Outputs + Headphone Out
  • 2 x Onyx Mic Preamps with 48V Phantom
  • 2-Band EQ on Channels 1-2
  • Monitor & FX Sends, Stereo & FX Returns
  • Includes Power Supply

Overview

The Mackie ProFX6v3 is a 6-channel mixing console featuring two Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.

Channels 1-2 offer combo XLR-1/4" mic/line connections and feature Hi-Z (for guitar and bass), low-cut filters (100 Hz), gain controls, 2-band EQ, stereo linking, level faders, and FX send. Channels 3-4 offer two 1/4" inputs and feature a level control, while channels 5-6 use a 3.5mm stereo input with level fader. Engaging channel 5-6's USB3-4 switch will override the 3.5" input and enables the USB return from a computer.  The master output is controlled with a dedicated level knob and features XLR and 1/4" connectors, while the dedicated 1/4" TRS headphone output includes an independent level control. Other features include Input-USB 1-2 blend control, FX mute, and FX to main.

Key Specs

Number of Analog Input Channels
6
Number of Mic Preamps
2
Analog Output Channels
2x Stereo Master Output
1x Stereo Headphone Output
Built-In Effects
24x Preset (Factory)
USB I/O
1x USB-B 2.0()
Rack Mountable
No
Mixer
Number of Analog Input Channels
6
Number of Mic Preamps
2
Analog Output Channels
2x Stereo Master Output
1x Stereo Headphone Output
Meters
Main Meter:
2x 8-Segment LED
Meter Range
Main Meter:
-24 dB to +14 dB Plus Peak/Clip
Signal Processing
EQ Parameters
Low: ±15 dB at 80 Hz
High: ±15 dB at 12 kHz
Filters
High-Pass: 100 Hz, 18 dB/Octave
Built-In Effects
24x Preset (Factory)
Digital Audio
Bit Depth
24-Bit
Performance
Frequency Response
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level
+22 dB
Output Level
Main Output:
+28 dBu at Max Gain
All Other Output:
+22 dBu at Max Gain
I/O Impedance
Mic Input:
3.8 Kilohms
Insert Return:
10 Kilohms
Line Input:
≥ 20 Kilohms
Headphone Output:
25 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk
Adjacent Inputs:
-90 dB at 1 kHz
Input to Output:
-80 dB at 1 kHz
Fader Off:
-75 dB at 1 kHz
Muted:
-90 dB at 1 kHz
CMRR
70 dB at Max Gain (1 kHz, Mic In to Main Out)
EIN
-126 dBu at Max Gain (150-Ohm Input)
Noise Floor
All Outputs:
-95 dBu (Master Level at -∞, Channel Levels at -∞)
-80 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N
Mic Input to Main Output:
< 0.03% (+4 dBu)
Connectivity
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
USB I/O
1x USB-B 2.0()
USB I/O Capacity
2x Input / 4x Output
Power
AC Input Power
Universal:
100 to 240 VAC, 50 / 60 Hz
Power Supply Output
12 VDC at 2 A
Physical
Rack Mountable
No
Dimensions
2.9 x 7.5 x 8.4" / 7.1 x 19 x 21.3 cm
Weight
2.6 lb / 1.2 kg
Packaging Info
Package Weight
4 lb
Box Dimensions (LxWxH)
19 x 13 x 9"

What's in the Box:

  • Mackie ProFX6v3 6-Channel Sound Reinforcement Mixer with Built-In FX
  • USB Cable
  • Power Supply
  • Serial Number for Download of Pro Tools | First, Waveform OEM, and The Musician Collection
  • Limited 1-Year Manufacturer Warranty
