Mackie MobileMix 8-Channel Live Sound and Streaming Mixer

Product image 1
1 / 4

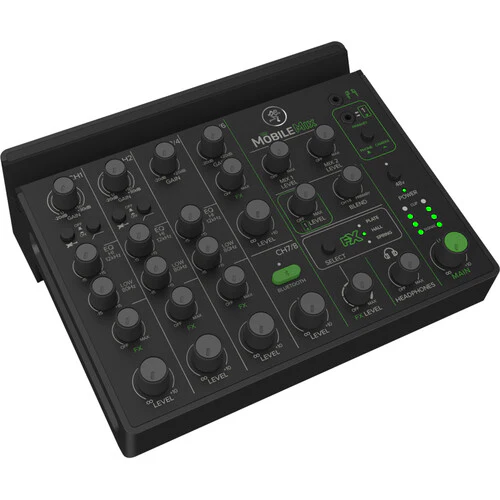

Mackie MobileMix 8-Channel Live Sound and Streaming Mixer

Key Features
  • For Live Sound, Camera Audio & Streaming
  • Ultracompact Design
  • 2 XLR-1/4" Combo Inputs, Phantom Power
  • Channel EQ and Variable FX Send
  • Blend Knob for Overdubs
  • Two Stereo Line Channels, Dual Mix Outs
  • USB-C or Internal Battery Power
  • Bidirectional BT Channel with Mix-Minus
  • Dedicated Smartphone/Camera TRRS Output

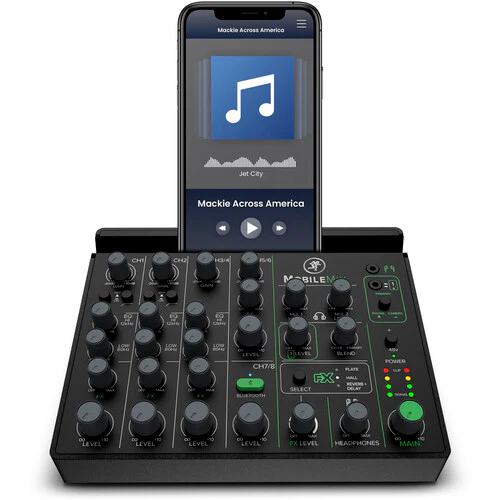

  • Phone/Tablet Dock



Overview

Providing content creators and musicians with an easy way to get quality sound from live shows and streams, the MobileMix from Mackie is an 8-channel portable mixer that delivers pro-quality audio in a compact, battery or bus-powered form factor. With plenty of I/O geared towards live mixing and a plethora of hands-on control, you can capture or stream your live performances wired or wirelessly with ease.

The MobileMix is equipped with a bidirectional Bluetooth channel that sports mix-minus for easy caller integration. Two 3.5mm TRRS input/output jacks are offered for dedicated smartphone or camera connections. You also get two individually adjustable 1/4" Mix outputs for sending custom mixes to headphones, plus a front-panel 3.5mm headphone output. The XLR-1/4" combo mic/line inputs with phantom power let you handle everything from high-quality condenser mics to DI instruments, and you also have a stereo line input channel and variable FX send options. The MobileMix not only sports a highly portable, low-profile design, it also features a dock for smart devices like phones and tablets, making it easier to integrate your mobile setup into one convenient system.

Key Specs

Number of Analog Input Channels
8 (2 Mono / 3 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1x Stereo Master Output
3x Stereo Headphone Output
1x Stereo Aux Send Output
1x Stereo Direct Output
Mix Routing
1x Stereo Main Mix
1x Stereo FX Bus per Input Channel
3x Stereo Bus/Subgroup
EQ
Input Channels:
2-Band EQ/Shelving
Built-In Effects
3x Stereo Reverb
USB I/O
1x USB-C (Device Charging)
Wireless
Bluetooth
*Built-In
Rack Mountable
No

Mixer
Max I/O Capacity
8x Input / 8x Output
Number of Analog Input Channels
8 (2 Mono / 3 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1x Stereo Master Output
3x Stereo Headphone Output
1x Stereo Aux Send Output
1x Stereo Direct Output
Mix Routing
1x Stereo Main Mix
1x Stereo FX Bus per Input Channel
3x Stereo Bus/Subgroup
Faders & Level Adjustment
19x Channel Knob
3x Master Knob
2x Bus/Subgroup Knob
1x FX Knob
Meters
1x 8-Segment LED

Signal Processing
Gain/Trim Range
Line/Mic Input:
-20 dB to +30 dB
Stereo Line Input:
-20 dB to +20 dB
Input Polarity
Fixed
Dynamic Processing
No
Sidechain Filters
No
EQ
Input Channels:
2-Band EQ/Shelving
EQ Parameters
High: at 12 kHz (Shelving)
Low: at 80 Hz (Shelving)
Graphic EQ
No
Filters
Mono Channels:
2x High-Pass
Solo/Mute
No
Channel Output/Source Monitoring
AFL, Post-Preamp
Built-In Effects
3x Stereo Reverb

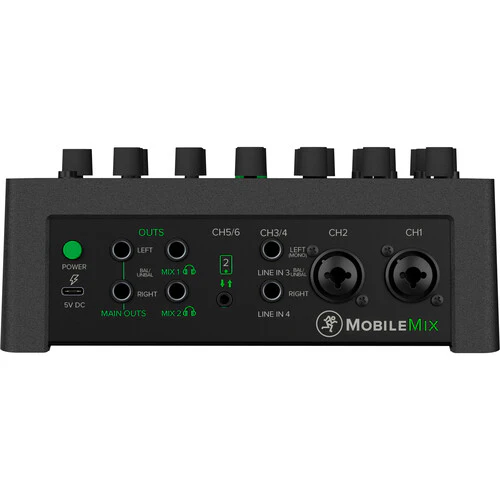

Connectivity
Analog Inputs
2x Combo XLR-1/4" 3-Pin Balanced Mic/Line Input (Pre-Fader, Pre-EQ)
2x 1/4" Line Input (1 Stereo Pair, Pre-Fader, Pre-EQ)
1x 1/8" / 3.5 mm TRRS Stereo Line Input (Pre-Fader, Pre-EQ)
Analog Outputs
2x 1/4" Mix Output (1 Stereo Pair, Post-Fader)
2x 1/4" TRS Stereo Headphone Output (Post-Fader)
1x 1/8" / 3.5 mm TRS Stereo Headphone Output (Post-Fader)
1x 1/8" / 3.5 mm TRS Stereo Line/Direct Output (Pre-Fader)
Phantom Power
+48 V, Selectable On/Off (on 2 Channels)
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-C (Device Charging)
Wireless
Bluetooth
*Built-In
Mobile App Compatible
No
OS Compatibility
No

Power
DC Input Power
5 VDC (USB Bus Power)
Physical
Rack Mountable
No

Packaging Info
Package Weight
2.92 lb
Box Dimensions (LxWxH)
10 x 9.3 x 4"

What's in the Box:

  • Mackie MobileMix 8-Channel Live Sound and Streaming Mixer
  • Limited 1-Year Manufacturer Warranty
Key Features
  • For Live Sound, Camera Audio & Streaming
  • Ultracompact Design
  • 2 XLR-1/4" Combo Inputs, Phantom Power
  • Channel EQ and Variable FX Send
  • Blend Knob for Overdubs
  • Two Stereo Line Channels, Dual Mix Outs
  • USB-C or Internal Battery Power
  • Bidirectional BT Channel with Mix-Minus
  • Dedicated Smartphone/Camera TRRS Output
  • Phone/Tablet Dock



Overview

Providing content creators and musicians with an easy way to get quality sound from live shows and streams, the MobileMix from Mackie is an 8-channel portable mixer that delivers pro-quality audio in a compact, battery or bus-powered form factor. With plenty of I/O geared towards live mixing and a plethora of hands-on control, you can capture or stream your live performances wired or wirelessly with ease.

The MobileMix is equipped with a bidirectional Bluetooth channel that sports mix-minus for easy caller integration. Two 3.5mm TRRS input/output jacks are offered for dedicated smartphone or camera connections. You also get two individually adjustable 1/4" Mix outputs for sending custom mixes to headphones, plus a front-panel 3.5mm headphone output. The XLR-1/4" combo mic/line inputs with phantom power let you handle everything from high-quality condenser mics to DI instruments, and you also have a stereo line input channel and variable FX send options. The MobileMix not only sports a highly portable, low-profile design, it also features a dock for smart devices like phones and tablets, making it easier to integrate your mobile setup into one convenient system.

Key Specs

Number of Analog Input Channels
8 (2 Mono / 3 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1x Stereo Master Output
3x Stereo Headphone Output
1x Stereo Aux Send Output
1x Stereo Direct Output
Mix Routing
1x Stereo Main Mix
1x Stereo FX Bus per Input Channel
3x Stereo Bus/Subgroup
EQ
Input Channels:
2-Band EQ/Shelving
Built-In Effects
3x Stereo Reverb
USB I/O
1x USB-C (Device Charging)
Wireless
Bluetooth
*Built-In
Rack Mountable
No

Mixer
Max I/O Capacity
8x Input / 8x Output
Number of Analog Input Channels
8 (2 Mono / 3 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1x Stereo Master Output
3x Stereo Headphone Output
1x Stereo Aux Send Output
1x Stereo Direct Output
Mix Routing
1x Stereo Main Mix
1x Stereo FX Bus per Input Channel
3x Stereo Bus/Subgroup
Faders & Level Adjustment
19x Channel Knob
3x Master Knob
2x Bus/Subgroup Knob
1x FX Knob
Meters
1x 8-Segment LED

Signal Processing
Gain/Trim Range
Line/Mic Input:
-20 dB to +30 dB
Stereo Line Input:
-20 dB to +20 dB
Input Polarity
Fixed
Dynamic Processing
No
Sidechain Filters
No
EQ
Input Channels:
2-Band EQ/Shelving
EQ Parameters
High: at 12 kHz (Shelving)
Low: at 80 Hz (Shelving)
Graphic EQ
No
Filters
Mono Channels:
2x High-Pass
Solo/Mute
No
Channel Output/Source Monitoring
AFL, Post-Preamp
Built-In Effects
3x Stereo Reverb

Connectivity
Analog Inputs
2x Combo XLR-1/4" 3-Pin Balanced Mic/Line Input (Pre-Fader, Pre-EQ)
2x 1/4" Line Input (1 Stereo Pair, Pre-Fader, Pre-EQ)
1x 1/8" / 3.5 mm TRRS Stereo Line Input (Pre-Fader, Pre-EQ)
Analog Outputs
2x 1/4" Mix Output (1 Stereo Pair, Post-Fader)
2x 1/4" TRS Stereo Headphone Output (Post-Fader)
1x 1/8" / 3.5 mm TRS Stereo Headphone Output (Post-Fader)
1x 1/8" / 3.5 mm TRS Stereo Line/Direct Output (Pre-Fader)
Phantom Power
+48 V, Selectable On/Off (on 2 Channels)
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-C (Device Charging)
Wireless
Bluetooth
*Built-In
Mobile App Compatible
No
OS Compatibility
No

Power
DC Input Power
5 VDC (USB Bus Power)
Physical
Rack Mountable
No

Packaging Info
Package Weight
2.92 lb
Box Dimensions (LxWxH)
10 x 9.3 x 4"

What's in the Box:

  • Mackie MobileMix 8-Channel Live Sound and Streaming Mixer
  • Limited 1-Year Manufacturer Warranty
$285.64
Mackie MobileMix 8-Channel Live Sound and Streaming Mixer—
$285.64
