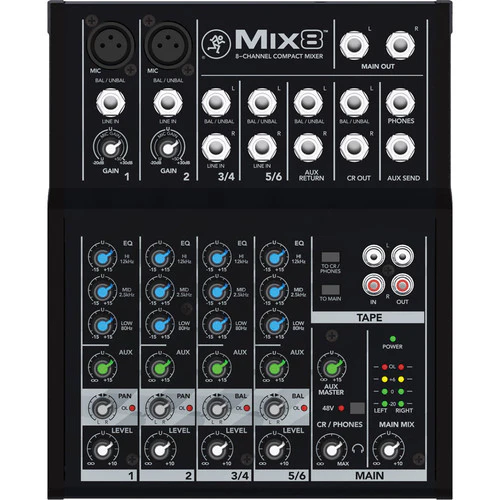

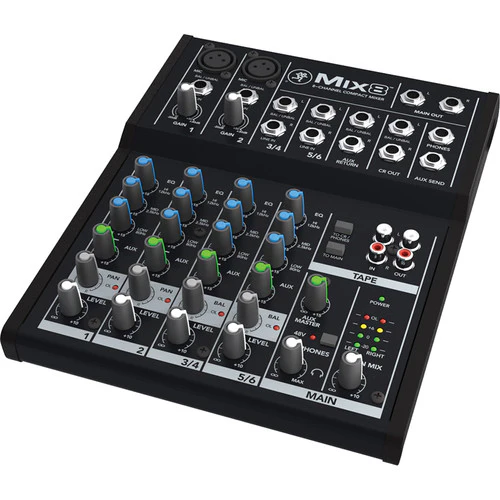

TheMackie Mix8is an 8-channel compact mixer that features high quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features two mic/line inputs with 48V phantom power, two stereo 1/4" line inputs, and stereo 1/4" aux send and return. It is capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.
Each of the two mic/line inputs is equipped with XLR and 1/4" connectors, a dedicated 3-band EQ, aux send, pan, level control and an LED overload indicator. The two stereo 1/4" line inputs each feature an aux send, 3-band EQ, level control, balance control and also have an LED overload indicator.
High: ±15 dB at 12 kHz (Shelving) Mid: ±15 dB at 2.5 kHz (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving)
Graphic EQ
No
Filters
Low-Pass: 75 Hz, 18 dB/Octave
Solo/Mute
No
Built-In Effects
No
Performance
Frequency Response
Mic Input to Output: 20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level
XLR Mic Input: +19 dBu Aux Return: +16 dBu Line Input: +21 dBu
I/O Impedance
Mic Input: 3.8 Kilohms Line Input: ≥ 10 Kilohms Tape Output: 1 Kilohms Headphone Output: 22 Ohms Main Output: 120 Ohms (Unbalanced) 240 Ohms (Balanced)
Crosstalk
Input to Output: -85 dB at 1 kHz (20 Hz to 20 kHz) Master Fader Off: -75 dB at 1 kHz
CMRR
> -70 dB at Max Gain (1 kHz, Mic In to Insert Send Out)
EIN
-125 dBu at Max Gain
Noise Floor
All Outputs: -100 dBu (Master Level at -∞, Channel Levels at -∞) -90 dBu (Master Level at Unity, Channel Levels at -∞) -85 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N
Mic Input to Main Output: < 0.25% (+4 dBu)
Connectivity
Analog Inputs
2x XLR 3-Pin Balanced/Unbalanced Mic Input 2x 1/4" TRS Balanced/Unbalanced Line Input 4x 1/4" TRS Balanced/Unbalanced Stereo Line Input (2 Stereo Pair) 2x 1/4" TRS Balanced/Unbalanced Aux Return 1x Stereo RCA Coaxial Unbalanced Tape Input (1 Stereo Pair)
