Mackie Big Knob Passive Studio Monitor Controller

Product image 1
1 / 5

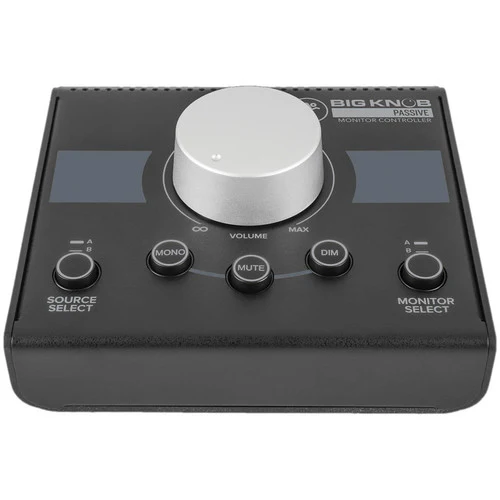

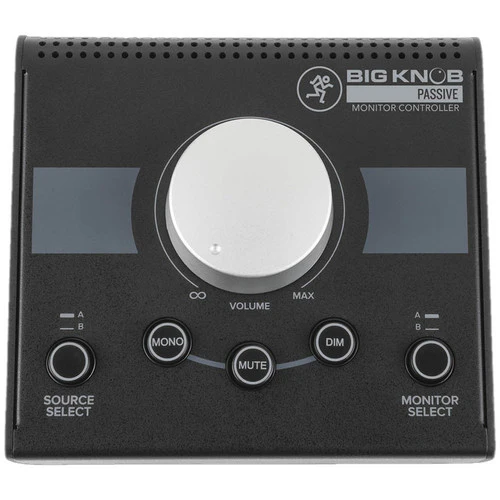

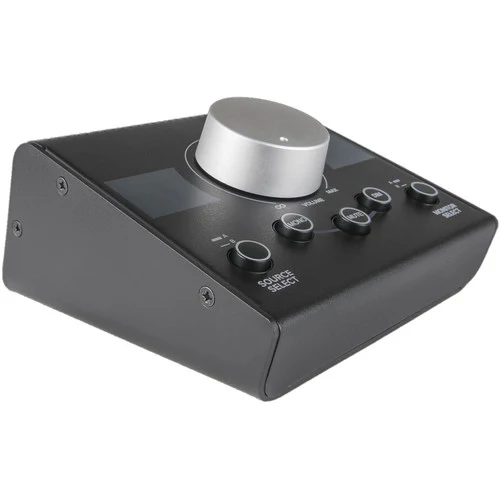

Mackie Big Knob Passive Studio Monitor Controller

Key Features
  • 2x2 Monitor Controller
  • Two Sources and Two Monitor Pairs
  • Classic Big Knob Volume Control
  • Mono, Mute, and Dim Functions
  • Pristine Audio Quality
  • Passive Audio Path
  • No Power Supply Required
  • Sturdy Design
  • Waveform DAW
  • Includes Plug-In Packages



Overview

The gray Mackie Big Knob Passive is a monitor controller that allows you to choose between two audio sources and two monitor pairs. It can be used in project and professional studios and is designed to increase your workflow for recording and mixing applications.

It features mono, mute, and dim functions and delivers pristine audio quality. Built with the classic Big Knob volume control, it is designed with a passive audio path, which requires no power supply. The Big Knob Passive studio monitor controller is sturdy and has a built-like-a-tank design.

The Big Knob Passive features a download for Waveform software and the DAW Essentials Collection, which includes 16 contemporary FX plugins including EQ, Compression, Delay, Limiter, Flanger, and more. To authorize the software, simply input the mixer's serial number on the website.



Key Specs

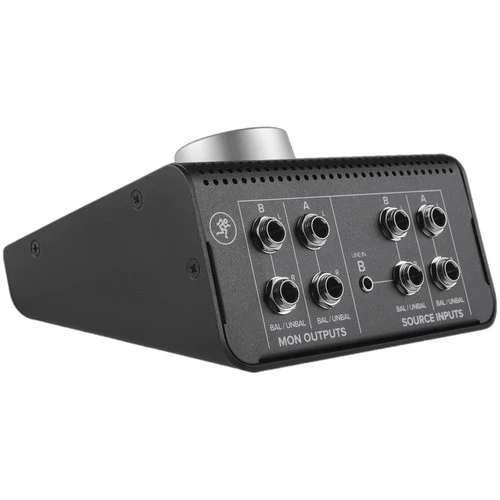

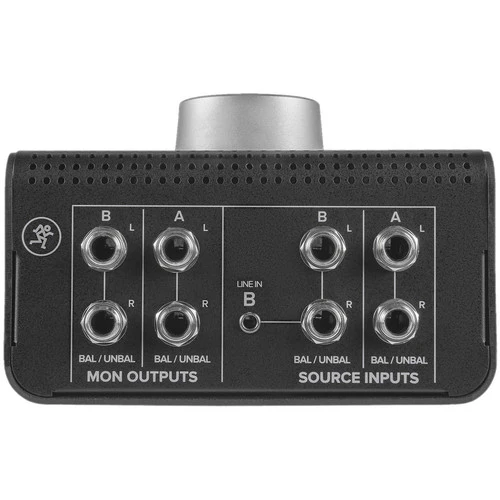

Inputs
4 x 1/4" TRS Balanced/Unbalanced Line Inputs
1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Input
Outputs
4 x 1/4" TRS Balanced/Unbalanced Monitor Outputs
Mono/Mute/Dim
Yes
Frequency Response
10 Hz to 30 kHz (±1 dB, 0 dBu Input)
THD + N
<0.005% (0 dBu Input at 1 kHz)
Crosstalk
< -85 dB (0 dBu Input at 1 kHz, 20 Hz to 20 kHz)
Attenuation
-100 dB
Signal-to-Noise Ratio
< -100 dB
Maximum Input Level
+22 dBu
Maximum Output Level
+15 dBu
Power Requirements
None
Dimensions
5.6 x 5.4 x 3.1" / 14.2 x 13.7 x 7.9 cm
Weight
2.2 lb / 1 kg

Packaging Info
Package Weight
2.875 lb
Box Dimensions (LxWxH)
8.3 x 7.85 x 4.9"

What's in the Box:

  • Mackie Big Knob Passive Studio Monitor Controller (Gray)
  • Serial Number for Download of Waveform OEM
  • DAW Essentials Collection
  • Limited 1-Year Manufacturer Warranty
Key Features
  • 2x2 Monitor Controller
  • Two Sources and Two Monitor Pairs
  • Classic Big Knob Volume Control
  • Mono, Mute, and Dim Functions
  • Pristine Audio Quality
  • Passive Audio Path
  • No Power Supply Required
  • Sturdy Design
  • Waveform DAW
  • Includes Plug-In Packages



Overview

The gray Mackie Big Knob Passive is a monitor controller that allows you to choose between two audio sources and two monitor pairs. It can be used in project and professional studios and is designed to increase your workflow for recording and mixing applications.

It features mono, mute, and dim functions and delivers pristine audio quality. Built with the classic Big Knob volume control, it is designed with a passive audio path, which requires no power supply. The Big Knob Passive studio monitor controller is sturdy and has a built-like-a-tank design.

The Big Knob Passive features a download for Waveform software and the DAW Essentials Collection, which includes 16 contemporary FX plugins including EQ, Compression, Delay, Limiter, Flanger, and more. To authorize the software, simply input the mixer's serial number on the website.



Key Specs

Inputs
4 x 1/4" TRS Balanced/Unbalanced Line Inputs
1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Input
Outputs
4 x 1/4" TRS Balanced/Unbalanced Monitor Outputs
Mono/Mute/Dim
Yes
Frequency Response
10 Hz to 30 kHz (±1 dB, 0 dBu Input)
THD + N
<0.005% (0 dBu Input at 1 kHz)
Crosstalk
< -85 dB (0 dBu Input at 1 kHz, 20 Hz to 20 kHz)
Attenuation
-100 dB
Signal-to-Noise Ratio
< -100 dB
Maximum Input Level
+22 dBu
Maximum Output Level
+15 dBu
Power Requirements
None
Dimensions
5.6 x 5.4 x 3.1" / 14.2 x 13.7 x 7.9 cm
Weight
2.2 lb / 1 kg

Packaging Info
Package Weight
2.875 lb
Box Dimensions (LxWxH)
8.3 x 7.85 x 4.9"

What's in the Box:

  • Mackie Big Knob Passive Studio Monitor Controller (Gray)
  • Serial Number for Download of Waveform OEM
  • DAW Essentials Collection
  • Limited 1-Year Manufacturer Warranty
$92.31
Mackie Big Knob Passive Studio Monitor Controller—
$92.31

Description

Key Features
  • 2x2 Monitor Controller
  • Two Sources and Two Monitor Pairs
  • Classic Big Knob Volume Control
  • Mono, Mute, and Dim Functions
  • Pristine Audio Quality
  • Passive Audio Path
  • No Power Supply Required
  • Sturdy Design
  • Waveform DAW
  • Includes Plug-In Packages



Overview

The gray Mackie Big Knob Passive is a monitor controller that allows you to choose between two audio sources and two monitor pairs. It can be used in project and professional studios and is designed to increase your workflow for recording and mixing applications.

It features mono, mute, and dim functions and delivers pristine audio quality. Built with the classic Big Knob volume control, it is designed with a passive audio path, which requires no power supply. The Big Knob Passive studio monitor controller is sturdy and has a built-like-a-tank design.

The Big Knob Passive features a download for Waveform software and the DAW Essentials Collection, which includes 16 contemporary FX plugins including EQ, Compression, Delay, Limiter, Flanger, and more. To authorize the software, simply input the mixer's serial number on the website.



Key Specs

Inputs
4 x 1/4" TRS Balanced/Unbalanced Line Inputs
1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Input
Outputs
4 x 1/4" TRS Balanced/Unbalanced Monitor Outputs
Mono/Mute/Dim
Yes
Frequency Response
10 Hz to 30 kHz (±1 dB, 0 dBu Input)
THD + N
<0.005% (0 dBu Input at 1 kHz)
Crosstalk
< -85 dB (0 dBu Input at 1 kHz, 20 Hz to 20 kHz)
Attenuation
-100 dB
Signal-to-Noise Ratio
< -100 dB
Maximum Input Level
+22 dBu
Maximum Output Level
+15 dBu
Power Requirements
None
Dimensions
5.6 x 5.4 x 3.1" / 14.2 x 13.7 x 7.9 cm
Weight
2.2 lb / 1 kg

Packaging Info
Package Weight
2.875 lb
Box Dimensions (LxWxH)
8.3 x 7.85 x 4.9"

What's in the Box:

  • Mackie Big Knob Passive Studio Monitor Controller (Gray)
  • Serial Number for Download of Waveform OEM
  • DAW Essentials Collection
  • Limited 1-Year Manufacturer Warranty
