Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects

1 / 4

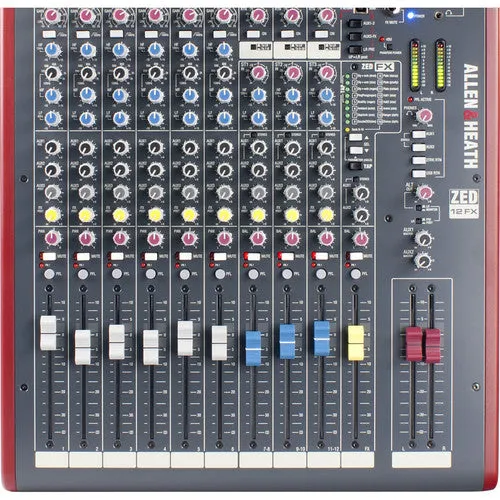

Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects

Key Features

Portable Mixer for Live & Studio Mixing
6 x XLR-1/4" Mic/Line Inputs
3 x Stereo Line Inputs with EQ
USB Digital Audio Interface
DuoPre Microphone Preamps
3-band EQs with MusiQ Technology
16 FX: Delay, Reverb, and Modulation
4 x Aux/FX Sends
Monitoring Section with Headphone Out

Overview

The multipurpose Allen & Heath ZED-12FX mixer combines six mic/line inputs, three stereo inputs for effect returns and portable music players or keyboards, a 24-bit effects processor, and a USB digital audio interface compatible with Mac and Windows computers-in a compact and portable package small enough for carrying to your gig, whether recording live or in the studio.

Channels 1 through 6 can be accessed through balanced XLR or 1/4" mic/line inputs and feature low-noise DuoPre preamps with 69 dB of gain. They are also equipped with responsive, 3-band swept-mid EQs, which utilize MusiQ technology to optimize the Q factor proportional to the amount of boost or attenuation.

The built-in DSP engine offers sixteen effects to choose from, ranging from classic reverbs and delays to cascaded delays with reverbs and shimmering flanger and chorus effects. Delay tempo can be set on the fly using the convenient TAP button.

The ZED-12FX offers a set of four Aux/FX sends, 48V microphone phantom power, XLR main stereo outputs with inserts, a comprehensive monitoring section with two headphone outputs, and a separate monitor speaker output.

Key Specs

Number of Analog Input Channels	12
Number of Mic Preamps	6
Analog Output Channels	1x Stereo Master Output 1x Mono Master Output 1x Stereo ALT Master Output 3x Mono Aux Send Output 1x Stereo Tape/Record Output 1x Stereo Headphone Output
Mix Routing	Main Mix / Aux Bus/Subgroup / FX Bus
EQ	3-Band EQ (Mono Channels) 2-Band EQ (Stereo Channels)
Built-In Effects	3x Delay 6x Reverb 3x Delay+Reverb 1x Stereo Expander 1x Chorus 1x Flanger
USB I/O	1x USB-B 1.1 (I/O)
Wireless	No
Max Multitrack Recording	12 Tracks
Rack Mountable	No

Mixer

Max I/O Capacity	12x Input / 6x Output
Number of Analog Input Channels	12
Number of Mic Preamps	6
Analog Output Channels	1x Stereo Master Output 1x Mono Master Output 1x Stereo ALT Master Output 3x Mono Aux Send Output 1x Stereo Tape/Record Output 1x Stereo Headphone Output
Mix Routing	Main Mix / Aux Bus/Subgroup / FX Bus
Faders & Level Adjustment	12x 3.9" / 100 mm Channel Fader
Meters	LED

Signal Processing

Gain/Trim Range	Mic: -6 ±69 dB 1/4" Line: -10 dB ±26 dB
Dynamic Processing	No
EQ	3-Band EQ (Mono Channels) 2-Band EQ (Stereo Channels)
EQ Parameters	High: ±15 dB at 12 kHz Mid: ±15 dB at 120 Hz to 4 kHz Low: ±15 dB at 80 Hz
Graphic EQ	No
Filters	Input Channels: 1x High-Pass: 100 Hz, 12 dB/Octave
Solo/Mute	Solo, Mute per Input Channel
Built-In Effects	3x Delay 6x Reverb 3x Delay+Reverb 1x Stereo Expander 1x Chorus 1x Flanger

Digital Audio

Sample Rates	AD/DA Conversion: 32 / 44.1 / 48 kHz DSP: 48 kHz
Bit Depth	16-Bit

Performance

Frequency Response	Line Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB (Unity Gain) Mic Input to Main Output: 20 Hz to 30 kHz +0.5/-1 dB (30 dB Gain) Stereo Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB
Max Input Level	XLR Input: +17 dBu (Mono) 1/4" Line Input: +30 dBu (Mono) 1/4" / RCA Input: +10 dB (Stereo)
Noise Floor	Main Output: -88 dBu (Master Level at Unity, Channel Levels at -∞, 22 Hz to 22 kHz)
THD+N	Line Input to Main Output: 0.005% at Unity Gain (1 kHz) Mic Input to Main Output: 0.004% at Unity Gain (1 kHz) 0.014% at +30 dB Gain (1 kHz) Stereo Line Input to Main Output: 0.003% at Unity Gain (1 kHz)

Connectivity

Analog Inputs	6x 1/4" TRS Balanced/Unbalanced Line Input 6x 1/4" TRS Balanced/Unbalanced Line Input (3 Stereo Pairs) 1x Stereo RCA Coaxial Return 6x 1/4" TRS Channel Insert 2x 1/4" TRS Main Insert 6x XLR 3-Pin Balanced Mic Input
Analog Outputs	1x 1/4" TRS Headphone Output 1x 1/8" / 3.5 mm TRS Headphone Output 1x Stereo RCA Tape Output 1x Stereo RCA Alt Output 2x 1/4" Aux Send (Pre-Fader) 1x 1/4" Aux Output (Post-Fader) 1x 1/4" FX Send (Post-Fader) 2x XLR 3-Pin Balanced Main Output 1x 1/4" Main/Mono-Summed Output (Post-Fader)
Phantom Power	+48 V, Selectable On/Off
Digital I/O	No
MIDI I/O	No
USB I/O	1x USB-B 1.1 (I/O)
USB I/O Capacity	2x Input / 2x Output
Wireless	No

Recording

Max Multitrack Recording

12 Tracks

Compatibility

OS Compatibility	macOS / Windows
OS Compatibility	macOS Windows

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable	No
Dimensions	15.2 x 18.3 x 3.9" / 38.6 x 46.5 x 9.9 cm
Weight	14.3 lb / 6.5 kg

What's in the Box

Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects
USB Cable
Power Cable
Limited 1-Year Manufacturer Warranty
