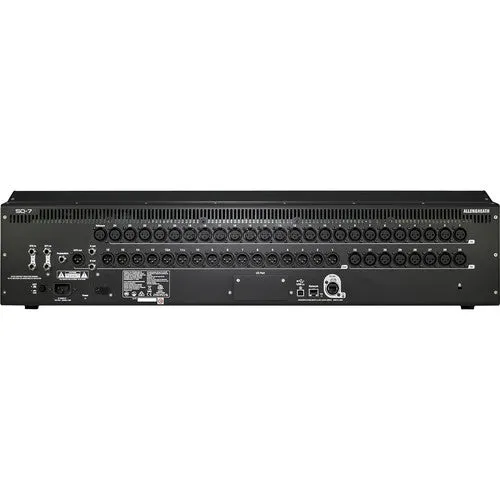

Allen & Heath SQ-7 48-Channel / 36-Bus Digital Mixer with 32+1 Motorized Faders
1 / 4
Allen & Heath SQ-7 48-Channel / 36-Bus Digital Mixer with 32+1 Motorized Faders
Key Features
32 Microphone Preamps
7" Capacitive Touchscreen
96 kHz FPGA Processing
Eight Stereo FX Engines with Returns
32 x 32 USB Audio Interface
AES Output
12 Mono/Stereo Mixes + 3 Stereo Matrix
Channel LCD Displays
16 Assignable SoftKeys
SLink Port for Remote Audio & Expansion
Overview
The Allen & Heath SQ-7 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-7 features 32+1 motorized faders and 32 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer's 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Automatic Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.
At the heart of the SQ-7 lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultra-low latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel/mix counts and ample FX processing. The SQ's DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer's inputs and mix channels, all without adding system latency or setup hassles.

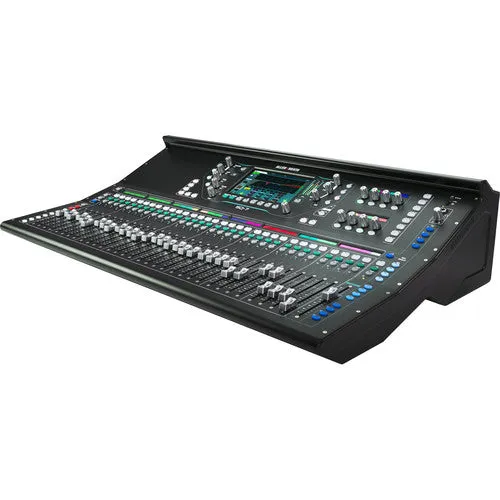

The front panel is centered around the mixer's 7" capacitive touchscreen and framed by an array of high-grip, illuminated encoders, which offer clear visual feedback and quick, hands-on control. You can drag-and-drop channels and mixes to any strip with custom naming and color coding on the strip display, allowing you to build a mix environment that mirrors your workflow. The SQ-7 offers 16 softkeys, which can be freely assigned to any function for a customized and advanced workflow. The on-board recorder uses a USB Type-A port to record stereo and multitrack sessions to a flash drive. The recorder can also playback stereo and multitrack files, handy for virtual sound checks and studio mixing.
The SQ-7 offers expansion options via Allen & Heath's stage box expanders, or install an optional Dante or Waves card to adapt and expand using the latest digital technologies. SQ is fully compatible with the ME Personal Mixing System, allowing performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer's SLink port, or from a connected remote expander. The Allen & Heath SQ-7 includes a power cord.
Key Specs
Number of Analog Input Channels
48
Mix Routing
8x Stereo FX Return
Groups
8x Mute Group 8x DCA Group
Display
7" Touchscreen
Display Resolution/Color
Main Display: 800 x 480 8-Bit RGB
Faders & Level Adjustment
x 3.9" / 100 mm Motorized
Meters
Main Meter: 2x 12-Segment LED Channel Meter: Single LED
Meter Range
-3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration
0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Signal Processing
Gain/Trim Range
Line: ±24 dB (Stereo Channels) Mic/Line: -5 dB to +60 dB (in 1 dB Steps)
Input Pad
-20 dB
Input Polarity
Normal/Reverse
Gate Parameters
Threshold: -72 to +18 dBu Depth: 0 to 60 dB Attack: 50 μs to 300 ms Hold: 10 ms to 5 sec Release: 10 ms to 1 sec
Compressor Parameters
Threshold: -46 to 18 dBu Ratio: 1:1 to ∞:1 Attack: 30 μs to 300 ms Release: 50 ms to 2 sec Knee: Soft / Hard Blend: Yes
Sidechain Filters
Compressor: High-Pass: 20 to 5 kHz Band-Pass: 120 Hz to 10 kHz Low-Pass: 120 Hz to 20 kHz Gate: High-Pass: 20 Hz to 5 kHz Band-Pass: 120 Hz to 10 kHz Low-Pass: 120 Hz to 20 kHz
EQ
FX Returns: 4-Band Parametric
EQ Parameters
1x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) 2x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz 1x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Allen & Heath SQ-7 48-Channel / 36-Bus Digital Mixer with 32+1 Motorized Faders
Power Cord
Limited 1-Year Manufacturer Warranty
Key Features
32 Microphone Preamps
7" Capacitive Touchscreen
96 kHz FPGA Processing
Eight Stereo FX Engines with Returns
32 x 32 USB Audio Interface
AES Output
12 Mono/Stereo Mixes + 3 Stereo Matrix
Channel LCD Displays
16 Assignable SoftKeys
SLink Port for Remote Audio & Expansion
Overview
The Allen & Heath SQ-7 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-7 features 32+1 motorized faders and 32 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer's 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Automatic Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.
At the heart of the SQ-7 lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultra-low latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel/mix counts and ample FX processing. The SQ's DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer's inputs and mix channels, all without adding system latency or setup hassles.
The front panel is centered around the mixer's 7" capacitive touchscreen and framed by an array of high-grip, illuminated encoders, which offer clear visual feedback and quick, hands-on control. You can drag-and-drop channels and mixes to any strip with custom naming and color coding on the strip display, allowing you to build a mix environment that mirrors your workflow. The SQ-7 offers 16 softkeys, which can be freely assigned to any function for a customized and advanced workflow. The on-board recorder uses a USB Type-A port to record stereo and multitrack sessions to a flash drive. The recorder can also playback stereo and multitrack files, handy for virtual sound checks and studio mixing.
The SQ-7 offers expansion options via Allen & Heath's stage box expanders, or install an optional Dante or Waves card to adapt and expand using the latest digital technologies. SQ is fully compatible with the ME Personal Mixing System, allowing performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer's SLink port, or from a connected remote expander. The Allen & Heath SQ-7 includes a power cord.
Key Specs
Number of Analog Input Channels
48
Mix Routing
8x Stereo FX Return
Groups
8x Mute Group 8x DCA Group
Display
7" Touchscreen
Display Resolution/Color
Main Display: 800 x 480 8-Bit RGB
Faders & Level Adjustment
x 3.9" / 100 mm Motorized
Meters
Main Meter: 2x 12-Segment LED Channel Meter: Single LED
Meter Range
-3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration
0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Signal Processing
Gain/Trim Range
Line: ±24 dB (Stereo Channels) Mic/Line: -5 dB to +60 dB (in 1 dB Steps)
Input Pad
-20 dB
Input Polarity
Normal/Reverse
Gate Parameters
Threshold: -72 to +18 dBu Depth: 0 to 60 dB Attack: 50 μs to 300 ms Hold: 10 ms to 5 sec Release: 10 ms to 1 sec
Compressor Parameters
Threshold: -46 to 18 dBu Ratio: 1:1 to ∞:1 Attack: 30 μs to 300 ms Release: 50 ms to 2 sec Knee: Soft / Hard Blend: Yes
Sidechain Filters
Compressor: High-Pass: 20 to 5 kHz Band-Pass: 120 Hz to 10 kHz Low-Pass: 120 Hz to 20 kHz Gate: High-Pass: 20 Hz to 5 kHz Band-Pass: 120 Hz to 10 kHz Low-Pass: 120 Hz to 20 kHz
EQ
FX Returns: 4-Band Parametric
EQ Parameters
1x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) 2x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz 1x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Allen & Heath SQ-7 48-Channel / 36-Bus Digital Mixer with 32+1 Motorized Faders
Power Cord
Limited 1-Year Manufacturer Warranty
$2,001.26
Original: $5,717.90
-65%
Allen & Heath SQ-7 48-Channel / 36-Bus Digital Mixer with 32+1 Motorized Faders—
$5,717.90
$2,001.26
Description
Key Features
32 Microphone Preamps
7" Capacitive Touchscreen
96 kHz FPGA Processing
Eight Stereo FX Engines with Returns
32 x 32 USB Audio Interface
AES Output
12 Mono/Stereo Mixes + 3 Stereo Matrix
Channel LCD Displays
16 Assignable SoftKeys
SLink Port for Remote Audio & Expansion
Overview
The Allen & Heath SQ-7 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-7 features 32+1 motorized faders and 32 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer's 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Automatic Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.
At the heart of the SQ-7 lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultra-low latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel/mix counts and ample FX processing. The SQ's DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer's inputs and mix channels, all without adding system latency or setup hassles.
The front panel is centered around the mixer's 7" capacitive touchscreen and framed by an array of high-grip, illuminated encoders, which offer clear visual feedback and quick, hands-on control. You can drag-and-drop channels and mixes to any strip with custom naming and color coding on the strip display, allowing you to build a mix environment that mirrors your workflow. The SQ-7 offers 16 softkeys, which can be freely assigned to any function for a customized and advanced workflow. The on-board recorder uses a USB Type-A port to record stereo and multitrack sessions to a flash drive. The recorder can also playback stereo and multitrack files, handy for virtual sound checks and studio mixing.
The SQ-7 offers expansion options via Allen & Heath's stage box expanders, or install an optional Dante or Waves card to adapt and expand using the latest digital technologies. SQ is fully compatible with the ME Personal Mixing System, allowing performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer's SLink port, or from a connected remote expander. The Allen & Heath SQ-7 includes a power cord.
Key Specs
Number of Analog Input Channels
48
Mix Routing
8x Stereo FX Return
Groups
8x Mute Group 8x DCA Group
Display
7" Touchscreen
Display Resolution/Color
Main Display: 800 x 480 8-Bit RGB
Faders & Level Adjustment
x 3.9" / 100 mm Motorized
Meters
Main Meter: 2x 12-Segment LED Channel Meter: Single LED
Meter Range
-3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration
0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Signal Processing
Gain/Trim Range
Line: ±24 dB (Stereo Channels) Mic/Line: -5 dB to +60 dB (in 1 dB Steps)
Input Pad
-20 dB
Input Polarity
Normal/Reverse
Gate Parameters
Threshold: -72 to +18 dBu Depth: 0 to 60 dB Attack: 50 μs to 300 ms Hold: 10 ms to 5 sec Release: 10 ms to 1 sec
Compressor Parameters
Threshold: -46 to 18 dBu Ratio: 1:1 to ∞:1 Attack: 30 μs to 300 ms Release: 50 ms to 2 sec Knee: Soft / Hard Blend: Yes
Sidechain Filters
Compressor: High-Pass: 20 to 5 kHz Band-Pass: 120 Hz to 10 kHz Low-Pass: 120 Hz to 20 kHz Gate: High-Pass: 20 Hz to 5 kHz Band-Pass: 120 Hz to 10 kHz Low-Pass: 120 Hz to 20 kHz
EQ
FX Returns: 4-Band Parametric
EQ Parameters
1x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) 2x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz 1x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
