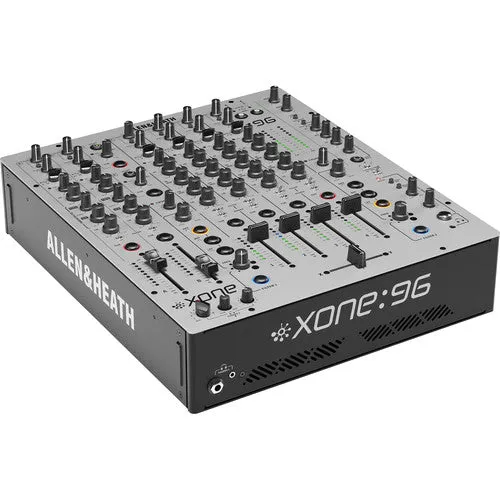

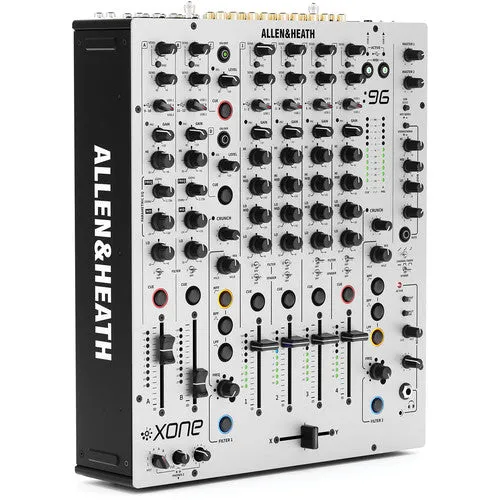

Allen & Heath XONE:96 Professional 6-Channel Analog DJ Mixer
1 / 5
Allen & Heath XONE:96 Professional 6-Channel Analog DJ Mixer
Key Features
Six-Channel Mixer
Dual USB Sound Card
Dual VCFs (LP, BP, HP)
Crunch Circuit: Harmonic Distortion
3-Band Parametric EQ on Inputs A & B
4-Band EQ on Channels 1-4
2 x Stereo FX Sends + 4 x Stereo Returns
Replaceable VCA Channel Faders
Cross-Fader: innoFADER
Headphone Outputs: 2 x 1/4" & 1/8"
Overview
Building upon the success of the XONE:92, the Allen & Heath XONE:96 is a flexible, professional six-channel DJ mixer designed for nightclub and venue installation. The XONE:96 is updated with a dual 32-bit/96kHz soundcard with two USB connections for up to 24 channels of I/O. There are two independent headphone amplifier circuits with 1/4" and 1/8" connections that, when combined with the two separate soundcards, allow for some serious back-to-back sessions and seamless DJ transitions. The classic dual VFC filters (LP, BP, HP) offer frequency cutoff and resonance controls and have been updated with a "Crunch" circuit, which offers controlled harmonic distortion (pre-filter).
Channels 1-4 offer four turntable (phono) and four line inputs on RCA connections, while channels A and B feature balanced XLR microphone inputs and stereo 1/4" line inputs. The XONE:96 is packed with sonic and performance enhancing features that include a powerful four-band EQ on channels 1-4 and a 3-band parametric EQ on channels A & B. Additional features include user replaceable 60mm VCA channel faders, and a replaceable innoFADER Mini crossfader.

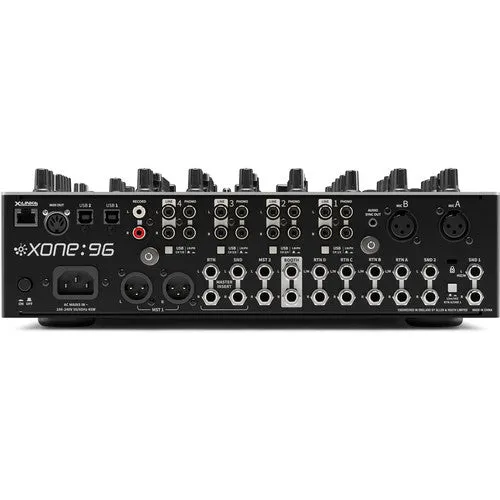

Two mix outputs feature balanced XLR and unbalanced RCA connections, while the booth output features stereo 1/4" connections. A stereo pair of RCA outs is available for recording the mixer's outputs. Two stereo auxiliary sends and four stereo returns route signal to external effects and signal processors. The Allen & Heath XONE:96 is a professional DJ mixer and designed to surpass the expectations of the most demanding professional DJs.
1x DIN 5-Pin MIDI Output 1x RJ45 Link Output 2x Phono Ground Terminal
Phantom Power
No
USB
2x USB-B 2.0 (Class Compliant/Audio I/O)
Wireless
No
Media Card Slots
No
Performance
Headroom
20 dB
Crosstalk
<-83 dB
THD
<0.05%
Compatibility
Included Software
No
Compatible Software (Not Included)
Traktor Pro Traktor Scratch pro 2
OS Compatibility
macOS / Windows
OS Compatibility
macOS Windows
Mobile App Compatible
No
Required Hardware
USB 2.0 Port
Internet Connection
Required for Registration, Software/Driver Download
Power
Power Requirements
AC/DC Power Adapter (Included)
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power I/O
1x IEC
Power Consumption
45 W (Maximum)
Physical
Anti-Theft Features
Kensington Security Slot
Dimensions (W x D x H)
13.3 x 16.2 x 4.3" / 336.0 x 410.0 x 109.0 mm
Weight
15.4 lb / 7 kg
Packaging Info
Package Weight
19.05 lb
Box Dimensions (LxWxH)
21 x 18.5 x 8"
What's in the Box
Allen & Heath XONE:96 Professional 6-Channel Analog DJ Mixer
Power Cord
Limited 1-Year Manufacturer Warranty
Key Features
Six-Channel Mixer
Dual USB Sound Card
Dual VCFs (LP, BP, HP)
Crunch Circuit: Harmonic Distortion
3-Band Parametric EQ on Inputs A & B
4-Band EQ on Channels 1-4
2 x Stereo FX Sends + 4 x Stereo Returns
Replaceable VCA Channel Faders
Cross-Fader: innoFADER
Headphone Outputs: 2 x 1/4" & 1/8"
Overview
Building upon the success of the XONE:92, the Allen & Heath XONE:96 is a flexible, professional six-channel DJ mixer designed for nightclub and venue installation. The XONE:96 is updated with a dual 32-bit/96kHz soundcard with two USB connections for up to 24 channels of I/O. There are two independent headphone amplifier circuits with 1/4" and 1/8" connections that, when combined with the two separate soundcards, allow for some serious back-to-back sessions and seamless DJ transitions. The classic dual VFC filters (LP, BP, HP) offer frequency cutoff and resonance controls and have been updated with a "Crunch" circuit, which offers controlled harmonic distortion (pre-filter).
Channels 1-4 offer four turntable (phono) and four line inputs on RCA connections, while channels A and B feature balanced XLR microphone inputs and stereo 1/4" line inputs. The XONE:96 is packed with sonic and performance enhancing features that include a powerful four-band EQ on channels 1-4 and a 3-band parametric EQ on channels A & B. Additional features include user replaceable 60mm VCA channel faders, and a replaceable innoFADER Mini crossfader.
Two mix outputs feature balanced XLR and unbalanced RCA connections, while the booth output features stereo 1/4" connections. A stereo pair of RCA outs is available for recording the mixer's outputs. Two stereo auxiliary sends and four stereo returns route signal to external effects and signal processors. The Allen & Heath XONE:96 is a professional DJ mixer and designed to surpass the expectations of the most demanding professional DJs.
1x DIN 5-Pin MIDI Output 1x RJ45 Link Output 2x Phono Ground Terminal
Phantom Power
No
USB
2x USB-B 2.0 (Class Compliant/Audio I/O)
Wireless
No
Media Card Slots
No
Performance
Headroom
20 dB
Crosstalk
<-83 dB
THD
<0.05%
Compatibility
Included Software
No
Compatible Software (Not Included)
Traktor Pro Traktor Scratch pro 2
OS Compatibility
macOS / Windows
OS Compatibility
macOS Windows
Mobile App Compatible
No
Required Hardware
USB 2.0 Port
Internet Connection
Required for Registration, Software/Driver Download
Power
Power Requirements
AC/DC Power Adapter (Included)
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power I/O
1x IEC
Power Consumption
45 W (Maximum)
Physical
Anti-Theft Features
Kensington Security Slot
Dimensions (W x D x H)
13.3 x 16.2 x 4.3" / 336.0 x 410.0 x 109.0 mm
Weight
15.4 lb / 7 kg
Packaging Info
Package Weight
19.05 lb
Box Dimensions (LxWxH)
21 x 18.5 x 8"
What's in the Box
Allen & Heath XONE:96 Professional 6-Channel Analog DJ Mixer
Power Cord
Limited 1-Year Manufacturer Warranty
$800.45
Original: $2,287.00
-65%
Allen & Heath XONE:96 Professional 6-Channel Analog DJ Mixer—
$2,287.00
$800.45
Description
Key Features
Six-Channel Mixer
Dual USB Sound Card
Dual VCFs (LP, BP, HP)
Crunch Circuit: Harmonic Distortion
3-Band Parametric EQ on Inputs A & B
4-Band EQ on Channels 1-4
2 x Stereo FX Sends + 4 x Stereo Returns
Replaceable VCA Channel Faders
Cross-Fader: innoFADER
Headphone Outputs: 2 x 1/4" & 1/8"
Overview
Building upon the success of the XONE:92, the Allen & Heath XONE:96 is a flexible, professional six-channel DJ mixer designed for nightclub and venue installation. The XONE:96 is updated with a dual 32-bit/96kHz soundcard with two USB connections for up to 24 channels of I/O. There are two independent headphone amplifier circuits with 1/4" and 1/8" connections that, when combined with the two separate soundcards, allow for some serious back-to-back sessions and seamless DJ transitions. The classic dual VFC filters (LP, BP, HP) offer frequency cutoff and resonance controls and have been updated with a "Crunch" circuit, which offers controlled harmonic distortion (pre-filter).
Channels 1-4 offer four turntable (phono) and four line inputs on RCA connections, while channels A and B feature balanced XLR microphone inputs and stereo 1/4" line inputs. The XONE:96 is packed with sonic and performance enhancing features that include a powerful four-band EQ on channels 1-4 and a 3-band parametric EQ on channels A & B. Additional features include user replaceable 60mm VCA channel faders, and a replaceable innoFADER Mini crossfader.
Two mix outputs feature balanced XLR and unbalanced RCA connections, while the booth output features stereo 1/4" connections. A stereo pair of RCA outs is available for recording the mixer's outputs. Two stereo auxiliary sends and four stereo returns route signal to external effects and signal processors. The Allen & Heath XONE:96 is a professional DJ mixer and designed to surpass the expectations of the most demanding professional DJs.
