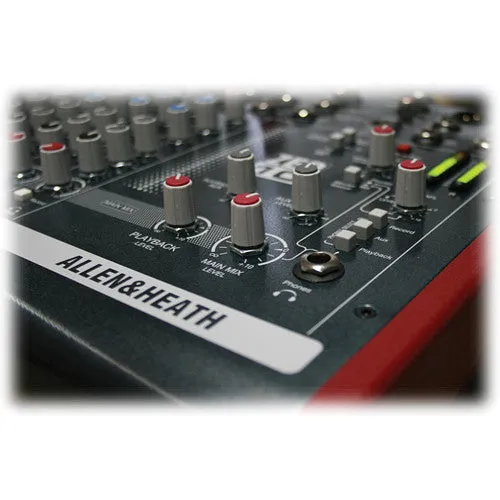

Allen & Heath ZED-10 Multipurpose Mini Mixer

Product image 1
1 / 4

Allen & Heath ZED-10 Multipurpose Mini Mixer

Key Features
  • Portable Mixer for Live & Studio Mixing
  • 4 x Mic/Line Inputs
  • 2 x Hi-Z Class-A FET Guitar Inputs
  • Two Stereo Line Inputs
  • USB Digital Audio Interface
  • 3-band EQs with MusiQ Technology
  • Aux and FX Sends

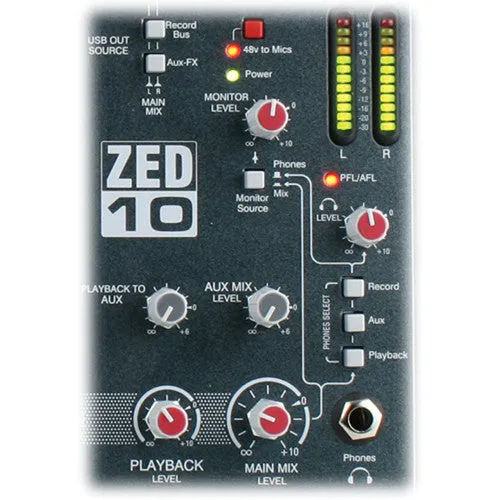

  • Monitoring Section with Headphone Out
  • Separate Monitor Speaker Output
  • 12-Bar Meters, Illuminated PFL Indicator

Overview

The multipurpose Allen & Heath ZED-10 mixer combines four mic/line inputs, two Hi-Z guitar inputs, two stereo inputs for effect returns and portable music players or keyboards, and a USB digital audio interface compatible with Mac and Windows computers—in a compact and portable package small enough for carrying to your gig, whether recording live or in the studio. It is also an excellent choice for small PA and AV rentals, and for installation in hotels, small churches, and schools.

Channels 1 through 4 feature XLR mic inputs and low-noise preamps with 60 dB of gain. Channels 1 & 2 also offer balanced/unbalanced line inputs while 3 & 4 feature Hi-Z inputs with Class-A FET circuits and 26 dB boost switches, designed to add tube-like warmth to your guitar and other instruments. All four mono channels are equipped with responsive, 3-band swept-mid EQs, which utilize MusiQ technology to optimize the Q factor according to the amount of boost or attenuation.

The ZED-10 offers a set of FX and aux sends, 48V microphone phantom power, XLR main stereo outputs with inserts, a comprehensive monitoring section with a headphone output, and a separate monitor speaker output.

Key Specs

Number of Analog Input Channels
10 (8 Mono / 2 Stereo)
Number of Mic Preamps
4
Analog Output Channels
1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Stereo Tape/Record Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Mix Routing
Main Mix / Bus/Subgroup
EQ
3-Band EQ (Mono Channels)
2-Band EQ (Stereo Channels)
Built-In Effects
No
USB I/O
1x USB-B 1.1 (I/O)
Wireless
No
Rack Mountable
No
Mixer
Max I/O Capacity
10x Input / 4x Output
Number of Analog Input Channels
10 (8 Mono / 2 Stereo)
Number of Mic Preamps
4
Analog Output Channels
1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Stereo Tape/Record Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Mix Routing
Main Mix / Bus/Subgroup
Faders & Level Adjustment
7x Channel Knob
1x Master Fader
Meters
8-Segment LED
Signal Processing
Dynamic Processing
No
EQ
3-Band EQ (Mono Channels)
2-Band EQ (Stereo Channels)
Graphic EQ
No
Solo/Mute
No
Built-In Effects
No
Digital Audio
Sample Rates
32 / 44.1 / 48 kHz
Bit Depth
16-Bit
Performance
Frequency Response
Line Input to Main Output:
10 Hz to 25 kHz +0.5/-1 dB (Unity Gain)
Mic Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB (30 dB Gain)
Stereo Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB
Max Input Level
XLR Input:
+11 dBu (Mono)
1/4" Line Input:
+31 dBu (Mono)
1/4" / RCA Input:
+15 dB (Stereo)
Noise Floor
Main Output:
-96 dBu (Master Level at Unity, Channel Levels at -∞, 22 Hz to 22 kHz)
THD+N
Hi-Z Input to Main Output:
0.015% at Unity Gain
Line Input to Main Output:
0.003% at Unity Gain
Mic Input to Main Output:
0.002% at +10 dB Gain (1 kHz)
0.01% at +30 dB Gain (1 kHz)
Stereo Line Input to Main Output:
0.002% at Unity Gain (1 kHz)
Connectivity
Analog Inputs
2x 1/4" TRS Balanced/Unbalanced Line Input
4x 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)
1x Stereo RCA Unbalanced Line Input
2x 1/4" TRS Main Insert
2x 1/4" TS Hi-Z Input
4x XLR 3-Pin Balanced Mic Input
Analog Outputs
1x 1/4" FX Send (Post-Fader)
1x 1/4" Aux Send (Pre-Fader)
1x 1/4" TRS Headphone Output
1x Stereo RCA Monitor Output
1x Stereo RCA Tape Output
2x XLR 3-Pin Balanced Main Output
Phantom Power
+48 V
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-B 1.1 (I/O)
USB I/O Capacity
2x Input / 2x Output
Wireless
No
Compatibility
OS Compatibility
Windows
macOS
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Output
Included
Physical
Rack Mountable
No
Dimensions
13.2 x 3.7 x 10.8" / 336 x 95 x 275 mm
Weight
7 lb / 3.2 kg
Packaging Info
Package Weight
9.25 lb
Box Dimensions (LxWxH)
15.7 x 12.3 x 5.9"



What's in the Box

  • Allen & Heath ZED-10 Multipurpose Mini Mixer
  • Power Cord
  • Limited 1-Year Manufacturer Warranty
