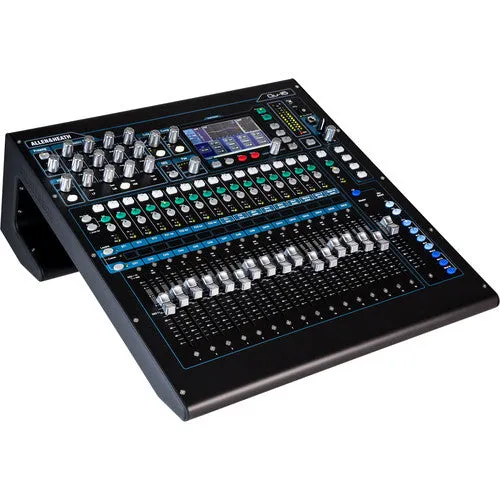

Allen & Heath Qu-16C Rackmountable Digital Mixer (Chrome Edition)

Product image 1
1 / 4

Allen & Heath Qu-16C Rackmountable Digital Mixer (Chrome Edition)

Key Features
  • Chrome Knobs & Faders + Updated Firmware
  • Touchscreen Interface
  • 16 Mic/Line Inputs and 3x Stereo Inputs
  • Motorized 100mm Faders
  • Recallable Preamps
  • USB Audio Interface
  • Record/Playback with USB Drives
  • iPad Qu-Pad Control App
  • 16 Buses and 4 Stereo FX Returns
  • Built-In Processing and Effects

Overview

The chrome edition of the Allen & Heath Qu-16C Rackmountable Digital Mixer is a 16-channel digital mixer and USB audio interface designed for live and installed sound as well as studio use. The chrome edition adds high-contrast chrome rotary and fader knobs that improve visibility in dark conditions, as well as a number of software enhancements from the updated firmware (V1.8). It features 16 mic- or line-selectable inputs and 3 stereo line inputs. Its 16 anaLOGIQ microphone preamps have digitally recallable settings that can be saved and recalled for future sessions. The Qu-16 has a variety of output options, including 4 mono XLR mix outputs, 3 XLR stereo-pair mix outputs, an alternative TRS stereo-pair mix output, a TRS stereo-pair 2-track output, and a 2-channel AES digital output.

The Qu-16 has 16 buses as well as 4 stereo effect returns, and offers a variety of routing options and controls. It has a 5" 800x480 resolution touchscreen that displays your metering and RTA views, effects tracks, processing, routing, and saved scenes. The 16 tracks are controllable with the 16 100mm motorized faders. Built-in processing allows you to EQ, compress, gate, switch polarity, and apply delay to all 16 tracks. All of your settings can be saved as a scene and recalled later for quick setup.

Thanks to its internal convertors, the Qu-16 is also a USB audio interface and can record to any Core Audio-compatible software on your Mac. You can also record to and play back audio from an external USB hard drive. It is compatible with the Qu-Pad iPad app that allows you to control your mix with your iPad over a connected wireless network. The Qu-16 unit itself can be rackmounted or set up on a desk.

Key Specs

Number of Analog Input Channels
16
Number of Mic Preamps
16
Number of Analog Output Channels
6
Faders & Level Adjustment
16x 3.9" / 100 mm Motorized Fader
Built-In Effects
Reverb
Delay
Reverb (Gated)
ADT
2x Chorus
Phaser
Flanger
Analog Inputs
1x XLR 3-Pin Talkback Input
16x 1/4" TRS Balanced Line Input
16x XLR 3-Pin Mic Input
4x 1/4" TRS Balanced Input (2 Stereo Pairs, Half-Normalled)
1x 1/8" / 3.5 mm TRS Unbalanced Input
Analog Outputs
4x XLR 3-Pin Mono Mix Output
6x XLR 3-Pin Mix Output (3 Stereo Pairs)
2x XLR 3-Pin Main Output (1 Stereo Pair)
2x 1/4" TRS Mix Output (1 Stereo Pair)
2x 1/4" TRS Aux Output (1 Stereo Pair)
Digital I/O
1x RJ45 (Network)
1x XLR AES3 Output
1x etherCON dSNAKE (I/O)
USB I/O
1x USB-A (External Memory)
1x USB-B 2.0 (Audio Streaming)
Wireless
No
Rack Mountable
Yes
Number of Mic Preamps
16
Number of Analog Output Channels
6
Mix Routing
22x Return
24x Send
4x Stereo FX Return
Groups
4x Mute Group
Presets
No
Display
5" Touchscreen
Display Resolution/Color
Main Display:
800 x 480
Faders & Level Adjustment
16x 3.9" / 100 mm Motorized Fader
Meter Range
-48 to -3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration
0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Gain/Trim Range
Line:
±24 dB (Stereo Channels)
Line/Mic:
-5 dB to 60 dB (in 1 dB Steps)
Input Polarity
Normal/Reverse
Gate Parameters
Threshold: -72 to +18 dBu
Depth: 0 to 60 dB
Attack: 50 μs to 300 ms
Hold: 10 ms to 5 sec
Release: 10 ms to 1 sec
Compressor Parameters
Threshold: -46 to 18 dBu
Ratio: 1:1 to ∞:1
Attack: 300 μs to 300 ms
Release: 100 ms to 2 sec
Knee: Soft / Hard
EQ
FX Returns:
4-Band Parametric
Input Channels:
4-Band Parametric
EQ Parameters
1x HF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
2x MF Notch/Peak:
±15 dB at 20 Hz to 20 kHz
1x LF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ
28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters
High-Pass: 20 Hz to 2 kHz, 12 dB/Octave
Channel Output/Source Monitoring
AFL, PFL, Post-Preamp, Post-EQ, Post-FX
Built-In Effects
Reverb
Delay
Reverb (Gated)
ADT
2x Chorus
Phaser
Flanger
Real Time Analyzer
31-Band 1/3 Octave, 20 Hz to 20 kHz
Audio Delay
Adjustable Up to 85 ms
Digital Audio
Sample Rates
48 kHz
AES3 Output:
48 kHz
Stereo Record:
48 kHz
Stereo Playback:
44.1 / 48 kHz
Multitrack Playback/Multitrack Record:
48 kHz
Bit Depth
A/D Conversion:
24-Bit Delta Sigma
D/A Conversion:
24-Bit Delta Sigma
Stereo Record:
24-Bit
Stereo Playback:
16 / 24-Bit
Multitrack Playback, Multitrack Record:
24-Bit
Latency
1.2 ms (Mic Input to XLR Output)
0.7 ms (Mic Input to AES Output)
Performance
dBFS Reference Level
+18 dBu = 0 dBFS
Headroom
+18 dB
Frequency Response
20 Hz to 20 kHz ±0.5 dB
Max Input Level
XLR Input:
+19 dBu
1/4" TRS Input:
+29 dBu
1/4" Aux Input:
+22 dBu
1/8" / 3.5 mm Input:
+19 dBu
Output Level
1/4" TRS / XLR Output:
22 dBu (2901653168)
4 dBu (2901653169)
Analog Dynamic Range
112 dB
I/O Impedance
AES3 Output:
110 Ohms
XLR Input:
> 5 Kilohms
1/4" TRS Input:
> 10 Kilohms
Stereo Input:
> 7 Kilohms
1/4" TRS, XLR Output:
< 75 Ohms
THD+N
0.0005% at Unity Gain
0.001% at +30 dB Gain
Signal Generator
Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

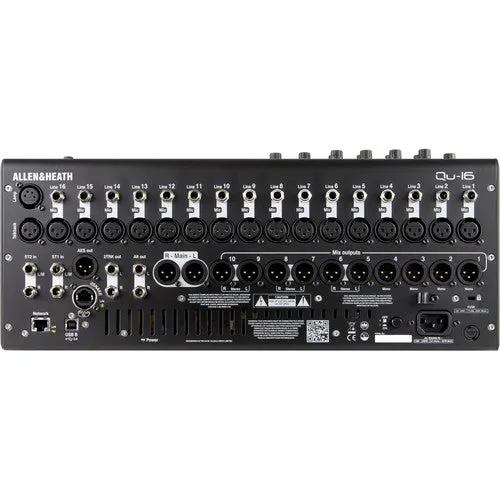

Connectivity
Analog Inputs
1x XLR 3-Pin Talkback Input
16x 1/4" TRS Balanced Line Input
16x XLR 3-Pin Mic Input
4x 1/4" TRS Balanced Input (2 Stereo Pairs, Half-Normalled)
1x 1/8" / 3.5 mm TRS Unbalanced Input
Analog Outputs
4x XLR 3-Pin Mono Mix Output
6x XLR 3-Pin Mix Output (3 Stereo Pairs)
2x XLR 3-Pin Main Output (1 Stereo Pair)
2x 1/4" TRS Mix Output (1 Stereo Pair)
2x 1/4" TRS Aux Output (1 Stereo Pair)
Digital I/O
1x RJ45 (Network)
1x XLR AES3 Output
1x etherCON dSNAKE (I/O)
MIDI I/O
No
USB I/O
1x USB-A (External Memory)
1x USB-B 2.0 (Audio Streaming)
USB I/O Capacity
24x Input / 22x Output
Wireless
No
Max Multitrack Recording
18 Tracks
File Format Support
WAV
Power
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
82 W (Maximum)
Rack Mountable
Yes
Rackmount Size
11 RU (with Non-Included Hardware)
Operating Temperature
32 to 95°F / 0 to 35°C
Dimensions
17.4 x 19.7 x 7.4" / 44.2 x 50 x 18.8 cm (Desk-Mounted)
19 x 19.1 x 7.5" / 48.3 x 48.5 x 19.1 cm (Rack-Mounted)
Weight
22 lb / 10 kg
Packaging Info
Package Weight
30 lb
Box Dimensions (LxWxH)
26.5 x 23.5 x 13.5"



What's in the Box

  • Allen & Heath Qu-16C Rackmountable Digital Mixer (Chrome Edition)
  • Limited 1-Year Manufacturer Warranty
Key Features
  • Chrome Knobs & Faders + Updated Firmware
  • Touchscreen Interface
  • 16 Mic/Line Inputs and 3x Stereo Inputs
  • Motorized 100mm Faders
  • Recallable Preamps
  • USB Audio Interface
  • Record/Playback with USB Drives
  • iPad Qu-Pad Control App
  • 16 Buses and 4 Stereo FX Returns
  • Built-In Processing and Effects

Overview

The chrome edition of the Allen & Heath Qu-16C Rackmountable Digital Mixer is a 16-channel digital mixer and USB audio interface designed for live and installed sound as well as studio use. The chrome edition adds high-contrast chrome rotary and fader knobs that improve visibility in dark conditions, as well as a number of software enhancements from the updated firmware (V1.8). It features 16 mic- or line-selectable inputs and 3 stereo line inputs. Its 16 anaLOGIQ microphone preamps have digitally recallable settings that can be saved and recalled for future sessions. The Qu-16 has a variety of output options, including 4 mono XLR mix outputs, 3 XLR stereo-pair mix outputs, an alternative TRS stereo-pair mix output, a TRS stereo-pair 2-track output, and a 2-channel AES digital output.

The Qu-16 has 16 buses as well as 4 stereo effect returns, and offers a variety of routing options and controls. It has a 5" 800x480 resolution touchscreen that displays your metering and RTA views, effects tracks, processing, routing, and saved scenes. The 16 tracks are controllable with the 16 100mm motorized faders. Built-in processing allows you to EQ, compress, gate, switch polarity, and apply delay to all 16 tracks. All of your settings can be saved as a scene and recalled later for quick setup.

Thanks to its internal convertors, the Qu-16 is also a USB audio interface and can record to any Core Audio-compatible software on your Mac. You can also record to and play back audio from an external USB hard drive. It is compatible with the Qu-Pad iPad app that allows you to control your mix with your iPad over a connected wireless network. The Qu-16 unit itself can be rackmounted or set up on a desk.

Key Specs

Number of Analog Input Channels
16
Number of Mic Preamps
16
Number of Analog Output Channels
6
Faders & Level Adjustment
16x 3.9" / 100 mm Motorized Fader
Built-In Effects
Reverb
Delay
Reverb (Gated)
ADT
2x Chorus
Phaser
Flanger
Analog Inputs
1x XLR 3-Pin Talkback Input
16x 1/4" TRS Balanced Line Input
16x XLR 3-Pin Mic Input
4x 1/4" TRS Balanced Input (2 Stereo Pairs, Half-Normalled)
1x 1/8" / 3.5 mm TRS Unbalanced Input
Analog Outputs
4x XLR 3-Pin Mono Mix Output
6x XLR 3-Pin Mix Output (3 Stereo Pairs)
2x XLR 3-Pin Main Output (1 Stereo Pair)
2x 1/4" TRS Mix Output (1 Stereo Pair)
2x 1/4" TRS Aux Output (1 Stereo Pair)
Digital I/O
1x RJ45 (Network)
1x XLR AES3 Output
1x etherCON dSNAKE (I/O)
USB I/O
1x USB-A (External Memory)
1x USB-B 2.0 (Audio Streaming)
Wireless
No
Rack Mountable
Yes
Number of Mic Preamps
16
Number of Analog Output Channels
6
Mix Routing
22x Return
24x Send
4x Stereo FX Return
Groups
4x Mute Group
Presets
No
Display
5" Touchscreen
Display Resolution/Color
Main Display:
800 x 480
Faders & Level Adjustment
16x 3.9" / 100 mm Motorized Fader
Meter Range
-48 to -3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration
0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Gain/Trim Range
Line:
±24 dB (Stereo Channels)
Line/Mic:
-5 dB to 60 dB (in 1 dB Steps)
Input Polarity
Normal/Reverse
Gate Parameters
Threshold: -72 to +18 dBu
Depth: 0 to 60 dB
Attack: 50 μs to 300 ms
Hold: 10 ms to 5 sec
Release: 10 ms to 1 sec
Compressor Parameters
Threshold: -46 to 18 dBu
Ratio: 1:1 to ∞:1
Attack: 300 μs to 300 ms
Release: 100 ms to 2 sec
Knee: Soft / Hard
EQ
FX Returns:
4-Band Parametric
Input Channels:
4-Band Parametric
EQ Parameters
1x HF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
2x MF Notch/Peak:
±15 dB at 20 Hz to 20 kHz
1x LF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ
28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters
High-Pass: 20 Hz to 2 kHz, 12 dB/Octave
Channel Output/Source Monitoring
AFL, PFL, Post-Preamp, Post-EQ, Post-FX
Built-In Effects
Reverb
Delay
Reverb (Gated)
ADT
2x Chorus
Phaser
Flanger
Real Time Analyzer
31-Band 1/3 Octave, 20 Hz to 20 kHz
Audio Delay
Adjustable Up to 85 ms
Digital Audio
Sample Rates
48 kHz
AES3 Output:
48 kHz
Stereo Record:
48 kHz
Stereo Playback:
44.1 / 48 kHz
Multitrack Playback/Multitrack Record:
48 kHz
Bit Depth
A/D Conversion:
24-Bit Delta Sigma
D/A Conversion:
24-Bit Delta Sigma
Stereo Record:
24-Bit
Stereo Playback:
16 / 24-Bit
Multitrack Playback, Multitrack Record:
24-Bit
Latency
1.2 ms (Mic Input to XLR Output)
0.7 ms (Mic Input to AES Output)
Performance
dBFS Reference Level
+18 dBu = 0 dBFS
Headroom
+18 dB
Frequency Response
20 Hz to 20 kHz ±0.5 dB
Max Input Level
XLR Input:
+19 dBu
1/4" TRS Input:
+29 dBu
1/4" Aux Input:
+22 dBu
1/8" / 3.5 mm Input:
+19 dBu
Output Level
1/4" TRS / XLR Output:
22 dBu (2901653168)
4 dBu (2901653169)
Analog Dynamic Range
112 dB
I/O Impedance
AES3 Output:
110 Ohms
XLR Input:
> 5 Kilohms
1/4" TRS Input:
> 10 Kilohms
Stereo Input:
> 7 Kilohms
1/4" TRS, XLR Output:
< 75 Ohms
THD+N
0.0005% at Unity Gain
0.001% at +30 dB Gain
Signal Generator
Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)
Connectivity
Analog Inputs
1x XLR 3-Pin Talkback Input
16x 1/4" TRS Balanced Line Input
16x XLR 3-Pin Mic Input
4x 1/4" TRS Balanced Input (2 Stereo Pairs, Half-Normalled)
1x 1/8" / 3.5 mm TRS Unbalanced Input
Analog Outputs
4x XLR 3-Pin Mono Mix Output
6x XLR 3-Pin Mix Output (3 Stereo Pairs)
2x XLR 3-Pin Main Output (1 Stereo Pair)
2x 1/4" TRS Mix Output (1 Stereo Pair)
2x 1/4" TRS Aux Output (1 Stereo Pair)
Digital I/O
1x RJ45 (Network)
1x XLR AES3 Output
1x etherCON dSNAKE (I/O)
MIDI I/O
No
USB I/O
1x USB-A (External Memory)
1x USB-B 2.0 (Audio Streaming)
USB I/O Capacity
24x Input / 22x Output
Wireless
No
Max Multitrack Recording
18 Tracks
File Format Support
WAV
Power
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
82 W (Maximum)
Rack Mountable
Yes
Rackmount Size
11 RU (with Non-Included Hardware)
Operating Temperature
32 to 95°F / 0 to 35°C
Dimensions
17.4 x 19.7 x 7.4" / 44.2 x 50 x 18.8 cm (Desk-Mounted)
19 x 19.1 x 7.5" / 48.3 x 48.5 x 19.1 cm (Rack-Mounted)
Weight
22 lb / 10 kg
Packaging Info
Package Weight
30 lb
Box Dimensions (LxWxH)
26.5 x 23.5 x 13.5"



What's in the Box

  • Allen & Heath Qu-16C Rackmountable Digital Mixer (Chrome Edition)
  • Limited 1-Year Manufacturer Warranty
$952.93

Original: $2,722.67

-65%
Allen & Heath Qu-16C Rackmountable Digital Mixer (Chrome Edition)—

$2,722.67

$952.93

Description

Key Features
  • Chrome Knobs & Faders + Updated Firmware
  • Touchscreen Interface
  • 16 Mic/Line Inputs and 3x Stereo Inputs
  • Motorized 100mm Faders
  • Recallable Preamps
  • USB Audio Interface
  • Record/Playback with USB Drives
  • iPad Qu-Pad Control App
  • 16 Buses and 4 Stereo FX Returns
  • Built-In Processing and Effects

Overview

The chrome edition of the Allen & Heath Qu-16C Rackmountable Digital Mixer is a 16-channel digital mixer and USB audio interface designed for live and installed sound as well as studio use. The chrome edition adds high-contrast chrome rotary and fader knobs that improve visibility in dark conditions, as well as a number of software enhancements from the updated firmware (V1.8). It features 16 mic- or line-selectable inputs and 3 stereo line inputs. Its 16 anaLOGIQ microphone preamps have digitally recallable settings that can be saved and recalled for future sessions. The Qu-16 has a variety of output options, including 4 mono XLR mix outputs, 3 XLR stereo-pair mix outputs, an alternative TRS stereo-pair mix output, a TRS stereo-pair 2-track output, and a 2-channel AES digital output.

The Qu-16 has 16 buses as well as 4 stereo effect returns, and offers a variety of routing options and controls. It has a 5" 800x480 resolution touchscreen that displays your metering and RTA views, effects tracks, processing, routing, and saved scenes. The 16 tracks are controllable with the 16 100mm motorized faders. Built-in processing allows you to EQ, compress, gate, switch polarity, and apply delay to all 16 tracks. All of your settings can be saved as a scene and recalled later for quick setup.

Thanks to its internal convertors, the Qu-16 is also a USB audio interface and can record to any Core Audio-compatible software on your Mac. You can also record to and play back audio from an external USB hard drive. It is compatible with the Qu-Pad iPad app that allows you to control your mix with your iPad over a connected wireless network. The Qu-16 unit itself can be rackmounted or set up on a desk.

Key Specs

Number of Analog Input Channels
16
Number of Mic Preamps
16
Number of Analog Output Channels
6
Faders & Level Adjustment
16x 3.9" / 100 mm Motorized Fader
Built-In Effects
Reverb
Delay
Reverb (Gated)
ADT
2x Chorus
Phaser
Flanger
Analog Inputs
1x XLR 3-Pin Talkback Input
16x 1/4" TRS Balanced Line Input
16x XLR 3-Pin Mic Input
4x 1/4" TRS Balanced Input (2 Stereo Pairs, Half-Normalled)
1x 1/8" / 3.5 mm TRS Unbalanced Input
Analog Outputs
4x XLR 3-Pin Mono Mix Output
6x XLR 3-Pin Mix Output (3 Stereo Pairs)
2x XLR 3-Pin Main Output (1 Stereo Pair)
2x 1/4" TRS Mix Output (1 Stereo Pair)
2x 1/4" TRS Aux Output (1 Stereo Pair)
Digital I/O
1x RJ45 (Network)
1x XLR AES3 Output
1x etherCON dSNAKE (I/O)
USB I/O
1x USB-A (External Memory)
1x USB-B 2.0 (Audio Streaming)
Wireless
No
Rack Mountable
Yes
Number of Mic Preamps
16
Number of Analog Output Channels
6
Mix Routing
22x Return
24x Send
4x Stereo FX Return
Groups
4x Mute Group
Presets
No
Display
5" Touchscreen
Display Resolution/Color
Main Display:
800 x 480
Faders & Level Adjustment
16x 3.9" / 100 mm Motorized Fader
Meter Range
-48 to -3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration
0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Gain/Trim Range
Line:
±24 dB (Stereo Channels)
Line/Mic:
-5 dB to 60 dB (in 1 dB Steps)
Input Polarity
Normal/Reverse
Gate Parameters
Threshold: -72 to +18 dBu
Depth: 0 to 60 dB
Attack: 50 μs to 300 ms
Hold: 10 ms to 5 sec
Release: 10 ms to 1 sec
Compressor Parameters
Threshold: -46 to 18 dBu
Ratio: 1:1 to ∞:1
Attack: 300 μs to 300 ms
Release: 100 ms to 2 sec
Knee: Soft / Hard
EQ
FX Returns:
4-Band Parametric
Input Channels:
4-Band Parametric
EQ Parameters
1x HF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
2x MF Notch/Peak:
±15 dB at 20 Hz to 20 kHz
1x LF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ
28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters
High-Pass: 20 Hz to 2 kHz, 12 dB/Octave
Channel Output/Source Monitoring
AFL, PFL, Post-Preamp, Post-EQ, Post-FX
Built-In Effects
Reverb
Delay
Reverb (Gated)
ADT
2x Chorus
Phaser
Flanger
Real Time Analyzer
31-Band 1/3 Octave, 20 Hz to 20 kHz
Audio Delay
Adjustable Up to 85 ms
Digital Audio
Sample Rates
48 kHz
AES3 Output:
48 kHz
Stereo Record:
48 kHz
Stereo Playback:
44.1 / 48 kHz
Multitrack Playback/Multitrack Record:
48 kHz
Bit Depth
A/D Conversion:
24-Bit Delta Sigma
D/A Conversion:
24-Bit Delta Sigma
Stereo Record:
24-Bit
Stereo Playback:
16 / 24-Bit
Multitrack Playback, Multitrack Record:
24-Bit
Latency
1.2 ms (Mic Input to XLR Output)
0.7 ms (Mic Input to AES Output)
Performance
dBFS Reference Level
+18 dBu = 0 dBFS
Headroom
+18 dB
Frequency Response
20 Hz to 20 kHz ±0.5 dB
Max Input Level
XLR Input:
+19 dBu
1/4" TRS Input:
+29 dBu
1/4" Aux Input:
+22 dBu
1/8" / 3.5 mm Input:
+19 dBu
Output Level
1/4" TRS / XLR Output:
22 dBu (2901653168)
4 dBu (2901653169)
Analog Dynamic Range
112 dB
I/O Impedance
AES3 Output:
110 Ohms
XLR Input:
> 5 Kilohms
1/4" TRS Input:
> 10 Kilohms
Stereo Input:
> 7 Kilohms
1/4" TRS, XLR Output:
< 75 Ohms
THD+N
0.0005% at Unity Gain
0.001% at +30 dB Gain
Signal Generator
Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)
Connectivity
Analog Inputs
1x XLR 3-Pin Talkback Input
16x 1/4" TRS Balanced Line Input
16x XLR 3-Pin Mic Input
4x 1/4" TRS Balanced Input (2 Stereo Pairs, Half-Normalled)
1x 1/8" / 3.5 mm TRS Unbalanced Input
Analog Outputs
4x XLR 3-Pin Mono Mix Output
6x XLR 3-Pin Mix Output (3 Stereo Pairs)
2x XLR 3-Pin Main Output (1 Stereo Pair)
2x 1/4" TRS Mix Output (1 Stereo Pair)
2x 1/4" TRS Aux Output (1 Stereo Pair)
Digital I/O
1x RJ45 (Network)
1x XLR AES3 Output
1x etherCON dSNAKE (I/O)
MIDI I/O
No
USB I/O
1x USB-A (External Memory)
1x USB-B 2.0 (Audio Streaming)
USB I/O Capacity
24x Input / 22x Output
Wireless
No
Max Multitrack Recording
18 Tracks
File Format Support
WAV
Power
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
82 W (Maximum)
Rack Mountable
Yes
Rackmount Size
11 RU (with Non-Included Hardware)
Operating Temperature
32 to 95°F / 0 to 35°C
Dimensions
17.4 x 19.7 x 7.4" / 44.2 x 50 x 18.8 cm (Desk-Mounted)
19 x 19.1 x 7.5" / 48.3 x 48.5 x 19.1 cm (Rack-Mounted)
Weight
22 lb / 10 kg
Packaging Info
Package Weight
30 lb
Box Dimensions (LxWxH)
26.5 x 23.5 x 13.5"



What's in the Box

  • Allen & Heath Qu-16C Rackmountable Digital Mixer (Chrome Edition)
  • Limited 1-Year Manufacturer Warranty
Allen & Heath Qu-16C Rackmountable Digital Mixer (Chrome Edition) | BHM Store
