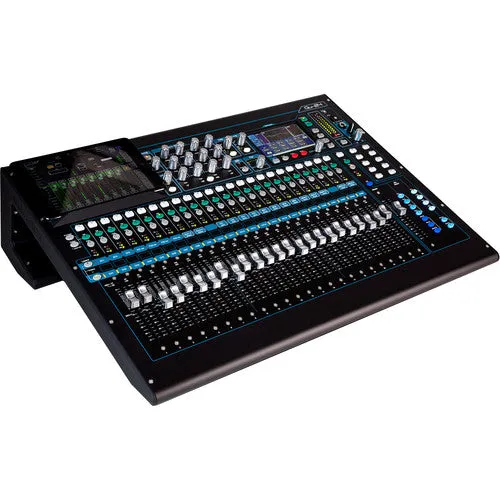

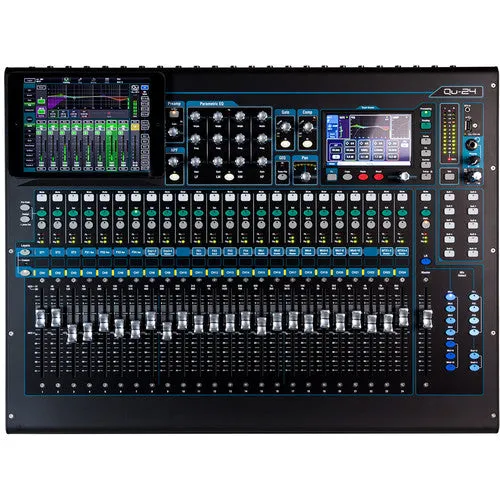

Allen & Heath Qu-24C 30-In/24-Out Digital Mixer (Chrome Edition)

1 / 5

Allen & Heath Qu-24C 30-In/24-Out Digital Mixer (Chrome Edition)

Key Features

Chrome Knobs & Faders + Updated Firmware
24 AnalogiQ Preamps
5" Touchscreen
25 Motorized 100mm Faders with Recall
5-Core ARM Processor
Integrated iLive FX
Record Audio to Mac or USB Hard Drive
48 kHz/24-Bit Resolution
iPad App for Wireless Mixing
dSNAKE Compatible

Overview

The chrome edition Qu-24C 30-In/24-Out Digital Mixer from Allen & Heath features 24 of Allen & Heath's AnalogiQ microphone preamps and is powered by its 5-core ARM processor to provide a variety of integrated effects and processing including channel-independent 4-band parametric EQs, compressors, delay, reverb, and more. The mixer is capable of recording audio to either your Mac or a USB hard drive in up to 48 kHz/24-bit resolution, allowing you to record both the individual tracks and live mix of your shows. The chrome edition adds high-contrast chrome rotary and fader knobs that improve visibility in dark conditions, as well as a number of software enhancements from the updated firmware (V1.8).

The mixer is compatible with both the ME monitoring system and dSNAKE digital connectivity system from Allen & Heath. The Qu-24 can also be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network.

Key Specs

Number of Analog Input Channels	24
Mix Routing	4x Stereo FX Return
Groups	4x Mute Group
Display	5" Touchscreen
Display Resolution/Color	Main Display: 800 x 480
Faders & Level Adjustment	x 3.9" / 100 mm Motorized
Meter Range	-48 to -3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration	0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)

Signal Processing

Gain/Trim Range	Line: ±24 dB (Stereo Channels) Mic/Line: -10 dB to +60 dB (in 1 dB Steps)
Input Polarity	Normal/Reverse
Gate Parameters	Threshold: -72 to +18 dBu Depth: 0 to 60 dB Attack: 50 μs to 300 ms Hold: 10 ms to 5 sec Release: 10 ms to 1 sec
Compressor Parameters	Threshold: -46 to 18 dBu Ratio: 1:1 to ∞:1 Attack: 300 μs to 300 ms Release: 100 ms to 1 sec Knee: Soft / Hard
EQ	FX Returns: 4-Band Parametric
EQ Parameters	1x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) 2x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz 1x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ	28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters	High-Pass: 20 Hz to 20 kHz, 12 dB/Octave
Channel Output/Source Monitoring	AFL, PFL, Post-Preamp, Post-EQ, Post-FX
Built-In Effects	Reverb Delay Reverb (Gated) ADT Chorus Phaser Flanger
Real Time Analyzer	31-Band 1/3 Octave, 20 Hz to 20 kHz
Audio Delay	Adjustable Up to 170 ms

Digital Audio

Sample Rates	48 kHz AES3 Output: 48 kHz
Bit Depth	AD/DA Conversion: 24-Bit Delta Sigma
Latency	1.2 ms (Mic Input to XLR Output) 0.7 ms (Mic Input to AES Output)

Performance

dBFS Reference Level	+18 dBu = 0 dBFS
Headroom	+18 dB
Frequency Response	20 Hz to 20 kHz +0/-0.5 dB
Max Input Level	Mic Input: +19 dBu Line Input: +29 dBu Aux Input: +22 dBu (+4 dBu) +18 dBu (0 dBu)
Output Level	Line Output: +22 dBu (2901653168) +4 dBu (2901653169) Stereo Output: +22 dBu (2901653168) +4 dBu (2901653169)
Analog Dynamic Range	112 dB
I/O Impedance	1/4" Stereo Output: < 75 Ohms AES3 Output: 110 Ohms Aux Input: > 7 Kilohms XLR Line Output: < 75 Ohms XLR Mic/Line Input: > 5 Kilohms 1/4" Mic/Line Input: > 10 Kilohms
Noise Floor	-90 dBu (with Inputs Muted) -91 dBu (with Inputs Muted)
THD+N	Mic/Line Input: 0.0005% at Unity Gain 0.001% at +30 dB Gain
Signal Generator	Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

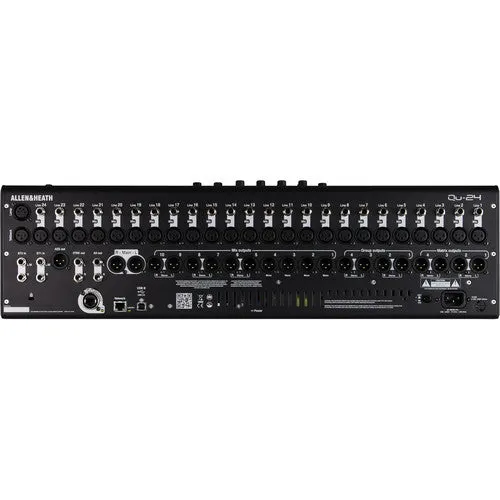

Connectivity

Analog Inputs	1x XLR Talkback Input 24x XLR Balanced Mic Input 24x 1/4" TRS Balanced Line Input 4x 1/4" TRS Balanced Aux Input (2 Stereo Pairs, Half-Normalled) 1x 1/8" / 3.5 mm Unbalanced Aux Input
Analog Outputs	10x XLR Balanced Mix Output 2x XLR Balanced Main Output 4x XLR Balanced Subgroup Output 4x XLR Balanced Matrix Output 4x 1/4" TRS Balanced Aux Output (2 Stereo Pairs)
Digital I/O	1x RJ45 (Network) 1x XLR AES3 Output 1x etherCON dSNAKE (I/O)

Power

AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	120 W (Maximum)

Physical

Operating Temperature	32 to 95°F / 0 to 35°C
Dimensions	24.9 x 19.7 x 7.4" / 632 x 500 x 186 mm
Weight	31 lb / 14 kg

Packaging Info

Package Weight	39.5 lb
Box Dimensions (LxWxH)	30.75 x 26.5 x 13.75"

What's in the Box

Allen & Heath Qu-24C 30-In/24-Out Digital Mixer (Chrome Edition)
Limited 1-Year Manufacturer Warranty
