Universal Audio Apollo x4 Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle

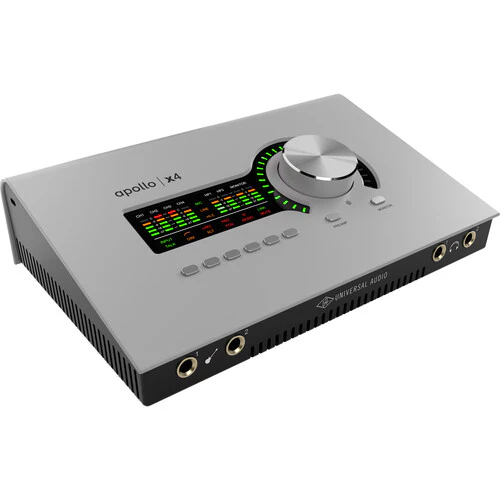

Product image 1
1 / 4

Universal Audio Apollo x4 Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle

Key Features

  • Musicians, Producers & Project Studios
  • 30+ UAD Plug-Ins, Real-Time Processing
  • External Power Supply, Mac/Windows
  • 4 Unison Mic/Line Pre, 2 Hi-Z In
  • 2 Headphone Out, 6 Line/Monitor Out
  • Gen 2 Elite-Class 24-Bit / 192 kHz AD/DA
  • ADAT or S/PDIF I/O
  • Auto-Gain Control, Monitor Correction
  • Monitoring and Talkback Control
  • Bass Management



Overview

Ideal for musicians, producers, and engineers working in project studios, the Universal Audio Apollo x4 Gen 2 with Essentials+ Bundle is a 12x18 desktop Thunderbolt 3 audio interface that offers four Unison mic/line preamps with Auto-Gain, flagship, Gen 2 Elite-Class 24-bit / 192 kHz AD/DA conversion, and QUAD Core DSP for real-time UAD plug-in processing over Thunderbolt at near-zero latency—on Mac and Windows computers. The Essentials+ Bundle lets you mix and record live performances with 36 UAD plug-ins including Pultec EQ, Auto-Tune, classic LA-2A and 1176 compressors, and more. You can use Plug-In Scenes to recall settings instantly, even in the middle of a performance.

Easily connect the Apollo x4 Gen 2 to professional studio gear with 4x4 analog line-level I/O, two Hi-Z instrument inputs, and two monitor outputs via 1/4" connections.  An optical ADAT or S/PDIF I/O is also available for connection to professional, digital outboard hardware. You can mix with confidence in any room using Apollo Monitor Correction powered by Sonarworks. Hear all the low-end detail in your mixes using Bass Management to add a subwoofer to your monitor setup. Quickly set up low-latency cues, plug-in scenes with the UAD Console app.

Key Specs

Channels of I/O
12 Inputs / 18 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4

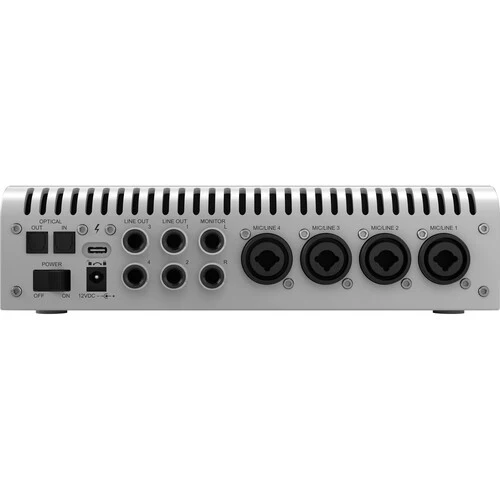

Analog Audio I/O
4x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
1x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support)
Host Connection
1x USB-C (Class-Compliant)
Power Requirements
AC/DC Power Adapter (Included)
Channels of I/O
12 Inputs / 18 Outputs
Built-In DSP
Quad-Core
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Built-In Microphone
No
Input Level Adjustment
1x Knob
Signal Processing
Pad
-20 dB
Gain/Trim Range
Mic/Line Inputs:
+10 to +65 dB
High-Pass Filter
75 Hz
Solo/Mute
Mute per Master
Connectivity
Analog Audio I/O
4x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
Phantom Power
48 V
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
1x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support)
Host Connection
1x USB-C (Class-Compliant)
Host Connection Protocol
Thunderbolt 3
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
No
Expansion Slots
No
Wireless
No
Performance
Frequency Response
Mic, Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.05 dB
Line Outputs:
20 Hz to 20 kHz 0.05 dB
Headphone Outputs:
20 Hz to 20 kHz ±0.01 dB
Monitor Outputs:
20 Hz to 20 kHz ±0.04 dB
Maximum Input Level
Mic Inputs:
25 dBu (Pad On)
Line Inputs:
20.2 dBu (Reference Level at +4 dBu)
Hi-Z Inputs:
12.4 dBu (at Minimum Gain)
Maximum Output Level
Line Outputs:
20.2 dBu (Reference Level at +4 dBu)
14.5 dBu (Reference Level at -10 dBu)
Headphone Outputs:
15.4 dBu (300 Ohms Load)
15.8 dBu (600 Ohms Load)
Monitor Outputs:
20.2 dBu
Headphone Output Power
68 mW into 300 Ohms
38 mW into 600 Ohms
Impedance
Mic Inputs:
5.4 Kilohms
Line/Monitor Outputs:
10 Kilohms
Hi-Z Inputs:
1 Megohm
Dynamic Range
Hi-Z Inputs:
122 dB (A-Weighted)
Line Inputs:
124 dB (A-Weighted)
Mic Inputs:
123 dB (A-Weighted)
Headphone Outputs:
124 dB (A-Weighted)
Line Outputs:
128 dB (A-Weighted)
Monitor Outputs:
129 dB (A-Weighted)
THD+N
Mic Inputs:
-117 dB / 0.00014%
Hi-Z Inputs:
-111 dB / 0.00028%
Line Inputs:
-115 dB / 0.00018%
Line Outputs:
-117 dB / 0.00014%
Monitor Outputs:
-120 dB / 0.0001%
Headphone Outputs:
-108 dB / 0.0004% (300 Ohms)
-112 dB / 0.00025% (600 Ohms)
Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Latency
A/D Conversion:
1.1 ms at 96 kHz
Sync Sources
ADAT, Internal, S/PDIF
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Windows / macOS
Mobile Device Compatibility
No
Required Hardware
Thunderbolt 3 Port
Power
Power Requirements
AC/DC Power Adapter (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz (1.2 A)
AC/DC Power Adapter
12 VDC
Power Consumption
19 W
Physical
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
9.17 x 5.87 x 2.51" / 23.29 x 14.91 x 6.38 cm
9.17 x 6.12 x 2.51" / 23.29 x 15.54 x 6.38 cm (Including Controls and Protrusions)
Weight
3.2 lb / 1.5 kg


What's in the Box:
  • Universal Audio Apollo x4 Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle
  • External Power Supply
  • AC Power Cable (IEC)
  • Limited 1-Year Manufacturer Warranty

Key Features

  • Musicians, Producers & Project Studios
  • 30+ UAD Plug-Ins, Real-Time Processing
  • External Power Supply, Mac/Windows
  • 4 Unison Mic/Line Pre, 2 Hi-Z In
  • 2 Headphone Out, 6 Line/Monitor Out
  • Gen 2 Elite-Class 24-Bit / 192 kHz AD/DA
  • ADAT or S/PDIF I/O
  • Auto-Gain Control, Monitor Correction
  • Monitoring and Talkback Control
  • Bass Management



Overview

Ideal for musicians, producers, and engineers working in project studios, the Universal Audio Apollo x4 Gen 2 with Essentials+ Bundle is a 12x18 desktop Thunderbolt 3 audio interface that offers four Unison mic/line preamps with Auto-Gain, flagship, Gen 2 Elite-Class 24-bit / 192 kHz AD/DA conversion, and QUAD Core DSP for real-time UAD plug-in processing over Thunderbolt at near-zero latency—on Mac and Windows computers. The Essentials+ Bundle lets you mix and record live performances with 36 UAD plug-ins including Pultec EQ, Auto-Tune, classic LA-2A and 1176 compressors, and more. You can use Plug-In Scenes to recall settings instantly, even in the middle of a performance.

Easily connect the Apollo x4 Gen 2 to professional studio gear with 4x4 analog line-level I/O, two Hi-Z instrument inputs, and two monitor outputs via 1/4" connections.  An optical ADAT or S/PDIF I/O is also available for connection to professional, digital outboard hardware. You can mix with confidence in any room using Apollo Monitor Correction powered by Sonarworks. Hear all the low-end detail in your mixes using Bass Management to add a subwoofer to your monitor setup. Quickly set up low-latency cues, plug-in scenes with the UAD Console app.

Key Specs

Channels of I/O
12 Inputs / 18 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Analog Audio I/O
4x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
1x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support)
Host Connection
1x USB-C (Class-Compliant)
Power Requirements
AC/DC Power Adapter (Included)
Channels of I/O
12 Inputs / 18 Outputs
Built-In DSP
Quad-Core
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Built-In Microphone
No
Input Level Adjustment
1x Knob
Signal Processing
Pad
-20 dB
Gain/Trim Range
Mic/Line Inputs:
+10 to +65 dB
High-Pass Filter
75 Hz
Solo/Mute
Mute per Master
Connectivity
Analog Audio I/O
4x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
Phantom Power
48 V
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
1x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support)
Host Connection
1x USB-C (Class-Compliant)
Host Connection Protocol
Thunderbolt 3
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
No
Expansion Slots
No
Wireless
No
Performance
Frequency Response
Mic, Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.05 dB
Line Outputs:
20 Hz to 20 kHz 0.05 dB
Headphone Outputs:
20 Hz to 20 kHz ±0.01 dB
Monitor Outputs:
20 Hz to 20 kHz ±0.04 dB
Maximum Input Level
Mic Inputs:
25 dBu (Pad On)
Line Inputs:
20.2 dBu (Reference Level at +4 dBu)
Hi-Z Inputs:
12.4 dBu (at Minimum Gain)
Maximum Output Level
Line Outputs:
20.2 dBu (Reference Level at +4 dBu)
14.5 dBu (Reference Level at -10 dBu)
Headphone Outputs:
15.4 dBu (300 Ohms Load)
15.8 dBu (600 Ohms Load)
Monitor Outputs:
20.2 dBu
Headphone Output Power
68 mW into 300 Ohms
38 mW into 600 Ohms
Impedance
Mic Inputs:
5.4 Kilohms
Line/Monitor Outputs:
10 Kilohms
Hi-Z Inputs:
1 Megohm
Dynamic Range
Hi-Z Inputs:
122 dB (A-Weighted)
Line Inputs:
124 dB (A-Weighted)
Mic Inputs:
123 dB (A-Weighted)
Headphone Outputs:
124 dB (A-Weighted)
Line Outputs:
128 dB (A-Weighted)
Monitor Outputs:
129 dB (A-Weighted)
THD+N
Mic Inputs:
-117 dB / 0.00014%
Hi-Z Inputs:
-111 dB / 0.00028%
Line Inputs:
-115 dB / 0.00018%
Line Outputs:
-117 dB / 0.00014%
Monitor Outputs:
-120 dB / 0.0001%
Headphone Outputs:
-108 dB / 0.0004% (300 Ohms)
-112 dB / 0.00025% (600 Ohms)
Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Latency
A/D Conversion:
1.1 ms at 96 kHz
Sync Sources
ADAT, Internal, S/PDIF
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Windows / macOS
Mobile Device Compatibility
No
Required Hardware
Thunderbolt 3 Port
Power
Power Requirements
AC/DC Power Adapter (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz (1.2 A)
AC/DC Power Adapter
12 VDC
Power Consumption
19 W
Physical
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
9.17 x 5.87 x 2.51" / 23.29 x 14.91 x 6.38 cm
9.17 x 6.12 x 2.51" / 23.29 x 15.54 x 6.38 cm (Including Controls and Protrusions)
Weight
3.2 lb / 1.5 kg


What's in the Box:
  • Universal Audio Apollo x4 Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle
  • External Power Supply
  • AC Power Cable (IEC)
  • Limited 1-Year Manufacturer Warranty
$724.21

Original: $2,069.16

-65%
Universal Audio Apollo x4 Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle—

$2,069.16

$724.21

Description

Key Features

  • Musicians, Producers & Project Studios
  • 30+ UAD Plug-Ins, Real-Time Processing
  • External Power Supply, Mac/Windows
  • 4 Unison Mic/Line Pre, 2 Hi-Z In
  • 2 Headphone Out, 6 Line/Monitor Out
  • Gen 2 Elite-Class 24-Bit / 192 kHz AD/DA
  • ADAT or S/PDIF I/O
  • Auto-Gain Control, Monitor Correction
  • Monitoring and Talkback Control
  • Bass Management



Overview

Ideal for musicians, producers, and engineers working in project studios, the Universal Audio Apollo x4 Gen 2 with Essentials+ Bundle is a 12x18 desktop Thunderbolt 3 audio interface that offers four Unison mic/line preamps with Auto-Gain, flagship, Gen 2 Elite-Class 24-bit / 192 kHz AD/DA conversion, and QUAD Core DSP for real-time UAD plug-in processing over Thunderbolt at near-zero latency—on Mac and Windows computers. The Essentials+ Bundle lets you mix and record live performances with 36 UAD plug-ins including Pultec EQ, Auto-Tune, classic LA-2A and 1176 compressors, and more. You can use Plug-In Scenes to recall settings instantly, even in the middle of a performance.

Easily connect the Apollo x4 Gen 2 to professional studio gear with 4x4 analog line-level I/O, two Hi-Z instrument inputs, and two monitor outputs via 1/4" connections.  An optical ADAT or S/PDIF I/O is also available for connection to professional, digital outboard hardware. You can mix with confidence in any room using Apollo Monitor Correction powered by Sonarworks. Hear all the low-end detail in your mixes using Bass Management to add a subwoofer to your monitor setup. Quickly set up low-latency cues, plug-in scenes with the UAD Console app.

Key Specs

Channels of I/O
12 Inputs / 18 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Analog Audio I/O
4x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
1x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support)
Host Connection
1x USB-C (Class-Compliant)
Power Requirements
AC/DC Power Adapter (Included)
Channels of I/O
12 Inputs / 18 Outputs
Built-In DSP
Quad-Core
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Built-In Microphone
No
Input Level Adjustment
1x Knob
Signal Processing
Pad
-20 dB
Gain/Trim Range
Mic/Line Inputs:
+10 to +65 dB
High-Pass Filter
75 Hz
Solo/Mute
Mute per Master
Connectivity
Analog Audio I/O
4x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
Phantom Power
48 V
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
1x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support)
Host Connection
1x USB-C (Class-Compliant)
Host Connection Protocol
Thunderbolt 3
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
No
Expansion Slots
No
Wireless
No
Performance
Frequency Response
Mic, Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.05 dB
Line Outputs:
20 Hz to 20 kHz 0.05 dB
Headphone Outputs:
20 Hz to 20 kHz ±0.01 dB
Monitor Outputs:
20 Hz to 20 kHz ±0.04 dB
Maximum Input Level
Mic Inputs:
25 dBu (Pad On)
Line Inputs:
20.2 dBu (Reference Level at +4 dBu)
Hi-Z Inputs:
12.4 dBu (at Minimum Gain)
Maximum Output Level
Line Outputs:
20.2 dBu (Reference Level at +4 dBu)
14.5 dBu (Reference Level at -10 dBu)
Headphone Outputs:
15.4 dBu (300 Ohms Load)
15.8 dBu (600 Ohms Load)
Monitor Outputs:
20.2 dBu
Headphone Output Power
68 mW into 300 Ohms
38 mW into 600 Ohms
Impedance
Mic Inputs:
5.4 Kilohms
Line/Monitor Outputs:
10 Kilohms
Hi-Z Inputs:
1 Megohm
Dynamic Range
Hi-Z Inputs:
122 dB (A-Weighted)
Line Inputs:
124 dB (A-Weighted)
Mic Inputs:
123 dB (A-Weighted)
Headphone Outputs:
124 dB (A-Weighted)
Line Outputs:
128 dB (A-Weighted)
Monitor Outputs:
129 dB (A-Weighted)
THD+N
Mic Inputs:
-117 dB / 0.00014%
Hi-Z Inputs:
-111 dB / 0.00028%
Line Inputs:
-115 dB / 0.00018%
Line Outputs:
-117 dB / 0.00014%
Monitor Outputs:
-120 dB / 0.0001%
Headphone Outputs:
-108 dB / 0.0004% (300 Ohms)
-112 dB / 0.00025% (600 Ohms)
Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Latency
A/D Conversion:
1.1 ms at 96 kHz
Sync Sources
ADAT, Internal, S/PDIF
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Windows / macOS
Mobile Device Compatibility
No
Required Hardware
Thunderbolt 3 Port
Power
Power Requirements
AC/DC Power Adapter (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz (1.2 A)
AC/DC Power Adapter
12 VDC
Power Consumption
19 W
Physical
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
9.17 x 5.87 x 2.51" / 23.29 x 14.91 x 6.38 cm
9.17 x 6.12 x 2.51" / 23.29 x 15.54 x 6.38 cm (Including Controls and Protrusions)
Weight
3.2 lb / 1.5 kg


What's in the Box:

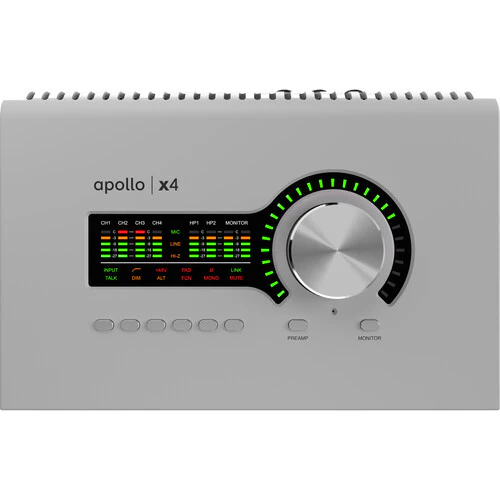

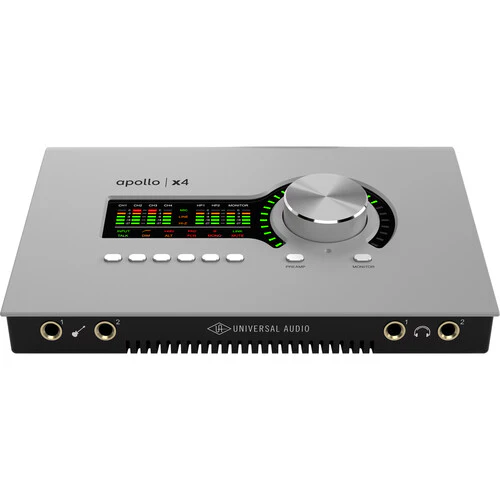

  • Universal Audio Apollo x4 Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle
  • External Power Supply
  • AC Power Cable (IEC)
  • Limited 1-Year Manufacturer Warranty
Universal Audio Apollo x4 Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle | BHM Store
