Key Features

Musicians, Producers, and Songwriters

USB 3.0 Connectivity

2 Unison Mic Preamps, 1 Hi-Z Input

1 Headphone Out, 4 Line/Monitor Outs

Overview

Poised to be the center of a Windows-based home studio or mobile rig, the Universal Audio Apollo Twin USB Heritage Edition desktop 10x6 USB audio interface combines the sound, feel, and flow of analog studio recording with powerful DUO Core real-time UAD processing and a hearty bundle of 25 stellar UAD plug-ins.

Key Specs

Channels of I/O	Analog: 2 Inputs / 6 Outputs at 192 kHz Digital: 8 Inputs / 0 Outputs at 48 kHz 4 Inputs / 0 Outputs at 96 kHz 2 Inputs / 0 Outputs at 192 kHz
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Inputs	2

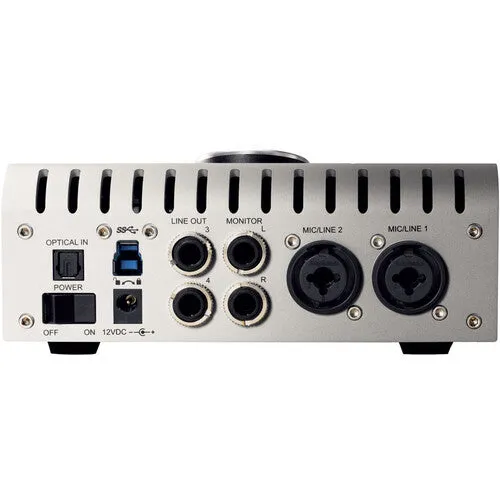

Analog Audio I/O	2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 1x 1/4" TS Unbalanced Hi-Z Input (Front Panel) 2x 1/4" TRS Balanced/Unbalanced Monitor Output 2x 1/4" TRS Balanced/Unbalanced Line Output 1x 1/4" TRS Unbalanced Headphone Output
Digital Audio I/O	1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX4 Support)
Host Connection	1x USB-B
OS Compatibility	Windows 7 Windows 8.1 Windows 10 (64-Bit Only)
Power Requirements	AC/DC Power Adapter (Included)
