Key Features

• Musicians, Producers, and Songwriters
• AC Powered, Mac/Windows
• Hi-Z Input, 2 Mic/Line Preamps
• Headphone Out, 4 Line Out



Overview

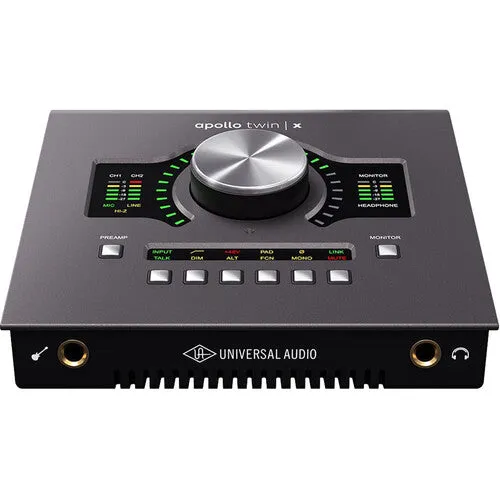

Poised to be the center of a home studio or mobile rig, the Universal Audio Apollo Twin X QUAD Heritage Edition desktop 10x6 Thunderbolt 3 audio interface combines the sound, feel, and flow of analog studio recording with powerful QUAD Core real-time UAD processing and a hearty bundle of 25 stellar UAD plug-ins.

Key Specs

Channels of I/O	Analog: 2 Inputs / 6 Outputs at 192 kHz ADAT: 8 Inputs / 0 Output at 48 kHz 4 Inputs / 0 Output at 96 kHz 2 Inputs / 0 Output at 192 kHz S/PDIF: 2 Inputs / 0 Output at 192 kHz
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Inputs	2

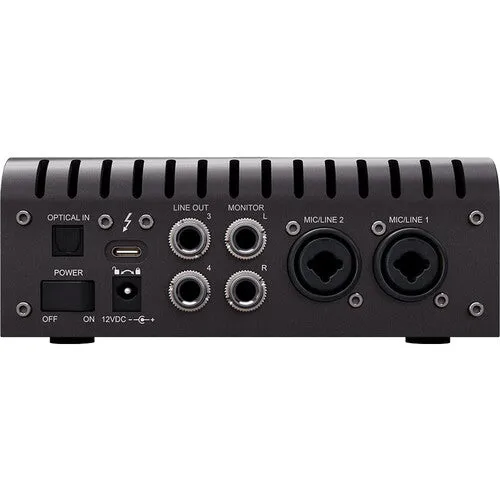

Analog Audio I/O	2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 1x 1/4" TS Unbalanced Hi-Z Input (Front Panel) 2x 1/4" TRS Balanced/Unbalanced Monitor Output 2x 1/4" TRS Balanced/Unbalanced Line Output 1x 1/4" TRS Unbalanced Headphone Output
Digital Audio I/O	1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX4 Support)
Host Connection	1x USB-C
OS Compatibility	macOS 10.12 macOS 10.13 macOS 10.14 macOS 10.15 Windows 10 (64-Bit Only)
Power Requirements	AC/DC Power Adapter (Included)
