Key Features

• Musicians, Producers, and Songwriters
• AC Powered, Windows Only
• 2 Mic/Line Unison Preamps, Hi-Z Input
• Headphone Out, 4 Line Out

Overview

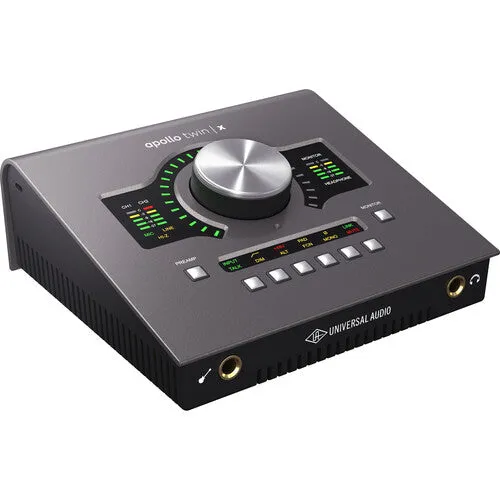

Poised to be the center of a Windows-based home studio or mobile rig, the Universal Audio Apollo Twin X USB DUO Heritage Edition is a desktop 10x6 USB-C audio interface that gives musicians and producers elite-class A/D and D/A conversion with the tone, feel, and flow of analog recording.

Key Specs

Channels of I/O	Analog: 2 Inputs / 4 Outputs at 192 kHz ADAT: 8 Inputs / 0 Outputs at 44.1/48 kHz 4 Inputs / 0 Outputs at 88.2/96 kHz 2 Inputs / 0 Outputs at 176.4/192 kHz S/PDIF: 2 Inputs / 0 Output at 44.1/48/88.2/96 kHz
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Inputs	2

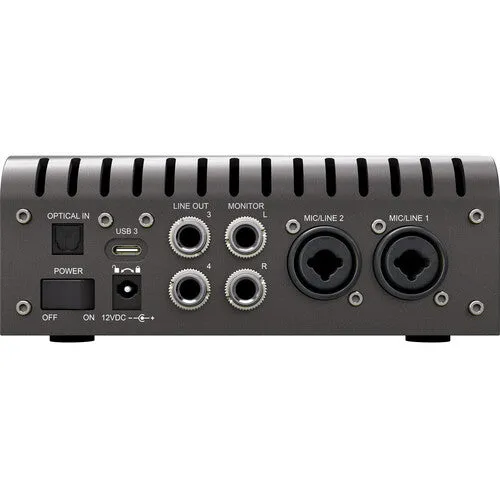

Analog Audio I/O	2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 1x 1/4" TS Unbalanced Hi-Z Input (Front Panel) 2x 1/4" TRS Balanced/Unbalanced Monitor Output 2x 1/4" TRS Balanced/Unbalanced Line Output 1x 1/4" TRS Unbalanced Headphone Output
Digital Audio I/O	1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX4 Support)
Host Connection	1x USB-C
OS Compatibility	Windows 10 to 11 (64-Bit Only)
Power Requirements	AC/DC Power Adapter (Included)
