Universal Audio Apollo Twin X QUAD Gen 2 Thunderbolt 3 Audio Interface with Essential+ Bundle

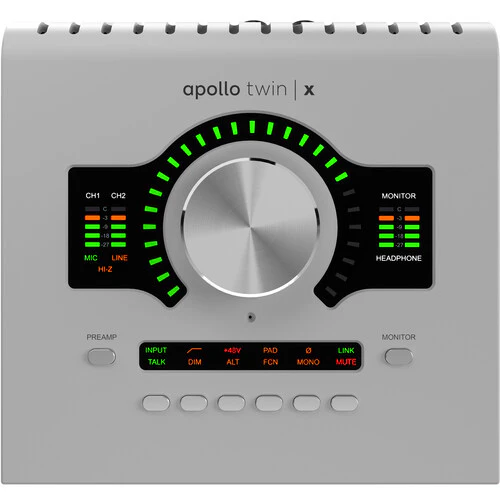

Product image 1
1 / 4

Universal Audio Apollo Twin X QUAD Gen 2 Thunderbolt 3 Audio Interface with Essential+ Bundle

Key Features

  • Musicians, Producers, and Songwriters
  • 30+ Plug-Ins, QUAD Core Real-Time DSP
  • External Power Supply, Mac/Windows
  • 2 Unison Mic/Line Pres, Hi-Z In
  • Headphone Out, 4 Line/Monitor Outs
  • Gen 2 Elite-Class 24-Bit / 192 kHz AD/DA
  • 8 ADAT and 2 S/PDIF Inputs
  • Auto-Gain Control, Monitor Correction
  • Monitoring and Talkback Control
  • Bass Management

Overview

Ideal for musicians, producers, and songwriters working in project studios, the Universal Audio Apollo Twin X QUAD Gen 2 with Essential+ Bundle is a 10x6 desktop Thunderbolt 3 audio interface that offers two Unison mic/line preamps with Auto-Gain, flagship, Gen 2 Elite-Class 24-bit / 192 kHz AD/DA conversion, and QUAD Core DSP for real-time UAD plug-in processing over Thunderbolt at near-zero latency—on Mac and Windows computers. The Essentials+ Bundle lets you mix and record live performances with 36 UAD plug-ins, including Pultec EQ, Auto-Tune, classic LA-2A and 1176 compressors, and more. You can use Plug-In Scenes to recall settings instantly, even in the middle of a performance.

Easily connect the Apollo Twin X QUAD Gen 2 to professional studio gear with 2 analog line-level I/O, two monitor outs, and a 1/4" Hi-Z instrument input. Add up to eight extra input channels via one optical ADAT input (or two S/PDIF channels) for connection to professional, digital outboard hardware. You can mix with confidence in any room using headphones with Sonarworks Apollo Monitor Correction. Hear all the low-end detail in your mixes using Bass Management to add a subwoofer to your monitor setup. Quickly set up low-latency cues and plug-in scenes with the UAD Console app.

Key Specs

Channels of I/O
10 Inputs / 6 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic Input
1x 1/4" TS Unbalanced Hi-Z Input
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input
Host Connection
1x USB-C (Class-Compliant)
Power Requirements
AC/DC Power Adapter (Included)
Channels of I/O
10 Inputs / 6 Outputs
Built-In DSP
Quad-Core
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Built-In Microphone
No
Input Level Adjustment
1x Knob
Signal Processing
Pad
-20 dB
High-Pass Filter
75 Hz
Solo/Mute
No
Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic Input
1x 1/4" TS Unbalanced Hi-Z Input
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
Phantom Power
48 V
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input
Host Connection
1x USB-C (Class-Compliant)
Host Connection Protocol
Thunderbolt 3
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
No
Expansion Slots
No
Wireless
No
Performance
Frequency Response
20 Hz to 20 kHz ±0.05 dB
Maximum Output Level
Monitor Outputs:
20.2 dBu
Headphone Output Power
68 mW into 300 Ohms
38 mW into 600 Ohms
Impedance
Headphone Outputs:
300 to 600 Ohms
Dynamic Range
Hi-Z Inputs:
122 dB (A-Weighted)
Line Inputs:
124 dB (A-Weighted)
Line Outputs:
128 dB
Monitor Outputs:
129 dB (A-Weighted)
THD+N
Hi-Z Inputs:
-111 dB / 0.00014%
Line Inputs:
-115 dB
Line Outputs:
-117 dB
Monitor Outputs:
-120 dB / 0.0001%
Headphone Outputs:
-108 dB / 0.0004% (300 Ohms)
-112 dB / 0.00025% (600 Ohms)
Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Latency
A/D Conversion:
1.1 ms at 96 kHz
Sync Sources
S/PDIF
Clocking
Internal:
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Windows / macOS
Mobile Device Compatibility
No
Required Hardware
Thunderbolt 3 Port
Power
Power Requirements
AC/DC Power Adapter (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz (1.2 A)
AC/DC Power Adapter
12 VDC
Power Consumption
19 W
Physical
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
9.17 x 0.23 x 0.1" / 232.98 x 5.87 x 2.51 mm
Weight
3.2 lb / 1.5 kg
Packaging Info
Package Weight
4.235 lb
Box Dimensions (LxWxH)
8.7 x 8.2 x 5.5"

What's in the Box:

  • Universal Audio Apollo Twin X QUAD Gen 2 Thunderbolt 3 Audio Interface with Essential+ Bundle
  • External Power Supply
  • AC Power Cable (IEC C7, Non-Polarized)
  • Limited 1-Year Manufacturer Warranty (Parts and Labor)

Key Features

  • Musicians, Producers, and Songwriters
  • 30+ Plug-Ins, QUAD Core Real-Time DSP
  • External Power Supply, Mac/Windows
  • 2 Unison Mic/Line Pres, Hi-Z In
  • Headphone Out, 4 Line/Monitor Outs
  • Gen 2 Elite-Class 24-Bit / 192 kHz AD/DA
  • 8 ADAT and 2 S/PDIF Inputs
  • Auto-Gain Control, Monitor Correction
  • Monitoring and Talkback Control
  • Bass Management

Overview

Ideal for musicians, producers, and songwriters working in project studios, the Universal Audio Apollo Twin X QUAD Gen 2 with Essential+ Bundle is a 10x6 desktop Thunderbolt 3 audio interface that offers two Unison mic/line preamps with Auto-Gain, flagship, Gen 2 Elite-Class 24-bit / 192 kHz AD/DA conversion, and QUAD Core DSP for real-time UAD plug-in processing over Thunderbolt at near-zero latency—on Mac and Windows computers. The Essentials+ Bundle lets you mix and record live performances with 36 UAD plug-ins, including Pultec EQ, Auto-Tune, classic LA-2A and 1176 compressors, and more. You can use Plug-In Scenes to recall settings instantly, even in the middle of a performance.

Easily connect the Apollo Twin X QUAD Gen 2 to professional studio gear with 2 analog line-level I/O, two monitor outs, and a 1/4" Hi-Z instrument input. Add up to eight extra input channels via one optical ADAT input (or two S/PDIF channels) for connection to professional, digital outboard hardware. You can mix with confidence in any room using headphones with Sonarworks Apollo Monitor Correction. Hear all the low-end detail in your mixes using Bass Management to add a subwoofer to your monitor setup. Quickly set up low-latency cues and plug-in scenes with the UAD Console app.

Key Specs

Channels of I/O
10 Inputs / 6 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic Input
1x 1/4" TS Unbalanced Hi-Z Input
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input
Host Connection
1x USB-C (Class-Compliant)
Power Requirements
AC/DC Power Adapter (Included)
Channels of I/O
10 Inputs / 6 Outputs
Built-In DSP
Quad-Core
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Built-In Microphone
No
Input Level Adjustment
1x Knob
Signal Processing
Pad
-20 dB
High-Pass Filter
75 Hz
Solo/Mute
No
Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic Input
1x 1/4" TS Unbalanced Hi-Z Input
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Monitor Output
Phantom Power
48 V
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input
Host Connection
1x USB-C (Class-Compliant)
Host Connection Protocol
Thunderbolt 3
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
No
Expansion Slots
No
Wireless
No
Performance
Frequency Response
20 Hz to 20 kHz ±0.05 dB
Maximum Output Level
Monitor Outputs:
20.2 dBu
Headphone Output Power
68 mW into 300 Ohms
38 mW into 600 Ohms
Impedance
Headphone Outputs:
300 to 600 Ohms
Dynamic Range
Hi-Z Inputs:
122 dB (A-Weighted)
Line Inputs:
124 dB (A-Weighted)
Line Outputs:
128 dB
Monitor Outputs:
129 dB (A-Weighted)
THD+N
Hi-Z Inputs:
-111 dB / 0.00014%
Line Inputs:
-115 dB
Line Outputs:
-117 dB
Monitor Outputs:
-120 dB / 0.0001%
Headphone Outputs:
-108 dB / 0.0004% (300 Ohms)
-112 dB / 0.00025% (600 Ohms)
Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Latency
A/D Conversion:
1.1 ms at 96 kHz
Sync Sources
S/PDIF
Clocking
Internal:
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Windows / macOS
Mobile Device Compatibility
No
Required Hardware
Thunderbolt 3 Port
Power
Power Requirements
AC/DC Power Adapter (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz (1.2 A)
AC/DC Power Adapter
12 VDC
Power Consumption
19 W
Physical
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
9.17 x 0.23 x 0.1" / 232.98 x 5.87 x 2.51 mm
Weight
3.2 lb / 1.5 kg
Packaging Info
Package Weight
4.235 lb
Box Dimensions (LxWxH)
8.7 x 8.2 x 5.5"

What's in the Box:

  • Universal Audio Apollo Twin X QUAD Gen 2 Thunderbolt 3 Audio Interface with Essential+ Bundle
  • External Power Supply
  • AC Power Cable (IEC C7, Non-Polarized)
  • Limited 1-Year Manufacturer Warranty (Parts and Labor)
$543.13

Original: $1,551.80

-65%
Universal Audio Apollo Twin X QUAD Gen 2 Thunderbolt 3 Audio Interface with Essential+ Bundle—

$1,551.80

$543.13
