TASCAM US-4x4HR USB-C Audio/MIDI Interface

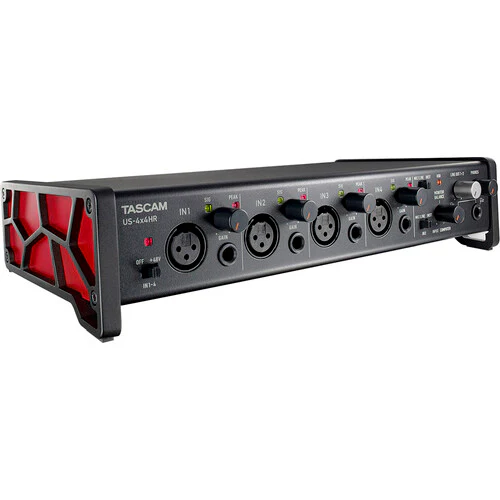

Product image 1
1 / 4

TASCAM US-4x4HR USB-C Audio/MIDI Interface

Key Features
  • Producers, Musicians, and Home Studios
  • AC and Bus Powered / Mac, Windows, iOS
  • 4 Mic Pres, 2 Line / Hi-Z In, 2 Line In
  • 2 Headphone Out, 4 Line Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • Virtual Loopback for Streaming
  • 48V, Zero-Latency Direct Monitoring
  • MIDI I/O on 5-Pin DIN Jacks
  • DAWs, Virtual Instrument, Auto-Tune


Overview

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-4x4HR, a desktop 4x4 USB-C audio/MIDI interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of four mics for home recordists and content creators. The inclusion of MIDI ports gives producers an easy way to integrate MIDI gear into their music production setups.

With its four Ultra-HDDA mic preamps, two line / Hi-Z inputs, and two line inputs, the US-4x4HR allows you to track or overdub four different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. The four balanced 1/4" line outputs and dual 1/4" headphone outputs enable monitoring through multiple speakers, headphones, or both. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency adjustable direct monitoring, and an empowering software bundle.


Key Specs

Channels of I/O
Analog:
4 Inputs / 4 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Analog Audio I/O
4x XLR 3-Pin Balanced Mic Input (Front Panel)
2x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Input (Front Panel)
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Digital Audio I/O
No
Host Connection
1x USB-C
OS Compatibility
macOS 10.13
macOS 11 or Later
Windows 7 or Later
iPadOS 13 or Later
11 or Later
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
Channels of I/O
Analog:
4 Inputs / 4 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Input Level Adjustment
4x Knob

Signal Processing
Pad
No
Gain/Trim Range
Mic/Line/Hi-Z Inputs:
56 dB
High-Pass Filter
No
Solo/Mute
No

Connectivity
Analog Audio I/O
4x XLR 3-Pin Balanced Mic Input (Front Panel)
2x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Input (Front Panel)
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Phantom Power
48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O
No
Host Connection
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Expansion Slots
No

Performance
Frequency Response
Mic, Line Inputs:
20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA)
Line Outputs:
20 Hz to 20 kHz +0.2/-0.1 dB (at 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0.2/-0.4 dB (at 88.2/96 kHz, JEITA)
Maximum Input Level
Mic Inputs:
+9 dBu
Line Inputs:
+20 dBu
Hi-Z Inputs:
+10 dBV
Maximum Output Level
Line Outputs:
+20 dBu
Headphone Output Power
45 mW per Channel into 32 Ohms (0.1% THD)
Impedance
Mic Inputs:
2.2 Kilohms
Line Inputs:
10 Kilohms
Line Outputs:
210 Ohms
Hi-Z Inputs:
≥ 1 Megohm
SNR
Mic Inputs:
110 dB (A-Weighted, Min Gain)
Line Inputs:
108 dB (A-Weighted, Min Gain)
Line Outputs:
110 dB (A-Weighted, Max Gain)
THD+N
Mic Inputs:
0.0013% (1 kHz, Min Gain)
Line Inputs:
0.0011% (1 kHz, Min Gain)
Line Outputs:
0.0012% (1 kHz)
EIN
-128 dBu

Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
Internal

Audio Storage & Playback
Media/Memory Card Slot
No

Compatibility
OS Compatibility
Computer: macOS 10.13 or Later / Windows 7 or Later
Mobile: iOS Only
OS Compatibility
macOS 10.13
macOS 11 or Later
Windows 7 or Later
iPadOS 13 or Later
11 or Later
Processor Requirement
2 GHz or Better
RAM Requirements
2 GB
Mobile Device Compatibility
iPad
iPhone
Required Hardware
Available USB 2.0 Port
USB Cable (Included)

Power
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
AC/DC Power Adapter
12 VDC, Center-Positive (Included)
Power Consumption
2.25 W

Physical
Operating Conditions
41 to 95°F / 5 to 35°C
Dimensions
11.7 x 6.3 x 2.6" / 29.6 x 16 x 6.5 cm (Including Controls and Protrusions)
Weight
3.5 lb / 1.6 kg

Packaging Info
Package Weight
4.925 lb
Box Dimensions (LxWxH)
12.9 x 8.1 x 4.6"

What's in the Box:

  • TASCAM US-4x4HR USB-C Audio/MIDI Interface
  • USB-C to USB-A Cable
  • Steinberg Cubase LE DAW Software (Download)
  • Steinberg Cubasis LE DAW Software (Download)
  • IK Multimedia Sample Tank SE Virtual Instrument (Download)
  • Limited 1-Year Manufacturer Warranty
Key Features
  • Producers, Musicians, and Home Studios
  • AC and Bus Powered / Mac, Windows, iOS
  • 4 Mic Pres, 2 Line / Hi-Z In, 2 Line In
  • 2 Headphone Out, 4 Line Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • Virtual Loopback for Streaming
  • 48V, Zero-Latency Direct Monitoring
  • MIDI I/O on 5-Pin DIN Jacks
  • DAWs, Virtual Instrument, Auto-Tune


Overview

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-4x4HR, a desktop 4x4 USB-C audio/MIDI interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of four mics for home recordists and content creators. The inclusion of MIDI ports gives producers an easy way to integrate MIDI gear into their music production setups.

With its four Ultra-HDDA mic preamps, two line / Hi-Z inputs, and two line inputs, the US-4x4HR allows you to track or overdub four different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. The four balanced 1/4" line outputs and dual 1/4" headphone outputs enable monitoring through multiple speakers, headphones, or both. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency adjustable direct monitoring, and an empowering software bundle.


Key Specs

Channels of I/O
Analog:
4 Inputs / 4 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Analog Audio I/O
4x XLR 3-Pin Balanced Mic Input (Front Panel)
2x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Input (Front Panel)
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Digital Audio I/O
No
Host Connection
1x USB-C
OS Compatibility
macOS 10.13
macOS 11 or Later
Windows 7 or Later
iPadOS 13 or Later
11 or Later
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
Channels of I/O
Analog:
4 Inputs / 4 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Input Level Adjustment
4x Knob

Signal Processing
Pad
No
Gain/Trim Range
Mic/Line/Hi-Z Inputs:
56 dB
High-Pass Filter
No
Solo/Mute
No

Connectivity
Analog Audio I/O
4x XLR 3-Pin Balanced Mic Input (Front Panel)
2x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Input (Front Panel)
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Phantom Power
48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O
No
Host Connection
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Expansion Slots
No

Performance
Frequency Response
Mic, Line Inputs:
20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA)
Line Outputs:
20 Hz to 20 kHz +0.2/-0.1 dB (at 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0.2/-0.4 dB (at 88.2/96 kHz, JEITA)
Maximum Input Level
Mic Inputs:
+9 dBu
Line Inputs:
+20 dBu
Hi-Z Inputs:
+10 dBV
Maximum Output Level
Line Outputs:
+20 dBu
Headphone Output Power
45 mW per Channel into 32 Ohms (0.1% THD)
Impedance
Mic Inputs:
2.2 Kilohms
Line Inputs:
10 Kilohms
Line Outputs:
210 Ohms
Hi-Z Inputs:
≥ 1 Megohm
SNR
Mic Inputs:
110 dB (A-Weighted, Min Gain)
Line Inputs:
108 dB (A-Weighted, Min Gain)
Line Outputs:
110 dB (A-Weighted, Max Gain)
THD+N
Mic Inputs:
0.0013% (1 kHz, Min Gain)
Line Inputs:
0.0011% (1 kHz, Min Gain)
Line Outputs:
0.0012% (1 kHz)
EIN
-128 dBu

Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
Internal

Audio Storage & Playback
Media/Memory Card Slot
No

Compatibility
OS Compatibility
Computer: macOS 10.13 or Later / Windows 7 or Later
Mobile: iOS Only
OS Compatibility
macOS 10.13
macOS 11 or Later
Windows 7 or Later
iPadOS 13 or Later
11 or Later
Processor Requirement
2 GHz or Better
RAM Requirements
2 GB
Mobile Device Compatibility
iPad
iPhone
Required Hardware
Available USB 2.0 Port
USB Cable (Included)

Power
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
AC/DC Power Adapter
12 VDC, Center-Positive (Included)
Power Consumption
2.25 W

Physical
Operating Conditions
41 to 95°F / 5 to 35°C
Dimensions
11.7 x 6.3 x 2.6" / 29.6 x 16 x 6.5 cm (Including Controls and Protrusions)
Weight
3.5 lb / 1.6 kg

Packaging Info
Package Weight
4.925 lb
Box Dimensions (LxWxH)
12.9 x 8.1 x 4.6"

What's in the Box:

  • TASCAM US-4x4HR USB-C Audio/MIDI Interface
  • USB-C to USB-A Cable
  • Steinberg Cubase LE DAW Software (Download)
  • Steinberg Cubasis LE DAW Software (Download)
  • IK Multimedia Sample Tank SE Virtual Instrument (Download)
  • Limited 1-Year Manufacturer Warranty
$244.79
TASCAM US-4x4HR USB-C Audio/MIDI Interface—
$244.79

Description

Key Features
  • Producers, Musicians, and Home Studios
  • AC and Bus Powered / Mac, Windows, iOS
  • 4 Mic Pres, 2 Line / Hi-Z In, 2 Line In
  • 2 Headphone Out, 4 Line Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • Virtual Loopback for Streaming
  • 48V, Zero-Latency Direct Monitoring
  • MIDI I/O on 5-Pin DIN Jacks
  • DAWs, Virtual Instrument, Auto-Tune


Overview

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-4x4HR, a desktop 4x4 USB-C audio/MIDI interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of four mics for home recordists and content creators. The inclusion of MIDI ports gives producers an easy way to integrate MIDI gear into their music production setups.

With its four Ultra-HDDA mic preamps, two line / Hi-Z inputs, and two line inputs, the US-4x4HR allows you to track or overdub four different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. The four balanced 1/4" line outputs and dual 1/4" headphone outputs enable monitoring through multiple speakers, headphones, or both. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency adjustable direct monitoring, and an empowering software bundle.


Key Specs

Channels of I/O
Analog:
4 Inputs / 4 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Analog Audio I/O
4x XLR 3-Pin Balanced Mic Input (Front Panel)
2x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Input (Front Panel)
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Digital Audio I/O
No
Host Connection
1x USB-C
OS Compatibility
macOS 10.13
macOS 11 or Later
Windows 7 or Later
iPadOS 13 or Later
11 or Later
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
Channels of I/O
Analog:
4 Inputs / 4 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Input Level Adjustment
4x Knob

Signal Processing
Pad
No
Gain/Trim Range
Mic/Line/Hi-Z Inputs:
56 dB
High-Pass Filter
No
Solo/Mute
No

Connectivity
Analog Audio I/O
4x XLR 3-Pin Balanced Mic Input (Front Panel)
2x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Input (Front Panel)
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Phantom Power
48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O
No
Host Connection
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Expansion Slots
No

Performance
Frequency Response
Mic, Line Inputs:
20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA)
Line Outputs:
20 Hz to 20 kHz +0.2/-0.1 dB (at 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0.2/-0.4 dB (at 88.2/96 kHz, JEITA)
Maximum Input Level
Mic Inputs:
+9 dBu
Line Inputs:
+20 dBu
Hi-Z Inputs:
+10 dBV
Maximum Output Level
Line Outputs:
+20 dBu
Headphone Output Power
45 mW per Channel into 32 Ohms (0.1% THD)
Impedance
Mic Inputs:
2.2 Kilohms
Line Inputs:
10 Kilohms
Line Outputs:
210 Ohms
Hi-Z Inputs:
≥ 1 Megohm
SNR
Mic Inputs:
110 dB (A-Weighted, Min Gain)
Line Inputs:
108 dB (A-Weighted, Min Gain)
Line Outputs:
110 dB (A-Weighted, Max Gain)
THD+N
Mic Inputs:
0.0013% (1 kHz, Min Gain)
Line Inputs:
0.0011% (1 kHz, Min Gain)
Line Outputs:
0.0012% (1 kHz)
EIN
-128 dBu

Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
Internal

Audio Storage & Playback
Media/Memory Card Slot
No

Compatibility
OS Compatibility
Computer: macOS 10.13 or Later / Windows 7 or Later
Mobile: iOS Only
OS Compatibility
macOS 10.13
macOS 11 or Later
Windows 7 or Later
iPadOS 13 or Later
11 or Later
Processor Requirement
2 GHz or Better
RAM Requirements
2 GB
Mobile Device Compatibility
iPad
iPhone
Required Hardware
Available USB 2.0 Port
USB Cable (Included)

Power
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
AC/DC Power Adapter
12 VDC, Center-Positive (Included)
Power Consumption
2.25 W

Physical
Operating Conditions
41 to 95°F / 5 to 35°C
Dimensions
11.7 x 6.3 x 2.6" / 29.6 x 16 x 6.5 cm (Including Controls and Protrusions)
Weight
3.5 lb / 1.6 kg

Packaging Info
Package Weight
4.925 lb
Box Dimensions (LxWxH)
12.9 x 8.1 x 4.6"

What's in the Box:

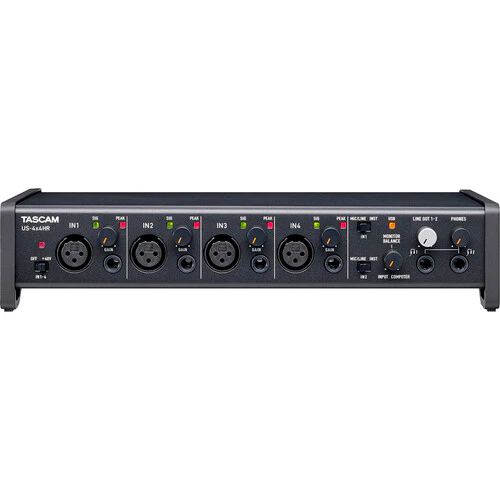

  • TASCAM US-4x4HR USB-C Audio/MIDI Interface
  • USB-C to USB-A Cable
  • Steinberg Cubase LE DAW Software (Download)
  • Steinberg Cubasis LE DAW Software (Download)
  • IK Multimedia Sample Tank SE Virtual Instrument (Download)
  • Limited 1-Year Manufacturer Warranty
TASCAM US-4x4HR USB-C Audio/MIDI Interface | BHM Store
