TASCAM US-2x2HR USB-C Audio/MIDI Interface

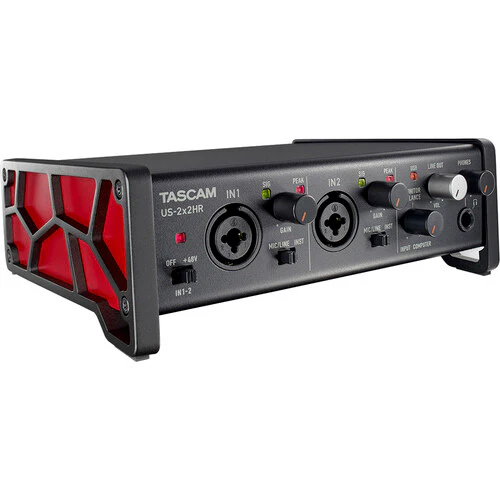

Product image 1
1 / 4

TASCAM US-2x2HR USB-C Audio/MIDI Interface

Key Features
  • Musicians, Podcasters, and Producers
  • AC and Bus Powered / Mac, Windows, iOS
  • 2 Mic Pres, 2 Line / Hi-Z In, 2 Line In
  • 1 Headphone Out, 2 Line Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • Virtual Loopback for Streaming
  • 48V, Zero-Latency Direct Monitoring
  • MIDI I/O on 5-Pin DIN Jacks
  • DAWs, Virtual Instrument, Auto-Tunex


Overview

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-2x2HR, a desktop 2x2 USB-C audio/MIDI interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of two mics or instruments for home recordists and traveling content creators. The inclusion of MIDI ports gives producers an easy way to integrate MIDI gear into their music production setups.

With its two Ultra-HDDA mic/line/instrument preamps, the US-2x2HR allows you to track or overdub two different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. The stereo balanced 1/4" line outs and 1/4" headphone output enable monitoring through speakers, headphones, or both, each with its own level control. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency adjustable direct monitoring, and an empowering software bundle.


Key Specs

Channels of I/O
Analog:
2 Inputs / 2 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Digital Audio I/O
No
Host Connection
1x USB-C
OS Compatibility
macOS 10.13
macOS 11 or Later
Windows 7 or Later
iPadOS 13 or Later
11 or Later
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
Channels of I/O
Analog:
2 Inputs / 2 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Input Level Adjustment
2x Knob
Signal Processing
Pad
No
Gain/Trim Range
Mic/Line/Hi-Z Inputs:
56 dB
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Phantom Power
48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O
No
Host Connection
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Expansion Slots
No
Performance
Frequency Response
Mic, Line Inputs:
20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA)
Line Outputs:
20 Hz to 20 kHz +0.2/-0.1 dB (at 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0.2/-0.4 dB (at 88.2/96 kHz, JEITA)
Maximum Input Level
Mic Inputs:
+9 dBu
Line Inputs:
+20 dBu
Hi-Z Inputs:
+10 dBV
Maximum Output Level
Line Outputs:
+20 dBu
Headphone Output Power
18 mW per Channel into 32 Ohms (0.1% THD)
Impedance
Mic Inputs:
2.2 Kilohms
Line Inputs:
10 Kilohms
Line Outputs:
210 Ohms
Hi-Z Inputs:
≥ 1 Megohm
SNR
Mic Inputs:
110 dB (A-Weighted, Min Gain)
Line Inputs:
108 dB (A-Weighted, Min Gain)
Line Outputs:
110 dB (A-Weighted, Max Gain)
THD+N
Mic Inputs:
0.0013% (1 kHz, Min Gain)
Line Inputs:
0.0011% (1 kHz, Min Gain)
Line Outputs:
0.0012% (1 kHz)
EIN
-128 dBu
Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
Internal
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Computer: macOS 10.13 or Later / Windows 7 or Later
Mobile: iPadOS Only
OS Compatibility
macOS 10.13
macOS 11 or Later
Windows 7 or Later
iPadOS 13 or Later
11 or Later
Processor Requirement
2 GHz or Better
RAM Requirements
2 GB
Mobile Device Compatibility
iPad
iPhone
Required Hardware
Available USB 2.0 Port
USB Cable (Included)
Power
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
AC/DC Power Adapter
5 VDC, Center-Positive (Not Included)
Power Consumption
1.75 W
Physical
Operating Conditions
41 to 95°F / 5 to 35°C
Dimensions
7.3 x 6.3 x 2.6" / 18.6 x 16 x 6.5 cm (Including Controls and Protrusions)
Weight
2.4 lb / 1.1 kg
Packaging Info
Package Weight
3.215 lb
Box Dimensions (LxWxH)
8.4 x 8 x 4.1"

What's in the Box:

  • TASCAM US-2x2HR USB-C Audio/MIDI Interface
  • USB-C to USB-A Cable
  • Steinberg Cubase LE DAW Software (Download)
  • Steinberg Cubasis LE DAW Software (Download)
  • IK Multimedia Sample Tank SE Virtual Instrument (Download)
  • Limited 1-Year Manufacturer Warranty (for Device)
  • Limited 90-Day Manufacturer Warranty (for Labor)
Key Features
  • Musicians, Podcasters, and Producers
  • AC and Bus Powered / Mac, Windows, iOS
  • 2 Mic Pres, 2 Line / Hi-Z In, 2 Line In
  • 1 Headphone Out, 2 Line Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • Virtual Loopback for Streaming
  • 48V, Zero-Latency Direct Monitoring
  • MIDI I/O on 5-Pin DIN Jacks
  • DAWs, Virtual Instrument, Auto-Tunex


Overview

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-2x2HR, a desktop 2x2 USB-C audio/MIDI interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of two mics or instruments for home recordists and traveling content creators. The inclusion of MIDI ports gives producers an easy way to integrate MIDI gear into their music production setups.

With its two Ultra-HDDA mic/line/instrument preamps, the US-2x2HR allows you to track or overdub two different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. The stereo balanced 1/4" line outs and 1/4" headphone output enable monitoring through speakers, headphones, or both, each with its own level control. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency adjustable direct monitoring, and an empowering software bundle.


Key Specs

Channels of I/O
Analog:
2 Inputs / 2 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Digital Audio I/O
No
Host Connection
1x USB-C
OS Compatibility
macOS 10.13
macOS 11 or Later
Windows 7 or Later
iPadOS 13 or Later
11 or Later
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
Channels of I/O
Analog:
2 Inputs / 2 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Input Level Adjustment
2x Knob
Signal Processing
Pad
No
Gain/Trim Range
Mic/Line/Hi-Z Inputs:
56 dB
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Phantom Power
48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O
No
Host Connection
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Expansion Slots
No
Performance
Frequency Response
Mic, Line Inputs:
20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA)
Line Outputs:
20 Hz to 20 kHz +0.2/-0.1 dB (at 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0.2/-0.4 dB (at 88.2/96 kHz, JEITA)
Maximum Input Level
Mic Inputs:
+9 dBu
Line Inputs:
+20 dBu
Hi-Z Inputs:
+10 dBV
Maximum Output Level
Line Outputs:
+20 dBu
Headphone Output Power
18 mW per Channel into 32 Ohms (0.1% THD)
Impedance
Mic Inputs:
2.2 Kilohms
Line Inputs:
10 Kilohms
Line Outputs:
210 Ohms
Hi-Z Inputs:
≥ 1 Megohm
SNR
Mic Inputs:
110 dB (A-Weighted, Min Gain)
Line Inputs:
108 dB (A-Weighted, Min Gain)
Line Outputs:
110 dB (A-Weighted, Max Gain)
THD+N
Mic Inputs:
0.0013% (1 kHz, Min Gain)
Line Inputs:
0.0011% (1 kHz, Min Gain)
Line Outputs:
0.0012% (1 kHz)
EIN
-128 dBu
Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
Internal
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Computer: macOS 10.13 or Later / Windows 7 or Later
Mobile: iPadOS Only
OS Compatibility
macOS 10.13
macOS 11 or Later
Windows 7 or Later
iPadOS 13 or Later
11 or Later
Processor Requirement
2 GHz or Better
RAM Requirements
2 GB
Mobile Device Compatibility
iPad
iPhone
Required Hardware
Available USB 2.0 Port
USB Cable (Included)
Power
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
AC/DC Power Adapter
5 VDC, Center-Positive (Not Included)
Power Consumption
1.75 W
Physical
Operating Conditions
41 to 95°F / 5 to 35°C
Dimensions
7.3 x 6.3 x 2.6" / 18.6 x 16 x 6.5 cm (Including Controls and Protrusions)
Weight
2.4 lb / 1.1 kg
Packaging Info
Package Weight
3.215 lb
Box Dimensions (LxWxH)
8.4 x 8 x 4.1"

What's in the Box:

  • TASCAM US-2x2HR USB-C Audio/MIDI Interface
  • USB-C to USB-A Cable
  • Steinberg Cubase LE DAW Software (Download)
  • Steinberg Cubasis LE DAW Software (Download)
  • IK Multimedia Sample Tank SE Virtual Instrument (Download)
  • Limited 1-Year Manufacturer Warranty (for Device)
  • Limited 90-Day Manufacturer Warranty (for Labor)
$187.61
TASCAM US-2x2HR USB-C Audio/MIDI Interface—
$187.61

Description

Key Features
  • Musicians, Podcasters, and Producers
  • AC and Bus Powered / Mac, Windows, iOS
  • 2 Mic Pres, 2 Line / Hi-Z In, 2 Line In
  • 1 Headphone Out, 2 Line Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • Virtual Loopback for Streaming
  • 48V, Zero-Latency Direct Monitoring
  • MIDI I/O on 5-Pin DIN Jacks
  • DAWs, Virtual Instrument, Auto-Tunex


Overview

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-2x2HR, a desktop 2x2 USB-C audio/MIDI interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of two mics or instruments for home recordists and traveling content creators. The inclusion of MIDI ports gives producers an easy way to integrate MIDI gear into their music production setups.

With its two Ultra-HDDA mic/line/instrument preamps, the US-2x2HR allows you to track or overdub two different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. The stereo balanced 1/4" line outs and 1/4" headphone output enable monitoring through speakers, headphones, or both, each with its own level control. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency adjustable direct monitoring, and an empowering software bundle.


Key Specs

Channels of I/O
Analog:
2 Inputs / 2 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Digital Audio I/O
No
Host Connection
1x USB-C
OS Compatibility
macOS 10.13
macOS 11 or Later
Windows 7 or Later
iPadOS 13 or Later
11 or Later
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
Channels of I/O
Analog:
2 Inputs / 2 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Input Level Adjustment
2x Knob
Signal Processing
Pad
No
Gain/Trim Range
Mic/Line/Hi-Z Inputs:
56 dB
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Phantom Power
48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O
No
Host Connection
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Expansion Slots
No
Performance
Frequency Response
Mic, Line Inputs:
20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA)
Line Outputs:
20 Hz to 20 kHz +0.2/-0.1 dB (at 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0.2/-0.4 dB (at 88.2/96 kHz, JEITA)
Maximum Input Level
Mic Inputs:
+9 dBu
Line Inputs:
+20 dBu
Hi-Z Inputs:
+10 dBV
Maximum Output Level
Line Outputs:
+20 dBu
Headphone Output Power
18 mW per Channel into 32 Ohms (0.1% THD)
Impedance
Mic Inputs:
2.2 Kilohms
Line Inputs:
10 Kilohms
Line Outputs:
210 Ohms
Hi-Z Inputs:
≥ 1 Megohm
SNR
Mic Inputs:
110 dB (A-Weighted, Min Gain)
Line Inputs:
108 dB (A-Weighted, Min Gain)
Line Outputs:
110 dB (A-Weighted, Max Gain)
THD+N
Mic Inputs:
0.0013% (1 kHz, Min Gain)
Line Inputs:
0.0011% (1 kHz, Min Gain)
Line Outputs:
0.0012% (1 kHz)
EIN
-128 dBu
Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
Internal
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Computer: macOS 10.13 or Later / Windows 7 or Later
Mobile: iPadOS Only
OS Compatibility
macOS 10.13
macOS 11 or Later
Windows 7 or Later
iPadOS 13 or Later
11 or Later
Processor Requirement
2 GHz or Better
RAM Requirements
2 GB
Mobile Device Compatibility
iPad
iPhone
Required Hardware
Available USB 2.0 Port
USB Cable (Included)
Power
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
AC/DC Power Adapter
5 VDC, Center-Positive (Not Included)
Power Consumption
1.75 W
Physical
Operating Conditions
41 to 95°F / 5 to 35°C
Dimensions
7.3 x 6.3 x 2.6" / 18.6 x 16 x 6.5 cm (Including Controls and Protrusions)
Weight
2.4 lb / 1.1 kg
Packaging Info
Package Weight
3.215 lb
Box Dimensions (LxWxH)
8.4 x 8 x 4.1"

What's in the Box:

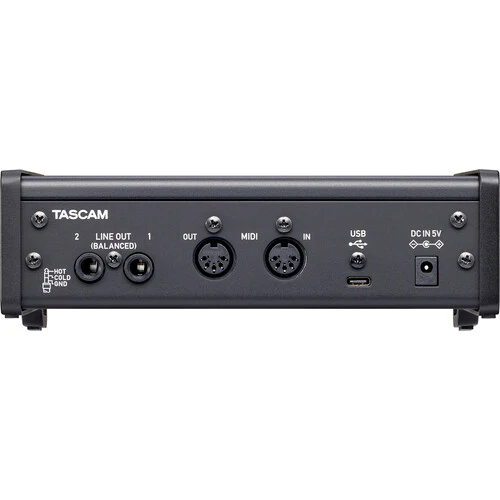

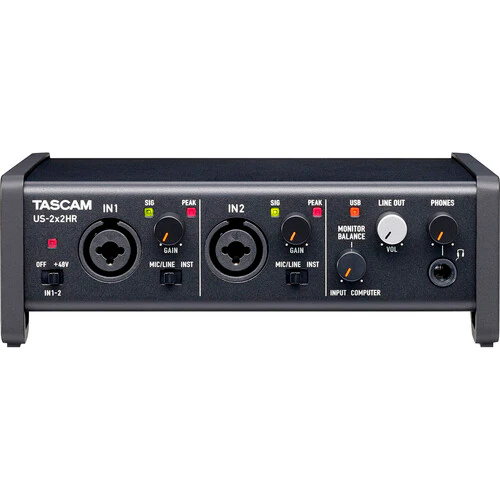

  • TASCAM US-2x2HR USB-C Audio/MIDI Interface
  • USB-C to USB-A Cable
  • Steinberg Cubase LE DAW Software (Download)
  • Steinberg Cubasis LE DAW Software (Download)
  • IK Multimedia Sample Tank SE Virtual Instrument (Download)
  • Limited 1-Year Manufacturer Warranty (for Device)
  • Limited 90-Day Manufacturer Warranty (for Labor)
TASCAM US-2x2HR USB-C Audio/MIDI Interface | BHM Store
