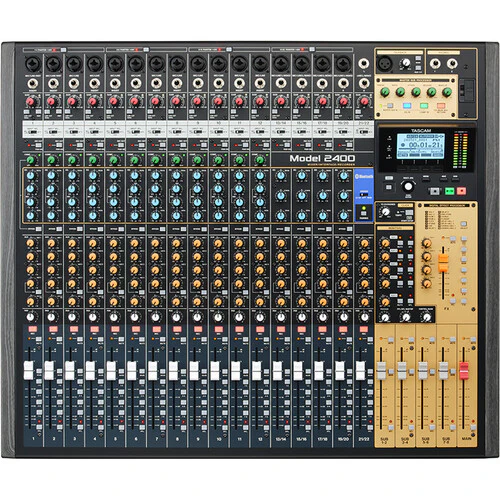

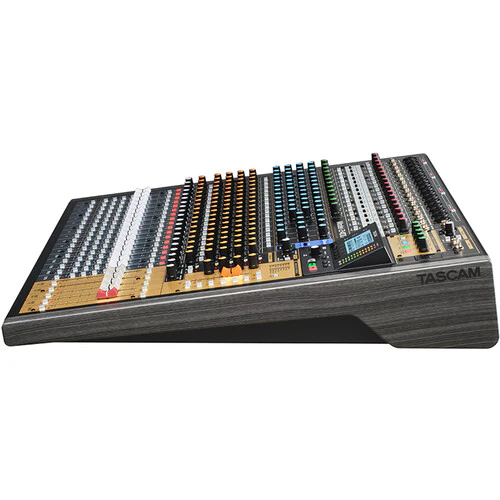

TASCAM Model 2400 24-Track Analog Recording Console with Audio Interface
1 / 5
TASCAM Model 2400 24-Track Analog Recording Console with Audio Interface
Key Features
24-Track Live & Recording Mixer
24-Track Recorder with SDXC Recording
24-In / 22-Out USB Audio Interface
Punch In and Punch Out Supported
22 Inputs with 12 XLR HDDA Mic Preamps
5 Aux Sends and 4 Stereo Sub Groups
MIDI I/O with Sync and 1/4" Click Output
12 Inserts and Stereo Master Inserts
DAW Transport and REC FUNC Control
Meter Bridge Screen and Settings via App
Overview
Improving on the Model 24 in almost every way, the Model 2400 from TASCAM is a 24-in / 22-out flagship recording and mixing console ideal for live and studio applications. Capable of 24-track internal recording via SDXC card and external 24x22 USB interface duties, the Model 2400 can fill many roles for the modern recordist.
The extensive I/O includes (but is not limited to) 12 TASCAM HDDA (High-Definition Discrete Architecture) XLR mic preamps and four standard mic preamps, five aux sends, four stereo subgroups, main L/R XLR outs, Control Room output, 12 inserts (plus a stereo master insert), a 1/4" click output with tap tempo, and MIDI I/O for controlling and syncing with external MIDI gear, from drum machines to FX processors. While the console can record on it's own, it is also ready for easy integration with computer-based DAWs with built-in DAW transport controls. You also get all the typical TASCAM mixer controls expected, including 3-band EQ with sweepable mids on channels 1 to 12, 1-knob compression, a 100 Hz low-cut filter, plus PFL/AFL functions, and a new assignable 60mm fader assigned to the 16 built-in TASCAM FX by default, which include reverb, delay, and chorus. The Model 2400 includes a power cord.
Key Specs
Number of Analog Input Channels
22 (12 Mono / 5 Stereo)
Number of Mic Preamps
16
Analog Output Channels
1x Stereo Master Output 1x Stereo Control Room/Monitor Output 5x Mono Aux Send Output 4x Stereo Bus/Subgroup Output 1x Mono FX Send Output 2x Stereo Headphone Output
Mix Routing
1x Stereo Main Mix 4x Stereo Bus/Subgroup 5x Mono Aux Send 12x Mono Insert
1x Stereo Master Output 1x Stereo Control Room/Monitor Output 5x Mono Aux Send Output 4x Stereo Bus/Subgroup Output 1x Mono FX Send Output 2x Stereo Headphone Output
Mix Routing
1x Stereo Main Mix 4x Stereo Bus/Subgroup 5x Mono Aux Send 12x Mono Insert
Faders & Level Adjustment
1x 3.9" / 100 mm Master Fader 17x 3.9" / 100 mm Channel Fader 2x 3.9" / 100 mm Bus/Subgroup Fader 2x 2.4" / 60 mm Bus/Subgroup Fader 1x 2.4" / 60 mm FX Fader
Meters
1x 12-Segment LED
Signal Processing
Gain/Trim Range
Mic Input: 74 dB
Dynamic Processing
Input Channels, Master: Compressor
EQ
3-Band Parametric
EQ Parameters
High: ±15 dB at 10 kHz (Shelving) Mid: ±15 dB at 100 Hz to 8 kHz, 0.5 Q (Peak) Low: ±15 dB at 60 Hz (Shelving) Master: High: ±12 dB at 1.7 kHz to 18 kHz Hi-Mid: ±12 dB at 32 Hz to 18 kHz, 0.1 to 17.31 Q Lo-Mid: ±12 dB at 32 Hz to 18 kHz, 0.1 to 17.31 Q Low: ±12 dB at 32 Hz to 1.6 kHz
Graphic EQ
No
Filters
Input Channels: 1x High-Pass: 100 Hz
Solo/Mute
Solo, Solo-in-Place/AFL, Mute, PFL per Input Channel
Yes: Android & iOS App Name: Meter Bridge Functionality: Adjust Settings, Remote Control, View Live Feed
Recording
Max Multitrack Recording
24 Tracks
Media Support
SD, SDHC, USB Drive
File Format Support
Record: WAV
Compatibility
OS Compatibility
Computer: Windows 11 or Later / macOS 14 Only Mobile: Android/iOS
OS Compatibility
Windows 11 or Later (64-Bit Only) macOS 14
Mobile Device Compatibility
Android Smartphone iPhone
Power
AC Input Power
Universal: 100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable
No
Dimensions
26.8 x 22.4 x 5.2" / 68 x 57 x 13.2 cm
Weight
30.9 lb / 14 kg
Packaging Info
Package Weight
43.3 lb
Box Dimensions (LxWxH)
30 x 27.25 x 9.75"
What's in the Box:
TASCAM Model 2400 24-Track Analog Recording Console with Audio Interface
Power Cord
Limited 1-Year Manufacturer Warranty
