TASCAM 202MKVII Rackmount USB Dual Cassette Deck

Product image 1
1 / 4

TASCAM 202MKVII Rackmount USB Dual Cassette Deck

Key Features
  • Two Twin-Head Cassette Decks
  • USB 2.0 Stereo Audio Output
  • One-Touch Dubbing
  • Parallel Recording
  • Pitch Control
  • Selectable Noise Reduction
  • Stereo RCA Input & Output
  • 1/4" Microphone Input with Level Control
  • 1/4" Headphone Jack with Level Control
  • Includes Wireless Remote & AA Batteries



Overview

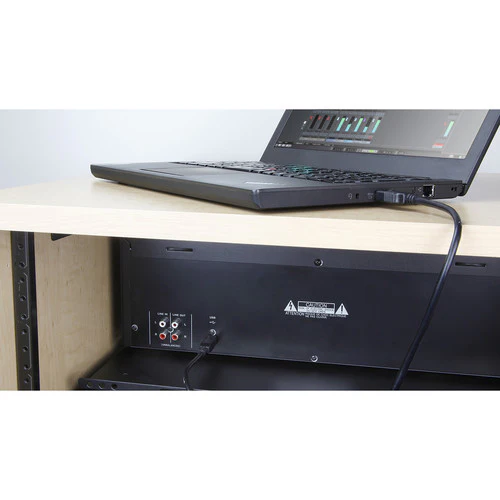

The TASCAM 202 MKVII is a rackmount USB dual cassette deck designed to deliver flexible cassette recording and transfer functions for musicians, singers, and archivists in home, project, and commercial studios. It features two twin-head cassette decks, a wireless remote control with AA batteries, and support for multiple tape types. A USB 2.0 Type-B output is provided for easy A/D conversion and digital audio transfers to a computer.

Use one-touch dubbing for straightforward cassette duplication, or initiate parallel recording to simultaneously record the same source to both tapes. Welcome luxuries include a pitch control for Tape 1, selectable noise reduction, and repeat playback. In addition to the standard stereo RCA input and output, the 202MKVII boasts a 1/4" mic input and a 1/4" stereo headphone output. Level controls are present for the mic input, headphone output, and recording gain.


Key Specs

General
Input Impedance
Mic: ≥3 Kilohms
Line: 33 Kilohms
Reference Output
-4.5 dBu / 0.46 Vrms
Load Impedance
1 Kilohm
Output Power
Headphone Jack: 15 mW + 15 mW into 32-Ohm Load
Bit Depth
8-/16-Bit
Sample Rates
8, 11.025, 16, 22.05, 32, 44.1, and 48 kHz
System Requirements
macOS 11 or 12
Windows 10 or 11
Tape Speed
1.9" / 4.8 cm per Second
Pitch Control
±12%
Fast Wind Time
Approximately 120 Seconds (C-60 Tape)
Wow and Flutter
0.25% (WRMS)
Frequency Response
Normal Tape (Type I): 30 Hz to 13 kHz (±4 dB)
High-Position Tape (Type II): 30 Hz to 15 kHz (±4 dB)
Signal-to-Noise Ratio (SNR)
59 dBA at Maximum Recording Level Input
Reference Input Level
Line: -9 dBu / 0.28 Vrms
Maximum Input Level
Line: +20 dBu / 7.75 Vrms
Minimum Input Level
Mic: -66 dBu / 0.38 Vrms

Display
Panel Type
LCD
Display Size
Not Specified by Manufacturer
Touchscreen
No

Inputs/Outputs
USB I/O
1 x USB-B 2.0 Female Output
Audio I/O
1x 1/4" TS Mic Input
1x 1/4" TRS Headphone Output
1x 2RCA Coaxial Line Input
1x 2.5 mm Coaxial Line Output

Power
Power Source
AC Input (Built-In)
AC Input Power
120 VAC, 60 Hz
Power Consumption
22 W

Physical
Mounting
Side: 2x Rack Ears
Color
Gray
Cable Length
Not Specified by Manufacturer
Dimensions
19 x 11.25 x 5.5" / 48.3 x 28.57 x 14 cm (Including Protrusions)
Weight
12.1 lb / 5.5 kg

Packaging Info
Package Weight
14.95 lb
Box Dimensions (LxWxH)
21.25 x 14.5 x 9"

What's in the Box:

  • TASCAM 202MKVII Rackmount USB Dual Cassette Deck
  • RC-1331 Wireless Remote Control
  • 2 x AA Batteries
  • Rack-Mounting Screw Kit
  • Limited 1-Year Manufacturer Warranty
