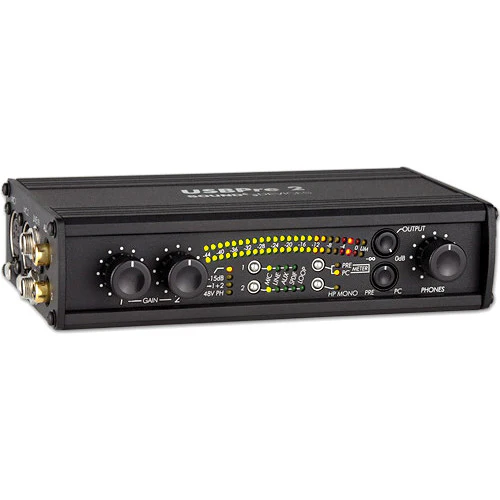

Sound Devices USBPre 2 USB-B Audio Interface

Product image 1
1 / 3

Sound Devices USBPre 2 USB-B Audio Interface

Key Features

  • Field Mixers & Location Sound Recordists
  • Bus Powered, Mac/Windows/Linux
  • 2 Mic Preamps, 2 Line In, Stereo Aux In
  • 2 Headphone, 2 Mic/Line, 2 Aux Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • +48V, Pads, Limiters, High-Pass Filters
  • Coaxial and Optical S/PDIF I/O
  • Standalone Preamp/Converter Operation
  • Multicolor LED Meter



Overview

With topology from the award-winning 788T recorder, field-tested reliability, and class-compliant operation, the Sound Devices USBPre 2 portable 2x2 USB audio interface offers field mixers and location sound recordists a rugged, simple, and high-resolution device that connects professional microphones, line-level sources, consumer audio electronics, and S/PDIF digital sources with Mac, Windows, or Linux computer systems.

From its two high-gain discrete-transistor microphone preamps to its 24-bit / 192 kHz converters, the USBPre 2 is made for quality you can take with you. Unlike most 2x2 interfaces, it boasts peak limiters, high-pass filters, and input pads to prevent overloads and ensure clean signal recording. Balanced XLR mic/line outputs, unbalanced RCA aux outputs, S/PDIF digital outs, and two headphone ports (1/4" and 3.5mm) give you the connectivity you need for optimal monitoring and routing. The USBPre 2 can even function in standalone mode for situations that require an additional mic preamp or AD/DA converter without a computer.

Key Specs

Channels of I/O
Analog:
2 Inputs / 2 Outputs
Digital:
2 Inputs / 2 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2

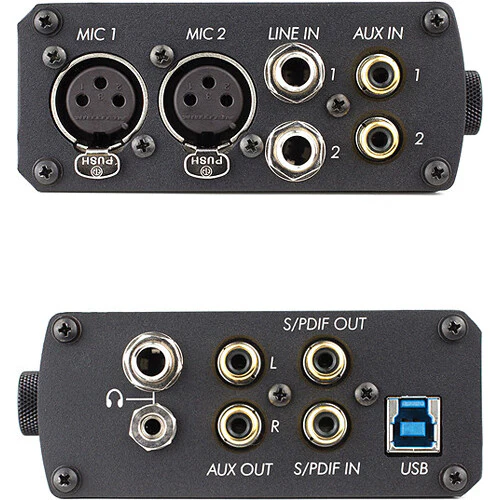

Analog Audio I/O
2x XLR 3-Pin Balanced Mic Input
2x 1/4" TRS Balanced Line Input
1x Stereo RCA Coaxial Unbalanced Aux Input
1x 1/4" TRS Unbalanced Headphone Output
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
2x XLR 3-Pin Balanced Mic/Line Output
1x Stereo RCA Coaxial Unbalanced Aux Output
Digital Audio I/O
1x TOSLINK Optical S/PDIF Input
1x TOSLINK Optical S/PDIF Output
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output
Host Connection
1x USB-B (Class-Compliant)
OS Compatibility
macOS 10.4 or Later
Windows XP
Windows Vista
Windows 7 (32-/64-Bit)
Linux 2.6.0 or Later
Power Requirements
USB Bus Power



What's in the Box:

  • Sound Devices USBPre 2 USB-B Audio Interface
  • USB Type-B to Type-A Cable (6.6')
  • 4 x Adhesive Rubber Bumpers
  • Limited 1-Year Manufacturer Warranty

Key Features

  • Field Mixers & Location Sound Recordists
  • Bus Powered, Mac/Windows/Linux
  • 2 Mic Preamps, 2 Line In, Stereo Aux In
  • 2 Headphone, 2 Mic/Line, 2 Aux Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • +48V, Pads, Limiters, High-Pass Filters
  • Coaxial and Optical S/PDIF I/O
  • Standalone Preamp/Converter Operation
  • Multicolor LED Meter



Overview

With topology from the award-winning 788T recorder, field-tested reliability, and class-compliant operation, the Sound Devices USBPre 2 portable 2x2 USB audio interface offers field mixers and location sound recordists a rugged, simple, and high-resolution device that connects professional microphones, line-level sources, consumer audio electronics, and S/PDIF digital sources with Mac, Windows, or Linux computer systems.

From its two high-gain discrete-transistor microphone preamps to its 24-bit / 192 kHz converters, the USBPre 2 is made for quality you can take with you. Unlike most 2x2 interfaces, it boasts peak limiters, high-pass filters, and input pads to prevent overloads and ensure clean signal recording. Balanced XLR mic/line outputs, unbalanced RCA aux outputs, S/PDIF digital outs, and two headphone ports (1/4" and 3.5mm) give you the connectivity you need for optimal monitoring and routing. The USBPre 2 can even function in standalone mode for situations that require an additional mic preamp or AD/DA converter without a computer.

Key Specs

Channels of I/O
Analog:
2 Inputs / 2 Outputs
Digital:
2 Inputs / 2 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x XLR 3-Pin Balanced Mic Input
2x 1/4" TRS Balanced Line Input
1x Stereo RCA Coaxial Unbalanced Aux Input
1x 1/4" TRS Unbalanced Headphone Output
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
2x XLR 3-Pin Balanced Mic/Line Output
1x Stereo RCA Coaxial Unbalanced Aux Output
Digital Audio I/O
1x TOSLINK Optical S/PDIF Input
1x TOSLINK Optical S/PDIF Output
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output
Host Connection
1x USB-B (Class-Compliant)
OS Compatibility
macOS 10.4 or Later
Windows XP
Windows Vista
Windows 7 (32-/64-Bit)
Linux 2.6.0 or Later
Power Requirements
USB Bus Power



What's in the Box:

  • Sound Devices USBPre 2 USB-B Audio Interface
  • USB Type-B to Type-A Cable (6.6')
  • 4 x Adhesive Rubber Bumpers
  • Limited 1-Year Manufacturer Warranty
$680.46
