RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface

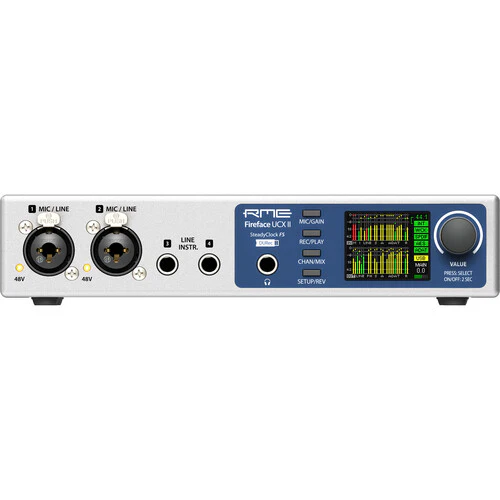

Product image 1
1 / 2

RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface

Key Features

  • Musicians, Content Creators & Engineers
  • AC Powered / Mac, Windows
  • 2 Mic/Line In, 2 Line/Hi-Z In, 4 Line In
  • 1 Headphone Out, 6 TRS Line Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • 48V, Wordclock I/O
  • Record all I/O to USB Flash Storage
  • Full Standalone Functionality
  • MIDI, S/PDIF, ADAT, AES I/O
  • TotalMix FX Mixing/Routing, Room EQ



Overview

Compact, portable, and packed with features from their premier interfaces, the RME Fireface UCX II is a desktop 20x20 USB audio/MIDI interface that effectively serves as a mobile version of RME's respected UFX rackmount models, earning it the flexibility to benefit musicians, content creators, and serious engineers alike. Not only is it a capable interface with plenty of analog and digital I/O for your DAW-based productions, but it also supports powerful remote-control options and standalone operation to accommodate a myriad of workflows and recording scenarios. Additionally, it can record all I/O channels directly to USB flash storage thanks to the internal DURec digital recorder.


Key Specs

Channels of I/O
Analog:
8 Inputs / 8 Outputs
Digital:
12 Inputs / 12 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic/Line Input (Front Panel)
2x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel)
4x 1/4" TRS Balanced Line Input
6x 1/4" TRS Balanced Line Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Digital Audio I/O
1x TOSLINK Optical ADAT Input
1x TOSLINK Optical ADAT Output
1x XLR 3-Pin AES3 Input (on Breakout Cable)
1x XLR 3-Pin AES3 Output (on Breakout Cable)
1x RCA Coaxial S/PDIF Input (on Breakout Cable)
1x RCA Coaxial S/PDIF Output (on Breakout Cable)
Host Connection
1x USB-B
Power Requirements
AC/DC Power Adapter (Included)
Operating Conditions
41 to 122°F / 5 to 50°C up to 75% Humidity
Dimensions
8.5 x 5.1 x 1.73" / 21.6 x 13 x 4.39 cm (without Rack Ears)
10.16 x 6.1 x 1.73" / 25.81 x 15.5 x 4.39 cm (with Rack Ears)
Weight
2.0 lb / 0.9 kg



What's in the Box:

  • RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface
  • USB Cable (6')
  • TOSLINK Optical Cable (6.6')
  • Digital Breakout Cable
  • External Switched Power Supply (12 VDC, 24W)
  • Power Cable
  • Limited 1-Year Manufacturer Warranty
Key Features

  • Musicians, Content Creators & Engineers
  • AC Powered / Mac, Windows
  • 2 Mic/Line In, 2 Line/Hi-Z In, 4 Line In
  • 1 Headphone Out, 6 TRS Line Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • 48V, Wordclock I/O
  • Record all I/O to USB Flash Storage
  • Full Standalone Functionality
  • MIDI, S/PDIF, ADAT, AES I/O
  • TotalMix FX Mixing/Routing, Room EQ



Overview

Compact, portable, and packed with features from their premier interfaces, the RME Fireface UCX II is a desktop 20x20 USB audio/MIDI interface that effectively serves as a mobile version of RME's respected UFX rackmount models, earning it the flexibility to benefit musicians, content creators, and serious engineers alike. Not only is it a capable interface with plenty of analog and digital I/O for your DAW-based productions, but it also supports powerful remote-control options and standalone operation to accommodate a myriad of workflows and recording scenarios. Additionally, it can record all I/O channels directly to USB flash storage thanks to the internal DURec digital recorder.


Key Specs

Channels of I/O
Analog:
8 Inputs / 8 Outputs
Digital:
12 Inputs / 12 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic/Line Input (Front Panel)
2x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel)
4x 1/4" TRS Balanced Line Input
6x 1/4" TRS Balanced Line Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Digital Audio I/O
1x TOSLINK Optical ADAT Input
1x TOSLINK Optical ADAT Output
1x XLR 3-Pin AES3 Input (on Breakout Cable)
1x XLR 3-Pin AES3 Output (on Breakout Cable)
1x RCA Coaxial S/PDIF Input (on Breakout Cable)
1x RCA Coaxial S/PDIF Output (on Breakout Cable)
Host Connection
1x USB-B
Power Requirements
AC/DC Power Adapter (Included)
Operating Conditions
41 to 122°F / 5 to 50°C up to 75% Humidity
Dimensions
8.5 x 5.1 x 1.73" / 21.6 x 13 x 4.39 cm (without Rack Ears)
10.16 x 6.1 x 1.73" / 25.81 x 15.5 x 4.39 cm (with Rack Ears)
Weight
2.0 lb / 0.9 kg



What's in the Box:

  • RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface
  • USB Cable (6')
  • TOSLINK Optical Cable (6.6')
  • Digital Breakout Cable
  • External Switched Power Supply (12 VDC, 24W)
  • Power Cable
  • Limited 1-Year Manufacturer Warranty
$571.72

Original: $1,633.49

-65%
RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface—

$1,633.49

$571.72
