PreSonus AudioBox USB 96 USB-B Audio/MIDI Interface-25th Anniversary

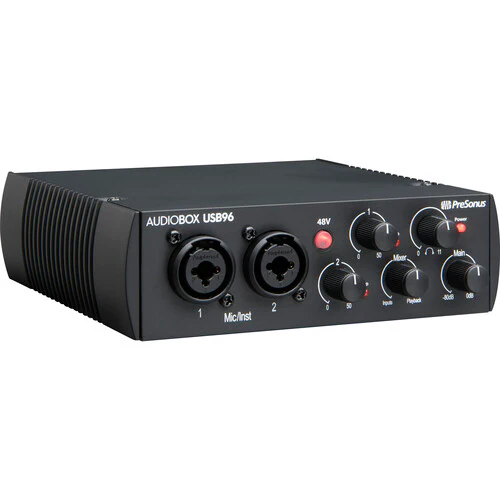

Product image 1
1 / 6
+1

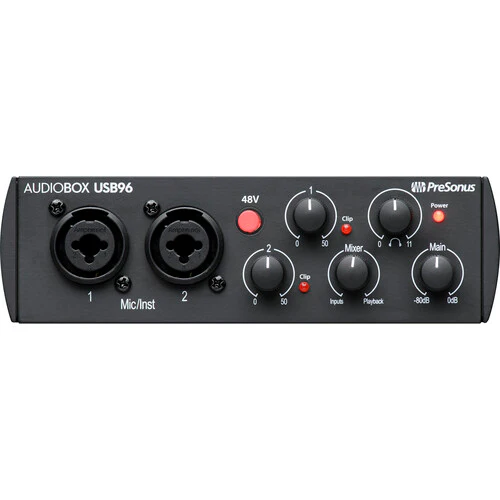

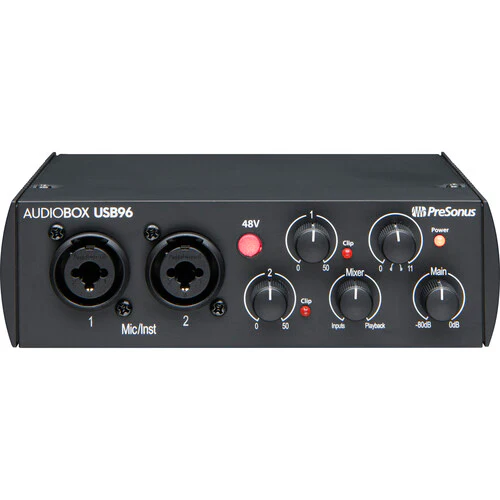

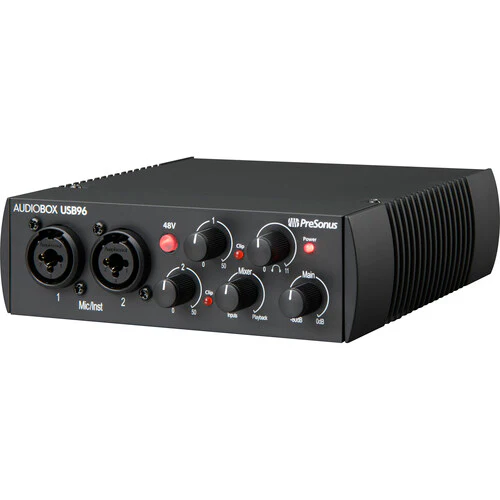

PreSonus AudioBox USB 96 USB-B Audio/MIDI Interface-25th Anniversary

Key Features

  • Musicians, Podcasters, Producers
  • Bus Powered / Mac and Windows
  • 2 Mic / Hi-Z Preamp
  • 1 Headphone Output, 2 Line Out
  • 24-Bit / 96 kHz AD/DA Conversion
  • 48V, Zero-Latency Direct Monitoring
  • MIDI I/O on 5-Pin DIN Jacks
  • DAWs, VIs, Plug-Ins, Loops, and Samples\

Overview

A solid, affordable solution for singers, musicians, podcasters, and producers recording at home or on the go, the 25th-Anniversary Black PreSonus AudioBox USB 96 desktop 2x2 USB audio interface offers Class-A mic preamps with phantom power, MIDI I/O, and simple operability in a portable and sturdy steel chassis that is conveniently bus powered.

The AudioBox USB 96 utilizes 24-bit converters at sampling rates up to 96 kHz to ensure the integrity and detail of your signals, whether recording or mixing. The two XLR-1/4" combo inputs let you record microphones (dynamic or condenser) or instruments such as electric guitar while monitoring with zero latency via the adjustable direct monitor mix.

With two 1/4" line/monitor outs and a stereo headphone output, the interface can drive a set of speakers and headphones while offering independent volume controls for both. If you have MIDI gear such as a keyboard controller, synthesizer, or drum machine, simply connect them to the interface's 5-pin MIDI ports to smoothly integrate them into your production setup.

Key Specs

Channels of I/O
Analog:
2 Inputs / 2 Outputs at 96 kHz
Maximum Sampling Rate
96 kHz / 24-Bit
Number of Microphone Inputs
2

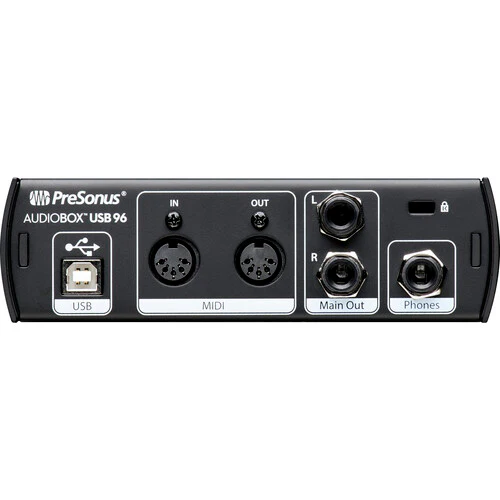

Analog Audio I/O
2x Combo XLR-1/4" TS Balanced/Unbalanced Mic/Hi-Z Input (Pin 2 Hot)
2x 1/4" TRS Balanced Line/Monitor Output
1x 1/4" TRS Unbalanced Headphone Output
Digital Audio I/O
No
Host Connection
1x USB-B
OS Compatibility
macOS 10.11 or Later (64-Bit Only)
Windows 7 or Later (32-/64-Bit)
Power Requirements
USB Bus Power
Channels of I/O
Analog:
2 Inputs / 2 Outputs at 96 kHz
Maximum Sampling Rate
96 kHz / 24-Bit
Number of Microphone Inputs
2
Input Level Adjustment
2x Knob
Signal Processing
Pad
No
Gain/Trim Range
Mic Inputs:
0 dB to +60 dB
Hi-Z Inputs:
-10 dB to +30 dB
Monitor Outputs:
-80 dB to +10 dB
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TS Balanced/Unbalanced Mic/Hi-Z Input (Pin 2 Hot)
2x 1/4" TRS Balanced Line/Monitor Output
1x 1/4" TRS Unbalanced Headphone Output
Phantom Power
48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O
No
Host Connection
1x USB-B
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Expansion Slots
No
Performance
Frequency Response
Mic Inputs:
20 Hz to 20 kHz ±3 dB
Headphone Outputs:
20 Hz to 30 kHz ±1 dB
Maximum Input Level
Mic Inputs:
-3 dBu (Unity Gain, 1 kHz)
Headphone Output Power
60 mW per Channel into 60 Ohms (Max)
Impedance
Outputs:
51 Ohms (Balanced)
Mic Inputs:
1.2 Kilohms (Balanced)
Hi-Z Inputs:
0.5 Megohms (Unbalanced)
Dynamic Range
AD/DA Converters:
105 dBA (48 kHz Sample Rate)
SNR
95 dB (at +4 dBu, 1 kHz, Unity Gain)
THD+N
Mic Inputs:
< 0.008% (Unweighted, 1 kHz, Unity Gain)
Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
Internal
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
macOS 10.11 or Later / Windows 7 or Later
OS Compatibility
macOS 10.11 or Later (64-Bit Only)
Windows 7 or Later (32-/64-Bit)
Processor Requirement
Mac:
Intel Core Duo
PC:
Intel Core 2
RAM Requirements
Mac:
2 GB, 4 GB Recommended
PC:
4 GB, 8 GB Recommended
Storage Requirements
20 GB
Mobile Device Compatibility
No
Required Hardware
Available USB 2.0 Port
USB Cable (Included)
Power
Power Requirements
USB Bus Power
Physical
Rackmount Size
1 RU (with Non-Included Hardware, 1/3-Rack)
Dimensions
5.5 x 5.5 x 1.75" / 13.97 x 13.97 x 4.45 cm
Weight
1.3 lb / 0.6 kg
Packaging Info
Package Weight
2.27 lb
Box Dimensions (LxWxH)
10 x 6.8 x 3.5"

What's in the Box:

  • PreSonus AudioBox USB 96 USB-B Audio/MIDI Interface (25th-Anniversary Black)
  • Studio One Artist Software (Download)
  • Studio Magic Plug-In Suite (Download)
  • USB Cable (6')
  • Limited 1-Year Manufacturer Warranty
