M-Audio AIR 192|8 Desktop 2x4 USB Type-C Audio/MIDI Interface

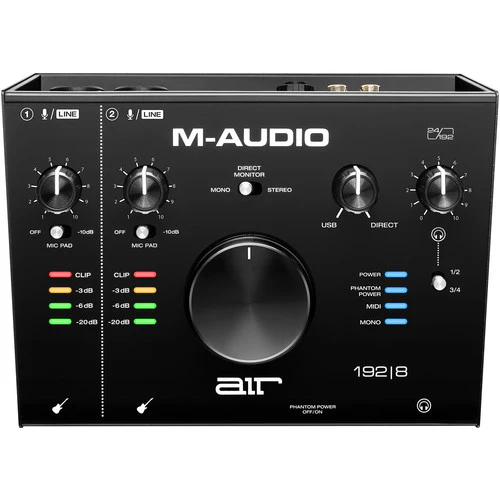

Product image 1
1 / 3

M-Audio AIR 192|8 Desktop 2x4 USB Type-C Audio/MIDI Interface

Key Features

  • Musicians, Producers, and Songwriters
  • USB Type-C and Type-A Connectivity
  • Inputs: 2 Mic/Line Preamps, 2 Instrument
  • Outputs: 1 Headphone, 2 Monitor, 2 Aux
  • 24-Bit / 192 kHz AD/DA Converters
  • Bus Powered / Mac, Windows
  • Phantom Power, Pads, MIDI I/O
  • Independent I/O Levels, Monitor Mix Knob
  • Pro Tools | First and Ableton Live Lite
  • 40 FX Plug-Ins, 4 VIs, 2GB Loop Set

Overview

Designed for musicians, producers, and songwriters questing for studio-quality recordings and fresh sounds, the M-Audio AIR 192|8 desktop 2x4 USB Type-C audio interface provides two channels of transparent preamps and converters, easy operability, MIDI I/O, and an expansive software bundle of DAWs, virtual instruments, plug-ins, and loops.

With its two XLR-1/4" combo mic/line inputs and dedicated front-panel 1/4" Hi-Z instrument inputs, the AIR 192|8 can simultaneously accommodate two mics (dynamic/condenser), two electric guitars, or one of each while offering separate meters, -10 dB pads, and gain controls for both inputs. Since the interface has mirrored stereo RCA and 1/4" TRS monitor outputs, assignable stereo RCA aux outs, and a 1/4" headphone output with its own level control and source selection, you can connect active speakers, a set of headphones, and an external DJ mixer.

The built-in monitor mixer lets you listen in mono or stereo and dial in the optimal blend of zero-latency live input signal and low-latency computer playback, so you can smoothly transition from tracking to overdubbing to mixing.

Key Specs

Channels of I/O
Analog:
2 Inputs / 4 Outputs at 192 kHz
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2 Preamps

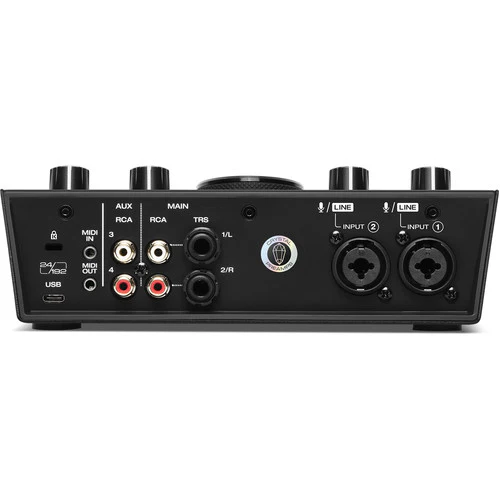

Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Output
1x Stereo RCA Coaxial Unbalanced Line Output
1x Stereo RCA Coaxial Unbalanced Aux Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Host Connection
1x USB-C (Class-Compliant)
OS Compatibility
macOS 10.8 or Later
Windows 7 or Later
Power Requirements
USB Bus Power
Channels of I/O
Analog:
2 Inputs / 4 Outputs at 192 kHz
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2 Preamps
Input Level Adjustment
2x Knob
Expansion Slots
No
Signal Processing
Pad
Mic:
-10 dB (Switchable per Channel)
Gain/Trim Range
Mic Inputs:
60 dB
Hi-Z Inputs:
24 dB
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
2x 1/4" TRS Balanced Line Output
1x Stereo RCA Coaxial Unbalanced Line Output
1x Stereo RCA Coaxial Unbalanced Aux Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Phantom Power
48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O
No
Host Connection
1x USB-C (Class-Compliant)
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
1x 1/8" / 3.5 mm TRS Input (DIN 5-Pin Adapter Included)
1x 1/8" / 3.5 mm TRS Output (DIN 5-Pin Adapter Included)
Performance
Frequency Response
Mic, Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.1 dB
Line Outputs:
20 Hz to 20 kHz ±0.1 dB
Maximum Input Level
Mic Inputs:
+1.8 dBu
Line Inputs:
+20.7 dBu
Hi-Z Inputs:
+6.8 dBu
Maximum Output Level
1/4" Line Outputs:
+13 dBu (Balanced, 1 kHz)
RCA Line/Aux Outputs:
+7 dBu
Headphone Output Power
36 mW into 32 Ohms
Impedance
Hi-Z Inputs:
1 Megohm (Unbalanced)
Headphone Outputs:
32 Ohms (Balanced)
Dynamic Range
Mic Inputs:
104 dB (A-Weighted)
Line/Hi-Z Inputs:
106 dB (A-Weighted)
Line/Monitor Outputs:
109 dB (A-Weighted)
Headphone Outputs:
101 dB
SNR
Mic Inputs:
104 dB (A-Weighted)
Line Inputs:
101 dB (A-Weighted, 1 kHz)
Hi-Z Inputs:
98 dB (A-Weighted)
THD+N
Mic Inputs:
0.001% (1 kHz, at -1 dBFS)
Line Inputs:
0.002% (1 kHz, at -1 dBFS)
Hi-Z Inputs:
0.001% (1 kHz, at -1 dBFS)
1/4" Monitor Outputs:
0.003% (1 kHz, at -1 dBFS)
RCA Line/Aux Outputs:
0.003% (1 kHz, at -1 dBFS)
Headphone Outputs:
0.008% (1 kHz, at -1 dBFS)
EIN
Mic Inputs:
-126 dBu (150-Ohm Source)
Digital Audio
Sample Rates
Up to 192 kHz (AD/DA Conversion)
Sample Rate Conversion
No
Bit Depths
24-Bit (AD/DA Conversion)
Latency
2.59 ms (Dependent on Buffer Size, Input to Output)
Sync Sources
Internal
Audio Storage & Playback
Memory Card Slot
No
Compatibility
OS Compatibility
macOS 10.8 or Later
Windows 7 or Later
Mobile Device Compatibility
No
Required Hardware
Available USB 2.0 Port or USB-C Port
USB Cable (Included)
Internet Connection
Required for Registration, Software/Driver Download
Power
Power Requirements
USB Bus Power
Physical
Anti-Theft Features
Kensington Security Slot
Dimensions
7.8 x 6 x 2.76" / 19.8 x 15.2 x 7.01 cm
Weight
2.0 lb / 0.9 kg
Packaging Info
Package Weight
3.34 lb
Box Dimensions (LxWxH)
13.2 x 10.1 x 5"

What's in the Box:
  • M-Audio AIR 192|8 Desktop 2x4 USB Type-C Audio/MIDI Interface
  • USB Type-C Cable
  • USB Type-C to Type-A Cable
  • 2 x 3.5mm to MIDI 5-Pin Adapters
  • Avid Pro Tools | First M-Audio Edition (Download)
  • Ableton Live Lite (Download)
  • 20 x AIR Creative FX Plug-Ins (Download)
  • 20 x Avid Effect Plug-Ins (Download)
  • Avid Eleven Lite Guitar Amp Simulator (Download)
  • AIR Music DB-33 Tonewheel Organ (Download)
  • AIR Music Boom Drum Machine (Download)
  • AIR Music Vacuum Monophonic Synthesizer (Download)
  • AIR Music Mini Grand (Download)
  • AIR Music Xpand!2 Virtual Instrument (Download)
  • 2GB Sample Collection by Touch Loops (Download)
  • Limited 1-Year Manufacturer Warranty
