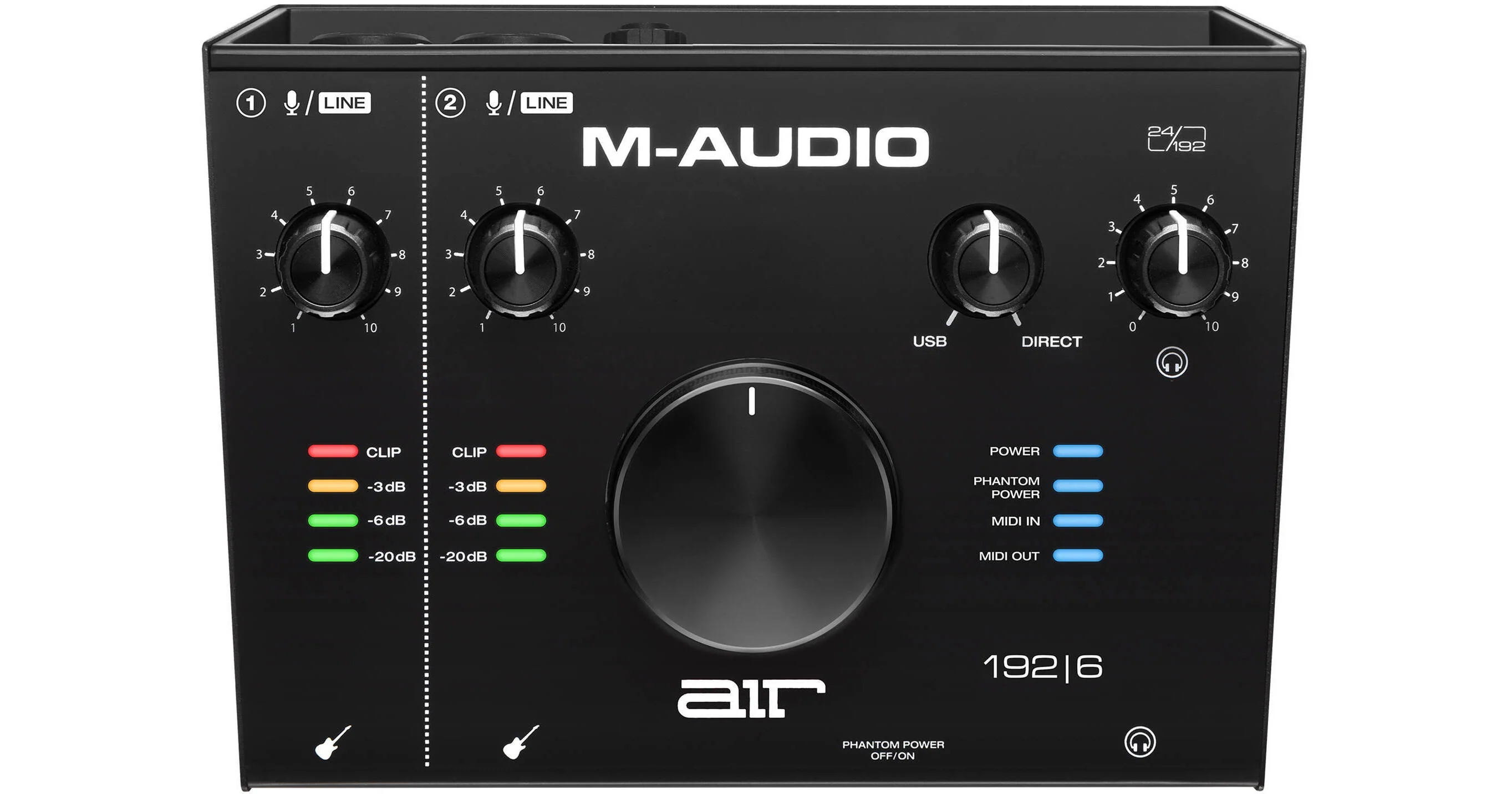

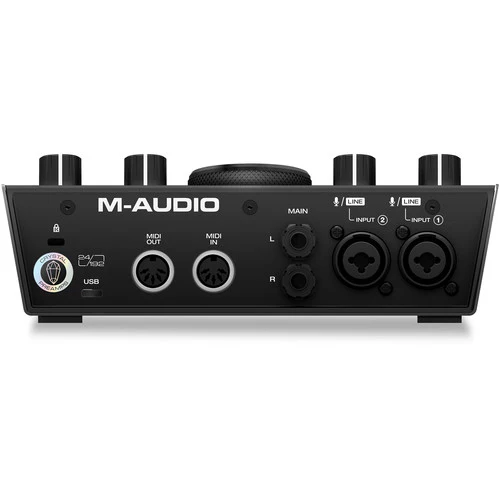

M-Audio AIR 192|6 Desktop 2x2 USB Type-C Audio/MIDI Interface

Product image 1
1 / 3

M-Audio AIR 192|6 Desktop 2x2 USB Type-C Audio/MIDI Interface

Key Features

    • Musicians, Producers, and Songwriters
    • USB Type-C and Type-A Connectivity
    • 2 Mic/Line Preamps, 2 Instrument Inputs
    • 1 Headphone Output, 2 Monitor Outs
    • 24-Bit / 192 kHz AD/DA Converters
    • Bus Powered / Mac, Windows
    • Phantom Power, MIDI I/O
    • Independent I/O Levels, Monitor Mix Knob
    • Pro Tools | First and Ableton Live Lite
    • 40 FX Plug-Ins, 4 VIs, 2GB Loop Set

    Overview

    Designed for musicians, producers, and songwriters questing for studio-quality recordings and fresh sounds, the M-Audio AIR 192|6 desktop 2x2 USB Type-C audio interface provides two channels of transparent preamps and converters, easy operability, MIDI I/O, and an expansive software bundle of DAWs, virtual instruments, plug-ins, and loops.

    With its two XLR-1/4" combo mic/line inputs and dedicated front-panel 1/4" Hi-Z instrument inputs, the AIR 192|6 can simultaneously accommodate two mics (dynamic/condenser), two electric guitars, or one of each while offering separate meters and gain controls for both inputs. Since the interface has two 1/4" TRS monitor outputs and a 1/4" headphone output with its own level control, you can connect active speakers and a set of headphones and adjust their volumes independently. The built-in monitor mixer lets you dial in the optimal blend of zero-latency live input signal and low-latency computer playback, so you can smoothly transition from tracking to overdubbing to mixing.

    Key Specs

    Channels of I/O
    Analog:
    2 Inputs / 2 Outputs at 192 kHz
    Maximum Sampling Rate
    192 kHz / 24-Bit
    Number of Microphone Inputs
    2 Preamps
    Analog Audio I/O
    2x Combo XLR-1/4" TRS Balanced Mic/Line Input
    2x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
    2x 1/4" TRS Balanced Line Output
    1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
    Host Connection
    1x USB-C (Class-Compliant)
    OS Compatibility
    macOS 10.8 or Later
    Windows 7 or Later
    Power Requirements
    USB Bus Power
    Channels of I/O
    Analog:
    2 Inputs / 2 Outputs at 192 kHz
    Maximum Sampling Rate
    192 kHz / 24-Bit
    Number of Microphone Inputs
    2 Preamps
    Built-In Microphone
    No
    Input Level Adjustment
    2x Knob
    Expansion Slots
    No
    Signal Processing
    Pad
    No
    Gain/Trim Range
    Mic/Line Inputs:
    55 dB
    Hi-Z Inputs:
    24 dB
    High-Pass Filter
    No
    Solo/Mute
    No
    Connectivity
    Analog Audio I/O
    2x Combo XLR-1/4" TRS Balanced Mic/Line Input
    2x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
    2x 1/4" TRS Balanced Line Output
    1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
    Phantom Power
    48 V, Selectable On/Off (Applied to All Inputs)
    Digital Audio I/O
    No
    Host Connection
    1x USB-C (Class-Compliant)
    Host Connection Protocol
    USB 2.0
    USB (Non-Host)
    No
    Sync I/O
    No
    Network I/O
    No
    MIDI I/O
    1x DIN 5-Pin Input
    1x DIN 5-Pin Output
    Performance
    Frequency Response
    Mic Inputs:
    20 Hz to 20 kHz +0.1 dB
    Line, Hi-Z Inputs:
    20 Hz to 20 kHz ±0.05 dB
    Monitor Outputs:
    20 Hz to 20 kHz +0.05 dB
    Maximum Input Level
    Mic Inputs:
    +1.5 dBu
    Line Inputs:
    +16 dBu
    Hi-Z Inputs:
    +6 dBu
    Maximum Output Level
    Line Outputs:
    +13 dBu (Balanced, 1 kHz)
    Impedance
    Hi-Z Inputs:
    1 Megohm (Unbalanced)
    Headphone Outputs:
    10 Ohms (Balanced)
    Dynamic Range
    Mic Inputs:
    104 dB (A-Weighted)
    Line Inputs:
    101 dB (A-Weighted, 1 kHz)
    Hi-Z Inputs:
    100 dB (A-Weighted)
    Monitor Outputs:
    106 dB (A-Weighted)
    SNR
    Mic Inputs:
    104 dB (A-Weighted)
    Line Inputs:
    101 dB (A-Weighted)
    Hi-Z Inputs:
    98 dB (A-Weighted)
    Monitor Outputs:
    106 dB (A-Weighted)
    THD+N
    Mic/Line Inputs:
    0.002%
    Hi-Z Inputs:
    0.005%
    Headphone/Monitor Outputs:
    0.005%
    EIN
    Mic Inputs:
    -128 dBu A-Weighted (150-Ohm Source, Max Gain)
    Digital Audio
    Sample Rates
    Up to 192 kHz (AD/DA Conversion)
    Sample Rate Conversion
    No
    Bit Depths
    24-Bit (AD/DA Conversion)
    Latency
    2.59 ms (Dependent on Buffer Size, Input to Output)
    Sync Sources
    Internal
    Audio Storage & Playback
    Memory Card Slot
    No
    Compatibility
    OS Compatibility
    macOS 10.8 or Later
    Windows 7 or Later
    Mobile Device Compatibility
    No
    Required Hardware
    Available USB 2.0 Port or USB-C Port
    USB Cable (Included)
    Internet Connection
    Required for Registration, Software/Driver Download
    Power
    Power Requirements
    USB Bus Power
    Physical
    Anti-Theft Features
    Kensington Security Slot
    Dimensions
    8 x 6 x 2.76" / 20.3 x 15.2 x 7.01 cm
    Weight
    2.1 lb / 1.0 kg
    Packaging Info
    Package Weight
    3.135 lb
    Box Dimensions (LxWxH)
    13.1 x 10.1 x 4.9"


    What's in the Box:

    • M-Audio AIR 192|6 Desktop 2x2 USB Type-C Audio/MIDI Interface
    • USB Type-C Cable
    • USB Type-C to Type-A Cable
    • Avid Pro Tools | First M-Audio Edition (Download)
    • Ableton Live Lite (Download)
    • 20 x AIR Creative FX Plug-Ins (Download)
    • 20 x Avid Effect Plug-Ins (Download)
    • Avid Eleven Lite Guitar Amp Simulator (Download)
    • AIR Music DB-33 Tonewheel Organ (Download)
    • AIR Music Boom Drum Machine (Download)
    • AIR Music Vacuum Monophonic Synthesizer (Download)
    • AIR Music Mini Grand (Download)
    • AIR Music Xpand!2 Virtual Instrument (Download)
    • 2GB Sample Collection by Touch Loops (Download)
    • Limited 1-Year Manufacturer Warranty
