JBL VRX-932LA-1 12" Passive 2-Way Line Array Speaker Bi-Ampable

Product image 1
1 / 2

JBL VRX-932LA-1 12" Passive 2-Way Line Array Speaker Bi-Ampable

JBL VRX-932LA-1 12" Passive 2-Way Line Array Speaker Bi-Ampable (Black)


Overview

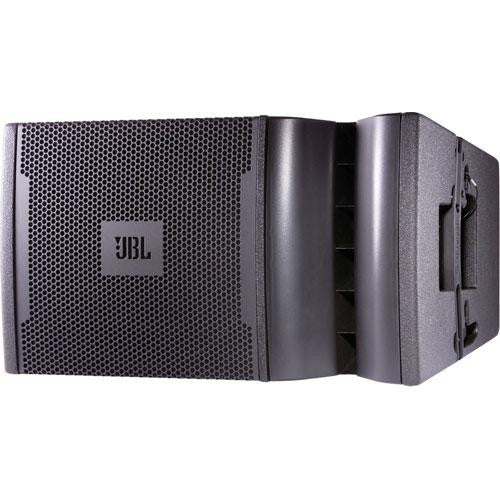

The JBL VRX-932LA-1 (Black) is a lightweight, compact, passive and bi-ampable two-way line array speaker system, with an 800-watt continuous passive program power handling capacity, designed for use in arrays of up to six units.

The VRX-932LA-1 is equipped with a 12" dual voice coil woofer and a trio of 1" Neodymium compression drivers, and offers a worthy solution when line-array performance is desired in a smaller venue, but the very long-throw characteristics of a larger line array is not needed.

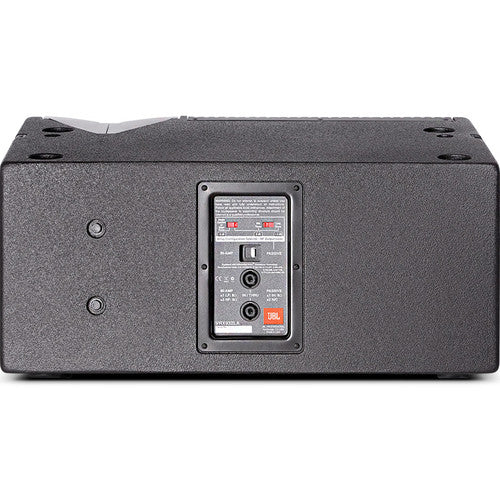

The VRX-932LA-1 uses amplitude shading technology to shape the coverage of the array. Switches on the input plate allow the upper box in an array to reach a distant balcony, while the lower HF section is attenuated to reduce excessive level at the front of the listening area.

One or two VRX-932LA-1 units may also be used on a tripod or over subwoofers, and up to six may be suspended in a single array for a nominal vertical coverage of up to 90°.



Key Features

  • 2-way passive or bi-ampable 1600W line-array PA speaker system for smaller venues with up to 6-unit array capacity
  • 12" Neodymium magnet Differential Drive woofer for high-power capacity and light weight
  • Three 1.5" Neodymium Annular Ring Diaphragm technology drivers for high-power capacity, high-frequency extension and directivity
  • Constant Curvature waveguide technology for reliable array coherence
  • Array Configuration Selector switch—permits array in passive mode, allows for precise directivity and level attenuation
  • Dual-angle pole socket for aiming flexibility when pole mounting, integral rigging hardware for simplified connection of enclosures and optional array frame
  • Tripod or subwoofer mounting of up to 2 speakers for multi-range floor placement



Key Specs

Configuration
Passive 2-Way
Total Power Capacity
Passive:
800 W RMS
1600 W Program
3200 W Peak
LF:
800 W RMS
1600 W Program
3200 W Peak
HF:
75 W RMS
150 W Program
300 W Peak
Drivers
HF Driver
3 x Compression Driver
HF Voice Coil
1.5" / 3.81 cm
LF Driver
1x 12" / 305 mm Woofer
LF Voice Coil
Dual
Magnet
HF:
Neodymium
LF:
Neodymium
Performance
Frequency Response
75 Hz to 20 kHz ±3 dB
Maximum SPL
130 dB (Passive)
130 dB (LF, Bi-Amp)
139 dB (HF, Bi-Amp)
Coverage Angle
100° H x 15° V
Speaker Sensitivity
Passive:
95 dB SPL
Bi-Amp/LF:
95 dB
Bi-Amp/HF:
114 dB
Connectivity
Audio I/O
2x speakON NL4
Signal Processing
Crossover
1.2 kHz
Physical
Mounting
2 x 1.42" / 36 mm Pole Socket (Dual Angle, Bottom)
2 x M10 Fly Point
Fly Point
Construction Material
Metal Grille, Plywood
Dimensions
23.5 x 13.8 x 15" / 597 x 349 x 381 mm
Weight
46 lb / 21 kg
Packaging Info
Package Weight
55 lb
Box Dimensions (LxWxH)
25.5 x 19 x 18"

What's in the Box:
  • JBL VRX-932LA-1 12" Passive 2-Way Line Array Speaker Bi-Ampable (Black)
  • Limited 1-Year Manufacturer Warranty
