JBL Control 25-1 Compact Speaker (Single)

Product image 1
1 / 4

JBL Control 25-1 Compact Speaker (Single)

Key Features

  • 5.25" Woven-Fiberglass LF Drivers
  • 0.75" PEI Diaphragm Tweeters
  • 200W RMS at 8 Ohms
  • Durable, Weatherized Enclosures
  • InvisiBall Mounting Hardware
  • Zinc-Plated Grilles
  • Good for Off-Axis Listening
  • 60 Hz to 20 kHz Frequency Response



Overview

Designed by JBL, these Control 25-1 Loudspeakers are two-way 5.25" indoor/outdoor monitors featuring weather-protected circuitry, natural and powerful representations of the frequency spectrum, white enclosures, and JBL's proprietary InvisiBall mounting hardware. This hardware allows you to install the speakers through a hidden access point behind its logo badge. As such, the Control 25-1 suitable for venues, health clubs, theme parks, cafes, or anywhere where foreground/background music—and paging—is a necessity.

These monitors are capable of handling 200W of programmatic material at 8 Ohms, and feature a built-in multi-tap transformer for operation on distributed speaker lines. With an SPL of 110 dB, you can blast these speakers pretty loudly as well, while their cone geometry ensures a pleasurable listening experience in both on- and off-axis situations. Additionally, their PEI diaphragms render a smooth high-frequency response. But sound is not the only consideration: Kapton voice coil formers, JBL's WeatherEdge rubberized extensions, and a durable cabinet construction provide protection against heat, rain, wind, or anything else the elements might throw at you in the coming years.

Key Specs

Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 100 Hours:
75 W RMS
300 W Peak
For 2 Hours:
200 W Program
100 W RMS
400 W Peak

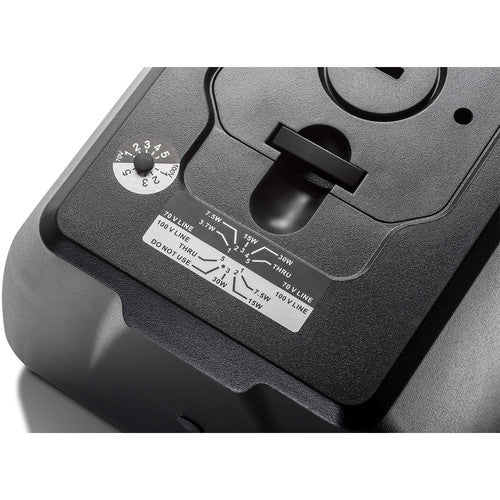

Constant Voltage / Transformer Taps
100 V:
30 / 15 / 7.5 W or 8 Ohms Bypass
70 V:
30 / 15 / 7.5 / 3.7 W or 8 Ohms Bypass
Impedance
8 Ohms (Thru Setting)
HF Driver
0.75" / 19 mm PEI Tweeter
LF Driver
5.25" / 13.5 cm Fiberglass Woofer
Color
White/ Black
Speaker
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 100 Hours:
75 W RMS
300 W Peak
For 2 Hours:
200 W Program
100 W RMS
400 W Peak
Constant Voltage / Transformer Taps
100 V:
30 / 15 / 7.5 W or 8 Ohms Bypass
70 V:
30 / 15 / 7.5 / 3.7 W or 8 Ohms Bypass
Impedance
8 Ohms (Thru Setting)
Drivers
HF Driver
0.75" / 19 mm PEI Tweeter
LF Driver
5.25" / 13.5 cm Fiberglass Woofer
Performance
Frequency Response
60 Hz to 20 kHz ±10 dB
85 Hz to 17 kHz ±3 dB
Sensitivity
90 dB
Coverage Angle
100° H x 100° V
Directivity
6 (Directivity/Q Factor)
7.6 dB (Directivity Index)
Crossover
Low-Pass:
12 dB/Octave
High-Pass:
12 dB/Octave
Recommended High-Pass Filter
60 Hz, 24 dB/Octave
Maximum Input Voltage
25.3 V RMS
50.6 V Peak
Transformer Insertion Loss
<0.94 dB
Connectivity
Inputs/Outputs
Screw Terminal
Maximum Wire Gauge
12 AWG / 2.5 mm
Physical
Certifications
RoHS, UL
Environmental Resistance
Dust/Water-Resistant (IP44)
Color
White
Construction Material
High-Impact Polystyrene, Metal Grille
Dimensions
9.6 x 7.4 x 5.7" / 243 x 188 x 145 mm
Weight
7.5 lb / 3.4 kg


What's in the Box:
  • JBL Control 25-1 Compact Indoor/Outdoor Background/Foreground Speaker (Single Unit)
  • InvisiBall Wall-Mounting System
  • Limited 1-Year Manufacturer Warranty

Key Features

  • 5.25" Woven-Fiberglass LF Drivers
  • 0.75" PEI Diaphragm Tweeters
  • 200W RMS at 8 Ohms
  • Durable, Weatherized Enclosures
  • InvisiBall Mounting Hardware
  • Zinc-Plated Grilles
  • Good for Off-Axis Listening
  • 60 Hz to 20 kHz Frequency Response



Overview

Designed by JBL, these Control 25-1 Loudspeakers are two-way 5.25" indoor/outdoor monitors featuring weather-protected circuitry, natural and powerful representations of the frequency spectrum, white enclosures, and JBL's proprietary InvisiBall mounting hardware. This hardware allows you to install the speakers through a hidden access point behind its logo badge. As such, the Control 25-1 suitable for venues, health clubs, theme parks, cafes, or anywhere where foreground/background music—and paging—is a necessity.

These monitors are capable of handling 200W of programmatic material at 8 Ohms, and feature a built-in multi-tap transformer for operation on distributed speaker lines. With an SPL of 110 dB, you can blast these speakers pretty loudly as well, while their cone geometry ensures a pleasurable listening experience in both on- and off-axis situations. Additionally, their PEI diaphragms render a smooth high-frequency response. But sound is not the only consideration: Kapton voice coil formers, JBL's WeatherEdge rubberized extensions, and a durable cabinet construction provide protection against heat, rain, wind, or anything else the elements might throw at you in the coming years.

Key Specs

Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 100 Hours:
75 W RMS
300 W Peak
For 2 Hours:
200 W Program
100 W RMS
400 W Peak
Constant Voltage / Transformer Taps
100 V:
30 / 15 / 7.5 W or 8 Ohms Bypass
70 V:
30 / 15 / 7.5 / 3.7 W or 8 Ohms Bypass
Impedance
8 Ohms (Thru Setting)
HF Driver
0.75" / 19 mm PEI Tweeter
LF Driver
5.25" / 13.5 cm Fiberglass Woofer
Color
White/ Black
Speaker
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 100 Hours:
75 W RMS
300 W Peak
For 2 Hours:
200 W Program
100 W RMS
400 W Peak
Constant Voltage / Transformer Taps
100 V:
30 / 15 / 7.5 W or 8 Ohms Bypass
70 V:
30 / 15 / 7.5 / 3.7 W or 8 Ohms Bypass
Impedance
8 Ohms (Thru Setting)
Drivers
HF Driver
0.75" / 19 mm PEI Tweeter
LF Driver
5.25" / 13.5 cm Fiberglass Woofer
Performance
Frequency Response
60 Hz to 20 kHz ±10 dB
85 Hz to 17 kHz ±3 dB
Sensitivity
90 dB
Coverage Angle
100° H x 100° V
Directivity
6 (Directivity/Q Factor)
7.6 dB (Directivity Index)
Crossover
Low-Pass:
12 dB/Octave
High-Pass:
12 dB/Octave
Recommended High-Pass Filter
60 Hz, 24 dB/Octave
Maximum Input Voltage
25.3 V RMS
50.6 V Peak
Transformer Insertion Loss
<0.94 dB
Connectivity
Inputs/Outputs
Screw Terminal
Maximum Wire Gauge
12 AWG / 2.5 mm
Physical
Certifications
RoHS, UL
Environmental Resistance
Dust/Water-Resistant (IP44)
Color
White
Construction Material
High-Impact Polystyrene, Metal Grille
Dimensions
9.6 x 7.4 x 5.7" / 243 x 188 x 145 mm
Weight
7.5 lb / 3.4 kg


What's in the Box:
  • JBL Control 25-1 Compact Indoor/Outdoor Background/Foreground Speaker (Single Unit)
  • InvisiBall Wall-Mounting System
  • Limited 1-Year Manufacturer Warranty
Select Color
From $95.21

Original: $272.02

-65%
JBL Control 25-1 Compact Speaker (Single)

$272.02

$95.21

Description

Key Features

  • 5.25" Woven-Fiberglass LF Drivers
  • 0.75" PEI Diaphragm Tweeters
  • 200W RMS at 8 Ohms
  • Durable, Weatherized Enclosures
  • InvisiBall Mounting Hardware
  • Zinc-Plated Grilles
  • Good for Off-Axis Listening
  • 60 Hz to 20 kHz Frequency Response



Overview

Designed by JBL, these Control 25-1 Loudspeakers are two-way 5.25" indoor/outdoor monitors featuring weather-protected circuitry, natural and powerful representations of the frequency spectrum, white enclosures, and JBL's proprietary InvisiBall mounting hardware. This hardware allows you to install the speakers through a hidden access point behind its logo badge. As such, the Control 25-1 suitable for venues, health clubs, theme parks, cafes, or anywhere where foreground/background music—and paging—is a necessity.

These monitors are capable of handling 200W of programmatic material at 8 Ohms, and feature a built-in multi-tap transformer for operation on distributed speaker lines. With an SPL of 110 dB, you can blast these speakers pretty loudly as well, while their cone geometry ensures a pleasurable listening experience in both on- and off-axis situations. Additionally, their PEI diaphragms render a smooth high-frequency response. But sound is not the only consideration: Kapton voice coil formers, JBL's WeatherEdge rubberized extensions, and a durable cabinet construction provide protection against heat, rain, wind, or anything else the elements might throw at you in the coming years.

Key Specs

Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 100 Hours:
75 W RMS
300 W Peak
For 2 Hours:
200 W Program
100 W RMS
400 W Peak
Constant Voltage / Transformer Taps
100 V:
30 / 15 / 7.5 W or 8 Ohms Bypass
70 V:
30 / 15 / 7.5 / 3.7 W or 8 Ohms Bypass
Impedance
8 Ohms (Thru Setting)
HF Driver
0.75" / 19 mm PEI Tweeter
LF Driver
5.25" / 13.5 cm Fiberglass Woofer
Color
White/ Black
Speaker
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 100 Hours:
75 W RMS
300 W Peak
For 2 Hours:
200 W Program
100 W RMS
400 W Peak
Constant Voltage / Transformer Taps
100 V:
30 / 15 / 7.5 W or 8 Ohms Bypass
70 V:
30 / 15 / 7.5 / 3.7 W or 8 Ohms Bypass
Impedance
8 Ohms (Thru Setting)
Drivers
HF Driver
0.75" / 19 mm PEI Tweeter
LF Driver
5.25" / 13.5 cm Fiberglass Woofer
Performance
Frequency Response
60 Hz to 20 kHz ±10 dB
85 Hz to 17 kHz ±3 dB
Sensitivity
90 dB
Coverage Angle
100° H x 100° V
Directivity
6 (Directivity/Q Factor)
7.6 dB (Directivity Index)
Crossover
Low-Pass:
12 dB/Octave
High-Pass:
12 dB/Octave
Recommended High-Pass Filter
60 Hz, 24 dB/Octave
Maximum Input Voltage
25.3 V RMS
50.6 V Peak
Transformer Insertion Loss
<0.94 dB
Connectivity
Inputs/Outputs
Screw Terminal
Maximum Wire Gauge
12 AWG / 2.5 mm
Physical
Certifications
RoHS, UL
Environmental Resistance
Dust/Water-Resistant (IP44)
Color
White
Construction Material
High-Impact Polystyrene, Metal Grille
Dimensions
9.6 x 7.4 x 5.7" / 243 x 188 x 145 mm
Weight
7.5 lb / 3.4 kg


What's in the Box:
  • JBL Control 25-1 Compact Indoor/Outdoor Background/Foreground Speaker (Single Unit)
  • InvisiBall Wall-Mounting System
  • Limited 1-Year Manufacturer Warranty
