Key Features
- Advanced DSP with Use-Case Presets
- 8-Band Parametric EQ
- Automatic Feedback Suppression + Ducking
- 90 x 60° Coverage Pattern
- 3-Channel Mixer with Level Control
- Two Combo XLR-1/4" Inputs + XLR Out
- 55 Hz to 20 kHz Frequency Response
- 128 dB Max SPL Output
- Redesigned High-Frequency Horn

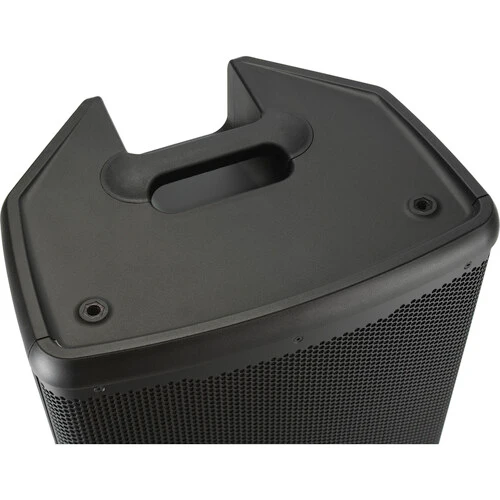

- Integrated Handle for Easy Transport
Overview
Designed to deliver professional-quality audio, the 15" JBL EON715 is a highly flexible, easy to use, 1300W powered portable PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers.
The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. When used as a main speaker, a pair of EON715's is well equipped to cover an audience of 300.

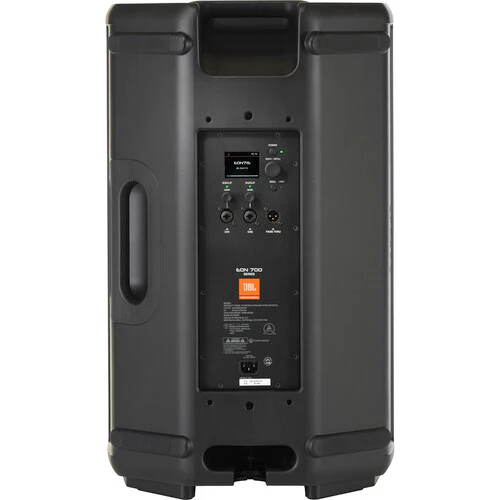

A push button and LCD menu screen on the back of the speaker allow you to physically switch between optimized use-case presets. The built-in DSP provides user control over the 3-channel mixer and the integrated dbx DriveRack, which offers Automatic Feedback Suppression (AFS), an 8-band output EQ, microphone ducking, and a 100ms speaker delay.
Key Specs
| Speaker Configuration |
1x 2-Way Loudspeaker
|
| Number of Input Channels |
3 (2 x Mono, 1 x Stereo)
|
| Amplifier Power Rating |
1x 1300 W Peak
1x 650 W RMS
|
| HF Driver |
1x 1" / 25.4 mm Horn-Loaded Compression Driver
|
| LF Driver |
1x 15" / 381 mm Woofer
|
| Audio I/O |
2x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input
1x XLR 3-Pin Male Balanced Line Thru/Output
|
| USB I/O |
No
|
| Bluetooth |
5.0
|
Portable PA System
| Speaker Configuration |
1x 2-Way Loudspeaker
|
| Number of Input Channels |
3 (2 x Mono, 1 x Stereo)
|
| Amplifier Power Rating |
1x 1300 W Peak
1x 650 W RMS
|
Speakers
| Enclosure Type |
Bass-Reflex
|
| HF Driver |
1x 1" / 25.4 mm Horn-Loaded Compression Driver
|
| LF Driver |
1x 15" / 381 mm Woofer
|
| LF Voice Coil |
2" / 50.8 mm
|
| Magnet |
LF Driver:
Ferrite
HF Driver:
Neodymium
|
Signal Processing
| Crossover |
1.9 kHz (Internal)
|
| Input Pad |
No
|
| EQ |
No
|
| Semi-Parametric EQ |
No
|
| Effects |
No
|
| Filters |
No
|
Performance
| Frequency Response |
55 Hz to 20 kHz -3 dB
|
| Frequency Range |
45 Hz to 20 kHz -10 dB
|
| Maximum SPL |
128 dB (Peak)
|
| Coverage Angle |
90° H x 60° V
|
| Gain Range |
0 dB to +36 dB
|
| I/O Impedance |
Input:
50 Kilohms (Unbalanced, Mono)
100 Kilohms (Balanced, Mono)
|
Connectivity
| Audio I/O |
2x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input
1x XLR 3-Pin Male Balanced Line Thru/Output
|
| USB I/O |
No
|
| Network I/O |
No
|
| Wireless Connectivity |
Bluetooth
|
| Bluetooth |
5.0
|
| AC Input Power |
Universal:
100 to 120 VAC, 50 / 60 Hz
|
Physical
| Transport Options |
2x Handle
|
| Mounting |
4 x M10 Fly Point
1 x 1.4" / 36 mm Pole Socket (Bottom)
1 x Bracket Point
|
| Cooling |
Convection
|
| Construction Material |
Metal Grille, Polypropylene
|
| Dimensions |
28.2 x 17.2 x 14.1" / 716 x 438 x 358 mm
|
| Weight |
37.48 lb / 17 kg
|
What's in the Box:
- JBL EON715 Two-Way 15" 1300W Powered Portable PA Speaker with Bluetooth and DSP
- AC Power Cord
-
Limited 1-Year Manufacturer Warranty
