Key Features
- Advanced DSP with Use-Case Presets
- 8-Band Parametric EQ
- Automatic Feedback Suppression + Ducking
- 110 x 60° Coverage Pattern
- 3-Channel Mixer with Level Control
- Two Combo XLR-1/4" Inputs + XLR Out
- 65 Hz to 20 kHz Frequency Response
- 125 dB Max SPL Output
- Redesigned High-Frequency Horn

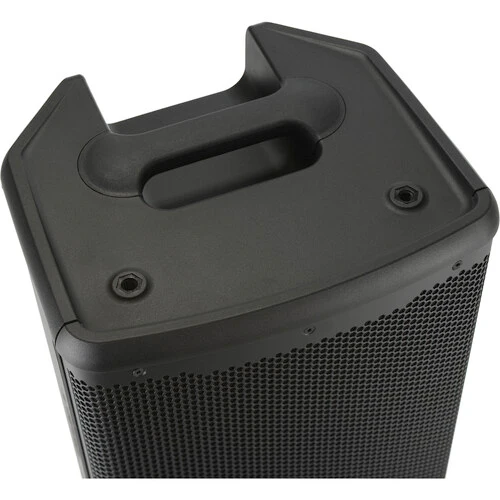

- Integrated Handle for Easy Transport
Overview

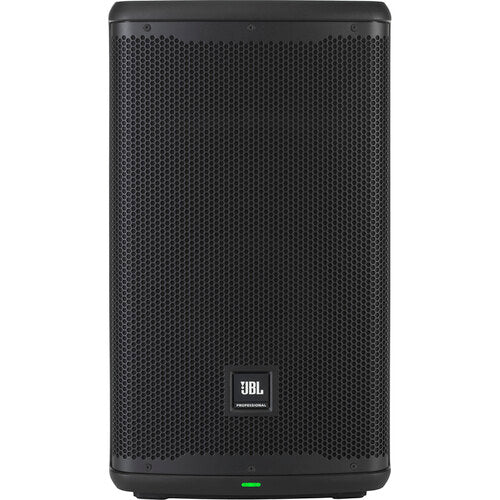

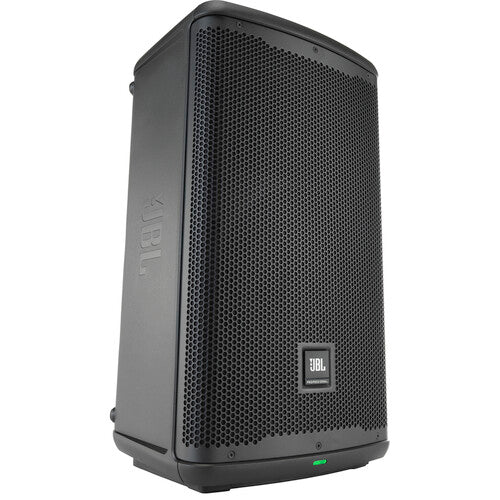

Designed to deliver professional-quality audio, the 10" JBL EON710 is a highly flexible, easy to use, 1300W powered portable PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers.
The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. When used as a main speaker, a pair of EON710's is well equipped to cover an audience of 250.

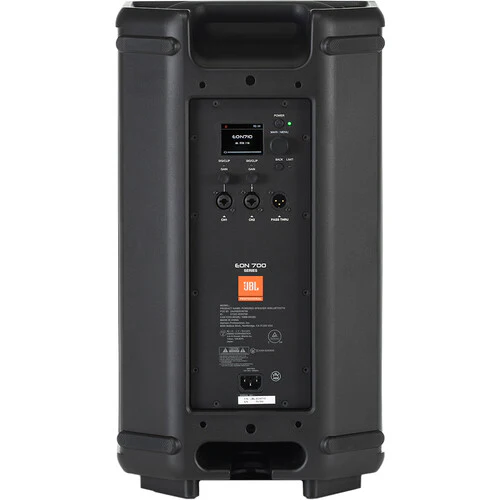

A push button and LCD menu screen on the back of the speaker allow you to physically switch between optimized use-case presets. The built-in DSP provides user control over the 3-channel mixer and the integrated dbx DriveRack, which offers Automatic Feedback Suppression (AFS), an 8-band output EQ, microphone ducking, and a 100ms speaker delay.
Key Specs
| Speaker Configuration |
1x 2-Way Loudspeaker
|
| Number of Input Channels |
3 (2 x Mono, 1 x Stereo)
|
| Amplifier Power Rating |
1x 1300 W Peak
1x 650 W RMS
|
| HF Driver |
1x 1" / 25.4 mm Horn-Loaded Compression Driver
|
| LF Driver |
1x 10" / 254 mm Woofer
|
| Audio I/O |
2x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input
1x XLR 3-Pin Male Balanced Line Thru/Output
|
| USB I/O |
No
|
| Bluetooth |
5.0
|
Portable PA System
| Speaker Configuration |
1x 2-Way Loudspeaker
|
| Number of Input Channels |
3 (2 x Mono, 1 x Stereo)
|
| Amplifier Power Rating |
1x 1300 W Peak
1x 650 W RMS
|
Speakers
| Enclosure Type |
Bass-Reflex
|
| HF Driver |
1x 1" / 25.4 mm Horn-Loaded Compression Driver
|
| LF Driver |
1x 10" / 254 mm Woofer
|
| LF Voice Coil |
2" / 50.8 mm
|
| Magnet |
LF Driver:
Ferrite
HF Driver:
Neodymium
|
Signal Processing
| Crossover |
2 kHz (Internal)
|
| Input Pad |
No
|
| EQ |
No
|
| Semi-Parametric EQ |
No
|
| Effects |
No
|
| Filters |
No
|
Performance
| Frequency Response |
65 Hz to 20 kHz -3 dB
|
| Frequency Range |
52 Hz to 20 kHz -10 dB
|
| Maximum SPL |
125 dB (Peak)
|
| Coverage Angle |
110° H x 60° V
|
| Gain Range |
0 dB to +36 dB
|
| I/O Impedance |
Input:
50 Kilohms (Unbalanced, Mono)
100 Kilohms (Balanced, Mono)
|
Connectivity
| Audio I/O |
2x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input
1x XLR 3-Pin Male Balanced Line Thru/Output
|
| USB I/O |
No
|
| Network I/O |
No
|
| Wireless Connectivity |
Bluetooth
|
| Bluetooth |
5.0
|
Power
| AC Input Power |
Universal:
100 to 120 VAC, 50 / 60 Hz
|
Physical
| Transport Options |
1x Handle
|
| Mounting |
4 x M10 Fly Point
1 x 1.4" / 36 mm Pole Socket (Bottom)
1 x Bracket Point
|
| Cooling |
Convection
|
| Construction Material |
Metal Grille, Polypropylene
|
| Dimensions |
23.1 x 13.1 x 12" / 587 x 332 x 305 mm
|
| Weight |
26.2 lb / 11.9 kg
|
Packaging Info
| Package Weight |
33 lb
|
| Box Dimensions (LxWxH) |
24.5 x 17.5 x 16.5"
|
What's in the Box:
- JBL EON710 Two-Way 10" 1300W Powered Portable PA Speaker with Bluetooth and DSP
- AC Power Cord
- Limited 5-Year Manufacturer Warranty (Drivers)
- Limited 3-Year Manufacturer Warranty (Amplifier and Electronics)
-
Limited 2-Year Manufacturer Warranty (Enclosure)
