JBL Control 30 3-Way Indoor/Outdoor Loudspeaker (Single)

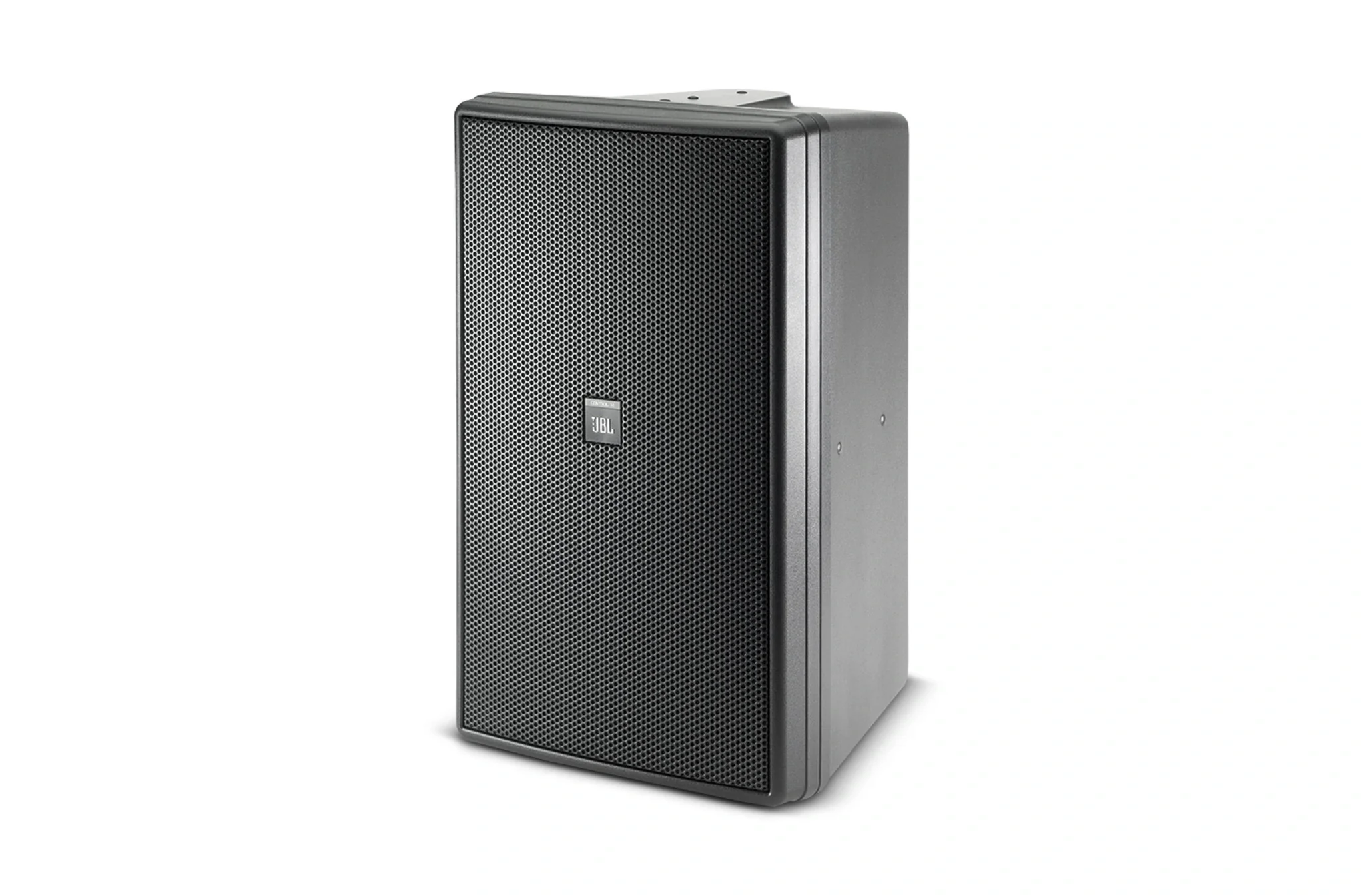

Product image 1
1 / 2

JBL Control 30 3-Way Indoor/Outdoor Loudspeaker (Single)

JBL Control 30 3-Way Indoor/Outdoor Loudspeaker (Single)


Overview

The JBL Control 30 3-Way Indoor/Outdoor Loudspeaker (Single) is a high-output, 3-way indoor/outdoor surface mount installation speaker, with a 500W continuous program power handling capacity, extended MF and HF coverage for either horizontal or vertical placement, a 70V/100V transformer, and a durable, weather-resistant enclosure. JBL's proprietary Invisiball mounting system allows for quick, simplified, precise placement and positioning of the speaker.

Key Features
  • High output 3-way indoor/outdoor surface mount speaker with 500W continuous program power capacity and all-weather enclosure
  • Durable 10" Fiberglass/Kevlar woofer cone, 1" tweeter with Titanium diaphragm
  • 5" symmetrical mid-high frequency horn with anodized aluminum cone allows for horizontal or vertical speaker mounting
  • Extended bandwidth, balanced frequency reproduction, 120° horizontal and 110° vertical HF coverage angles
  • 150W transformer for 70V or 100V lines, 4 Ohms Thru/Bypass; 150W, 75W, 38W, 19W (70V only)transformer taps for 70/100V operation
  • WeatherMax Mil Spec outdoor-capable design for enclosure, Thermoset composite-covered steel grill with WeatherMax foam backing; accepts wide variety of paint types to match surrounding decor
  • Transparent, virtually inaudible SonicGuard overload protection
  • Proprietary JBL Invisiball Mounting kit for simplified surface mount installation and positioning, sealed protective cover for speaker wire terminals
  • 10 additional 6mm attachment mounts for ceiling or U-mount suspension

Key Specs

Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
3-Way
Power Handling
For 100 Hours:
500 W Program
250 W RMS
Constant Voltage / Transformer Taps
70 V / 100 V
Impedance
4 Ohms
Transformer Wattage
150 W
Shielded
No
Drivers
HF Driver
1" / 25 mm Titanium-Coated Compression Driver
MF Driver
5" / 125 mm Aluminum Cone
MF Voice Coil
1" / 25 mm
LF Driver
10" / 250 mm Fiberglass Woofer
LF Voice Coil
2" / 5 cm
Performance
Frequency Response
38 Hz to 17 kHz -10 dB
40 Hz to 16 kHz ±3 dB
Maximum SPL
123 dB (Peak)
117 dB (Continuous)
Sensitivity
93 dB
Crossover
Low-Pass:
18 dB/Octave
High-Pass:
18 dB/Octave
Protections
Overcurrent
Connectivity
Inputs/Outputs
1x Screw Terminal
Physical
Environmental Resistance
Water-Resistant (IPX5)
Color
Black
Construction Material
High-Impact Polystyrene
Dimensions
23.3 x 14.6 x 13.5" / 593 x 372 x 345 mm
Weight
42 lb / 18.9 kg
Packaging Info
Package Weight
51.8 lb
Box Dimensions (LxWxH)
28 x 18 x 18"

What's in the Box:
  • JBL Control 30 3-Way Indoor/Outdoor Loudspeaker (Single)
  • MTC-PC2 Input Panel Cover
  • Invisiball Mounting Base
  • Invisiball Hex Wrench
  • Limited 1-Year Manufacturer Warranty
