JBL Control 23-1L High-Output Speaker

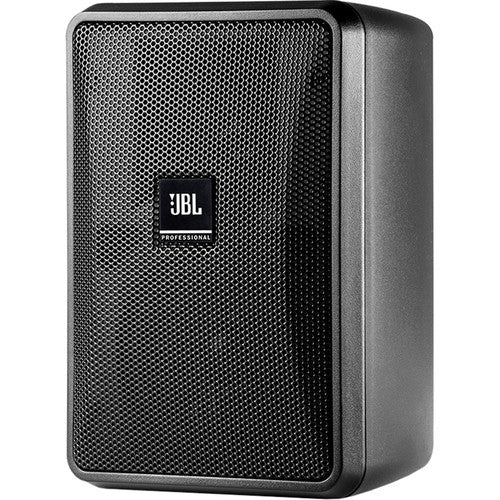

Product image 1

JBL Control 23-1L High-Output Speaker

JBL Control 23-1L High-Output Indoor/Outdoor Background/Foreground Speaker



Key Features
  • High-fidelity sound
  • 3" woofers with woven fiberglass cone
  • 1/2" PEI diaphragm tweeters with fluid cooling
  • Built-in InvisiBall mounting hardware
  • Weather-resistant enclosures and transducers
  • 100° x 100° coverage
  • 50W power handling (100W program)
  • Frequency response of 95 Hz to 19 kHz



Overview

The black pair of 2-way, 3" JBL Control 23-1L Loudspeakers are designed for background or foreground applications. Featuring weather-protected circuitry, the Control 23-1L can be used indoors or outdoors and are well suited for retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where high-quality, high-output indoor/outdoor foreground/background music (and/or paging) speakers are required. The speakers feature JBL's proprietary InvisiBall mounting hardware, which allows for installation through a hidden access point behind its logo badge.

The Control 23-1L require 100W (200W program) at 8 Ohms to power the 3" woven fiberglass woofer and 1/2" PEI diaphragm tweeter, which combine for a frequency response of 95 Hz to 19 kHz and a max SPL of 109 dB peak. Connections to the speaker are screw-down terminal strips with a zinc-plated copper and nickel-plated metal screws and washers. The JBL Control 23-1L includes the InvisiBall wall-mounting system and a hex key.



Key Specs

Active/Passive
Passive
Speaker Configuration
2-Way
Power Handling
For 2 Hours:
100 W Peak
50 W RMS
Impedance
8 Ohms (Nominal)
Drivers
HF Driver
1x 0.5" / 12.7 mm PEI Dome Tweeter
LF Driver
1x 3" / 76.2 mm Fiberglass Woofer
Performance
Frequency Range
70 Hz to 20 kHz -10 dB
Frequency Response
95 Hz to 19 kHz ±3 dB
Maximum SPL
109 dB SPL (Peak)
Sensitivity
86 dB
Coverage Angle
100° H x 100° V
Directivity
5.8 (Directivity/Q Factor)
7.2 dB (Directivity Index)
Recommended High-Pass Filter
70 Hz, 24 dB/Octave
Maximum Input Voltage
17.2 V RMS
34.4 V Peak
Connectivity
Inputs/Outputs
1x Screw Terminal Speaker Input
Maximum Wire Gauge
12 AWG / 2.5 mm
Physical
Certifications
RoHS
Environmental Resistance
Dust/Water-Resistant (IP44)
Color
Black
Mounting
Ball Mount
Dimensions
7.87 x 5.55 x 4.37" / 200 x 141 x 111 mm
Weight
3.4 lb / 1.5 kg (Each Speaker)
Packaging Info
Package Weight
7.55 lb
Box Dimensions (LxWxH)
12 x 9.5 x 7"


What's in the Box:
  • JBL Control 23-1L High-Output Indoor/Outdoor Background/Foreground Speaker
  • InvisiBall Wall-Mounting System
  • Hex Key
  • Limited 1-Year Manufacturer Warranty
