JBL Control 12C/T Professional Series 3" 40W Passive Ceiling Loudspeaker (Pair, Black)

Product image 1
1 / 2

JBL Control 12C/T Professional Series 3" 40W Passive Ceiling Loudspeaker (Pair, Black)

JBL Control 12C/T Professional Series 3" 40W Passive Ceiling Loudspeaker (Pair, Black)


Overview

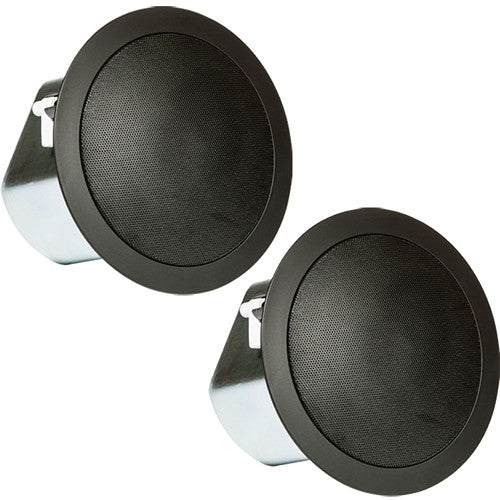

The black JBL Control 12C/T is a pair of Professional Series 3" 40W passive ceiling loudspeakers designed to deliver generous coverage and pleasing sound for low- to medium-volume applications such as offices, retail stores, hotels, and educational institutions.

Featuring a 3" full-range driver that handles up to 40W of continuous program power, the Control 12C/T is capable of producing a peak maximum SPL of 103 dB and a frequency range of 68 Hz to 17 kHz (-10 dB) while its 130° conical dispersion pattern ensures more coverage with fewer speakers.

The integrated 15W multi-tap transformer offers taps at 70V and 100V, plus a transformer bypass setting for low-impedance operation at 8 ohms. The UV-resistant, paintable ABS baffle comes with a pre-attached back can that enables fast and simple installation.

For low- to medium-volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, and educational facilities

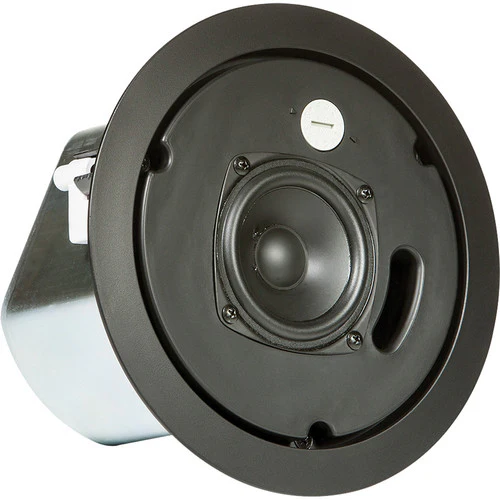

3" full-range driver with a lightweight high-temperature Kapton voice coil former and an aluminum coupling ring to reduce distortion and extend the high-frequency response of the system
FEA-optimized motor construction and cone geometry allow for smooth frequency response and improved off-axis performance



    Key Specs

    Active/Passive
    Passive
    Number of Included Speakers
    2
    Speaker Configuration
    Full-Range
    Power Handling
    At Low-Z:
    40 W Program
    Constant Voltage / Transformer Taps
    70 V:
    15 / 7.5 / 3.8 / 1.9 W or 8 Ohms Bypass
    100 V:
    15 / 7.5 / 3.8 W or 8 Ohms Bypass
    Impedance
    8 Ohms (Nominal)
    Transformer Wattage
    15 W
    Enclosure Type
    Bass-Reflex
    Shielded
    No
    Drivers
    Full-Range Driver
    1x 3" / 7.62 cm Cone
    Performance
    Frequency Range
    68 Hz to 17 kHz -10 dB
    Frequency Response
    95 Hz to 15 kHz ±3 dB
    Maximum SPL
    97 dB (Continuous)
    103 dB (Peak)
    Sensitivity
    84 dB (Half-Space)
    Coverage Angle
    130° (Conical)
    Directivity
    7.4 dB (Directivity Index)
    9.8 (Directivity/Q Factor)
    Connectivity
    Inputs/Outputs
    1x Screw Terminal 4-Pin Speaker Input/Thru (Locking, Removable)
    Maximum Wire Gauge
    12 AWG / 2.5 mm
    Physical
    Certifications
    UL
    Environmental Resistance
    No
    Color
    Black
    Mounting
    In-Ceiling
    Cutout Size
    6.7 x 6.7" / 17 x 17 cm
    Mount Surface Thickness
    Up to 1.4" / 3.6 cm
    Construction Material
    ABS, Steel
    Dimensions
    7.7 x 5.4" / 19.56 x 13.72 cm
    Weight
    3.5 lb / 1.6 kg (Each Speaker)
    Packaging Info
    Package Weight
    14.69 lb
    Box Dimensions (LxWxH)
    26.75 x 9.5 x 9.5"


    What's in the Box:
    • JBL Control 12C/T Professional Series 3" 40W Passive Ceiling Loudspeaker (Pair, Black)
    • 2 x C-Ring Support Backing Plates
    • 4 x Tile Support Rails (for 2' Tile Spans)
    • 2 x Cut-Out Templates
    • 2 x Paint Shields
    • 2 x Removable Locking Multi-Pin Connectors
    • 2 x Grilles
    • Limited 1-Year Manufacturer Warranty

    JBL Control 12C/T Professional Series 3" 40W Passive Ceiling Loudspeaker (Pair, Black)


    Overview

    The black JBL Control 12C/T is a pair of Professional Series 3" 40W passive ceiling loudspeakers designed to deliver generous coverage and pleasing sound for low- to medium-volume applications such as offices, retail stores, hotels, and educational institutions.

    Featuring a 3" full-range driver that handles up to 40W of continuous program power, the Control 12C/T is capable of producing a peak maximum SPL of 103 dB and a frequency range of 68 Hz to 17 kHz (-10 dB) while its 130° conical dispersion pattern ensures more coverage with fewer speakers.

    The integrated 15W multi-tap transformer offers taps at 70V and 100V, plus a transformer bypass setting for low-impedance operation at 8 ohms. The UV-resistant, paintable ABS baffle comes with a pre-attached back can that enables fast and simple installation.

    For low- to medium-volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, and educational facilities
    3" full-range driver with a lightweight high-temperature Kapton voice coil former and an aluminum coupling ring to reduce distortion and extend the high-frequency response of the system
    FEA-optimized motor construction and cone geometry allow for smooth frequency response and improved off-axis performance



      Key Specs

      Active/Passive
      Passive
      Number of Included Speakers
      2
      Speaker Configuration
      Full-Range
      Power Handling
      At Low-Z:
      40 W Program
      Constant Voltage / Transformer Taps
      70 V:
      15 / 7.5 / 3.8 / 1.9 W or 8 Ohms Bypass
      100 V:
      15 / 7.5 / 3.8 W or 8 Ohms Bypass
      Impedance
      8 Ohms (Nominal)
      Transformer Wattage
      15 W
      Enclosure Type
      Bass-Reflex
      Shielded
      No
      Drivers
      Full-Range Driver
      1x 3" / 7.62 cm Cone
      Performance
      Frequency Range
      68 Hz to 17 kHz -10 dB
      Frequency Response
      95 Hz to 15 kHz ±3 dB
      Maximum SPL
      97 dB (Continuous)
      103 dB (Peak)
      Sensitivity
      84 dB (Half-Space)
      Coverage Angle
      130° (Conical)
      Directivity
      7.4 dB (Directivity Index)
      9.8 (Directivity/Q Factor)
      Connectivity
      Inputs/Outputs
      1x Screw Terminal 4-Pin Speaker Input/Thru (Locking, Removable)
      Maximum Wire Gauge
      12 AWG / 2.5 mm
      Physical
      Certifications
      UL
      Environmental Resistance
      No
      Color
      Black
      Mounting
      In-Ceiling
      Cutout Size
      6.7 x 6.7" / 17 x 17 cm
      Mount Surface Thickness
      Up to 1.4" / 3.6 cm
      Construction Material
      ABS, Steel
      Dimensions
      7.7 x 5.4" / 19.56 x 13.72 cm
      Weight
      3.5 lb / 1.6 kg (Each Speaker)
      Packaging Info
      Package Weight
      14.69 lb
      Box Dimensions (LxWxH)
      26.75 x 9.5 x 9.5"


      What's in the Box:
      • JBL Control 12C/T Professional Series 3" 40W Passive Ceiling Loudspeaker (Pair, Black)
      • 2 x C-Ring Support Backing Plates
      • 4 x Tile Support Rails (for 2' Tile Spans)
      • 2 x Cut-Out Templates
      • 2 x Paint Shields
      • 2 x Removable Locking Multi-Pin Connectors
      • 2 x Grilles
      • Limited 1-Year Manufacturer Warranty
      $76.15

      Original: $217.56

      -65%
      JBL Control 12C/T Professional Series 3" 40W Passive Ceiling Loudspeaker (Pair, Black)—

      $217.56

      $76.15
