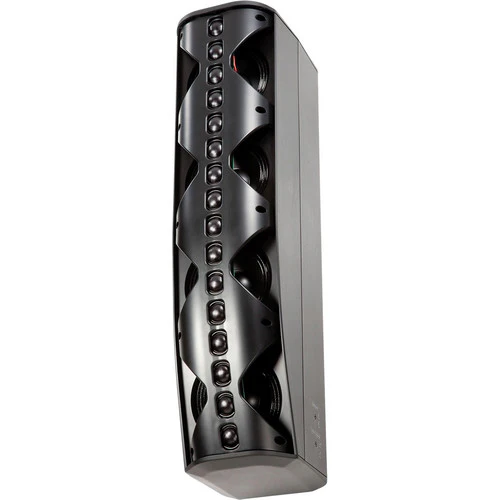

JBL CBT 70J-1 Line Array Column Loudspeaker (Black)

Product image 1
1 / 2

JBL CBT 70J-1 Line Array Column Loudspeaker (Black)

Key Features

  • Constant Beamwidth Technology
  • 5" Low Frequency Drivers
  • 1" Soft Dome Tweeters
  • Switchable Vertical Pattern Coverage
  • SonicGuard Overload Protection
  • Improved Mounting Bracket



Overview

The black CBT 70J-1 from JBL is a 2-way line array column loudspeaker, ideal for use in auditoriums, lecture halls, stadiums, theme parks, and more. The unit features four 5" high-power low frequency drivers and sixteen 1" soft dome tweeters to provide plenty of power and a wide frequency response.

The asymmetrical vertical coverage provides consistent front-to-back sound levels, while the patent-pending Constant Beamwidth Technology provides constant directivity and reduces out-of-coverage lobing. The vertical pattern coverage is switchable between 45° and 25°, allowing you to choose the best use for medium-throw or long-throw applications.

Switchable voicing provides a flat response in music mode and a mid-range presence boost in speech mode to accommodate music and speech programs. Built-in SonicGuard technology provides overload protection for HF devices. This model includes an improved mounting bracket that affords enhanced aiming flexibility and a stronger grille.



Key Specs

Configuration
Passive 2-Way
Enclosure Type
Sealed Line Array
Total Power Capacity
500 W (2 Hours)
2000 W Peak (2 Hours)
350 W (100 Hours)
1400 W Peak (100 Hours)
HF Driver
16 x 1" / 25.4 mm
MF Driver
No
LF Driver
4x 5" / 127 mm Paper
Frequency Range
60 Hz to 20 kHz -10 dB
Dimensions
to 54.66.7 x 9.3" / to 170 x 237 mm
Weight
45 lb / 20.4 kg



What's in the Box:

  • JBL CBT 70J-1 Line Array Column Loudspeaker (Black)
  • Wall Bracket
  • Limited 1-Year Manufacturer Warranty
Key Features

  • Constant Beamwidth Technology
  • 5" Low Frequency Drivers
  • 1" Soft Dome Tweeters
  • Switchable Vertical Pattern Coverage
  • SonicGuard Overload Protection
  • Improved Mounting Bracket



Overview

The black CBT 70J-1 from JBL is a 2-way line array column loudspeaker, ideal for use in auditoriums, lecture halls, stadiums, theme parks, and more. The unit features four 5" high-power low frequency drivers and sixteen 1" soft dome tweeters to provide plenty of power and a wide frequency response.

The asymmetrical vertical coverage provides consistent front-to-back sound levels, while the patent-pending Constant Beamwidth Technology provides constant directivity and reduces out-of-coverage lobing. The vertical pattern coverage is switchable between 45° and 25°, allowing you to choose the best use for medium-throw or long-throw applications.

Switchable voicing provides a flat response in music mode and a mid-range presence boost in speech mode to accommodate music and speech programs. Built-in SonicGuard technology provides overload protection for HF devices. This model includes an improved mounting bracket that affords enhanced aiming flexibility and a stronger grille.



Key Specs

Configuration
Passive 2-Way
Enclosure Type
Sealed Line Array
Total Power Capacity
500 W (2 Hours)
2000 W Peak (2 Hours)
350 W (100 Hours)
1400 W Peak (100 Hours)
HF Driver
16 x 1" / 25.4 mm
MF Driver
No
LF Driver
4x 5" / 127 mm Paper
Frequency Range
60 Hz to 20 kHz -10 dB
Dimensions
to 54.66.7 x 9.3" / to 170 x 237 mm
Weight
45 lb / 20.4 kg



What's in the Box:

  • JBL CBT 70J-1 Line Array Column Loudspeaker (Black)
  • Wall Bracket
  • Limited 1-Year Manufacturer Warranty
$667.03

Original: $1,905.79

-65%
JBL CBT 70J-1 Line Array Column Loudspeaker (Black)—

$1,905.79

$667.03

Description

Key Features

  • Constant Beamwidth Technology
  • 5" Low Frequency Drivers
  • 1" Soft Dome Tweeters
  • Switchable Vertical Pattern Coverage
  • SonicGuard Overload Protection
  • Improved Mounting Bracket



Overview

The black CBT 70J-1 from JBL is a 2-way line array column loudspeaker, ideal for use in auditoriums, lecture halls, stadiums, theme parks, and more. The unit features four 5" high-power low frequency drivers and sixteen 1" soft dome tweeters to provide plenty of power and a wide frequency response.

The asymmetrical vertical coverage provides consistent front-to-back sound levels, while the patent-pending Constant Beamwidth Technology provides constant directivity and reduces out-of-coverage lobing. The vertical pattern coverage is switchable between 45° and 25°, allowing you to choose the best use for medium-throw or long-throw applications.

Switchable voicing provides a flat response in music mode and a mid-range presence boost in speech mode to accommodate music and speech programs. Built-in SonicGuard technology provides overload protection for HF devices. This model includes an improved mounting bracket that affords enhanced aiming flexibility and a stronger grille.



Key Specs

Configuration
Passive 2-Way
Enclosure Type
Sealed Line Array
Total Power Capacity
500 W (2 Hours)
2000 W Peak (2 Hours)
350 W (100 Hours)
1400 W Peak (100 Hours)
HF Driver
16 x 1" / 25.4 mm
MF Driver
No
LF Driver
4x 5" / 127 mm Paper
Frequency Range
60 Hz to 20 kHz -10 dB
Dimensions
to 54.66.7 x 9.3" / to 170 x 237 mm
Weight
45 lb / 20.4 kg



What's in the Box:

  • JBL CBT 70J-1 Line Array Column Loudspeaker (Black)
  • Wall Bracket
  • Limited 1-Year Manufacturer Warranty
