JBL CBT 50LA-1 Line Array Column Loudspeaker

Product image 1
1 / 2

JBL CBT 50LA-1 Line Array Column Loudspeaker

JBL CBT 50LA-1 Line Array Column Loudspeaker


Overview

The JBL CBT 50LA-1 Line Array Column Loudspeaker features Constant Beamwidth Technology, so it's well-suited for use in lecture halls, transit centers, conference rooms, houses of worship, multipurpose spaces, architectural spaces, in-wall recessed locations, and more. This technology reduces the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers. This flexible, compact speaker is built for indoor and outdoor usage and has controls for switchable voicing (music or speech). This model features an improved mounting bracket which, when used, affords greater flexibility in aiming the speaker.



Key Features
  • Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing

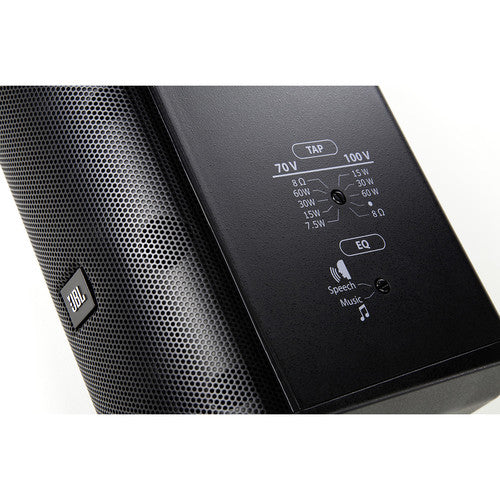

  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
  • Dynamic SonicGuard overload protection
  • Built-in 70V/100V transformer, plus 8Ω direct capability
  • Improved Mounting Bracket
  • Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt)
  • Continuously adjustable +/-15 degree tilt, as well as 5-degree fixed increment points within the range
  • Ten threaded mounting points located on back panel conform to industry standard rectangular 4.25 x 2.0" (108 x 51mm) pattern for OmniMount 30.0 and other compatible third-party brackets
  • Threaded mounting points can be utilized for suspension



Key Specs

Enclosure Type
Sealed Line Array
Total Power Capacity
600 W Peak (at 4 Ohms)
400 W Peak (at 8 Ohms)
Constant Voltage / Transformer Taps
100 V:
60 / 30 / 15 W or 8 Ohms Bypass
70 V:
7.5 W
System Impedance
8 Ohms
Drivers
Full-Range Driver
8x 2" / 50 mm
HF Driver
No
MF Driver
No
LF Driver
No
Magnet
Neodymium
Performance
Frequency Range
80 Hz to 20 kHz
Maximum SPL
121 dB (Peak, Speech EQ)
115 dB (Continuous, Speech EQ)
117 dB (Music EQ, Peak)
111 dB (Continuous)
Coverage Angle
150° H x 20° V
Directivity
15 dB (Directivity Index)
Speaker Sensitivity
93 dB (Speech EQ)
89 dB (Music EQ)
Protections
Overload
Connectivity
Audio I/O
2x Push Terminal Input
Signal Processing
Filters
No
Phase Adjustment
No
Physical
Mounting
10 x M62" / 51 mm Bracket Point (Rear)
Mounting/Monitor Angle
80° (As Floor Wedge/Monitor)
Handles
No
Construction Material
ABS, Fiberglass
Dimensions
to 20.83.9 x 6" / to 99 x 153 mm
Weight
9 lb / 4.1 kg
Packaging Info
Package Weight
16 lb
Box Dimensions (LxWxH)
29.6 x 12.5 x 7.75"

What's in the Box:
  • JBL CBT 50LA-1 Line Array Column Loudspeaker
  • Wall Bracket
  • Limited 1-Year Manufacturer Warranty
