BirdDog MAKI Ultra Box Camera with 12x Zoom (White)

Product image 1
1 / 3

BirdDog MAKI Ultra Box Camera with 12x Zoom (White)

Key Features

  • 12x Zoom & UHD 4K60 Resolution
  • NDI|HX2 & NDI|HX3 Support
  • HDMI & USB/UVC Outputs
  • Built-In Halo Tally
  • Color Matrix, API & Kelvin Control
  • PoE Support
  • Exceptional Low-Light Performance



Overview

Capture UHD 4K60 resolution video with this white BirdDog MAKI Ultra 4K Box Camera with 12x Zoom. Boasting a powerful 12x zoom and a 72.8° angle of view as well as color matrix, API, and Kelvin control, the versatile MAKI Ultra offers exceptional low-light performance and support for NDI|HX2 and NDI|HX3.

Physical connectivity options include an SDI output with a maximum resolution of 1080p60, and HDMI and USB/UVC outputs with independent resolution for direct connection to Microsoft Teams, Zoom, and more. A built-in halo tally augments the camera's broad functionality features, and PoE (Power over Ethernet) support allows you to power the camera using a single Ethernet cable and facilitating quick and easy setup with limited cable clutter.

Key Specs

General
Signal-to-Noise Ratio
>55 dB
Video Format
2160p @ 60/50/30/25 fps
1080p @ 60/50/30/25 fps
720p @ 60/50/30/25 fps
Image Sensor
1/2.8" CMOS
Network Protocols
NDI|HX2, NDI|HX3
Video Compression
H.264 / H.265
Aperture
f1.6 to f3.5
Focus
TOF, Auto, Manual
Standards
NTSC, PAL
PoE Support
PoE 802.3af
Control Protocol
VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI
Effective Pixels
>8.4 MP
Angle of View
Horizontal: 72.8° (W) - 6.8° (T)
Vertical: 44.1° (W) - 3.8° (T)
Noise Reduction
Yes
Buttons
Zoom Operation, Focus, Brightness, Menu Control, Image Freezing, Mode
Exposure Modes
Auto, Shutter Priority, Iris Priority, Manual
Sensor Resolution
3840 x 2160
Backlight Compensation
Yes
Optical Zoom
12x

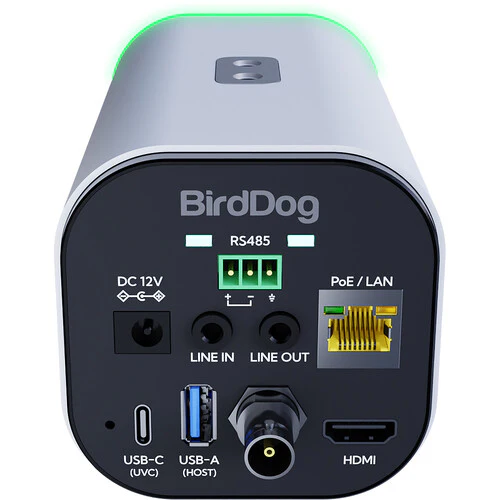

Inputs/Outputs
USB I/O
1 x USB-C Female Output
Video I/O
1x BNC (3G-SDI) Output
1x HDMI 2.0 Output
Audio I/O
1x 1/8" / 3.5 mm TRS Line Input
1x 1/8" / 3.5 mm TRS Line Output
Other I/O
1 x UBA-A (Host)
1 x 2-Pin Phoenix Port (RS-485)
1 x RJ45 (NDI & PoE)
Power
Power Source
PoE (Built-In), AC Adapter with Power Brick (Included)
DC Input Power
12 VDC at 1.5 A
Power Consumption
18 W (Maximum)
Physical
Color
White
Environmental Resistance
No
Operating Conditions
14 to 104°F / -10 to 40°C
Dimensions
5.7 x 3.1 x 3" / 145 x 78.5 x 76 mm

What is in the Box:

  • BirdDog MAKI Ultra Box Camera with 12x Zoom (White)
  • Remote Control
  • 12 VDC Power Supply
  • Limited 1-Year Manufacturer Warranty
