BirdDog Flex 4K BACKPACK HDMI to Full NDI Encoder

Product image 1
1 / 3

BirdDog Flex 4K BACKPACK HDMI to Full NDI Encoder

Key Features
  • Ultracompact Form with HDMI 2.0 Input
  • Supports up to UHD 4K30, 1080P60
  • PoE, Sony L-Series & DC Power Options
  • 15W DC Output to Power Monitor or Camera
  • Halo Tally for Talent & Operator
  • Supports BirdDog Comms
  • BirdDog Link Support
  • Includes an AC Power Supply



Overview

The BirdDog Flex 4K BACKPACK HDMI Encoder is an ultracompact NDI interface for HDMI video sources. Connect your onboard monitor, camera, or other video source, and have it available instantly on your NDI-enabled network. The BirdDog BACKPACK supports up to UHD 4K30 and 1080p60 resolution video.

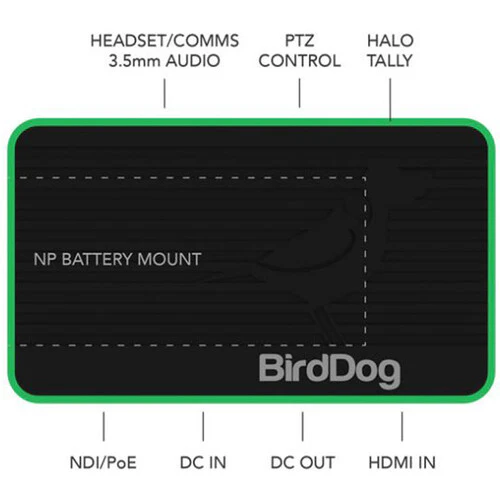

The versatile BACKPACK can be powered using a Sony L-Series-type battery, PoE, or the included AC power supply. A 15W DC output port enables you to power select monitors and cameras from your BACKPACK power source. Tally information is displayed for both the talent and the operator and passed through to compatible equipment. Connect a separately available cable to the 2.5mm RS232 port for pass-through control of non-NDI PTZ cameras. Additional features include an adaptive bitrate, a cooling thermal design, a 3.5mm audio input, and a 3.5mm headphone output.



Key Specs

Inputs/Outputs
Video Inputs
1x HDMI (2.0)
Audio Inputs
1x 1/8" / 3.5 mm TRS Line
Video Outputs
1x RJ45 (NDI)
Audio Outputs
1x 1/8" / 3.5 mm TRS
Other I/O
1x 2.5 mm RS-232
1x RJ45 LAN, PoE (Shared Video Output)
Expansion Slots
No
Format Support
Input Video Format
HDMI
UHD 4K at 25/29.97/30 fps
1080p at 25/29.97/30/50/59.94/60 fps
1080i at 50/59.94 fps
720p at 50/59.94/60 fps
Input Audio Format
LPCM (Linear Pulse-Code Modulation): 48 kHz
Embedded Audio
HDMI: 2-Channel
Standards
HDR Support
Not Specified by Manufacturer
IP Streaming
Video IP Encoding
NDI: 3840 x 2160 (60 to 360 Mb/s)
Hardware
Tally Light
Yes
Wireless
No
Power
Battery Support
1x Sony L-Series / NP-F Type
Power I/O
1x Barrel (12 VDC ) Input
1x Barrel (12 VDC ) Output
PoE Support
PoE+ 802.3at
Power Consumption
15 W
General
Certifications
EU 2004/108/EC, EU 2006/95/EC, FCC Part 15
Dimensions
4.21 x 2.48 x 1.67" / 107 x 63 x 42.5 mm
Weight
5.29 oz / 150 g



What's in the Box:

  • BirdDog Flex 4K BACKPACK HDMI to Full NDI Encoder
  • AC Power Supply
  • Limited 1-Year Manufacturer Warranty
Key Features
  • Ultracompact Form with HDMI 2.0 Input
  • Supports up to UHD 4K30, 1080P60
  • PoE, Sony L-Series & DC Power Options
  • 15W DC Output to Power Monitor or Camera
  • Halo Tally for Talent & Operator
  • Supports BirdDog Comms
  • BirdDog Link Support
  • Includes an AC Power Supply



Overview

The BirdDog Flex 4K BACKPACK HDMI Encoder is an ultracompact NDI interface for HDMI video sources. Connect your onboard monitor, camera, or other video source, and have it available instantly on your NDI-enabled network. The BirdDog BACKPACK supports up to UHD 4K30 and 1080p60 resolution video.

The versatile BACKPACK can be powered using a Sony L-Series-type battery, PoE, or the included AC power supply. A 15W DC output port enables you to power select monitors and cameras from your BACKPACK power source. Tally information is displayed for both the talent and the operator and passed through to compatible equipment. Connect a separately available cable to the 2.5mm RS232 port for pass-through control of non-NDI PTZ cameras. Additional features include an adaptive bitrate, a cooling thermal design, a 3.5mm audio input, and a 3.5mm headphone output.



Key Specs

Inputs/Outputs
Video Inputs
1x HDMI (2.0)
Audio Inputs
1x 1/8" / 3.5 mm TRS Line
Video Outputs
1x RJ45 (NDI)
Audio Outputs
1x 1/8" / 3.5 mm TRS
Other I/O
1x 2.5 mm RS-232
1x RJ45 LAN, PoE (Shared Video Output)
Expansion Slots
No
Format Support
Input Video Format
HDMI
UHD 4K at 25/29.97/30 fps
1080p at 25/29.97/30/50/59.94/60 fps
1080i at 50/59.94 fps
720p at 50/59.94/60 fps
Input Audio Format
LPCM (Linear Pulse-Code Modulation): 48 kHz
Embedded Audio
HDMI: 2-Channel
Standards
HDR Support
Not Specified by Manufacturer
IP Streaming
Video IP Encoding
NDI: 3840 x 2160 (60 to 360 Mb/s)
Hardware
Tally Light
Yes
Wireless
No
Power
Battery Support
1x Sony L-Series / NP-F Type
Power I/O
1x Barrel (12 VDC ) Input
1x Barrel (12 VDC ) Output
PoE Support
PoE+ 802.3at
Power Consumption
15 W
General
Certifications
EU 2004/108/EC, EU 2006/95/EC, FCC Part 15
Dimensions
4.21 x 2.48 x 1.67" / 107 x 63 x 42.5 mm
Weight
5.29 oz / 150 g



What's in the Box:

  • BirdDog Flex 4K BACKPACK HDMI to Full NDI Encoder
  • AC Power Supply
  • Limited 1-Year Manufacturer Warranty
