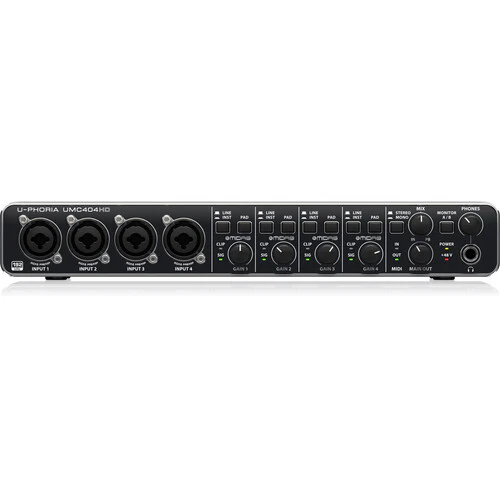

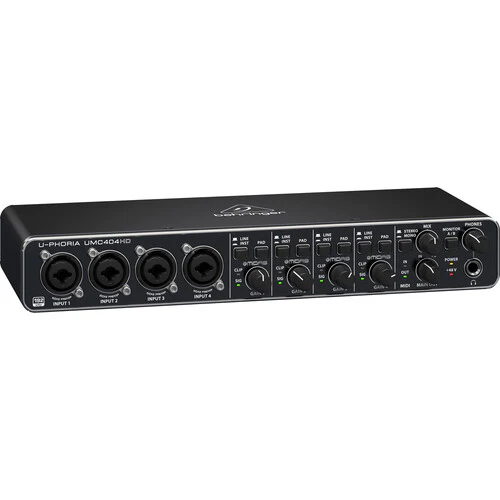

Behringer UMC404HD 4x4 Desktop USB Audio Interface
1 / 3
Behringer UMC404HD 4x4 Desktop USB Audio Interface
Key Features
For Home Studio Recording
Up to 24-Bit / 192 kHz Sampling
Four XLR-1/4" Combo Midas Input Jacks
Selectable 48V Phantom Power
USB-B 2.0 Host Connection
Headphone Output with Level Control
Zero-Latency Direct Monitoring
Selectable Input Pad and Signal Level
MIDI 5-Pin DIN I/O, 1/4" Inserts
Stereo RCA and 1/4" Playback Outputs
Overview
Enjoy convenient home recording and versatile connectivity with theUMC404HDfromBehringer, a 4x4 USB audio interface that offers up to 192 kHz sampling at 24 bits. With four XLR-1/4" combo inputs with high-quality Midas preamps, you can capture detailed sound from a range of audio sources, including mics, line signals, and Hi-Z instruments.
With 5-pin DIN MIDI I/O, you can connect your interface to a wide range of external MIDI devices, and synchronize everything through your UMC4024HD. Four 1/4" inserts let you integrate external FX with ease. Controls include individual input gain control for each input channel, output gain control, line or Hi-Z input level selection, input pad activation, and selectable 48V phantom power for condenser mics. You can enjoy mono or stereo headphone monitoring with the stereo/mono button, and with the Monitor A/B button you can engage in source selection for DJ-style cueing. The front panel provides LED indicators for input signal, power, clipping, and phantom power. With a durable metal chassis, this interface is designed to survive the test of time. The UMC404HD includes an external power adapter, which is ideal when using more than two phantom-powered mics.
Inputs: 10 Hz to 50 kHz 0/-3 dB Outputs: 10 Hz to 43 kHz 0/0.3 dB
Maximum Input Level
Mic: -4 dBu Line: +20 dBu Hi-Z: -3 dBu
Maximum Output Level
+3 dBu
Impedance
Mic : 3 Kilohms Hi-Z : 1 Megohm
Dynamic Range
100 dBA
Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
No
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
macOS / Windows
Mobile Device Compatibility
No
Required Hardware
USB 2.0 Port
Power
Power Requirements
AC/DC Power Adapter (Included), USB Bus Power
AC/DC Power Adapter
100 to 240 VAC (Included)
Power Consumption
2.5 W
What's in the Box:
Behringer UMC404HD 4x4 Desktop USB Audio Interface
Power Adapter
Limited 1-Year Manufacturer Warranty
