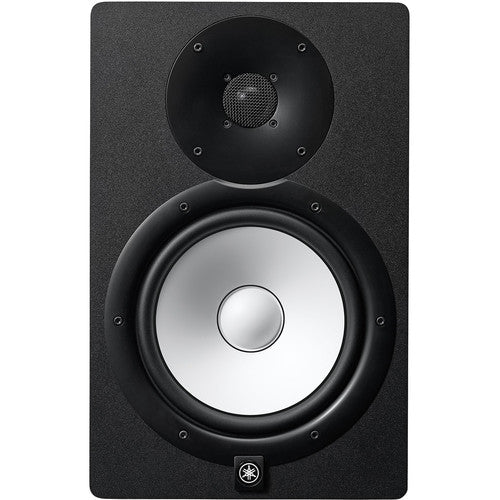

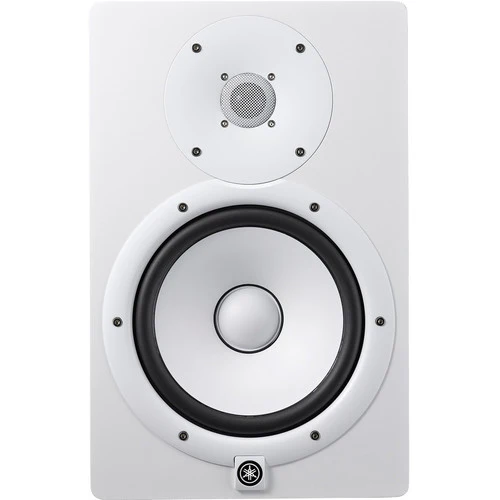

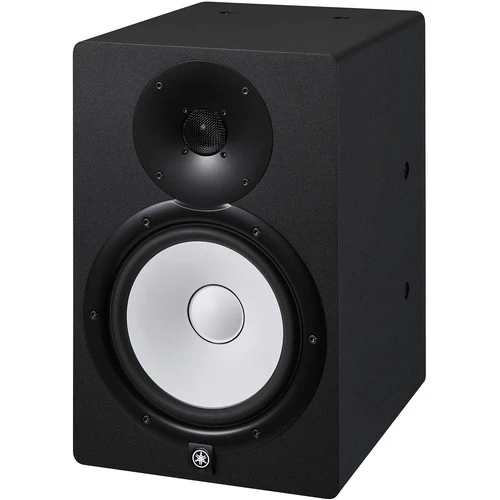

Yamaha HS8I 2-Way Bi-Amp Powered Studio Monitor

Product image 1
1 / 6
+1

Yamaha HS8I 2-Way Bi-Amp Powered Studio Monitor

Key Features
  • For Mounting on Walls and Ceilings
  • 8.0" Cone Woofer
  • 1" Dome Tweeter
  • Bi-Amp Design
  • Low-Resonance MDF Enclosure
  • Noise Reduction Technology
  • XLR and TRS Inputs
  • Flexible Mounting Options



Overview

The HS8I 2-Way Bi-Amp Powered Studio Monitor from Yamaha features 120W of output power, a 8.0" cone woofer, a 1" dome tweeter, response-tailoring controls to match the speaker output to a wide range of acoustic spaces, and a standard XLR connector along with a phone jack for direct connection of electronic musical instruments and other sources. The powered studio monitor can be used to reproduce audio in various environments such as recording studios, home studios, cafes, restaurants, and more.

Built with a low-resonance enclosure design, the HS series MDF cabinet delivers a damped acoustic response that is well suited for reference monitors. The bi-amp design offers a 75W amp for the woofer, and a 45W amp for the tweeter. Other features include noise-reduction technology to reduce audible noise up to 6 dB at the speaker port. In addition, the HS8I studio monitor can be wall or ceiling mounted.


Key Specs

Monitor Type & Configuration
Active 2-Way
Total Power Output
120 W Peak
Tweeter
1x 1" / 25 mm Dome
Woofer
1x 8" / 20.3 cm Cone
Frequency Range
47 Hz to 24 kHz (-3 dB)
38 Hz to 30 kHz (-10 dB)
Audio I/O
1x XLR 3-Pin Balanced Input (10 Kilohms)
1x 1/4" TRS Balanced Input (10 Kilohms)
Digital Audio I/O
No
Network I/O
No
Wireless
No
Number of Included Monitors
Single Monitor
Enclosure
Bass-Reflex/Ported, Shielded
Total Power Output
120 W Peak

Drivers
Tweeter
1x 1" / 25 mm Dome
Woofer
1x 8" / 20.3 cm Cone
Amplifiers
HF: 45 W
LF: 75 W

Performance
Frequency Range
47 Hz to 24 kHz (-3 dB)
38 Hz to 30 kHz (-10 dB)
Analog Input Sensitivity/Gain
-10 dBu (Continuously Variable)

Signal Processing
EQ
1x HF Shelf: -2 to +2 dB
1x LF Shelf: -4 to 0 dB at 500 Hz (2 dB Increments)
Crossover Frequency
2 kHz

Connectivity
Audio I/O
1x XLR 3-Pin Balanced Input (10 Kilohms)
1x 1/4" TRS Balanced Input (10 Kilohms)
Digital Audio I/O
No
Network I/O
No
USB
No
Wireless
No
Power
Power Consumption
60 W

Physical
Color
Black, White
Monitor Orientation
Vertical
Enclosure Material
MDF
Mounting Points
2x M8 (Top Panel)
2x M8 (Side Panels)
2x M8 (Bottom Panel)
Dimensions (W x H x D)
9.8 x 15.4 x 13.1" / 25 x 39 x 33.4 cm
Weight
23.6 lb / 10.7 kg

Packaging Info
Package Weight
30.35 lb
Box Dimensions (LxWxH)
20.9 x 16.2 x 14.2"



What's in the Box:

  • Yamaha HS8I 2-Way Bi-Amp Powered Studio Monitor
  • Limited 1-Year Manufacturer Warranty
Key Features
  • For Mounting on Walls and Ceilings
  • 8.0" Cone Woofer
  • 1" Dome Tweeter
  • Bi-Amp Design
  • Low-Resonance MDF Enclosure
  • Noise Reduction Technology
  • XLR and TRS Inputs
  • Flexible Mounting Options



Overview

The HS8I 2-Way Bi-Amp Powered Studio Monitor from Yamaha features 120W of output power, a 8.0" cone woofer, a 1" dome tweeter, response-tailoring controls to match the speaker output to a wide range of acoustic spaces, and a standard XLR connector along with a phone jack for direct connection of electronic musical instruments and other sources. The powered studio monitor can be used to reproduce audio in various environments such as recording studios, home studios, cafes, restaurants, and more.

Built with a low-resonance enclosure design, the HS series MDF cabinet delivers a damped acoustic response that is well suited for reference monitors. The bi-amp design offers a 75W amp for the woofer, and a 45W amp for the tweeter. Other features include noise-reduction technology to reduce audible noise up to 6 dB at the speaker port. In addition, the HS8I studio monitor can be wall or ceiling mounted.


Key Specs

Monitor Type & Configuration
Active 2-Way
Total Power Output
120 W Peak
Tweeter
1x 1" / 25 mm Dome
Woofer
1x 8" / 20.3 cm Cone
Frequency Range
47 Hz to 24 kHz (-3 dB)
38 Hz to 30 kHz (-10 dB)
Audio I/O
1x XLR 3-Pin Balanced Input (10 Kilohms)
1x 1/4" TRS Balanced Input (10 Kilohms)
Digital Audio I/O
No
Network I/O
No
Wireless
No
Number of Included Monitors
Single Monitor
Enclosure
Bass-Reflex/Ported, Shielded
Total Power Output
120 W Peak

Drivers
Tweeter
1x 1" / 25 mm Dome
Woofer
1x 8" / 20.3 cm Cone
Amplifiers
HF: 45 W
LF: 75 W

Performance
Frequency Range
47 Hz to 24 kHz (-3 dB)
38 Hz to 30 kHz (-10 dB)
Analog Input Sensitivity/Gain
-10 dBu (Continuously Variable)

Signal Processing
EQ
1x HF Shelf: -2 to +2 dB
1x LF Shelf: -4 to 0 dB at 500 Hz (2 dB Increments)
Crossover Frequency
2 kHz

Connectivity
Audio I/O
1x XLR 3-Pin Balanced Input (10 Kilohms)
1x 1/4" TRS Balanced Input (10 Kilohms)
Digital Audio I/O
No
Network I/O
No
USB
No
Wireless
No
Power
Power Consumption
60 W

Physical
Color
Black, White
Monitor Orientation
Vertical
Enclosure Material
MDF
Mounting Points
2x M8 (Top Panel)
2x M8 (Side Panels)
2x M8 (Bottom Panel)
Dimensions (W x H x D)
9.8 x 15.4 x 13.1" / 25 x 39 x 33.4 cm
Weight
23.6 lb / 10.7 kg

Packaging Info
Package Weight
30.35 lb
Box Dimensions (LxWxH)
20.9 x 16.2 x 14.2"



What's in the Box:

  • Yamaha HS8I 2-Way Bi-Amp Powered Studio Monitor
  • Limited 1-Year Manufacturer Warranty
Select Color
From $152.39

Original: $435.40

-65%
Yamaha HS8I 2-Way Bi-Amp Powered Studio Monitor—
